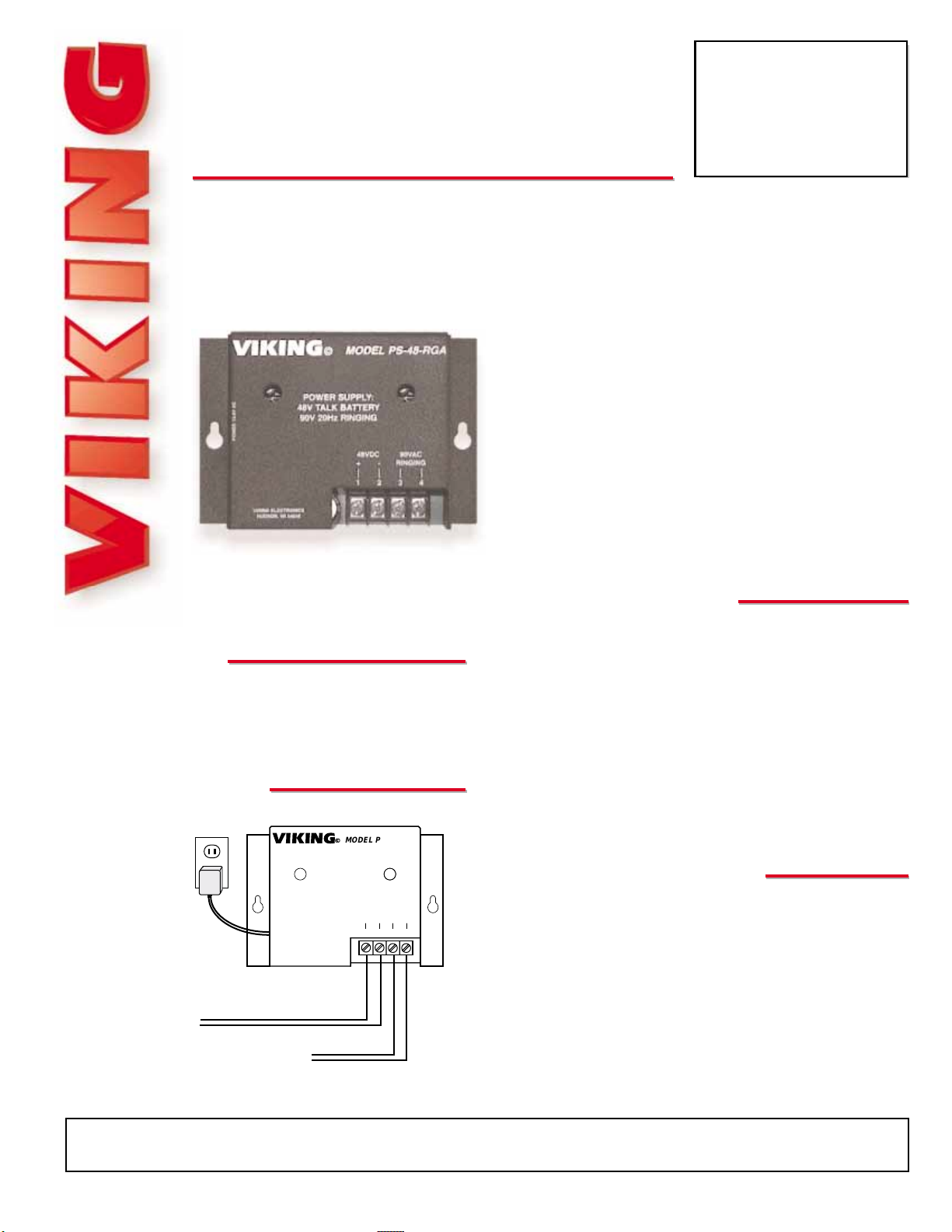

PS-48-RGA

Talk Battery and Ring

Voltage Power Supply

April 6, 2000

The PS-48-RGA power supply provides talk battery

plus standard ring voltage where and when needed.

Housed in a convenient wall mount enclosure, the

PS-48-RGA comes complete with a plug-in power

supply.

The PS-48-RGA will provide telephone communica-

tion equipment with 48V DC talk battery.

In addition, the PS-48-RGA will produce 90V 20 Hz

sine wave ring voltage rated up to 10 REN. This

allows a phone system to sequence up to 30 ringing

phones.

Provide Talk Battery and Ring Voltage to

Equipment that Requires it!

• Electronic Key Systems

• Paging systems

• OPXs

Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided

Dimensions: 135mm x 90mm x 45mm (5.25” x 3.5” x 1.73”)

Shipping Weight: 0.9 kg (2 lbs)

Environmental: 0° C to 32° C (32° F to 90° F) with 5% to 95%

non-condensing humidity

DC Power: 48V DC (nominal, 150mA maximum current)

Ringing Power: 90V AC @ 20 Hz, capable of ringing 5 REN

with DC power fully loaded, capable of ringing 10 REN with DC

power not used

Connections: 4 position screw terminal

TECHNICAL

Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or

subsidiaries assume no responsibility for errors and omissions contained in this information. Revisions of this document or new editions of it may be issued to incorporate

such changes.
