SITE PREPARATIONS AND CONSIDERATIONS

FULL OVERLAY MODEL 30” W. FULL HEIGHT WINE CELLAR

CABINET OPENING DIMENSIONS

2255””**((6633..55ccmm))

*Full overlay models fit flush in 25” (63.5

cm) deep cabinet openings. They can be

installed in standard 24” (61.0 cm) deep

openings. The door faces and top grille

will protrude 3/4” (1.9 cm) into the room.

3300””((7766..22ccmm))

ooppeenniinngg

883333//44””((221122..77ccmm))MMaaxx..

aannttii--ttiippbbooaarrddaannddooppeenniinngghheeiigghhtt

882277//88””((221100..55ccmm))MMiinn..

aannttii--ttiippbbooaarrddaannddooppeenniinngghheeiigghhtt

DOOR SWING AND TIPPING CONSIDERATIONS

BBaacckkwwaarrddTTiippppiinnggRRaaddiiuussSSiiddeeTTiippppiinnggRRaaddiiuuss

9900oo

111100oo

112200oo

113333//88””

((3344..00ccmm))

449933//44””

((112288..99ccmm))

551133//88””

((113300..55ccmm))

552211//22””

((113333..33ccmm))

8877//88””

((2222..55ccmm))

1133//88””

((33..55ccmm))

11006611//22””

((227700..55ccmm))

885511//22””

((221177..11ccmm))

11112211//22””

((228855..77ccmm))

887711//22””

((222222..22ccmm))

Overall dimensions

CABINET INFORMATION

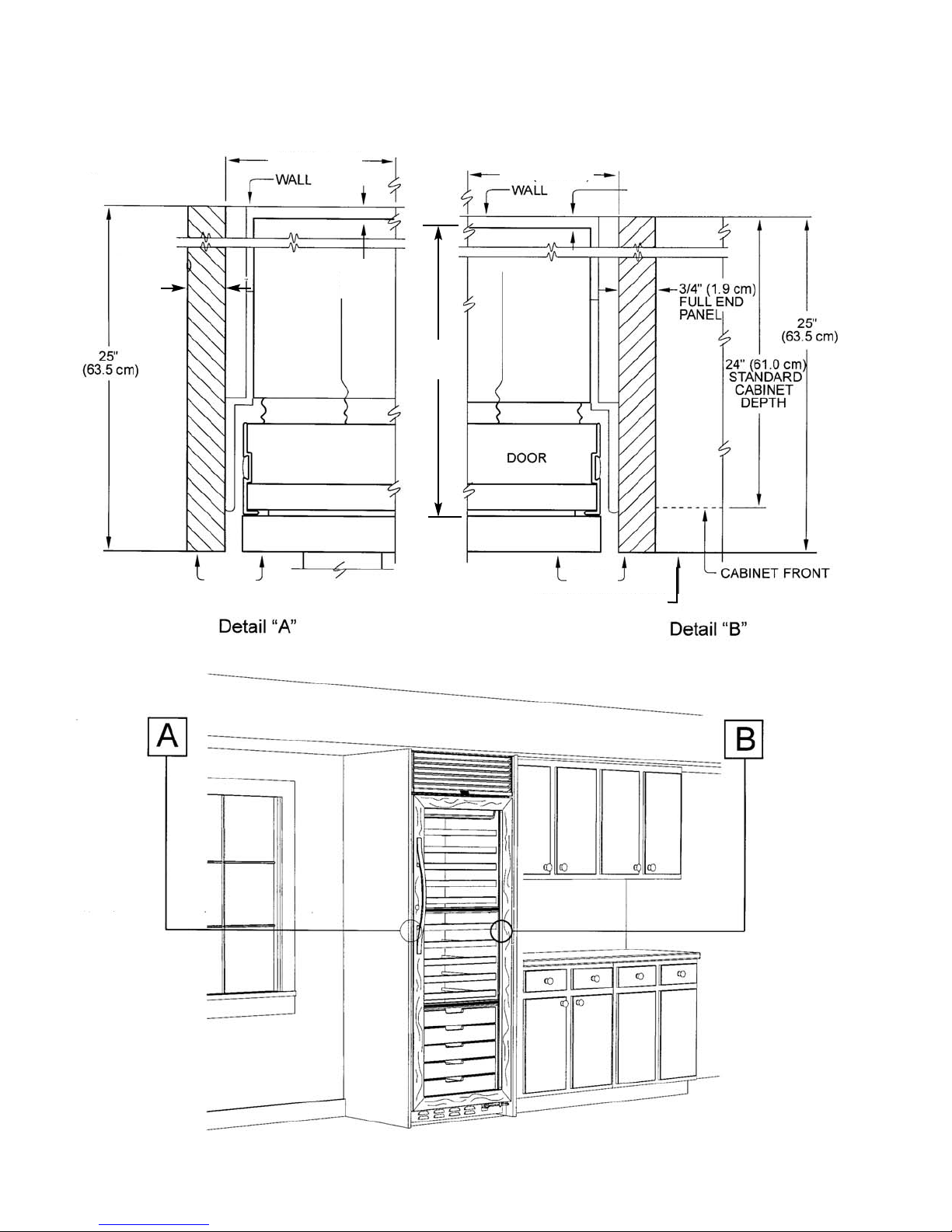

Full overlay models, (with 3/4” [1.9 cm] thick panels and custom handles locally supplied), fit flush in 25” (63.5 cm)

deep (countertop depth) cabinet openings with no protrusion into room except custom handles.

3300””((7766..22ccmm))3300””((7766..22ccmm))

11//44””

((00..66ccmm))

11//44””((00..66ccmm))SSPPAACCEEIIFF2255””((6633..55ccmm))

CCAABBIINNEETTDDEEPPTTHHIISSUUSSEEDD

2244””

((6611..00ccmm))

33//44””((11..99ccmm))

FFuullllEEnndd

PPaanneell

FFLLUUSSHHFFLLUUSSHH

CCOOUUNNTTEERRTTOOPPDDEEPPTTHH

CABINET INFORMATION (continued)

Full overlay models can be installed in standard 24” (61.0 cm) deep openings. However, the door faces and top

ventilation grille will protrude 3/4” (1.9 cm) into the room, ideal for alignment with full overlay cabinet doors.

11//44””((00..66ccmm))SSPPAACCEEIIFF2255””((6633..55ccmm))

CCAABBIINNEETTDDEEPPTTHHIISSUUSSEEDD

2244””

((6611..00ccmm))

RREEFFRRIIGGEERRAATTOORRAANNDD

CCAABBIINNEETTDDOOOORRFFLLUUSSHH

CCAABBIINNEETTDDOOOORR

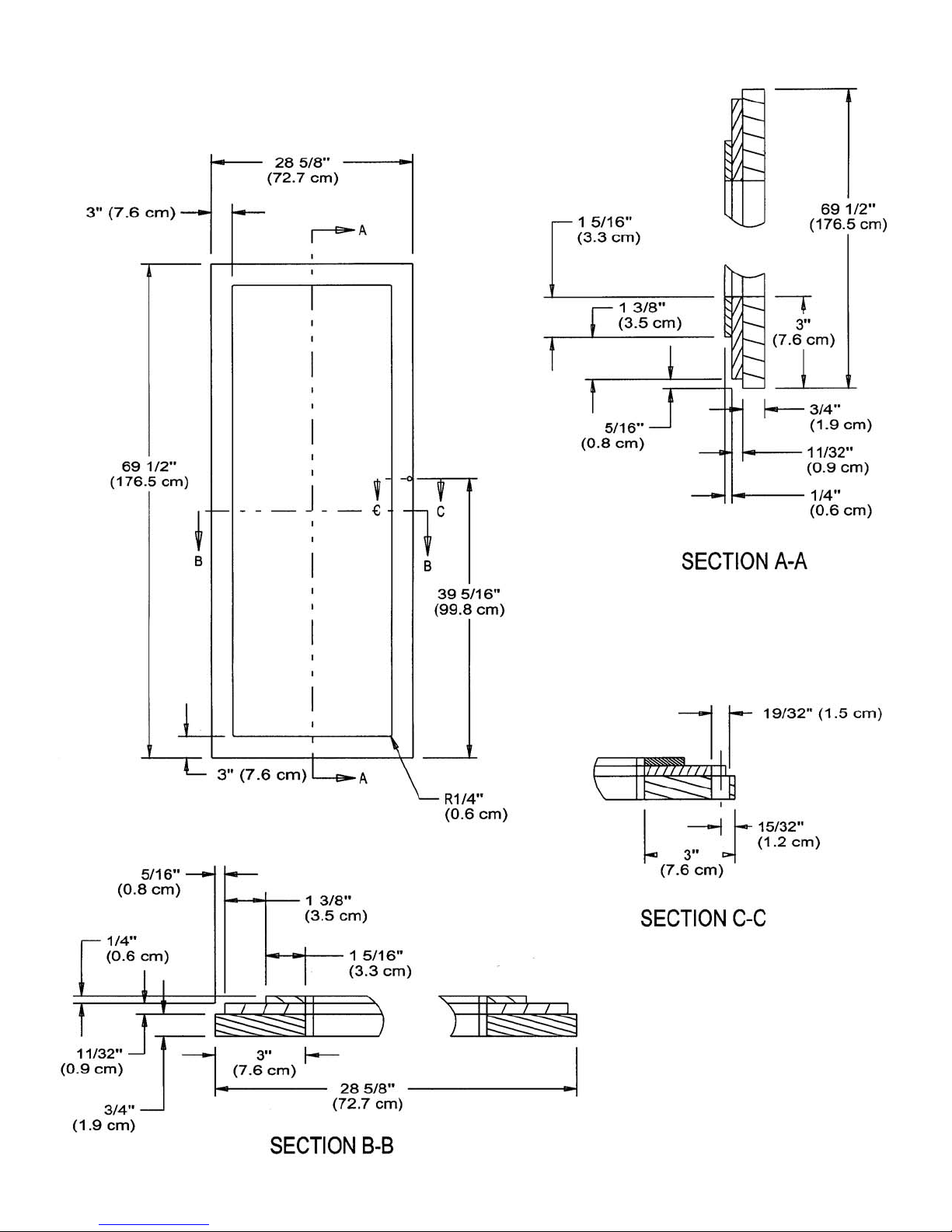

Custom panel dimensions

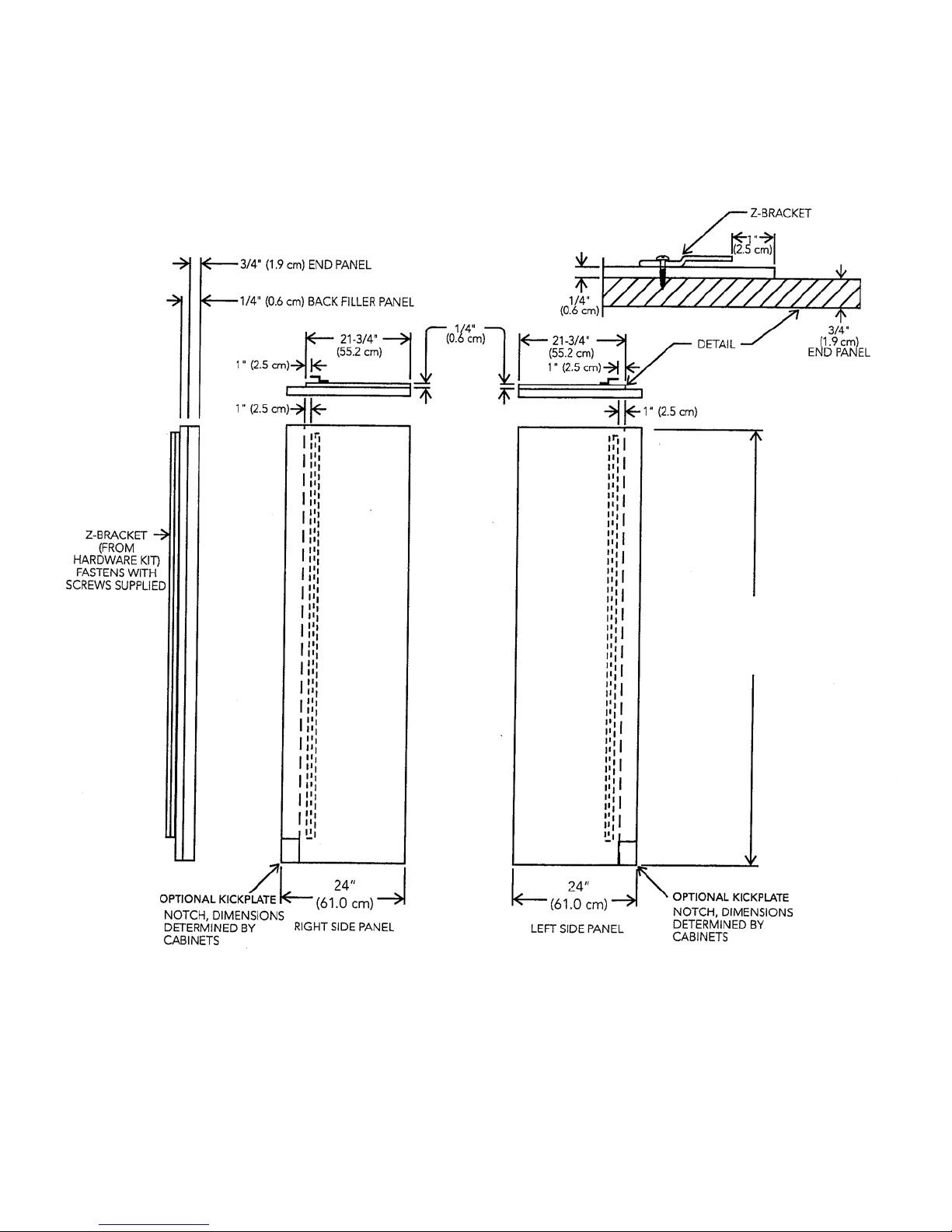

CUSTOM SIDE PANEL DIMENSIONS

For 3/4” (1.9 cm) Side Panels

NNOOTTEE::Adding a 3/4” (1.9 cm) side panel adds an additional 3/4” (1.9 cm) to the

overall width of the product for each side panel used. RReeqquuiirreessssiiddeeppaanneell

hhaarrddwwaarreekkiitt((KKiittmmooddeellnnuummbbeerr--SSPPHHKKDDSS))

82 7/8” (210.5 cm) TO 83 3/4” (212.7cm)

DEPENDING ON HOW HIGH LEVELING

FEET ARE RAISED AND CABINET

ENCLOSURE HEIGHT

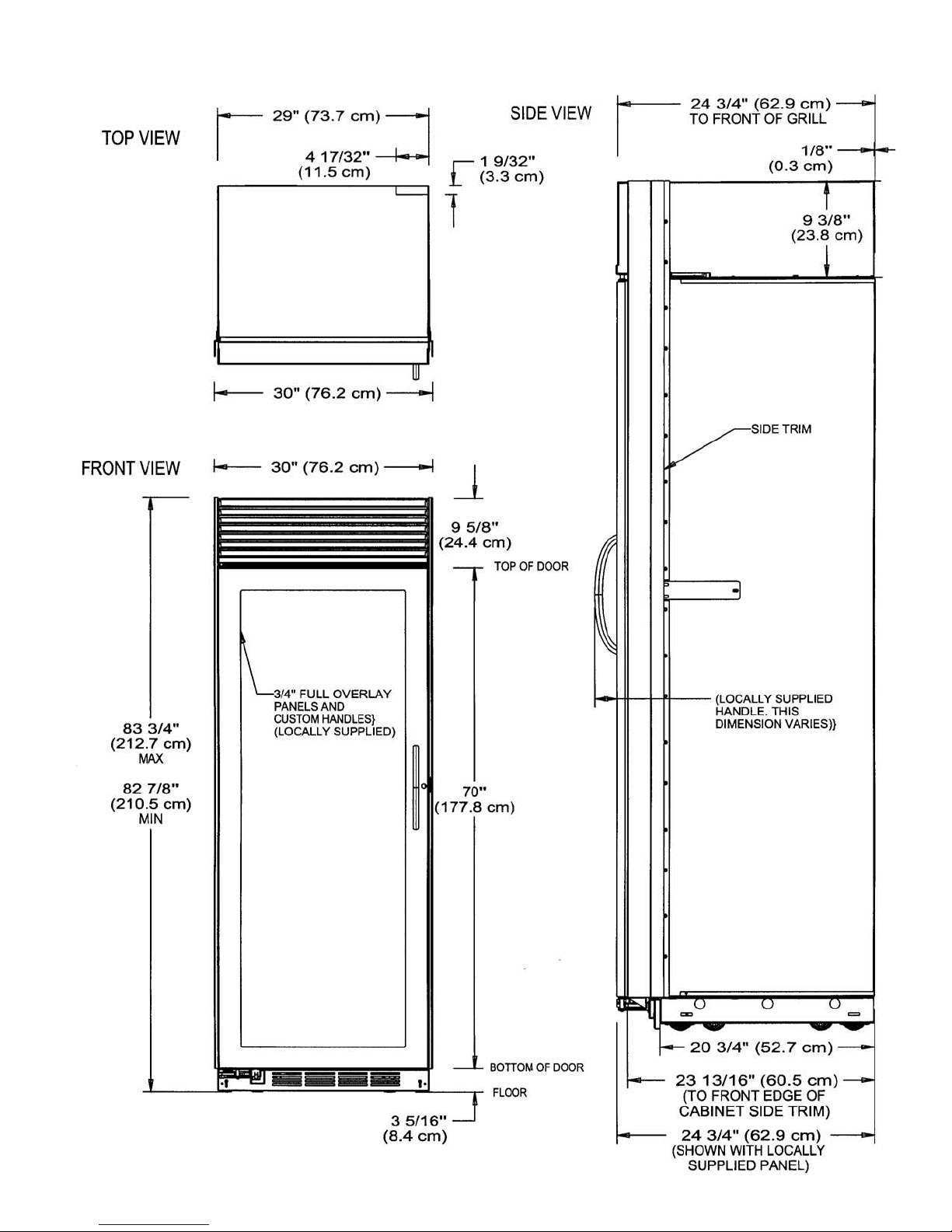

BASIC SPECIFICATIONS AND DIMENSIONS

DDEESSCCRRIIPPTTIIOONNDDFFWWBB330000

Overall Width 30” (76.2 cm)

Overall Height from Bottom Min. 82 1/2” (209.6 cm) to Max. 83 3/4” (212.7 cm)

Overall Depth from Rear To front edge of side trim 23 13/16” (60.5 cm)

To front edge of cabinet side trim 24 3/4” (62.9 cm)

To front edge of door trim 24” (61.0 cm)

Cutout Width 30” (76.2 cm)

Cutout Height 82 7/8” (210.5 cm) min.; 83 3/4” (212.7 cm) max.

Cutout Depth 25” (63.5 cm) - can be installed in 24” (61.0 cm) deep openings; door faces

and top grille will protrude 3/4” (1.9 cm) into room.

Electrical Requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with grounded

3-prong plug attached to product.

Maximum Amp Usage 2.0 amps

Overall Capacity 150 bottles

Approximate Shipping Weight 560 lbs. (252 kg)
