Vinotemp 4500DS Manuale utente

WINEMATE Ducted System

Installation, Operation & Care Manual

VINO4500DS

VINO6500DS

VINO8500DS

- 1 -

TABLE OF CONTENTS

Important Safety Information…..........................................2

Feature Description…………………………….……………..3

Installation Instruction………………………………………..6

Use and Temperature Control…………..…………………10

Care Guide……………………………………………………12

Troubleshooting……………………………………………..13

Customer Support……………………………………………15

Warranty……………………………………………………….16

- 2 -

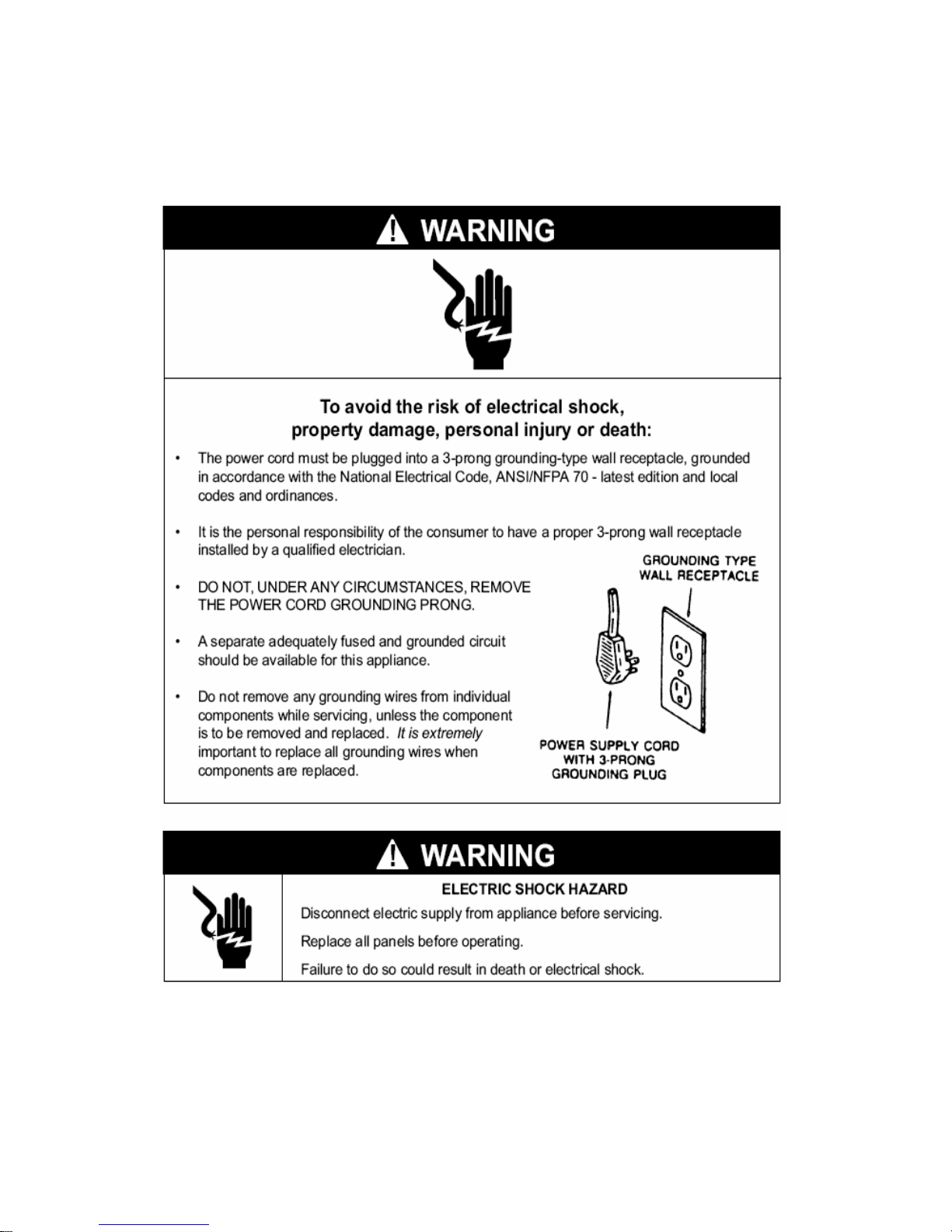

Important Safety Information

•DO NOT USE A GROUND FAULT INTERRUPTER (GFI).

•A DEDICATED 20 AMPCIRCUIT IS HIGHLY RECOMMENDED.

- 3 -

Feature Description

•The WINEMATE ducted cooling system is designed and used to provide a

stable temperature between 55~65 °F for a properly insulated room at a

normal environment.

•The wine room space will maintain humidity of 50~70% RH even when the

environment becomes dry or humid.

•These temperatures and humilities are optimized for long term storage of

wine, fur and tobacco.

•Ducted cooling systems are designed for both outdoor and indoor

installation.

•Back-curved impeller fans are good for 50 ft long duct use to cut the

operation noise.

•Self-contained ready for use with no extra tubing in field.

The dimension and capacity are specified as follows:

UNIT DIMENSIONS

Model Capacity (Btu/h)

55/90°F Electrical

Refrigerant L”XW”XH” Weight

(lb)

VINO4500DS 4500 115V 60HZ

R134a 45X31X23 96

VINO6500DS 6500 115V 60HZ

14A

R134a 45X31X23 170

VINO8500DS 8500 115V 60HZ

17A

R134a 45X31X23 220

- 4 -

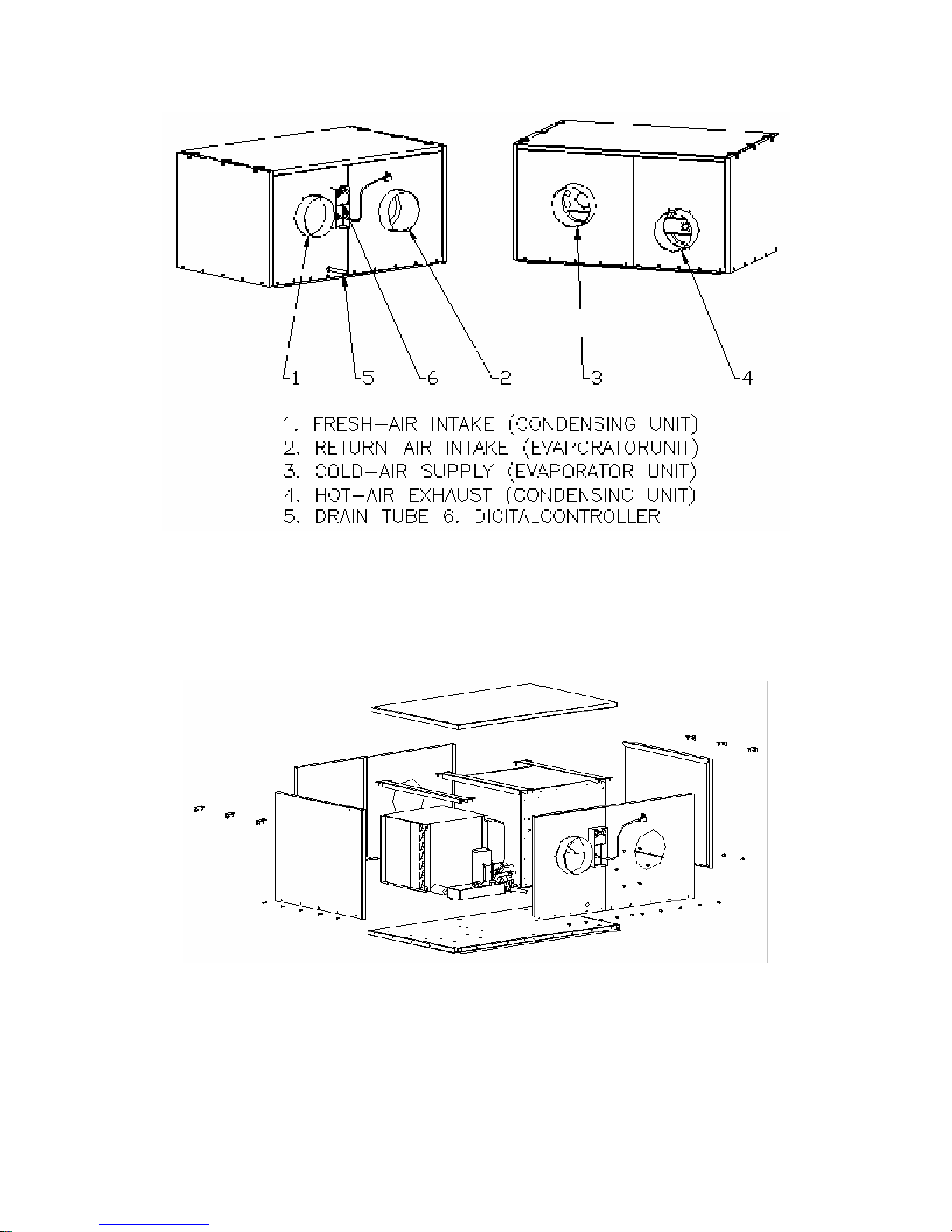

FEATURES

EXPLODED VIEW

- 5 -

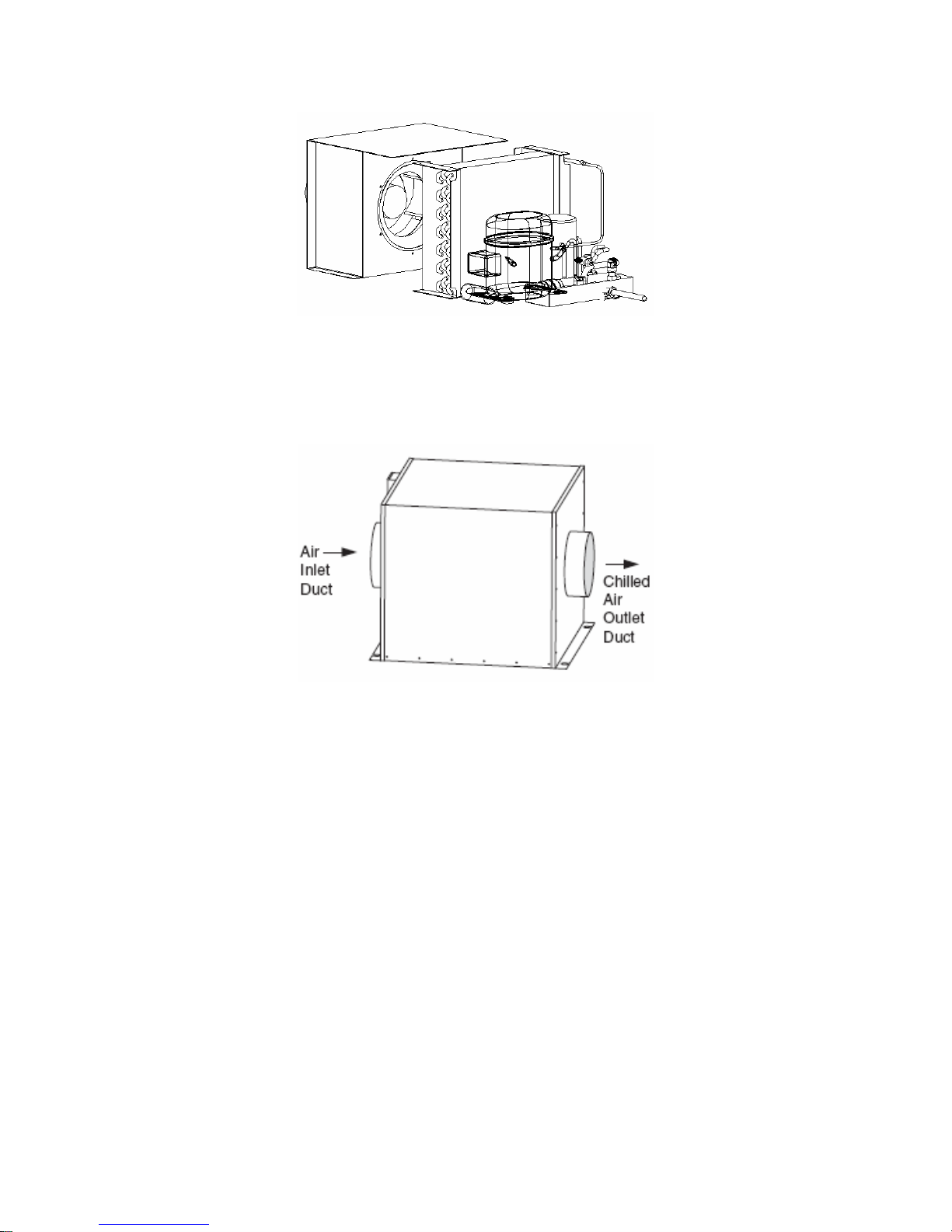

CONDENSING UNIT

EVAPORATOR UNIT

- 6 -

Installation Instruction

1. Location

•WINEMATE ducted system is shipped ready for use

•Place the unit in a properly ventilated location. If it is not, heat exhausted

by the condensing unit will build up and the cooling system will not operate

properly.

•Leave minimum 3 feet clearance between the exhaust pipe and the wall.

•Leave minimum 1 foot clearance for the fresh air supply pipe.

•Air flow from the cold air discharge pipe should be unobstructed for at

least 1 foot.

•Unit should be elevated to avoid possible flooding and shaded from direct

sun. It should not be exposed to temperatures higher than 125 °F or lower

than 20 °F.

•Overall combined duct length can be up to 50 ft long.

2. Refrigeration Piping

Model

Drain Tube Diameter

(inch)

Air Pipe Diameter

(inch)

VINO4500DS 1/2 8

VINO6500DS 1/2 8

VINO8500DS 1/2 8

3. Air Sensor

The air sensor is recommended to place in the wine room. If it is in a return duct,

the temperature differential may lead to erroneous readings.

- 7 -

4. Electrical Wiring

•We strongly recommend against the use of an extension cord. However, if

you still select to use an extension cord, it is absolutely necessary that it is

a UL LISTED 3-wire grounding type appliance extension cord. The

marked rating of the extension cord should be 115 V, 20 A. or equivalent

and not greater than 15ft in length.

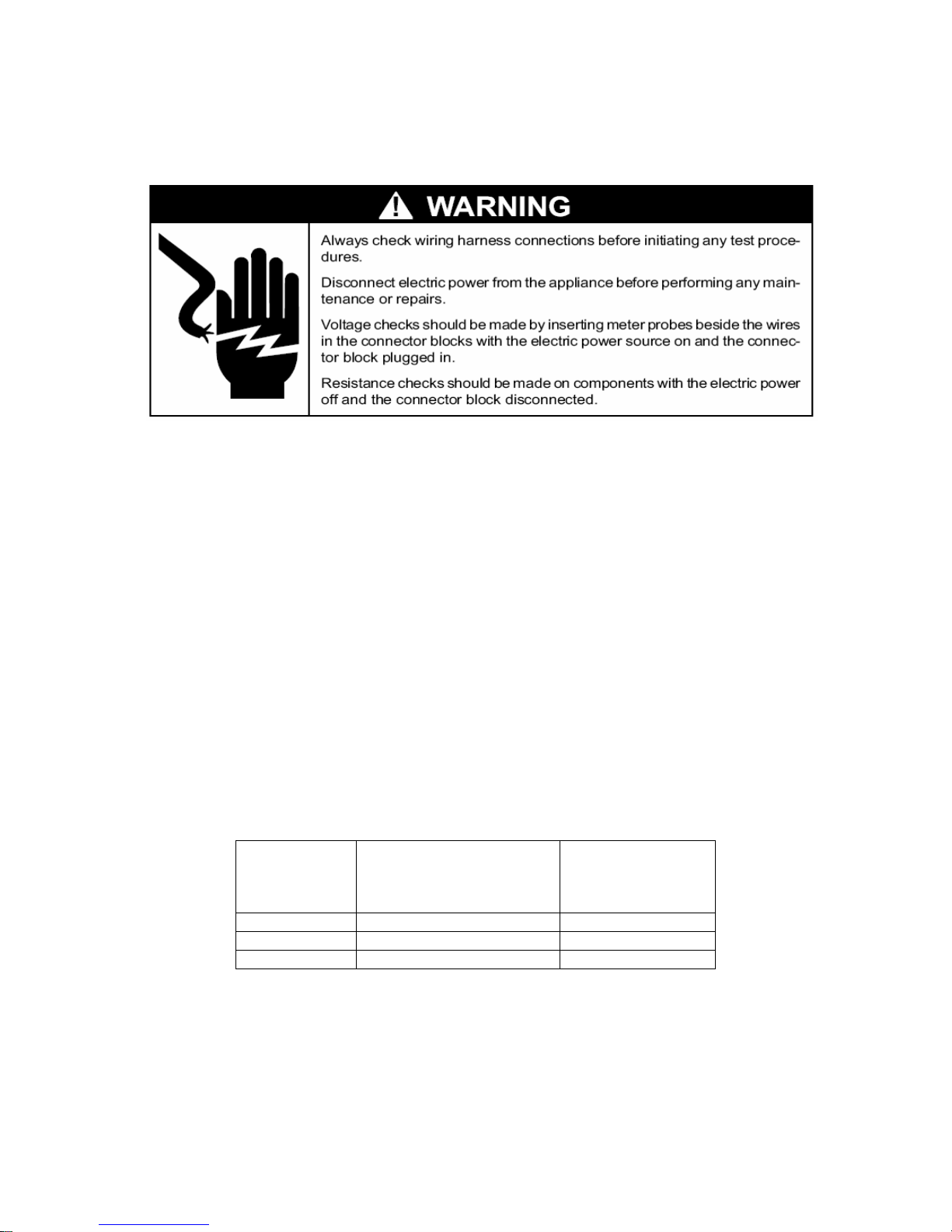

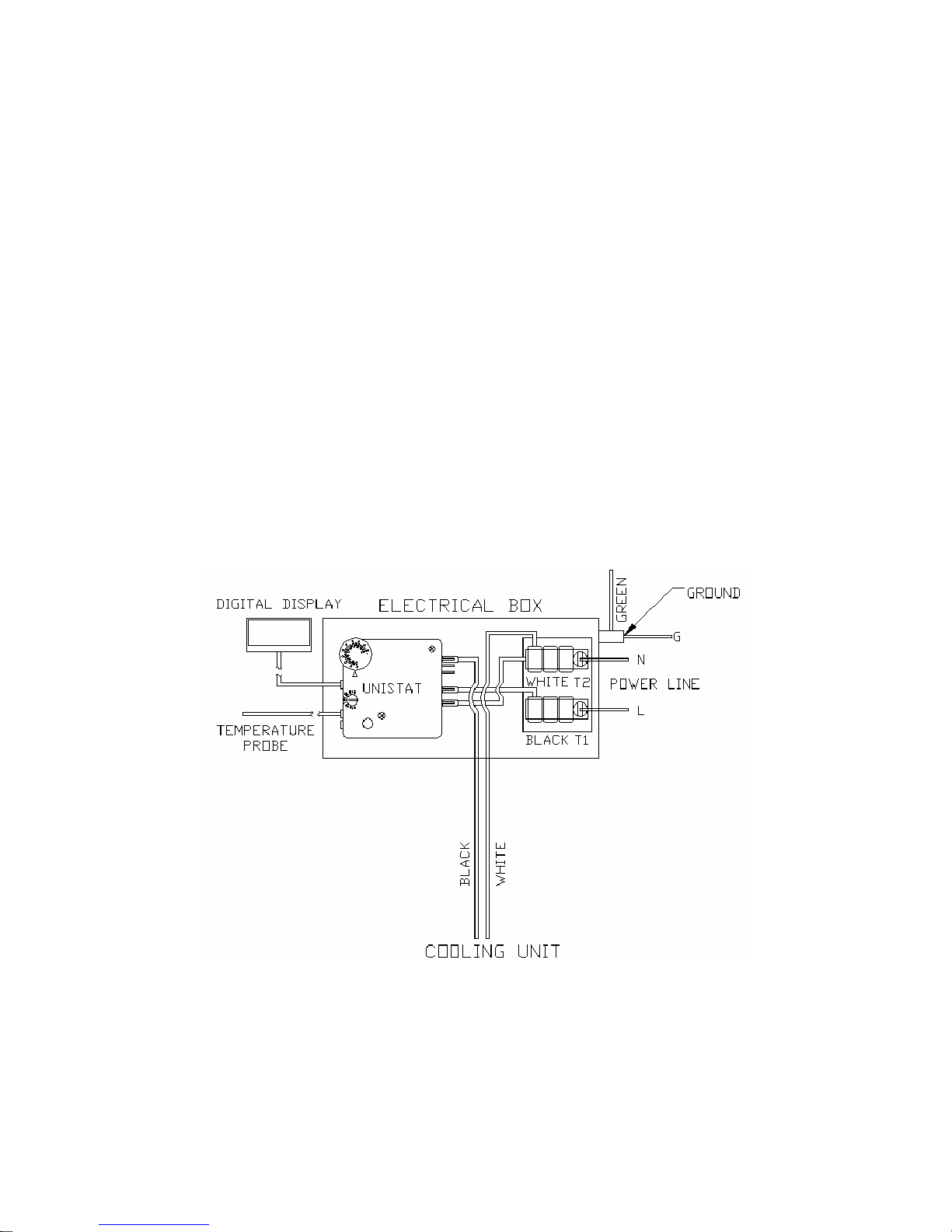

1) Customer Wiring

•If the air sensor can not reach the wine room because of the distance

between the cooling unit and wine room, you need to remount the

electrical box.

•Remove the 3 black, white and green wires that come from the cooling

unit in the electrical terminal

•Remove the electrical box and mount it close to the wine room so the air

sensor can reach the wine room

•Use extra wires to connect the terminal in the electrical box and the 3

white, black and green wires from the cooling unit.

- 8 -

2) Factory Wiring

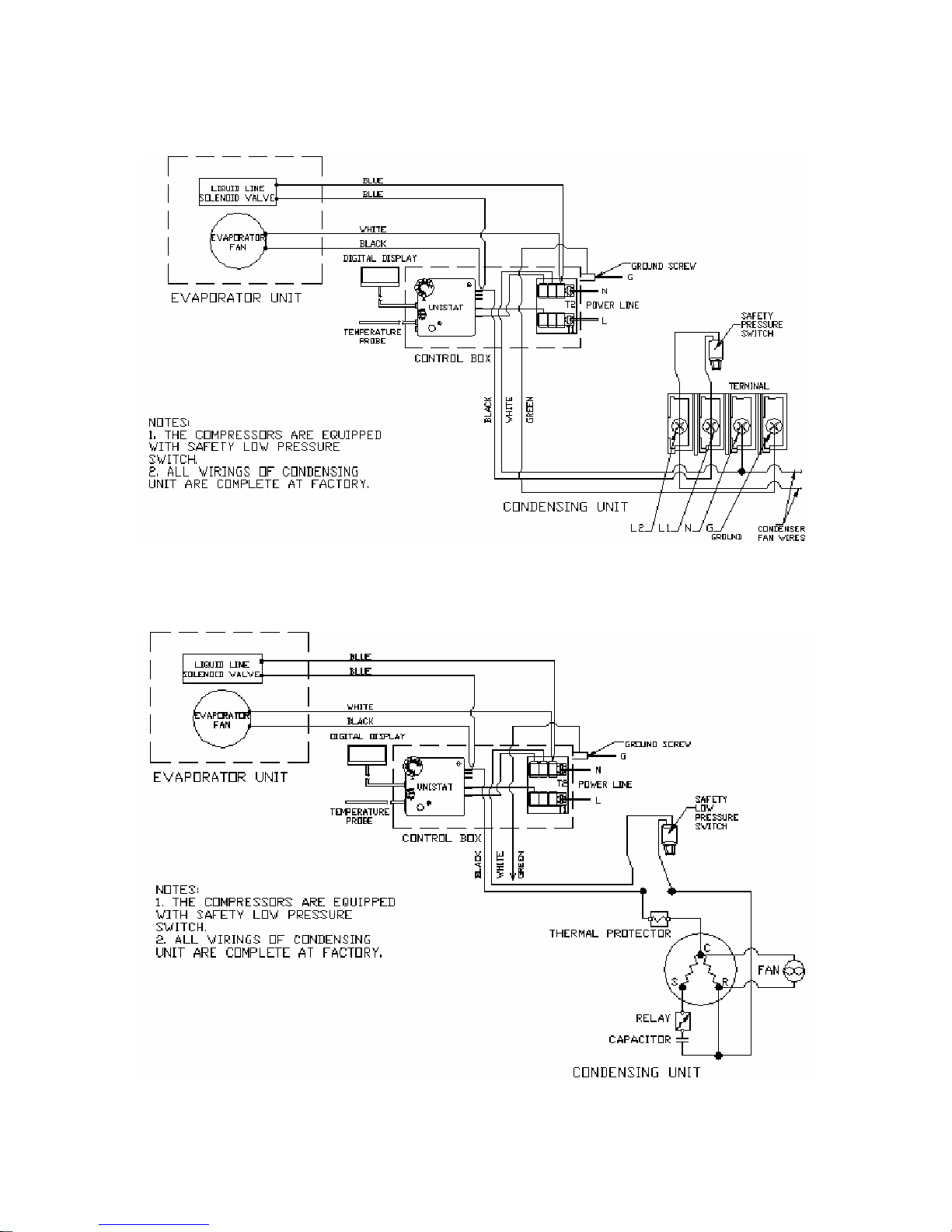

VINO4500DS Electrical Wiring Diagram

VINO6500DS Electrical Wiring Diagram

- 9 -

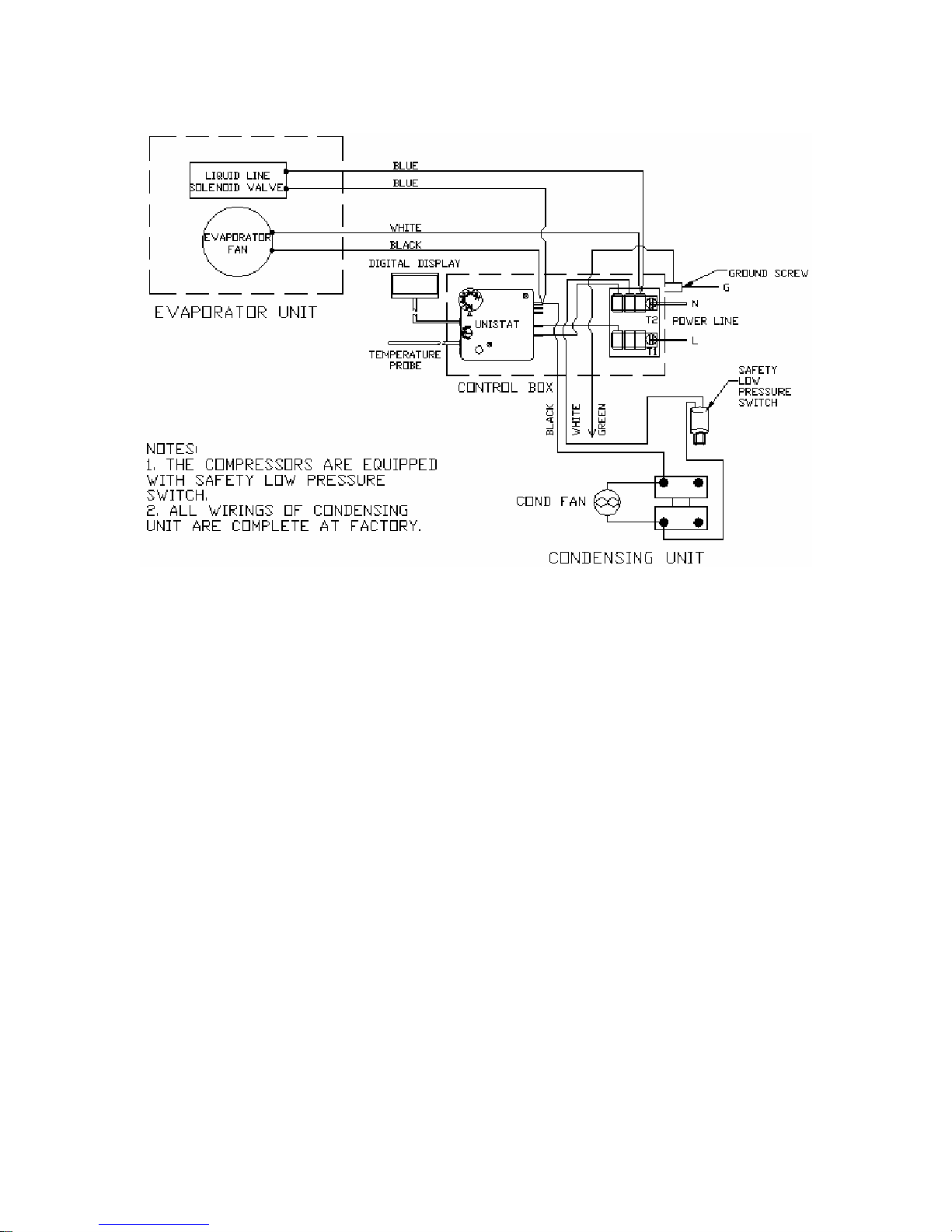

VINO8500DS Electrical Wiring Diagram
