Viper Dragon DR2000DC Dust Control Manuale utente

VF54042

REV.01(11-09)

VIPER...exceptional

value

IMPORTANT: READOWNERSMANUALCAREFULLY

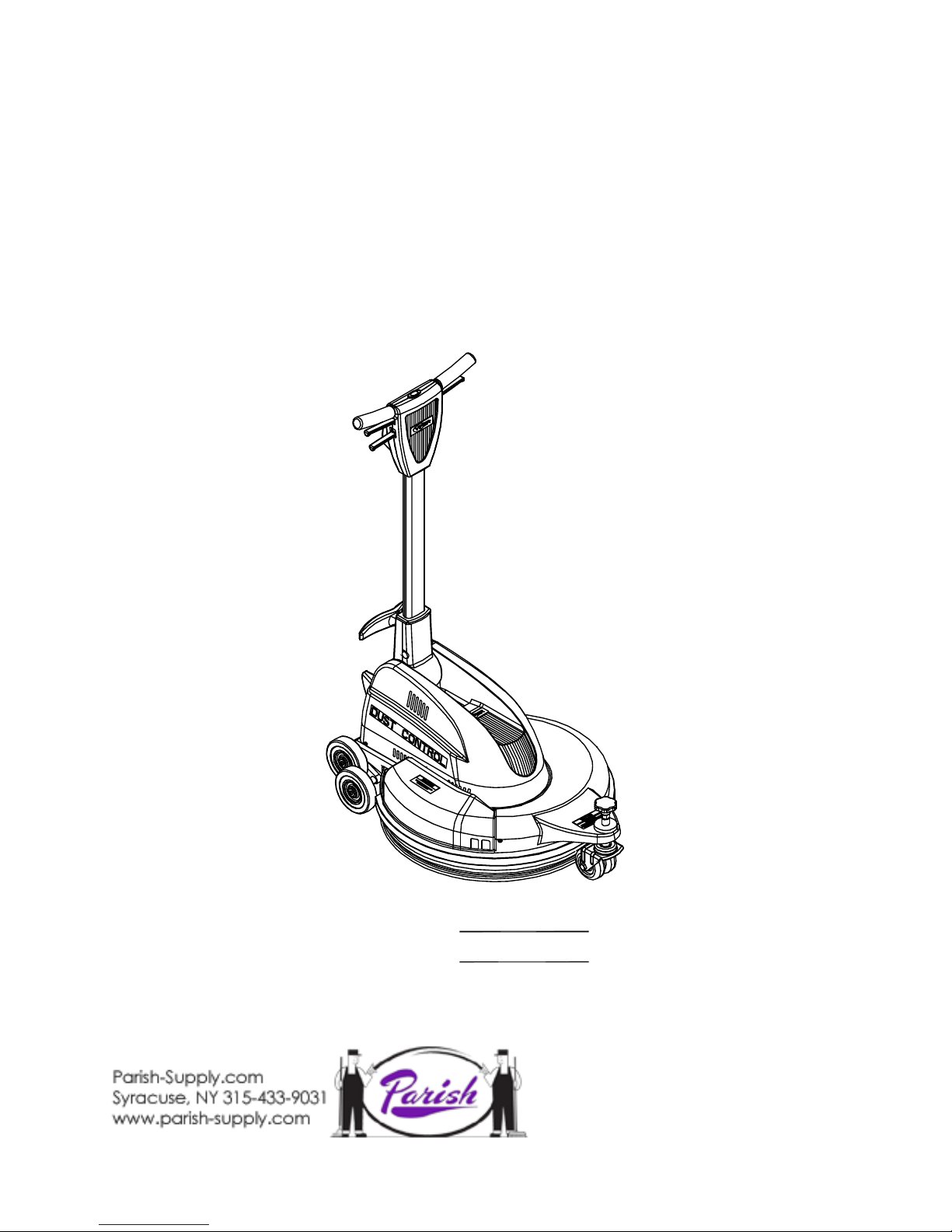

DRAGON2000RPMDUST

SERIAL#

MODEL# DR2000DC

Pleasefillout&returnyourwarrantycard!

OWNERSMANUAL

CONTROLBURNISHER

CONGRATULATIONSon yourpurchaseofaViper

product,andwelcometotheV.I.P.family.We

appreciateyourbusinessandwill doeverythingin our

powertokeepyou happywith yourpurchaseformany

yearstocome.

AspartoftheV.I.P.family,you areentitled tothebest

protection byoneofthemostcomprehensivewarranties

theindustry.

Thank-youforpurchasingViperproducts!

TomVanderBie,CEO

TABLEOFCONTENTS

SafetyPrecautions1

MachineOperation 2-3

MachineMaintenance&Storage3

PartsLists4-9

Wiring Diagram10

SAFETYPRECAUTIONS

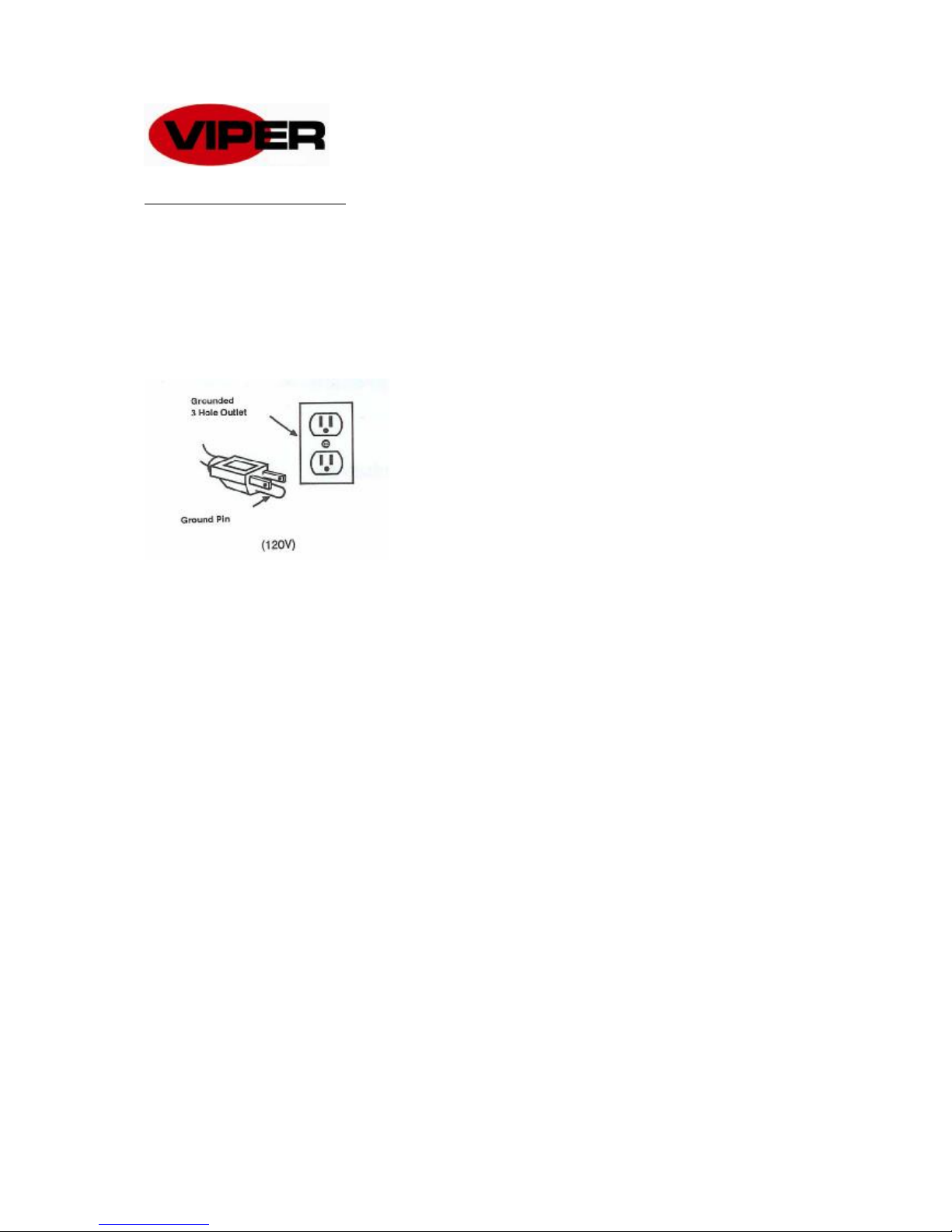

!!! Thismachinemustbegrounded!

Groundingprovidesthepathofleast

resistanceforelectricalcurrent. Toreduce

theriskofelectricalshockshould the

machinemalfunction, themachinehasa

specialgroundingplug. Donotremovethe

groundpin underany circumstances!

Thismachineisintendedforcommercial

use. Itisconstructedforusein anindoor

environmentandisnotintendedforany

otheruse. Useonlyrecommended

accessories.

All operatorsshall read, understandand

exercisethefollowingsafetyprecautions:

1)Donotoperatemachine:

-Unless trainedandauthorized.

-Unless youhavereadandunderstand

operatorsmanual.

-Inflammableorexplosiveareas.

-Withdamagedcordorplug.

-Ifnotinproperoperatingcondition.

-Inoutdoorareas.

-Instandingwater.

-Withoutbag/filtersin place.

-Withtheuseofextensioncords.

2)Beforeoperatingmachine:

-Makesureall safetydevicesarein

placeandoperateproperly.

3)Whenusingmachine:

-Onlyuseapprovedburnishingpads.

-Donotrunmachineovercord.

-Donotpull machinebycordorplug.

-Donotpull cordaroundsharp

edgesorcorners.

-Ensurethedustcollectionbagisin

placeandistightlysealedtothe

machine.

-Turnpowerswitch to off priorto

unpluggingmachine.

-Donotunplug bypullingonthecord.

-Donotstretch cord.

-Donothandleplug withwethands.

-Keepcordawayfrom heated

surfaces.

-Donotpickupburningorsmoking

debrissuch ascigarettes, matches

orhotashes.

-Report machinedamageorfaulty

operationimmediately.

4)Beforeleavingorservicingmachine:

-Turnoff machine.

-Unplug cordfrom outlet.

5)Whenservicingmachine:

-Unplug cordfrom outlet.

-Usemanufacturersuppliedor

approvedreplacementparts.

OperationofHighSpeedFloorMachine

*THISISASPECIALIZED MACHINE

WHICHREQUIRESTHEOPERATORTO

UTILIZEAVIPERAPPROVED PAD,AND

MUSTBEADJUSTED PROPERLYTO

ENSURETHEHIGHESTPOSSIBLE

PERFORMANCEANDPRODUCTIVITY.

*Readoperatorsmanualthoroughlyprior

tooperatingorservicingthismachine.

GENERALUSE

1]Removeany obstructionsorother

obstaclesin thearea which istobe

cleaned.

2]Removedustrecoverybagandemptyit

outin atrashreceptacle.Replace

dustrecoverybagonmachine,ensuring

itissealedtightlytothemachine.

3]Placehandleinuprightpositionandtilt

machinebackuntilhandlerests onthe

floor.

*Besurethemachineisnotpluggedinto

anoutlet.

4]Removethepadcentergrippingdevice

byunscrewingthethumbscrews.

5)Placea"Viperapproved"burnishingpad

onthepaddriverandre-attach the

centergrippingdevice.(checkwithyour

Viperdistributorforapprovedpads)

6]Placemachinebackintoitsupright

position.

7]Plug powercordintogrounded outlet.

*Donotuseanextensioncordin

conjunctionwiththestandardpower

cord.

8]Thehandleheightmaybeadjusted by

liftinguponthehandlereleaselever,

locatedontherightside ofthe

switchhousing.Pulltriggerand

lowerhandle todesired operating

position.Releasetriggertolock

handle intoplace.

9]Tostartthemachine,pushonthered

safetyreleasebuttonlocatedonthe

topoftheswitch housingand

squeezeeitherswitch lever.

10)Oncethemachinehasreached

operatingspeed,lookatthedigitalpad

pressuremeterlocatedonthetopof

themotorcover.Thereare3light

colorswhich willhelpyoudetermine

optimalpadpressureforoperatingthe

machine.RED LIGHT(S):Ifoneorboth

redlightsareilluminated,stopthe

machineandturnthepadpressure

adjustmentknobtotherighttoreduce

padpressure.YELLOWLIGHT(S):Ifone

orbothyellowlightsisilluminated,stop

themachineandturnthepadpressure

adjustmentknobtothelefttoincrease

theamountofpadpressure.GREEN

LIGHT(S):Ifone,twoorthree green

lightsareilluminated,themachineis

runningattheoptimalpadpressure

andyoumaybegin working.

11]Whenthemachineisin operation,

bothhandsshould begrippingonthe

handle.

12]Tostopthemachineatanytime,

simplyreleasetheswitch lever,andthe

machinewill stopautomatically.

MAINTENANCE

Tokeepthemachineperformingwellfor

many years,pleasefollowthefollowing

maintenanceprocedures.

*Alwaysconfirm thatthemachineis

unpluggedpriortoperformingany

maintenanceorrepairs.

1]Unplug machineassoonasyouaredone

usingit.

2)Removedustrecoverybagandempty

contentsintoatrashreceptacle.

Inspectdustrecoverybagforany

damagepriortoreplacingitonthe

machine.

3]Cleantheoutsideofthemachinewitha

mild cleaner.

4]Checkpowercordforany damage.If

any damageisdetected,replacethe

cordimmediately.

5]Lubricatewheelswithawaterresistant

lubricanteverymonth.

6]Checkmachineforlooseormissingnuts

andbolts, andreplaceasnecessary.

7]Ifthemachineisusedin adusty

environment,youmayremovethe

motorcoverandblowthemotorclean

withcompressedair.Thiswill allowfor

goodventilationandhelpthemotorrun

cooler.

STORAGE

1]Unplug machinefrom powersource.

2]Storein uprightpositionin adryarea.

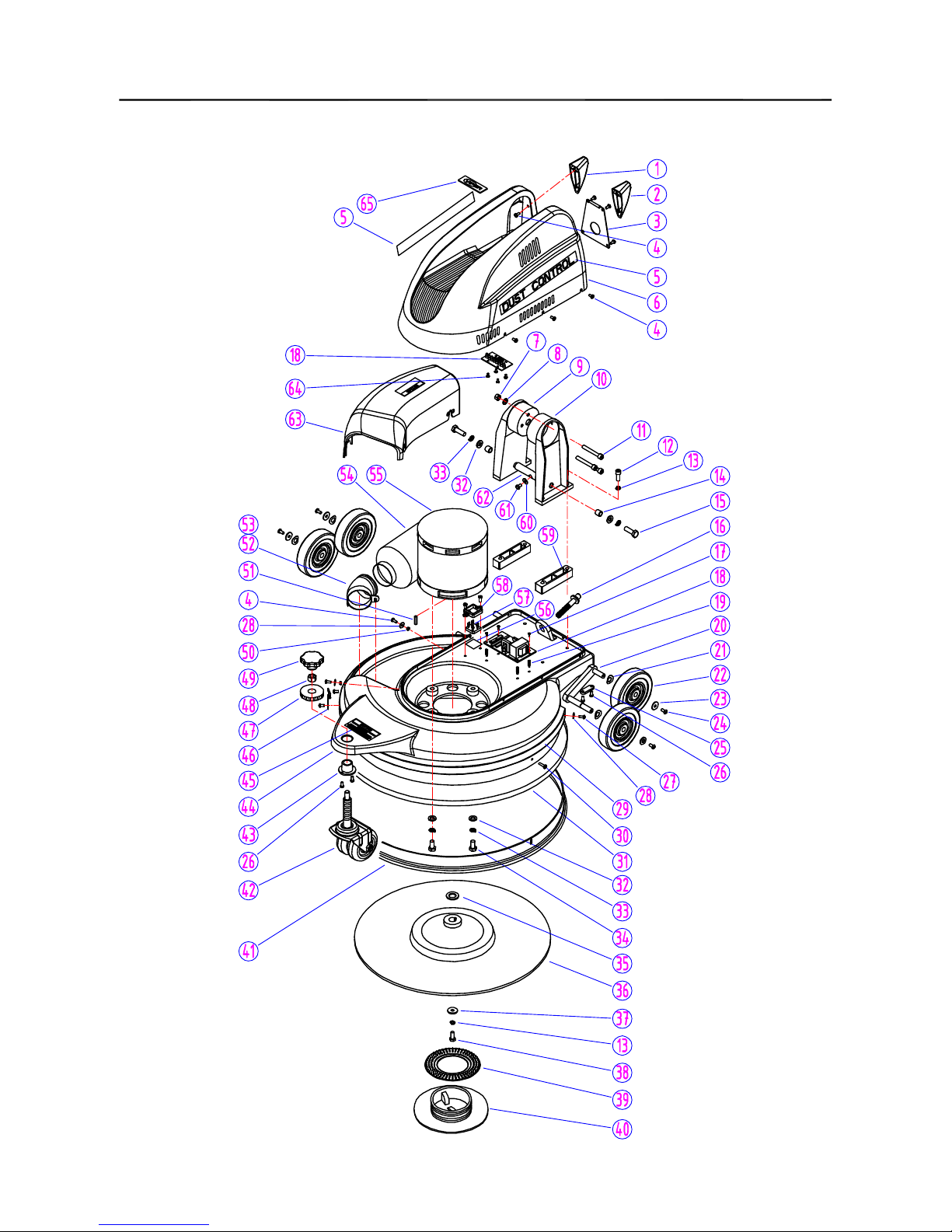

BASEGROUPFORDR2000DC

PARTSLIST

DIA

PART

NUMBER DESCRIPTION

REQ'D

1VF52114 PLASTICSTAND, RIGHT 1

2VF52115 PLASTICSTAND, LEFT 1

3VF54048 CONNECTOR, MOTORCOVER 1

4 VV20509 SCREW, M5x10, PH 16

5VF54017 LABEL 2

6 VF54047 COVER, MOTOR 1

7VF13503 NUT, NYLONINSERT, M8 3

8VF13524 WASHER, PLAIN 3

9VF54020 RIGHTARM 1

10 VF54019 LEFT ARM 1

11 GT13016 SCREW, M8x60, HEX SOCKET 3

12 VA13480 SCREW, M8x40, HEX SOCKET 4

13 VF13519 WASHER, LOCK, 85

14 VF54009 BUSHING 2

15 VF14007 HEX SCREW, M10x32 2

16 VF54010 ADJUSTMENTSCREW 1

17 VF14078 SCREW, M3x10, PH 4

18 ZW42540A LEDDISPLAY PANEL 1

19 VF54046 RISING SCREW 4

20 VF54004 WHEELBRACKET 1

21 VF50119 WAVE WASHER, 12 4

22 VF52017 WHEEL, 5" 4

23 VF13666 WASHER, PLAIN, 12 4

24 VF44012 SCREW, M5x12.7 4

25 VF54005 RETAINERPLATE, AXLE 2

26 VV13621 SCREW, ST5x20 6

27 VA13474 SCREW, M5x16, PH 2

28 VF13474A WASHER, PLAIN, 5x 16 4

29 VF54015 BUMPER 1

30 VA14010 SCREW, M5x20, PH 2

31 VF54016 CLAMP, SKIRT 1

32 VF13517 WASHER, PLAIN, 10 6

33 VF13518 WASHER, LOCK, 10 6

34 GT13097 HEX SCREW, 3/8"-16x1.25" 4

35 VF52008 SPACER 1

36 VF99024 PADHOLDER, 20" 1

37 VF52021 WASHER, PLAIN 1

38 GT13018 HEX SCREW, M8x30 1

PARTSLIST

DIA

PART

NUMBER DESCRIPTION NO

REQ'D

39 VF54027 LOCKWASHER, BIG MOUTH 1

40 VF99003A BIG MOUTH 1

41 VF54006 FLEXIBLESKIRT 1

42 VF54011 CASTER, DUALSWIVEL 1

43 VF54028 SCREWBUSHING, HOUSING 1

44 VF54001A HOUSING 1

45 VF54025 ADJUSTMENTDECAL 1

46 VF54036 HOOK, COVER, DUSTBAG 1

47 VF50108 NUT 1

48 VF14081 NUT, M12 1

49 VF50103A ADJUSTING KNOB, CASTER 1

50 VF54021 SPACER 2

51 ZD40205 KEY, MOTORSHAFT 1

52 VF54007 ELBOWADAPTOR 1

53 VF13022 SCREW, M4x12, PH 2

54 VF54003 DUSTCOLLECTORBAG 1

55 ZD40B MOTOR, 120V 1

56 VF52022 THERMALCONDUCTIONGASKET 1

57 VF44204 RECTIFIER 1

58 VF52023 COVER, RECTIFIER 1

59 VF54040 RISER, ARM 2

60 GT13032 WASHER, PLAIN, 6x 16 1

61 VF14232 HEX SCREW, M6x10 1

62 VF54008 PIVOTBLOCK, ADJUSTOR 1

63 VF54014 COVER, DUSTBAG 1

64 VF13544 SCREW, ST4x10 4

65 VF47035A "VIPER"LOGO 1

PARTSLIST

DIA

DIADIA

DIA

PART

PARTPART

PART

NUMBER

NUMBERNUMBER

NUMBER DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION NO

REQ'D

REQ'DREQ'D

REQ'D

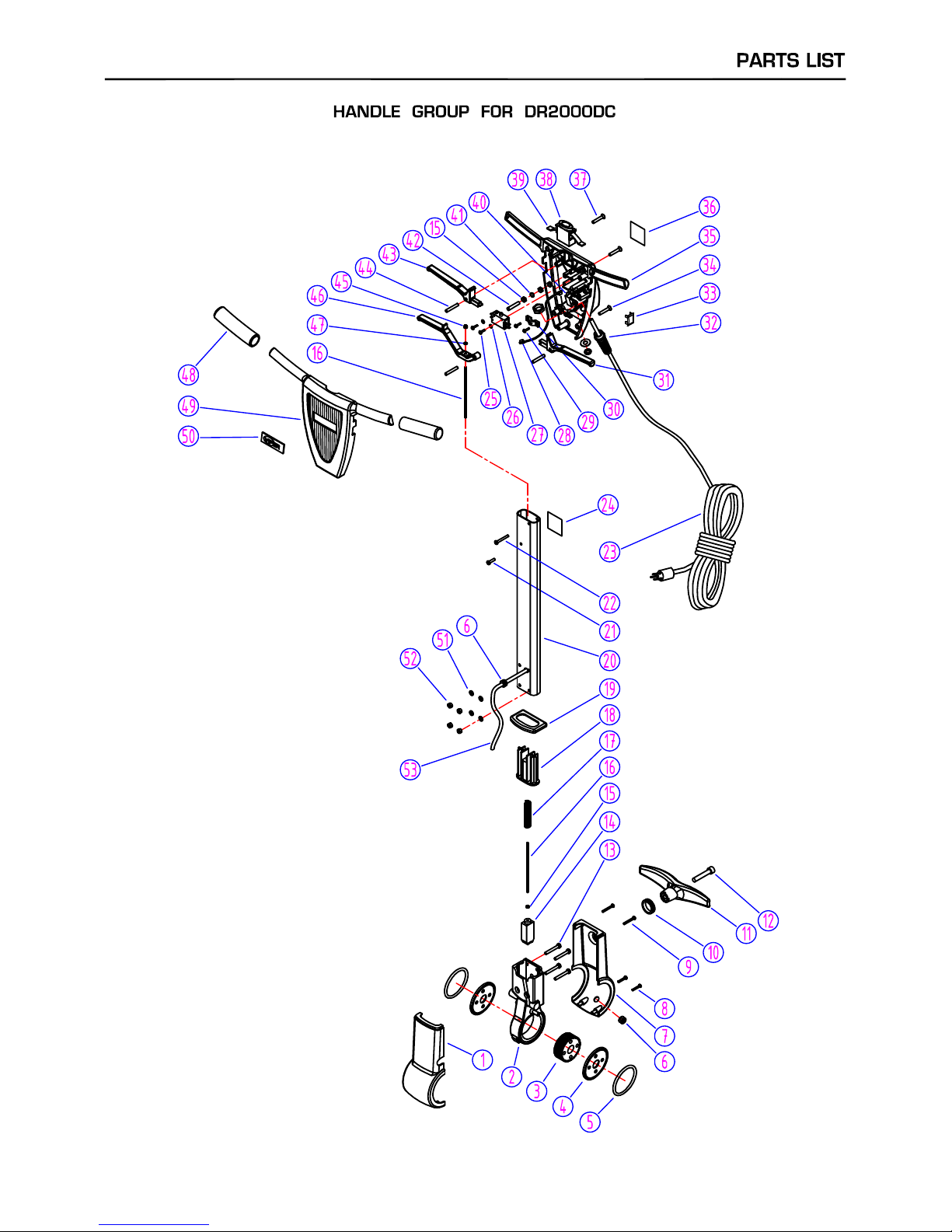

1 VF47009 FRONT COVER, GEAR SEAT 1

2 VF54037 GEAR SEAT 1

3 VF47028 GEAR & LEVELING INSERT KIT 1

4 GV40227 WASHER, NYLON 2

5 GV40228 "O" RING, GEAR SEAT 2

6 VF50120A GROMMET 2

7 VF47015 REAR COVER, GEAR SEAT 1

8 VF14080 SELF-TAPPING SCREW, ST4x25 2

9 VF14000 SELF-TAPPING SCREW, ST4x35 2

10 VF47046 SEAL RING 1

11 VF47045A HOOK, CABLE 1

12 VF13616 SCREW, HEX SOCKET, M10x55 1

13 GT13019 HEX SCREW, M6x40 4

14 VF47052 GEAR & LEVELING INSERT KIT 1

15 GT13013 NUT, M4 4

VF47103

LEVELING ROD

PARTS LIST

PARTS LISTPARTS LIST

PARTS LIST

VF47103

LEVELING ROD

17 VF47007 SPRING, LEVELING 1

18 VF47033 RETAINER 1

19 VF47008 SEAL, TUBE 1

20 VF47102 TUBE 1

21 VA13474 SCREW, M5x16, PH 1

22 VA13476 SCREW, M5x40, PH 1

23 VF45119 CORD, POWER SUPPLY, STOW 14/3C 1

24 VF54043 SERIAL TAG 1

25 VF14212 SCREW, M3x25, PH 2

26 VF13511 WASHER, LOCK, INTERNAL TOOTH 2

27 VF44203 SWITCH ASSY, 20A, 250V 1

28 VF45124A JUMP WIRE 1

29 VV13650 SCREW, M4x10, PH 2

30 VF48309 BLOCK, HANDLE CABLE 1

31 VF46703 OPERATING TRIGGER, LEFT 1

32 AS22009 STRAIN RELIEF, CORD 1

33 VF52107 COVER, SOLUTION LEVER 1

34 VF14226 SCREW, FH, M6X35 2

35 VF52118 REAR COVER, SWITCH HOUSING 1

36 VF54029 DECAL, NOTICE 1

37 VF14218 SCREW, M6x40, PH 2

VF46705

SAFETY BLOCK

VF46705

SAFETY BLOCK
