Welcome!
Dear Customer,
CONGRATULATIONS. The VR500CS-BT MP3/CD Player with AM/FM Receiver,
USB Port and SD Card Slot, Electronic Anti-Shock (ESP) & Fold-down
Detachable Face, when used as described, will give you years of dependable
service in your car, truck, RV, or mini-van. We have taken numerous measures
in quality control to ensure that your product arrives in top condition and will
perform to your satisfaction. In the rare event that your VR500CS-BT MP3/CD
Player with AM/FM Receiver, USB Port and SD Card Slot, Electronic Anti-
Shock (ESP) & Fold-down Detachable Face,contains a damaged or missing
item, does not perform as specified, requires warranty service, or you have
an installation problem, DO NOT RETURN THIS PRODUCT TO THE STORE.
PLEASE CALL OUR TOLL FREE NUMBER FROM THE U.S.A. AND CANADA
1-800-445-1797 and ask to speak with a member of our technical service
team; or submit your questions by e-mail to customerservice@vr-3.com and
a member of our technical service team will respond by e-mail to your ques-
tions. Our in-house technical service team will expedite delivery of your part,
advise you on installation, or help troubleshoot a problem with you. If your
product needs warranty service, our technical service team representative will
help you obtain the fastest remedy possible under the warranty.
CONTENTS
Contents .......................................................................................................... 1
Precautions...................................................................................................... 2
Care of Discs ................................................................................................... 2
Flash Memory .................................................................................................. 2
Notes on Installation........................................................................................ 3
Tools & Supplies .............................................................................................. 3
Before You Install............................................................................................. 4
Installation (DIN Front Mount)......................................................................... 5
Installation (Vehicle's Brackets) ....................................................................... 6
Microphone...................................................................................................... 7
Wiring Connections ......................................................................................... 8
Location of the Controls.................................................................................. 9
Remote Control ............................................................................................. 10
Basic Operation ............................................................................................. 11
Bluetooth .................................................................................................. 12-13
Radio Operation............................................................................................. 14
RDS Operation.......................................................................................... 14-15
CD Operation............................................................................................ 15-16
MP3/WMA Operation (CD) ....................................................................... 16-17
USB/SD Card Operation........................................................................... 17-18
Search Modes for MP3 & WMA Files............................................................ 18
AUX IN, RCA, & Subwoofer Control.............................................................. 19
Specifications ................................................................................................ 20
Warranty......................................................................................................... 21
1
Precautions
• Handle the disc by its edge to keep
the disc clean. Do not touch the disc’s
surface.
• Do not use a CD with paste or ink
residue on it.
• Do not use CDs with labels or stickers
attached. The label may leave a sticky
residue when it begins to peel.
• Clean the discs with an optional clean-
ing cloth. Wipe each disc from the
center out.
Type of disc
CD, MP3, & WMA
Label on the disc
Recorded material
Audio only
Size of disc
12 cm
• Do not attempt to modify the unit.
• Modifying the unit will void the war-
ranty.
• Stop the vehicle before carrying out
any operation that could interfere with
your driving.
• Do not operate in extremely high or
low temperatures. The temperature
inside the vehicle should be between
32º F (0º C) and 100º F (37º C) before
turning on your unit.
• This unit will only play the following discs.
• This unit does not play files that have Digital Rights Management(DRM).
• If you have files that have Digital Rights Management(DRM) you should consult with
the vendor that you purchased files from for instructions on proper use.
2
FLASH MEMORY
The VR500CS-BT supports USB Flash Memory, Secure Digital Card (SD) and Multi
Media Card (MMC) of up to 1GB of memory.
We recommend you format your Flash Drive/SD Card in FAT32 format before sav-
ing any files. If you experience any compatibility problems, we recommend that you
contact the manufacturer of the Flash Drive/SD Card/Multi Media Card.
CARE OF DISCS
• Disconnect negative battery terminal before starting installation. Consult the vehi-
cle’s owner’s manual for proper instruction.
• The unit is designed for a 12Volt DC negative ground operation system only. Before
installing the unit, confirm that your vehicle is a 12Volt DC negative ground system.
• Be sure to connect the color coded leads according to the diagram. Incorrect con-
nections may cause the unit to malfunction or damage the vehicle’s electrical sys-
tem.
• Be sure to connect the negative (-) speaker leads to the negative (-) speaker termi-
nal. Never connect negative (-) speaker leads to chassis ground.
• The unit is only designed for use with 4 speakers. Do not combine output for use
with 2 speakers. Do not ground negative speaker leads to the chassis ground.
• Make sure all the connections are completely correct before turning on your unit.
• When replacing the fuse(s), the replacement must be of the same amperage as
shown on the fuse holder.
• Do not block vents or heater panels. Blocking them will cause heat to build up in-
side and may result in fire.
• After completing the installation and before operating the unit, reconnect the bat-
tery. Then press the (RES) button with a pointed object, such as a ball-point pen to
set the unit to its initial status.
Notes On Installation
Tools For Installation
• The 2 removal keys are supplied for removing the old unit and replacing with the
“VR500CS-BT”.
The following tools and supplies may also be needed for the installation:
TOOLS
• Phillips Screw-drivers
• Wire Stripper
• Wire Cutter
• Hammer
• Pencil
• Electrical Tape
• Electric Drill
SUPPLIES
• Machine Screws
• Crimp Connectors
• 14 Gauge Wire for Power Connections
• 14-16 Gauge Speaker Wires
The above are NOT INCLUDED with the VR500CS-BT and must be purchased seperately.
3
Before You Install
Automotive audio equipment installations can be challenging at times, even to the most
experienced of installation technicians.
If you are not confident working with electrical wiring, removing and re-installing interior
panels, carpeting, dashboards or other components of your vehicle, please call your dealer
in order to have the unit professionally installed.
B. Insert the keys supplied with the old unit
into both sides of the old unit as shown
in figure below until they click. Push keys
apart and pull to remove the old unit from
the dashboard.

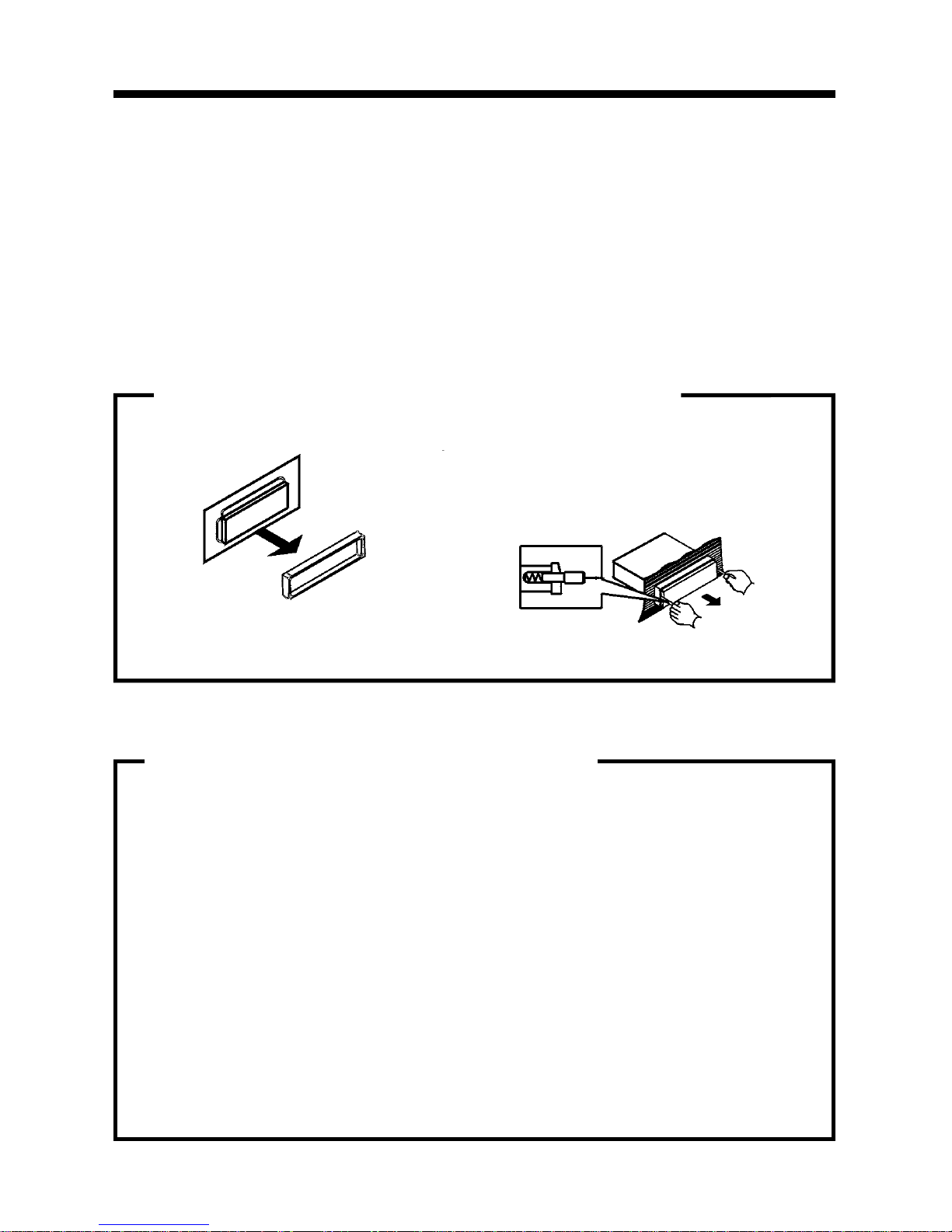

DIN Front Mount Style
DO NOT DISCONNECT WIRES AT THIS TIME!
A. Remove the outer trim frame.
1. Remove the Old Unit from the Dashboard
A.
While the old unit is playing, discon-
nect the wires from one speaker.
B. Take a length of masking tape and
fold it around the wire so it forms a
flag.
C. On the masking tape mark the polar-
ity of the speaker wires (+ & - ), as
well as left or right, and front or rear.
D. Double check that you marked the
first speaker correctly by checking
that the speaker wires are the same
at the head unit.
E. Repeat this procedure for all of the
speakers.
F. Mark the power, ground, and any oth-
er wires also
.
2. Mark Polarity of the Speaker Wires
Marking the polarity of the speaker wires will make it easier to connect the existing
speakers to the Head Unit.
Consult wiring diagram of existing head unit before disconnecting any wires. If a
wiring diagram is not available contact the manufacturer.
4
IMPORTANT!
BEFORE THE FINAL INSTALLATION OF THE HEAD UNIT, CONNECT THE WIRING
TEMPORARILY, MAKING SURE THE UNIT AND THE SYSTEM WORK PROPERLY.

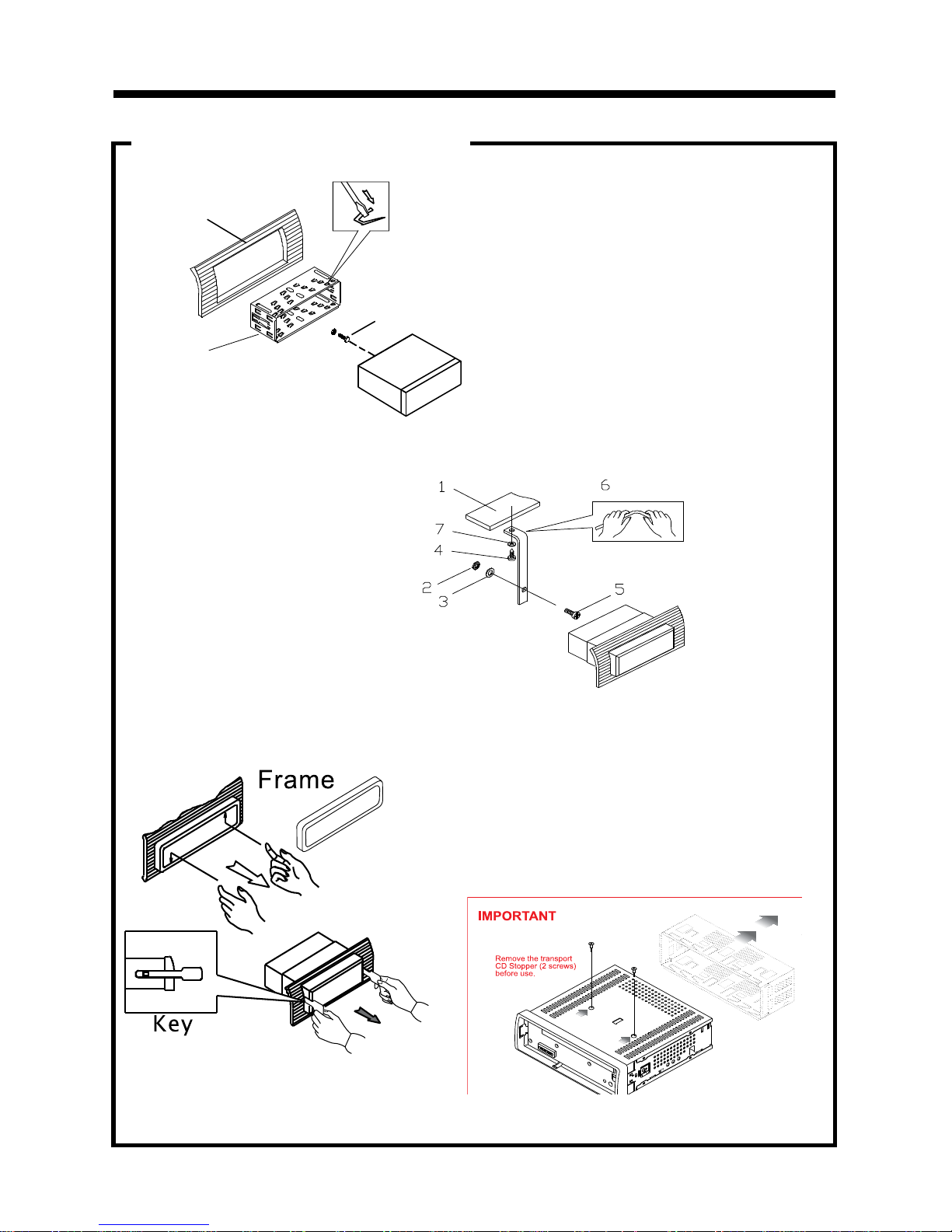

Installtion
1. Dashboard
2. Nut (5mm)
3. Spring washer
4. Screw (5 x 25mm)
5. Screw
6. Strap
7. Plain washer
2. Mounting
Sleeve
3. Screw
1. Dashboard
Bend the tabs
to secure the
Mounting Sleeve
in the dashboard.
DIN FRONT-MOUNT (Method A)
After inserting the Mounting Sleeve
into the dashboard, select tabs on
top, bottom, and sides, then bend
them to secure the mounting sleeve
in the dash board.(Fig. 1)
Fig. 1
Fig. 2
Follow the diagram in Fig. 2
for installing the rear mounting
strap to the head unit. The rear
mounting strap will help keep
the head unit from moving
around inside the dashboard.
Insert fingers into the groove in the front of frame to remove it.
Insert the keys supplied with the unit in
the grooves on both sides. The unit can
be installed or removed from the dash-
board using these keys.(Fig. 3)
Fig. 3
5
Remove the
half sleeve
A
E
Remove the two transport screws from
the top of the unit before installing.
DIN REAR-MOUNT (Method B)
Installation using the screw holes on both sides of the unit.
1. Screw holes on the side of the unit.
2. Screws. Use either truss screws (5 x
8mm) or flush surface screws (4 x 8mm),
depending on the shape of the screw
holes in the bracket.
3. Vehicle’s Factory Mounting Bracket
4. Dashboard or Console
5. Hook (Remove this part)
Note: The mounting sleeve, outer trim
ring, and the mounting strap are not used
for this method of installation.
Installation
6
PARTS
2 Keys
1 Hex Nut
1 Mounting Sleeve (not shown)
2 Lock Washers
1 Sheet Metal Screw
1 Metal Support Strap
2 Flat Washers
1 Mounting Bolt
1 Faceplate Case (not shown)
1 1/8" Stereo Cable
1 Remote Control
1 External Microphone
Installation
7

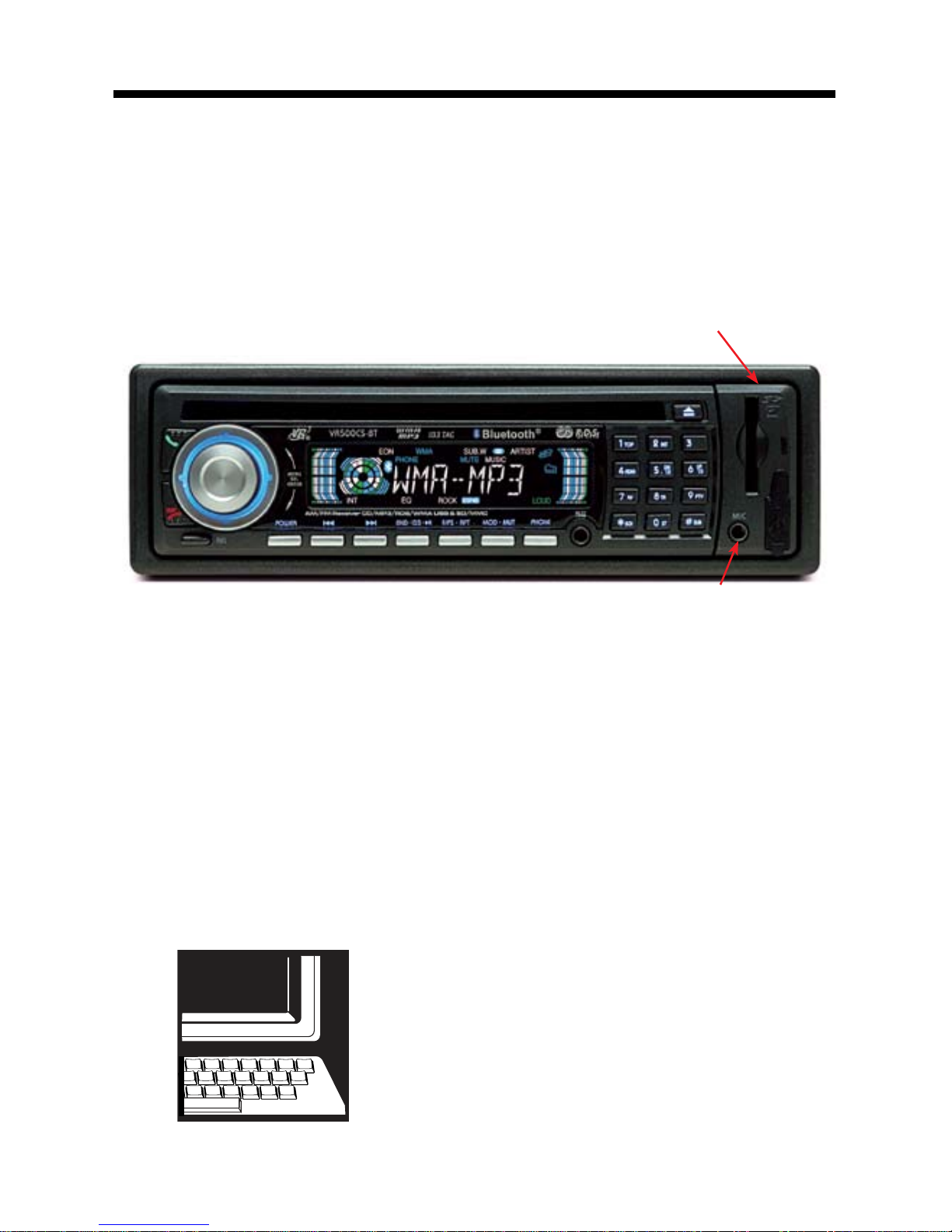

The VR500CS-BT has the ability to use two microphones. One microphone is built-in,
the other is a remote microphone.
Built-In Microphone
The built-in microphone is located on the front right side of the unit. There is no setup
required for this microphone and it is tuned to pick-up the voices of the front and rear
seat passengers. Built-In Microphone (not visible)
Microphone Jack
The suppled microphone shall be used to ensure the sound quality of the driver’s voice.
Installation
The microphone jack is located on the front of the unit. Insert the plug of the supplied
microphone into the microphone jack. Route the microphone and wire to the driver’s side
sun visor, rear view mirror, or other area near the driver. Make sure that the microphone
and wire do not interfere with the safe operation of the vehicle.
MICROPHONES
Setting the Microphone Volume
1. Press the “PHONE” button.
2. Press and hold the Volume Knob until you see “OUT NUM” on the LCD
3. Press the Volume Knob to cycle through the menu to “TEL”.
4. Rotate the Volume Knob to set the volume of the microphone.
Microphone Jack
GIVE US A CALL, WE'LL HELP YOU INSTALL.
1-800-445-1797
PLEASE DO NOT RETURN PRODUCT TO STORE.
Visit us on the WEB
www.vr-3.com
For Information and Technical Assistance,
Call Toll-Free in U.S.A. and Canada.

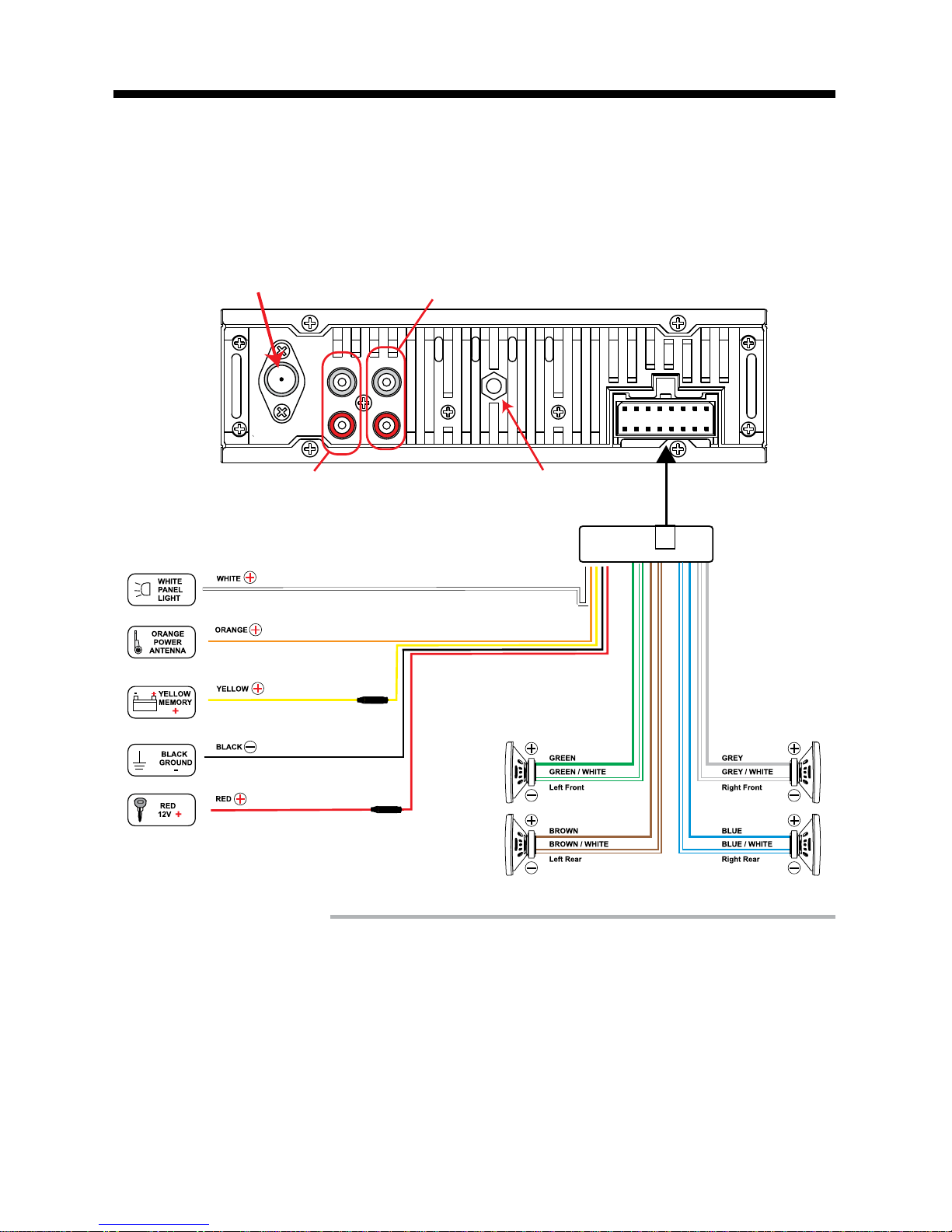

Wiring Connections
Make sure you have good chassis ground. A good ground connection will eliminate
most electrical noise problems. A good chassis ground requires a tight connection to
the vehicle’s metal chassis. The area around the ground connection should be clean,
bare metal without rust, paint, plastic, dust, or dirt for a good electrical connection.
ANTENNA SOCKET
Connect to Dimmer Switch
Connect to Power Antenna or
Remote Control for Amplifier
Connect to Battery or 12 Volt
Positive That is Always On
Connect to Ignition Switch
FUSE
FUSE
Connect to Ground Terminal or the
Unpainted Metal Part of Chassis
RCA Line Out
Red = Right
White = Left
Hole For Mounting Bracket
Sub W. Out
Red = Right
White = Left
Follow the above wiring diagram to install
the head unit with new or existing speakers.
• This unit is designed for use with four (4)
speakers with an impedance between 4
Ohms to 8 Ohms.
• An impedance load of less than 4 Ohms
could damage the unit.
• Never bridge or combine the speaker wire
outputs. When not using four speakers, use
electrical tape to tape the ends of the unused
speaker outputs to prevent a short circuit.
• Never ground the negative speaker termi-
nals to chassis ground.
Speaker Wiring Notes
8
Location Of The Controls
9
1 2 3 4 5 6 7 8
1. Answer/ Green Phone
2. Volume/SEL/Enter
3. Disc Slot
4. Liquid Crystal Display (LCD)
5. 0-9, #, & * Key Pad buttons
6. Random / No. 4
7. No.1 / Top
8. No.5 / Down 10
9. Intro/No. 2
10. Eject
11. No. 6 / UP 10
12. SD/MMC Card Slot
13. USB Port with Cover
14. Microphone Jack
15. Subwoofer/Pound Sign
16. Stereo/No. 0
17. Scan/Star Sign
18. Auxiliary Input
19. PHONE
20. Mode/Mute
21. FPS/Repeat
22. BND•ID3
23. Next Track/Fast Forward
24. Previous Track/Fast Reverse
25. Power
26. Remove Faceplate
27. Hang up/ Red Phone
28. Americas/Europeon Frequency Switch
29. Reset Switch
30. LED Power indicator
9 10 11 12
131415161718192021222324252627
28 29 30
When the faceplate is removed the LED Power
Indicator will flash ON & OFF
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Virtual Reality Ricevitore per auto
Virtual Reality
Virtual Reality VRCD400-USB Manuale utente
Virtual Reality
Virtual Reality VRCD500-SDU Manuale utente
Virtual Reality
Virtual Reality VRCD400-SDU Manuale utente
Virtual Reality
Virtual Reality VRCD300-USB Manuale utente
Virtual Reality
Virtual Reality VRVD630 Manuale utente
Virtual Reality
Virtual Reality VRVD630 Manuale utente
Virtual Reality
Virtual Reality VRCD220FD Manuale utente
Virtual Reality
Virtual Reality VRCD500-SDU Manuale utente
Virtual Reality
Virtual Reality Elite VR500CS-BT Manuale utente
Virtual Reality
Virtual Reality VRCD400-SDU Manuale utente
