VISIO SC30 Manuale utente
N2K: Micro drop cable
6 meter
000-166-887
(supplied)

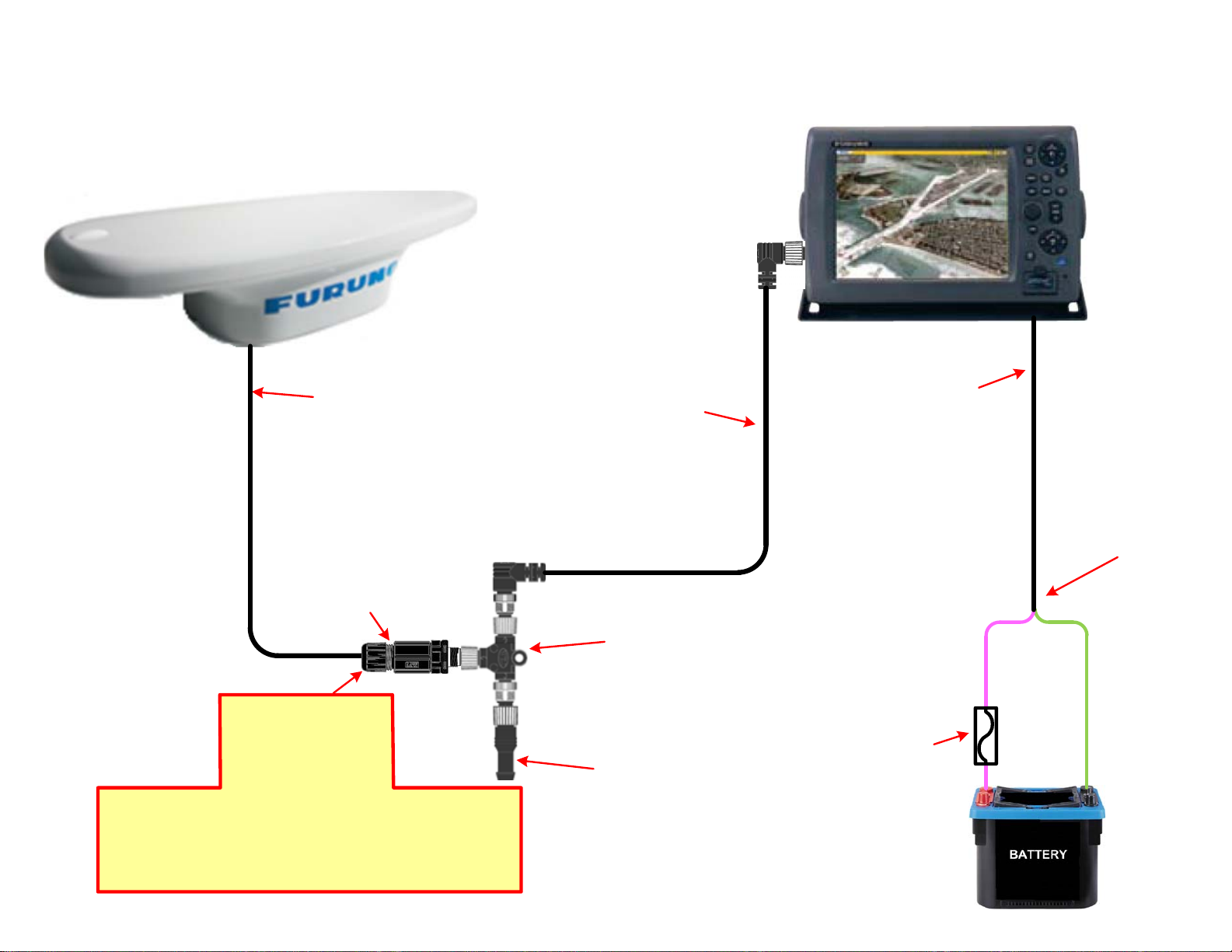

N2K “T” Connector
AIR-052-531
Fem/Fem/Male
N2K: Micro drop cable
.3 meter
000-166-949
N2K Terminator
Female
AIR-335-792
N2K Terminator
Male
AIR-335-791
SC30 powered through NN3D
(6 meter antenna cable)
Light
Green
Pink
Data
Port 2
Pin 18
Data
Port 2
Pin 17
1 amp Fuse
(local supply)
18 Pin pigtail cable
supplied for use with
Data 2 and 3
000-164-608
This is to supply voltage
for the N2K Bus. The
minimum voltage is 9
VDC and the maximum is
16 VDC.
(recommend 13.5 VDC)
No Terminator resistor
in 6 meter cable
N2K Micro Double-
ended cable
Male – Female
1 meter = 000-167-962
2 meter = 000-167-963
6 meter = 000-167-964
N2K: Micro Drop
cable .3 meter
000-166-949
N2K Terminator
Female
AIR-335-792
SC30 powered through NN3D
(15 or 30 meter antenna cable)
Light
Green
Pink
Data
Port 2
Pin 18
Data
Port 2
Pin 17
1 amp Fuse
(local supply)
18 Pin pigtail cable
supplied for use with
Data 2 and 3
000-164-608
This is to supply
voltage for the
N2K Bus. The
minimum voltage
is 9 VDC and the
maximum is 16
VDC.
(13.5 VCD
recommended)
N2K: SC30 Backbone cable
15 meter = 000-166-891
30 meter = 000-166-892
(Terminator resistor
included in both of these
cable lengths)
N2K “T” Connector
AIR-052-531
Fem/Fem/Male
N2K: Field
Connector Male
AIR-335-781
Pin 1 = Shield
Pin 2 = Red
Pin 3 = Black
Pin 4 = White
Pin 5 = Blue
The Purple, Yellow and Green wires are not used for
this connection. They need to be cut back, isolated
and taped so they don’t short to any other wires and
cause equipment damage.
Cut N2K connector off of SC30 cable and
connect the wires to the green N2K
connector inside the DRS2D or DRS4D.
Match the wire colors to the colors shown
in the DRS Connector close-up. DRS Connector
close-up

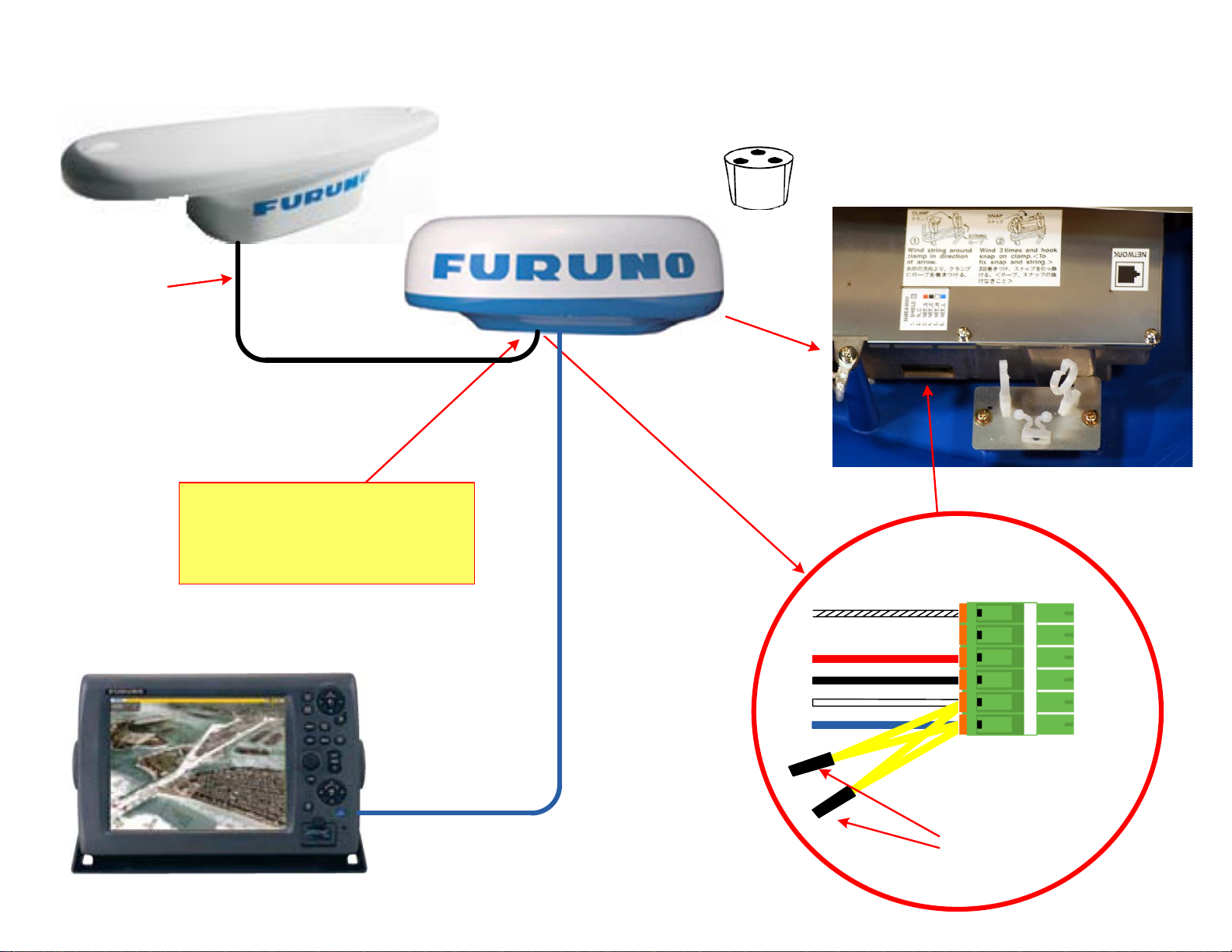

SC30 connection to DRS Dome and NavNet 3D
(6 meter cable)
Ethernet and power
Inside DRS2D and DRS4D
Use the included 3 hole
gasket for this
installation application.
Install (2) 120 Ωresistors in
parallel
000-167-746
(1 is supplied)
N2K Micro drop
cable 6 meter
000-166-887
(supplied)
123456
No Terminator
resistor in 6 meter
cable
DRS Connector
close-up
SC30 connection to DRS Dome and NavNet 3D
(15 or 30 meter antenna cable)
Ethernet and power
Inside DRS2D and DRS4D
Use the included 3 hole
gasket for this
installation application.
12 34 56
N2K: SC30 Backbone
cable
15 meter = 000-166-891
30 meter = 000-166-892
Terminator Resistor
120 Ω
000-167-746
(supplied)
(Terminator resistor
included in both of these
cable lengths)
Connect the wires to the green N2K
terminal inside the DRS Dome.
Match the wire colors to the colors shown
in the DRS Connector close-up.
The Purple, Yellow and Green wires in this
cable are not used for this connection.
They need to be cut back, isolated and
taped so they don’t short to any other
wires and cause equipment damage.
SC30 connection to DRS Gearbox and NN3D
(6 meter cable)
Ethernet
Use the included 3 hole
gasket for this
installation application.
N2K Micro drop
cable 6 meter
000-166-887
(supplied)
DRS Connector
close-up
Inside DRS Gearbox
Cut N2K connector off of cable and
connect the wires to the gray N2K
terminal inside the DRS Gearbox.
Match the wire colors to the colors shown
in the DRS Connector close-up.
No Terminator
resistor in 6 meter
cable
Install (2) 120 Ωresistors in
parallel
000-167-746
(1 is supplied)
Attach crimp-lug to shield
wire in N2K cable and fasten
to screw on radar T/R
chassis shown in image
above and below.
SC30 connection to DRS Gearbox and NN3D
(15 or 30 meter antenna cable)
Ethernet/Power
Use the included 3 hole
gasket for this
installation application.
DRS Connector
close-up
Inside DRS Gearbox
Connect the wires to the gray N2K
terminal inside the DRS Gearbox.
Match the wire colors to the colors shown
in the DRS Connector close-up.
The Purple, Yellow and Green wires in this
cable are not used for this connection.
They need to be cut back, isolated and
taped so they don’t short to any other
wires and cause equipment damage.
N2K: SC30 Backbone cable
15 meter = 000-166-891
30 meter = 000-166-892
(One terminator resistor is
embedded in the SC30
connector end of these
optional cables)
Terminator Resistor
120 Ω
000-167-746
(supplied)
Attach crimp-lug to shield
wire in N2K cable and fasten
to screw on radar T/R
chassis shown in image
above and below.
N2K: Micro Drop cable
1 meter = 000-167-965
2 meter = 000-167-966
6 meter = 000-167-967
N2K: Micro Drop cable
6 meter
000-166-945
SC30 to FI5002 with FI505 instrument with NN3D
(6 meter antenna cable)
FI-5002 Junction Box
This is to supply voltage
for the N2K Bus. The
minimum voltage is 9 VDC
and the maximum is 16
VDC.
(13.6 VDC recommended) 12345
Cut N2K connector off of cable and
connect the wires to one of the 6
drop ports inside the FI-5002.
Match the wire colors to the colors
shown on the drop connector.
Drop
connector
Appropriate fuse
or circuit breaker
Set both Terminal Resistor
jumpers to ON to use the FI5002
as the N2K backbone.
ON:
OFF:
N2K: Micro drop cable
6 meter
000-166-887
(supplied)
No Terminator
resistor in 6
meter cable Connect to any of the 6
drop connection ports
inside the FI-5002. Match
the wire colors to the
colors shown on the drop
connector. (same as
shown for the backbone
connector)
N2K: Micro Drop cable
1 meter = 000-167-965
2 meter = 000-167-966
6 meter = 000-167-967
N2K: Micro Drop cable
6 meter
000-166-945
SC30 to FI5002 with FI505 instrument with NN3D
(15 or 30 meter antenna cable)
FI-5002 Junction Box
This is to supply voltage for
the N2K Bus. The minimum
voltage is 9 VDC and the
maximum is 16 VDC.
(13.6 VDC recommended) 12345
Connect the wires to either of the
2 larger backbone connectors
inside the FI-5002.
Match the wire colors to the colors
shown on the backbone connector.
The Purple, Yellow and Green wires
in this cable are not used for this
connection. They need to be cut
back, isolated and taped so they
don’t short to any other wires and
cause equipment damage.
Appropriate fuse
or circuit breaker
Set only 1 Terminal Resistor
jumper to ON because the 15m
and 30m cables each have a
resistor built-in.
ON:
OFF:
N2K: SC30 Backbone cable
15 meter = 000-166-891
30 meter = 000-166-892
(One terminator resistor
is embedded in the SC30
connector end of these
optional cables)
Backbone connector
Connect to any of the 6
drop connection ports
inside the FI-5002. Match
the wire colors to the
colors shown on the drop
connector. (same as
shown for the backbone
connector)
N2K: SC30 Backbone cable
15 meter = 000-166-891
30 meter = 000-166-892
(One terminator resistor is
embedded in the SC30
connector end of these
optional cables)
The IF-NMEASC has a
built-in terminator resistor
for the N2K (J7) port.
Nav/Hdg Equipment
(NMEA0183 / IEC61162-1)
Radar, Current Indicator,
Etc. (AD-10)
Sonar - CH250,270, 300
(Analog Roll and Pitch)
Nav/Hdg Equipment
(NMEA0183 / IEC61162-1)
J4
J5
J3
J8
USB (For setup, maintenance and
troubleshooting)
J2
J7
TB1
12 – 24 VDC
J7
NN3D MFD or Other N2K
N2K: Micro Drop cable
1 meter = 000-167-965
2 meter = 000-167-966
6 meter = 000-167-967
When connecting multiple
N2K devices to J7, match
like-colored wires together
and connect to
appropriate pins shown
below.
