Visi
n
E N G I N E E R I N G
Mantis Stereo Viewing System
Operating Instructions
And
Service Manual
Use this manual only after assembling the Mantis Viewing system.
After assembling the Mantis Stereo Viewing System you should be familiar with its various
components. These instructions will help you become familiar with the operation and use of the
Mantis as well as some of the available options. Also included in this manual is a more
comprehensive maintenance, troubleshooting and service guide.
NOTE: REFER TO THE MANTIS USER GUIDE AS REQUIRED
1/Mantis/7/98
1
CONTENTS Page
1) System Diagrams ………………………………………………………………….. 2
Mantis Universal Boom Mount…………………………………………………….. 3
Mantis FX Bench Mount……………………………………………………………. 4
1) The Basic Systems …….…………………………………………………………. 5
1) Objective Specifications …………………………………………………………. 7
1) Using the Mantis ……………..……………………………………………………. 9
Turning the Power “ON” …………..……………………………………………….. 10
Focusing ………….…………………………………………………………………. 10
Adjusting the Lighting ……………………………… …..……………………….… 10
Changing the Magnification ……………………………………………………….. 11
Adjusting the Eye Spacing ……………………………………………………….. 11
5) Options ……………………………………………………………………………… 12
Lens Protective Covers ……………………………………………………………. 13
6) Maintenance ………………………………………………………………………. 14
Lamp Replacement …………..……………………………………………………. 15
Lens Cleaning …………….………………………………………………………… 15
Moisture Control ……………………………………..……………………………… 15
Optical Path Alignment …………………………………………………………….. 15
Fan …………………………………………………………………………………… 15
7) Troubleshooting …………………………………………………………………… 16
Mantis has No Power ….…………………………………………………………… 17
Optical View …………… …..………………………………………………………. 17
8) Service ………………………………………………………………………………. 18
Cleaning the Mirrors ……………………………………………………………….. 19
Fan Replacement …………………………………………………………………… 20
Repairing Eye Spacing Adjustment ………………………………………………. 21
Mirror Removal ……………………………………………………………………… 22
9) Warranty ……………………………………………………………………………. 23
10) Information …………………………………………………………………………25
2
SYSTEM DIAGRAMS
3

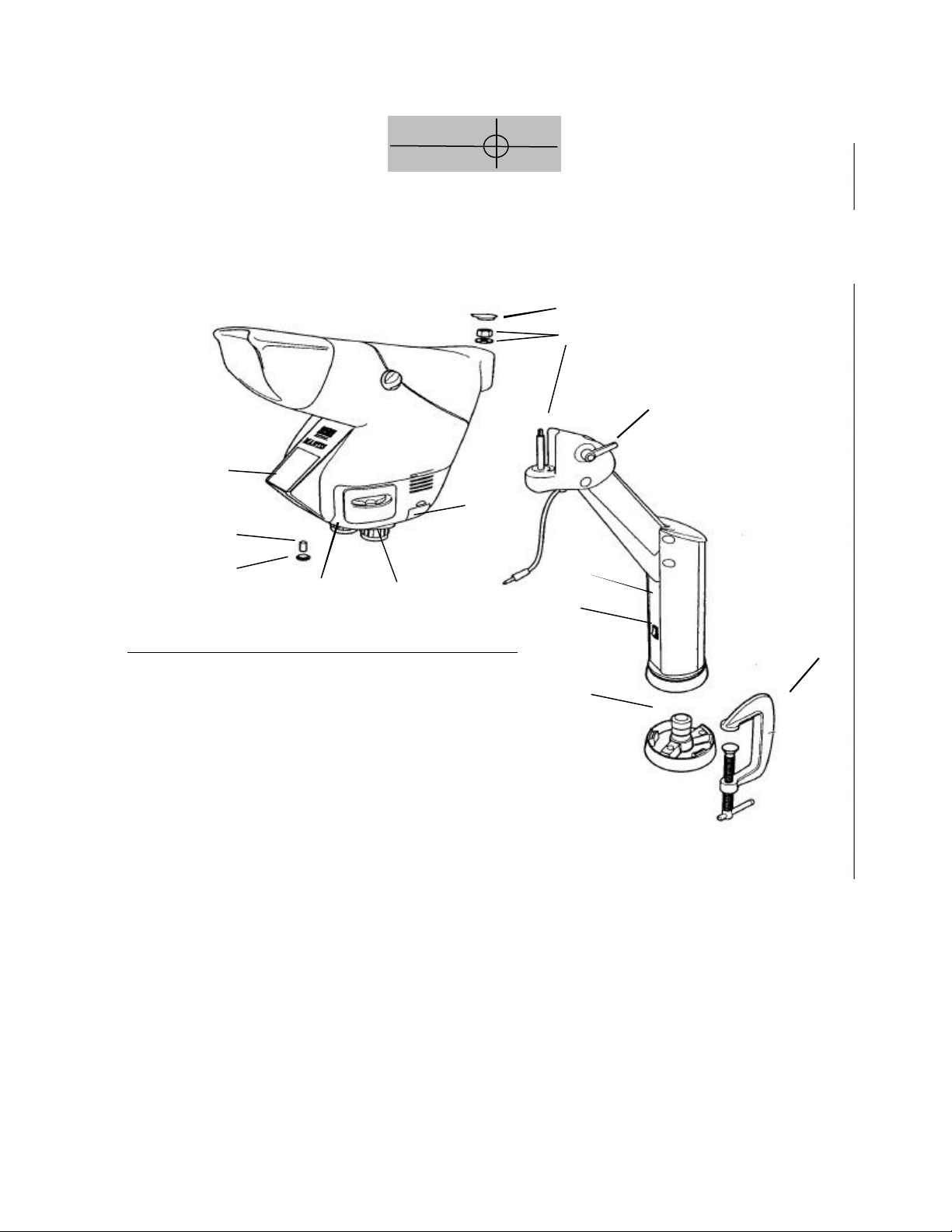

SYSTEM DIAGRAM
MANTIS UNIVERSAL BOOM MOUNT
Visi
n
E N G I N E E R I N G
Description User Guide Des. Part No.
1. Yaw Bolt Cover Cover Plate 187-A-0079
2. Yaw Bolt Assembly Yaw Spigot YB-A-001
3. Anti-glare Shield Anti-glare Shield 187-B-0090
4. Adj. Friction Handle Height Friction Clamp HAN-0567
5. Table Mount Base Universal Mount 187-C-0258
6. C Clamp Assembly G Clamp HDW-1092
7. Power Switch SWI-0122
8. Switch Cover 187-A-0111
9. Fan Cover Assembly 187-A-0211
10. Desiccant(10 pack) Desiccant Cartridge M006
11. Grommet HDW-1030
12. Turret Assembly 187-A-0208
13. Filter Tray - Left 187-C-0076
14. Filter Tray - Right 187-C-0075
15. Lamp Diffuser 187-A-0115
16. Lamp Diffuser(Blue) 187-A-0115A
17. Lamp, 12volt, 20watt LAM-1300
1
2
4
13
14
15
16
17
10
11
3
912
8
7
5
6
4

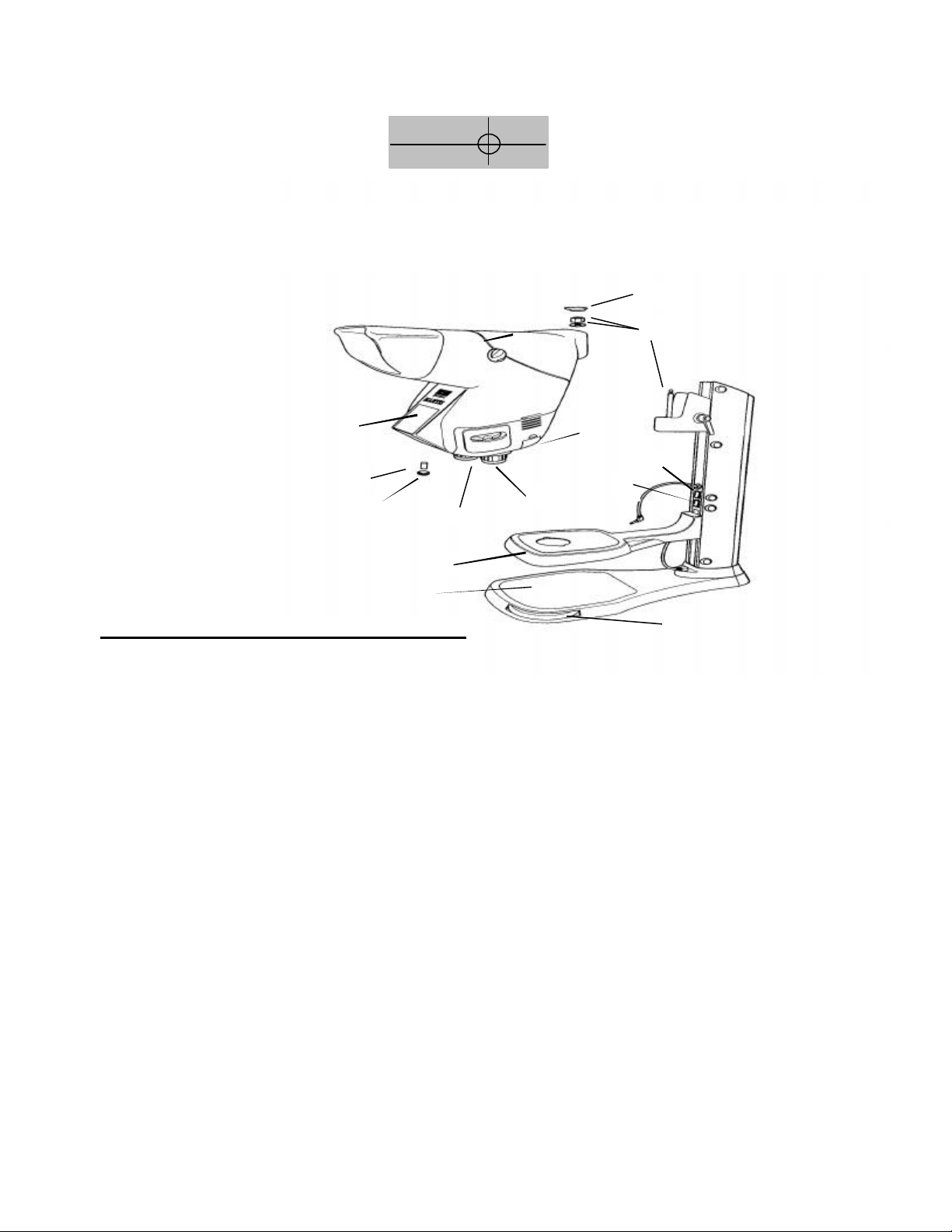

MANTIS FX BENCH STAND
Visi
n
E N G I N E E R I N G
Description User Guide Des. Part No.
1. Yaw Bolt Cover Cover Plate 187-A-0079
2. Yaw Bolt Assembly Yaw Spigot YB-A-001
3. Anti-glare Shield Anti-glare Shield 187-B-0090
4. Focusing Thumbwheel
5. Focusing Platform 187-D-292*
6. Surface Lighting Switch
7. Substage Lighting Switch
8. FX Base 187-C-0310
9. Fan Cover Assembly 187-A-0211
10. Desiccant(10 pack) Desiccant Cartridge M006
11. Grommet HDW-1030
12. Turret Assembly 187-A-0208
13. Filter Tray - Left 187-C-0076
14. Filter Tray - Right 187-C-0075
15. Lamp Diffuser 187-A-0115
16. Lamp Diffuser(Blue) 187-A-0115A
17. Lamp, 12volt, 20watt LAM-1300
*Requires Sub-Assembly 187-B-307
1
2
3
10
11 12
13
14
15
16
17
9
5
6
7
8
4
SYSTEM DIAGRAM
5
The Basic Systems
6
2) The Basic Systems
The Mantis Stereo Viewing System is a powerful optical inspection system. The patented optical
technology provides a bright, crystal clear overhead image in a fatigue free viewing environment.
Long working distance offers ample room for rework and part rotation.
Mantis systems are available in two versions. One version is the boom mount (refer to page 3 of
this manual) which can be mounted on almost any table surface. This is good for general
inspection, viewing and rework, especially in a production environment. The other version is the
Mantis FX (refer to page 4 of this manual). This version has a portable stand that resembles a
traditional microscope stand. This version is better suited to off-line inspection.
Each Mantis system can be equipped with any two of the objective lenses listed below. It is
common to use a lower magnification lens (such as 2X or 4X) for general inspection and a
higher magnification lens (such as 8X or 10X) for closer inspection of possible defects.
Mantis - Boom Mount
Description Vision Engineering Inc. Part No.
1) Mantis viewing head M001
2) Mantis Boom Mount M003
Mantis FX - Bench Stand
Description Vision Engineering Inc. Part No.
1) Mantis viewing head M001
2) FX Bench Stand M002
Objectives - For use with either system
Description Vision Engineering Inc. Part No.
1) 2X Magnification Lens M222
2) 4X Magnification Lens M444
3) 6X Magnification Lens M004
4) 8X Magnification Lens M008
5) 10X Magnification Lens M009
6) 6X SLWD Magnification Lens M013
The 6X SLWD magnification lens has a much longer working distance than the standard 6X
magnification lens. It is specifically designed for rework applications.
7
Objective Specifications
3) Objective Specifications
8
The Mantis objectives provide different levels of magnification ranging from 2X to 10X. As
magnification changes, working distance (the distance between the objective lens and the
subject when properly focused), field of view (the area of subject that is visible in the viewing
screen at any one time) and depth of field (the maximum subject height variation that will remain
in focus) also change. The chart below shows the characteristics of each lens.
Lens Working Distance Field of View Depth of Field
2X 171 mm ~ 6.7 in. 56 mm ~ 2.2 in. 25 mm ~ 1.0 in.
4X 86 mm ~ 3.4 in. 28 mm ~ 1.1 in. 11 mm ~ 0.4 in.
6X 55 mm ~ 2.2 in. 20 mm ~ 0.8 in. 5 mm ~ 0.2 in.
6X SLWD 112 mm ~ 4.4 in. 20 mm ~ 0.8 in. 5 mm ~ 0.2 in.
8X 41 mm ~ 1.6 in. 15 mm ~ 0.6 in. 3 mm ~ 0.1 in.
10X 41 mm ~ 1.6 in. 12 mm ~ 0.5 in. 2.5 mm ~ 0.1 in.
9
Using the Mantis
4) Using the Mantis
