2-WAY RF PAGING SYSTEM

For 1480 & 1460 Series Security Systems

TR537S

TR835S

models

User’s Guide

Thank you for purchasing this VISION

2-way Paging System. This system is a

state of the art device that will provide

you with years of trouble free service if

used properly. Please familiarize your-

self with the content of this User’s Guide

to get the most out of your new system.

We trust you will enjoy using the prod-

uct.

If you have not yet purchased this product and are evaluating the fea-

tures, please consider that 1480 features vary from car to car. This is

because digital CAN signals differ by car and it is therefore impossible

to guarantee all features will function on all compatible cars.

Door Locking and Light Flash are two of the most fundamental features

of the VISION 1480 that may not be available on all cars. As you read

the Arming/Disarming sections on pages 7-10, the words “if supported”

mean that door locking and light ash are not guaranteed features be-

cause they vary by car. Whether or not the doors will Lock & Unlock

and/or Hazards will ash when you press a Pager button will depend

on whether your car is compatible with those features.

To see 1480 feature compatibility for your car, please visit our website:

http://visionsecurity.jp/en/systems/1480.html

IMPORTANT NOTICE! PLEASE READ!

TABLE OF CONTENTS

Limited One Year Warranty ..................................1

Included Items.............................................2

2-Way Pager Remote .......................................3

General Pager Functions .................................3

Special Pager Functions ..................................4

Pager Icon Descriptions .....................................5

Pager Usage & Care ........................................6

System Operation ..........................................7

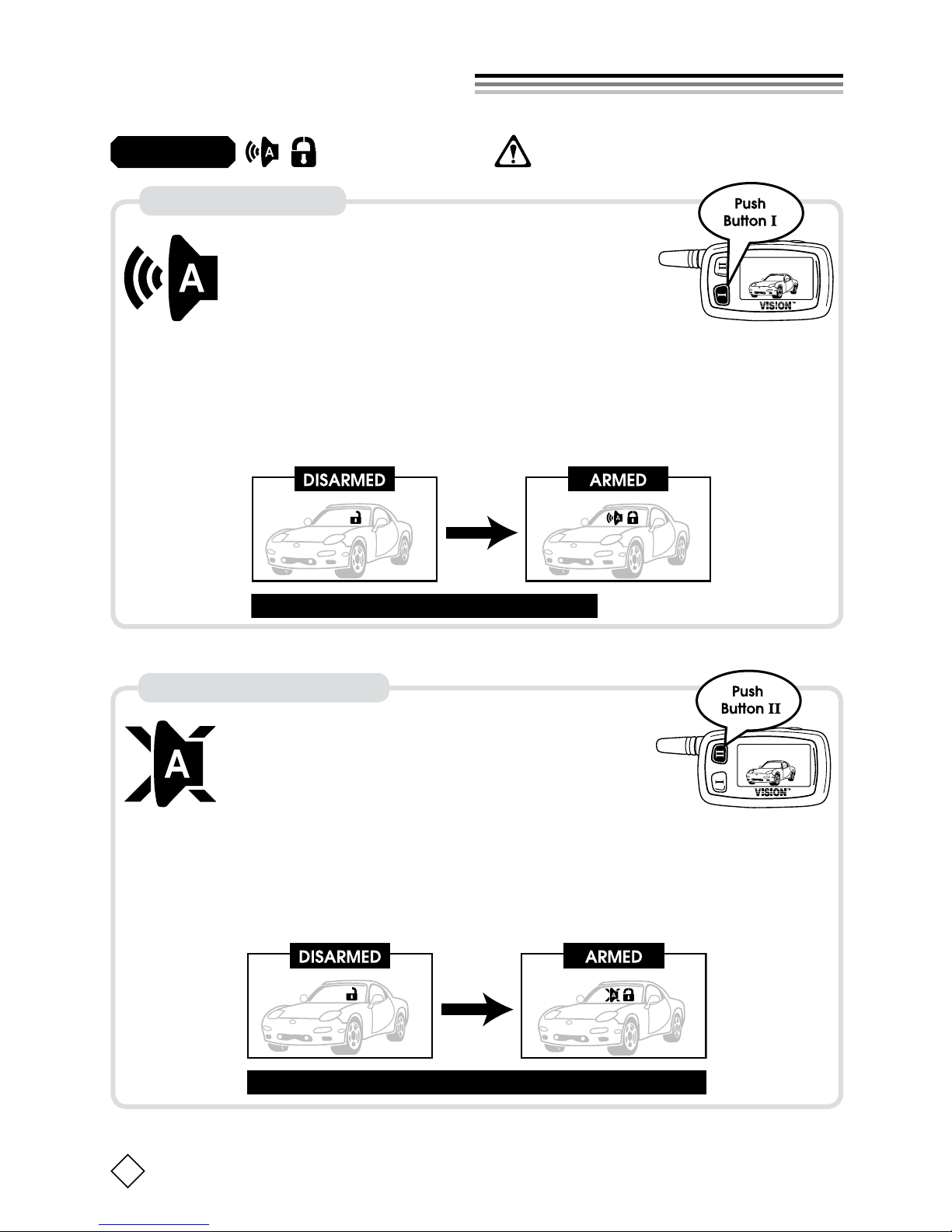

Arming.................................................7

Error Chirp..............................................8

Disarming .............................................10

Panic Mode ...........................................11

Pager Response to Factory Remote & 1480 Program Switch...12

Direct Door Lock .......................................13

Trunk Release ..........................................13

Alarm Triggers ........................................... 14

2-Stage Sensor Trigger...................................14

Door Trigger ...........................................14

Ignition Trigger .........................................15

Hood Trigger...........................................15

Trunk Trigger ...........................................16

Power-Cut Trigger ......................................16

Special Pager Features.................................... 17

LCD Backlight..........................................17

Vehicle Status .........................................17

In-Range Indicator......................................17

Installation & Learning .................................... 18

Installation ............................................19

Pager Learning.........................................20

Troubleshooting .......................................... 21

NOTICE! Although reasonable efforts have been taken to ensure accuracy in this

User’s Guide, Kiramek Inc. shall not be held liable for any errors, omissions, property

damage, or injury resulting from the use of this information.

All product specifications and features are subject to change without notice.

The VISION 2-way RF Paging System is backed by a limited one year

warranty against defective components and/or improper product assem-

bly to the original purchaser for as long the vehicle is owned by that

same purchaser, contingent upon installation by an Authorized VISION

Dealer. This warranty becomes void if the Paging System was not sold

and installed by an Authorized VISION Dealer or the system is moved

to another vehicle.

During the warranty period, Kiramek Inc. will repair or replace, at its

sole discretion, any system component that is found defective in mate-

rial or assembly during the warranty period, provided that the product

is returned to Kiramek Inc. by an Authorized VISION Dealer and is ac-

companied by a clear and legible copy of the original purchaser’s receipt.

Any damage to your VISION Paging System that results from normal

wear-and-tear, accidents, drops, strong impact, water damage, leaked

battery damage, improper use, neglect, faulty wiring, incorrect installa-

tion, modication, removal or defacement of the product serial number,

alteration or repair outside Kiramek Inc or its Authorized VISION Deal-

ers immediately voids this warranty.

This warranty is limited to defective parts only and does not provide

any compensation whatsoever for damages associated with the VISION

Paging System. This warranty does not cover installation labor, prod-

uct removal and/or reinstallation fees. This warranty does not cover the

elimination of externally generated RF noise, or weak reception. This

warranty also does not cover the lifespan of the included AAA battery,

nor any damage to the pager that may occur if that or any other battery

leaks inside the pager and causes corrosion to the contacts or causes

other related malfunction or damage.

This warranty is valid for the original purchaser only and may not be

transferred to another party. Kiramek Inc makes no warranty against

theft or vandalism of the vehicle in which the VISION Paging System

was installed. This warranty shall not be interpreted as an insurance

policy against loss, nor shall Kiramek Inc be liable any in way for such

loss, nancial or otherwise.

LIMITED ONE YEAR Warranty

KIRAMEK may opt to validate the above Warranty, in writing, for shipments outside Ja-

pan, in cases where there is no local VISION Dealer available to perform the install.

VISION RF PAGING SYSTEM USER’S GUIDE

INCLUDED ITEMS

TR68A-3LXTR53A-7X

TX-CASE

Pager Remote (1pc)

Antenna Harness (1pc)

Antenna Unit (1pc)

OTHER INCLUDED ITEMS:

• Double-Sided Mounting Tape for Antenna Unit (1pc)

• AAA Battery for Pager Remote (1pc)

• This User’s Guide

CALL

Pager Case (1pc)

VISION RF PAGING SYSTEM USER’S GUIDE

2-WAY PAGER REMOTE

OVERVIEW

p/n TR53A-7X (ARIB T-67, Japan)

TR83A-7X (FCC, USA)

Button-I

Button-II

Button-III Function

Button

LCD

Antenna

Vehicle Status or Trunk Release

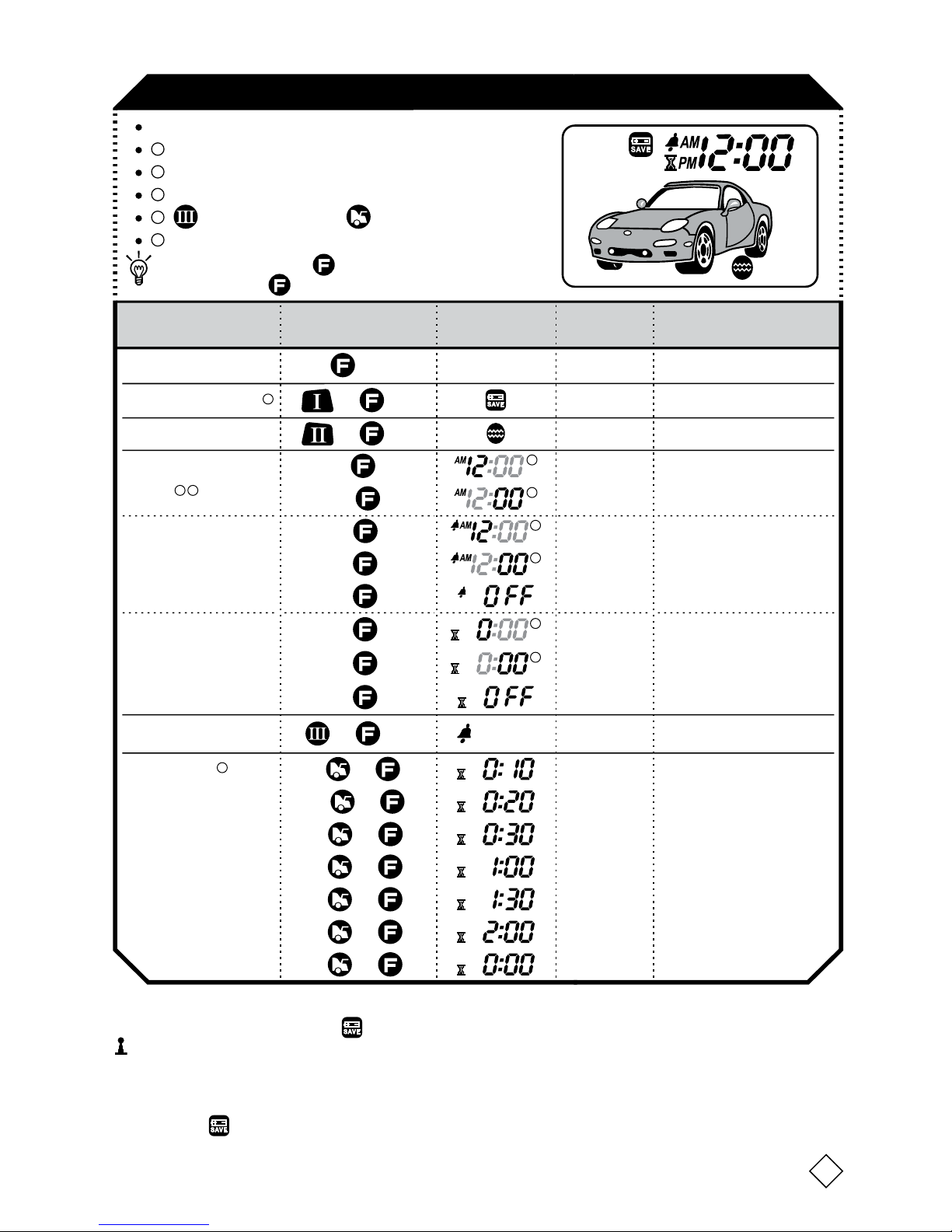

GENERAL PAGER FUNCTIONS

(S) stands for a Short press, while (L) means a Long press.

indicates the icon blinks ON/OFF.

After pressing any pager button, if the icon disappears, you are either out of

range or RF noise is interfering with the pager signal.

SELECTABLE

FUNCTIONS

BUTTON

OPERATION

ICON

ALERT

PAGER

BEEPS

SIREN

CHIRPS

LIGHT

FLASHES

Normal Arm

Normal Disarm

Sensor Bypass Arm

Door Lock / Unlock

Panic Siren

Vehicle Status

Trunk Release

Also see page 4, “SPECIAL PAGER FUNCTIONS.”

(S)

(L)

+ (S)

(S)

(S) 1 1 1

2 3 3

MELODY none 1

2none 3

1none 1

2none 3

1 2 1

23 or none 3

none none 1 / 3

SIREN SOUND

Siren Blast Continuous

MELODY none none

3none 3

Silent Mode Arm

(S)

Silent Mode Disarm

(S)

No Conﬁrmation Arm

No Conﬁrmation Disarm

(S)

Sensor Bypass Disarm

none

various

or or

(L)

or or

(S)

SELECTABLE

FUNCTIONS

BUTTON

OPERATION

ICON

ALERT

PAGER

BEEPS

FUNCTIONAL

DETAILS

E.L. Backlight ON

(S)

none none Turns off in 5 sec.

Power Save Mode

(S)

2Activates in 2 min.*

Audio/Vibe Alert +

(S)

none

Time Adjustment

Mode

(1st)

(L)

2Keep adjusting hour

to change AM/PM.

(2nd)

(S)

none

Alarm Clock (3rd)

(S)

none When alarm goes

off, a special melody

plays on the pager

for 25 sec.

(4th)

(S)

none

ON or OFF (5th)

(S)

none

Countdown Timer (6th)

(S)

none When count reaches

zero, the pager will

beep continuously

for 10 sec.

(7th)

(S)

none

ON or OFF (8th)

(S)

none

Alarm Toggle +

(S)

(when ON)

Fixed Timer

(1st) +

(S)

All times in hours:min.

Use the Time Adjust-

ment Mode “Count-

down Timer” feature

to set a custom timer

that is not shown

here.

(2nd) +

(S)

(3rd) +

(S)

(4th) +

(S)

(5th) +

(S)

(6th) +

(S)

OFF (7th) +

(S)

(S) means a Short press, (L) means a Long press.

RF receiver sleeps, power cut to 1/3 of normal.

hour digit(s) selected for adjustment.

minute digits selected for adjustment.

adjusts upward; adjusts downward.

routine exists after 8 seconds of inactivity.

TIP: When pressing along with other buttons,

Press & Hold before pressing other buttons.

SPECIAL PAGER FUNCTIONS

Pager Power Save Mode only works while the system is DISARMED. If you try to activate Power

Save Mode while Armed, the icon will appear but Power Save Mode is in fact not active (the

icon never disappears). The reason for not working while Armed is that your pager would not

automatically receive notification of vehicle threats in Power Save Mode because Power Save

Mode improves battery life only by shutting down the pager’s RF receiver. When the RF receiver

is off, your pager won’t update. If you push any button, Power Save Mode will deactivate (even

though the icon will continue displaying on the pager) and then reactivate 2 minutes later.

1. Silent Mode ARMED (siren off)

2. Siren Active Mode ARMED

3. Vehicle Doors Locked

4. Vehicle Doors Unlocked

5. Trunk Opened (1460 WHT/BLK)

6. Engine Running

7. Low Battery Indicator

8. Valet Mode Active

9. Pager Vibration Alert Mode

10. Door Opened

11. Hood Opened (1480 GRY)

12. Sensor:

Heavy Impact or Bypass

13. Sensor: Light Impact

14. RF Receiver Enabled (icon) or

Disabled (no icon)

15. RF Transmitter Enabled (icon)

or Disabled (no icon)

16. In-range Indicator (icon vanishes

if pager is outside communication

range or in Power Save Mode)

17. Transmitting (whenever a pager

button is pressed)

18. Pager Power Save Mode Active

19. Countdown Timer Mode

20. Alarm Clock Enabled

21. Morning Time Indicator

22. Afternoon Time Indicator

23. Hour & Minute Display

Pager Icon Descriptions

1) After you Arm or Disarm, there are times when you may receive 2

answer-back notications. This is normal.

2) If a sensor sends a Warning response to the 1480/1460 multiple times

very quickly (e.g., more than 2 times in 8 seconds), the pager will not

produce more than 2 answer-back notications.

NOTES

VISION RF PAGING SYSTEM USER’S GUIDE

PAGER USAGE & CARE

PRECAUTIONS

Your 2-way pager is a delicate device that can be easily damaged by excessive

vibration, heat, direct sunlight, humidity, dirt, oil and water. Small particles

in a very dirty pocket can also damage the pager over time. Never immerse

your pager in water. If it gets wet, remove the battery and allow to dry. Never

drop your pager. Impact can break the LCD and/or cause the answer-back

functionality to stop working. Rough handling is not covered under warranty!

COMMUNICATION RANGE

Your pager’s range is affected by RF noise. Typical in-city range is often

greater than 300m (>985ft), while range in the country can be as high as

600m (2,000ft.). Note that if metal objects (e.g., coins in your pocket) touch

or surround the antenna, range may decrease. Also, close proximity to TV

stations and or powerful mobile phones can also limit range.

RESPONSIVENESS

It can take several seconds before your pager is updated with the current

status of the vehicle (e.g., door open, siren blast, etc.). During this time,

the pager may become less responsive to your button presses. Also, the

pager will not receive updates while you are pressing any button.

A pager battery will last just over 1 month with normal use. When the

icon appears on the LCD, replace the battery. The battery icon may ash

and the pager may beep 6 times when the battery is just about to die. Re-

place the battery soon with a fresh (+)1.5v AAA Alkaline. (Rechargeables

may not work if the voltage is much less than 1.5v.) Also note that leaving

a battery in the pager too long without using it could cause the battery to

leak, resulting in corrosion of the battery contacts and pager malfunction.

Follow this procedure every time you replace the battery:

(1) Remove the cover and take out the old battery.

(2) Press the button for 2 seconds to clean out the pager memory.

(3) Insert the new battery and replace the cover.

(4) Press the button again to initiate communication.

LOW BATTERY INDICATOR

VISION RF PAGING SYSTEM USER’S GUIDE

System Operation

ARMING

NORMAL ARMING

This method is the typical way to Arm,

with the shock sensor enabled. Ensure

that all doors are closed and then press

Button-I on the Pager remote. After you

press Button-I, the doors will lock and hazard lights will ash once (if

supported). The siren will chirp 1 time, the Pager remote will beep once

and update (see Fig-1 below), and Status LED will light for 5 seconds.

(The siren can’t be triggered while the LED is lit — See “Error Chirp” on

the next page.)

SILENT MODE ARMING

This method of Arming will complete-

ly disable the siren (no conrmation

chirps, no warning chirps, no siren

blast). Press Pager Button-II then re-

lease. The doors will lock and hazard lights will ash once (if supported).

The Pager will play a melody and update (see Fig-2 below), and Status

LED will light for 5 seconds. (The siren can’t be triggered while the LED

is lit — See “Error Chirp.” )

FIG-1: Pager LCD Icon Change After Arming

FIG-2: Pager LCD Icon Change After “Silent Mode” Arming

Be sure to read the “Arming Mode

Note” at the bottom of page 9.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Vision Allarme auto

Vision

Vision 1480 Series Manuale utente

Manuali Allarme auto popolari di altre marche

Clifford

Clifford 3606X Manuale utente

Ultra Start

Ultra Start 2500M SERIES Manuale utente

Ultra Start

Ultra Start 650 Series Manuale utente

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuale utente

Sparkrite

Sparkrite SRA8 Manuale utente

Viper

Viper 4708V Manuale utente

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuale

Falcon

Falcon Predator XL3 Guida utente

Audiovox

Audiovox Auto Security XR91 Istruzioni operative

Clifford

Clifford Sabre II Manuale utente

CrimeStopper

CrimeStopper CS-8717 Guida rapida

Ultra Start

Ultra Start 450 SERIES Manuale utente

Scytek electronic

Scytek electronic Vectra X3 Manuale utente

Excalibur

Excalibur AL-1860-EDPB Manuale utente

Clifford

Clifford CYBER 2 Manuale utente

Gemini

Gemini 7057 Manuale utente

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuale utente

Magicar

Magicar FAI-440 Manuale utente
