Vision™ OPLC™ Installation Guide

V290 (Color)

This guide provides basic information for Unitronics’ LCD color touchscreen models

V290-19-C30B and V290-19-T40B.

General Description

Vision OPLCs are programmable logic controllers that comprise an integral operating panel.

Operating panel features differ according to model.

The V290-19-C30B and V290-19-T40B offer a color touchscreen,

which displays a virtual keyboard when the application requires the

operator to enter data.

Communications

2isolated RS232/RS485 ports

and a CANbus port.

The user can order and install an

additional port. Available port

types are: RS232/RS485, and

Ethernet. V290 (Color Screens)

Touchscreen only

I/O Options Vision supports up to 171 digital, high-speed, and analog I/Os via modules.

Number of I/Os and types vary according to module.

Snap-in I/O Modules

Plug into the back of the controller to provide an on-board I/O

configuration.

I/O Expansion Modules

Via adapter, use up to 8 I/O Expansion Modules comprising up to

128 additional I/Os.

Programming Write both the HMI and Ladder control application using VisiLogic freeware.

The Vision User Guide and the product’s technical specification sheet contain additional information.

These documents are located on the Unitronics’ Setup CD. They may also be downloaded from the

Technical Library at www.unitronics.com.

Standard Kit Contents

Vision controller Programming cable + RS232 adapter

Mounting brackets (x4) Grounding hardware

3pin power supply connector Rubber seal

5-pin CANbus connector Unitronics’ Setup CD

CANbus network termination resistor

Danger Symbols

When any of the following symbols appear, read the associated information carefully.

Symbol Meaning Description

Danger The identified danger causes physical and property damage.

Warning The identified danger could cause physical and property damage.

Caution Caution Use caution.

Vision™ OPLC™ V290-19-C30B, V290-19-T40B

2Unitronics

Before using this product, the user must read and understand this document.

All examples and diagrams are intended to aid understanding, and do not guarantee operation.

Unitronics accepts no responsibility for actual use of this product based on these examples.

Please dispose of this product according to local and national standards and regulations.

Only qualified service personnel should open this device or carry out repairs.

Failure to comply with appropriate safety guidelines can cause severe injury or property damage.

Do not attempt to use this device with parameters that exceed permissible levels.

To avoid damaging the system, do not connect/disconnect the device when power is on.

Environmental Considerations

Do not install in areas with: excessive or conductive dust, corrosive or flammable gas,

moisture or rain, excessive heat, regular impact shocks or excessive vibration, in

accordance with the standards given in the product’s technical specification sheet.

Ventilation: 10mm space required between controller’s top/bottom edges & enclosure walls.

Do not place in water or let water leak onto the unit.

Do not allow debris to fall inside the unit during installation.

Install at maximum distance from high-voltage cables and power equipment.

Mounting

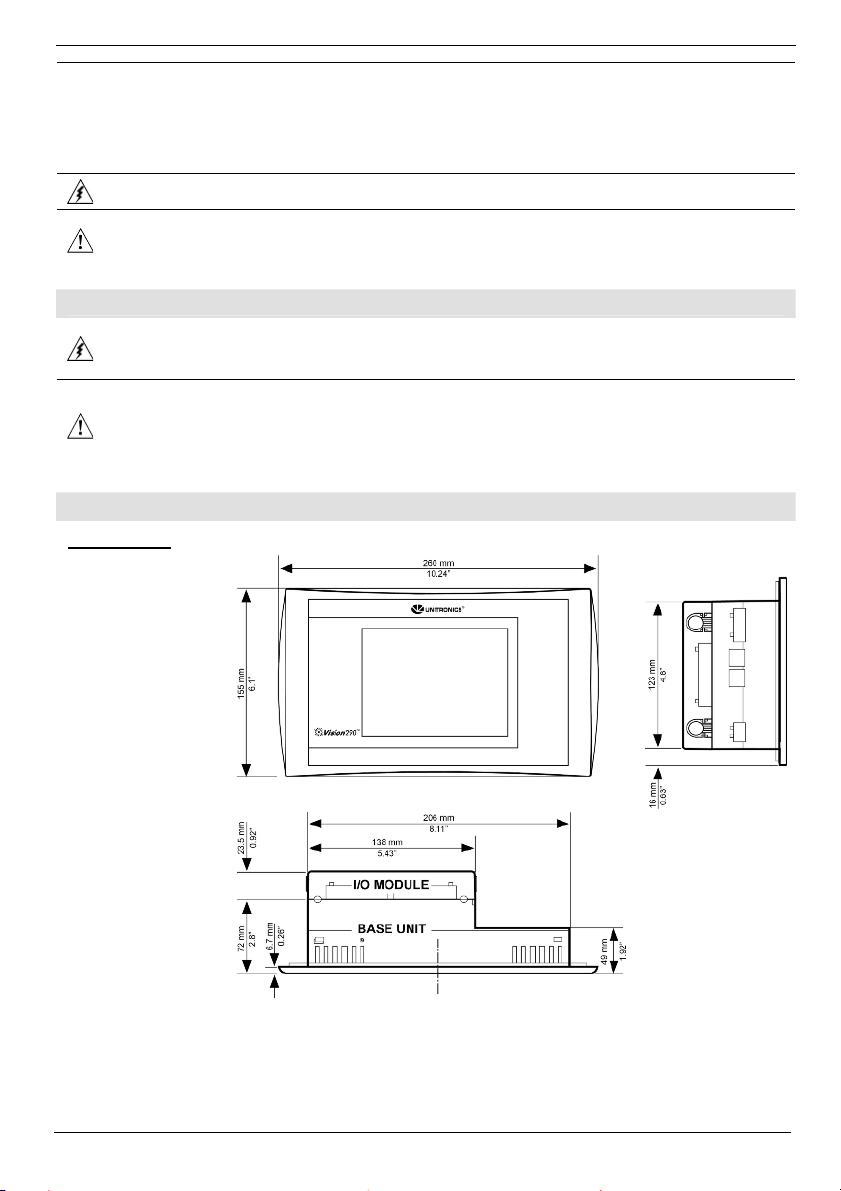

Dimensions

Installation Guide

Unitronics 3

Panel mounting

Before you begin, note that:

The mounting panel cannot be more than 5 mm thick.

To minimize electromagnetic interference, mount the controller on a metal panel and

earth the power supply according to the details in step 2 below.

1. Make a panel cut-out according to the dimensions shown below.

Cut-out Dimensions

2. If you mount the controller on a metal panel, earth the power supply:

a. Bore a hole to suit the NC6-32 screw supplied with the kit.

b. Scrape panel paint away from the contact area to ensure a conductive

connection.

c. Drive the screw into the hole.

d. Place the following hardware screw’s shank, in the order shown in the

accompanying figure: washer, ring cable shoe, second washer, spring,

and nut.

Note:

The wire used to earth the power supply must not exceed 10 cm in

length. If your conditions do not permit this, do not earth the

power supply.

Vision™ OPLC™ V290-19-C30B, V290-19-T40B

4Unitronics

3. Slide the controller into the cut-out, ensuring

that the rubber seal is in place.

4. Push the 4 mounting brackets into their slots

on the sides of the controller as shown in the

figure to the right.

5. Tighten the bracket screws against the

panel. Hold the bracket securely against the

unit while tightening the screw.

6. When properly mounted, the controller is

squarely situated in the panel cut-out as

shown in the figure to the right.

I/O Modules

I/Os are integrated into the system via Snap-in Modules and I/O Expansion Modules. Installation

instructions and other data may be found in the module’s technical specification sheet.

Wiring: General

Do not touch live wires.

Unused pins should not be connected. Ignoring this directive may damage the device.

Caution

To avoid damaging the wire, do not exceed a maximum torque of 0.5 N·m

(5 kgf·cm).

Do not use tin, solder, or any substance on stripped wire that might cause the wire

strand to break.

Use crimp terminals for wiring; use 26-14 AWG wire (0.13 mm 2–2.08 mm2).

1. Strip the wire to a length of 7±0.5mm (0.250–0.300”).

2. Unscrew the terminal to its widest position before inserting a wire.

3. Insert the wire completely into the terminal to ensure a proper connection.

4. Tighten enough to keep the wire from pulling free.

Installation Guide

Unitronics 5

Power Supply

The controller requires an external 24VDC power supply. The permissible input voltage range is

20.4-28.8VDC, with less than 10% ripple.

Anon-isolated power supply can be used if a 0V signal is connected to the chassis.

You must use an external circuit protection device.

Install an external circuit breaker. Guard against

short-circuiting in external wiring.

Double-check all wiring before turning on the power

supply.

Do not connect either the ‘Neutral or ‘Line’ signal of

the 110/220VAC to device’s 0V pin.

In the event of voltage fluctuations or non-conformity

to voltage power supply specifications, connect the

device to a regulated power supply.

To avoid electromagnetic interference, earth the

power supply as described on page 3.

Communication Ports

This series comprises 2 RS232/RS485 serial ports and a CANbus port.

Turn off power before making communications connections.

Caution Signals are related to the controller’s 0V; the same 0V is used by the power supply.

Always use the appropriate port adapters.

Serial Communications

The serial ports are type RJ-11 and may be set to either RS232 or RS485 via DIP switches, in

accordance with to the table shown on page 7.

Use RS232 to download programs from a PC, and to communicate with serial devices and

applications, such as SCADA.

Use RS485 to create a multi-drop network containing up to 32 devices.

Caution The serial ports are isolated. If the controller is used with a non-

isolated external device,

avoid potential voltage that exceeds ± 10V.

Pinouts

The pinouts below show the signals between the adapter and port.

RS232 RS485** Controller Port

Pin # Description Pin # Description

1* DTR signal

1 A signal (+)

20V reference 2(RS232 signal)

3TXD signal 3(RS232 signal)

4RXD signal 4(RS232 signal)

50V reference 5(RS232 signal)

6* DSR signal

6 B signal (-)

Pin #1

*Standard programming cables do not provide connection points for pins 1 and 6.

**When a port is adapted to RS485, Pin 1 (DTR) is used for signal A,

and Pin 6 (DSR) signal is used for signal B.

Vision™ OPLC™ V290-19-C30B, V290-19-T40B

6Unitronics

RS232 to RS485: Changing DIP Switch Settings

The ports are set to RS232 by factory default.

To access the DIP switches, first remove the Snap-in I/O Module, if one is installed, and then

remove the back of the controller.

Before removing a Snap-in I/O Module or opening the controller, you must turn off the

power.

Removing a Snap-in I/O Module

1. Locate the four buttons on the sides of the controller, two on either side.

2. Press the buttons and hold them down to open the locking mechanism.

3. Gently rock the module from side to side, easing the module from the controller.

Opening and Closing the Controller

1. Locate the slots on the sides of the

controller.

2. Open the controller by inserting a

flat-bladed screwdriver into the

slots located on the side of the

controller, then carefully prying off

the rear panel.

3. Locate the DIP switches, and then

change the settings as required.

Settings are shown on page 7.

4. Close the controller

by snapping the

plastic cover back in

its place.

Installation Guide

Unitronics 7

Re-installing a Snap-in I/O Module

1. Line the circular guidelines on the controller up with the guidelines on the Snap-in I/O Module as

shown below.

2Apply even pressure on all 4 corners until you hear a distinct ‘click’. The module is now installed.

Check that all sides and corners are correctly aligned.

RS232/RS485: DIP Switch Settings

Switch Settings

123456

RS232* ON ON ON OFF ON OFF

RS485 OFF OFF OFF ON OFF ON

RS485 with

termination**

ON ON OFF ON OFF ON

*Default factory setting

**Causes the unit to function as an end unit in an RS485 network

Vision™ OPLC™ V290-19-C30B, V290-19-T40B

8Unitronics

CANbus

These controllers comprise a CANbus port. Use

this to create a decentralized control network of

up to 63 controllers, using either Unitronics’

proprietary CANbus protocol or CANopen.

The CANbus port is galvanically isolated.

CANbus Wiring

Use twisted-pair cable. DeviceNet® thick

shielded twisted pair cable is recommended.

Network terminators: These are supplied with the

controller. Place terminators at each end of the

CANbus network.

Resistance must be set to 1%, 121Q,1/4W.

Connect ground signal to the earth at only one

point, near the power supply.

The network power supply need not be at the

end of the network

CANbus Connector

121

terminating

resistor

121

terminating

resistor

Circuit

protection

device

24V Power

Supply

-V
