VISION X DURA MINI LED DRIVING LIGHT KIT
About the Dura Mini LED Driving Light
XMITTER PRIME XTREME SPECIFICATIONS
1. Warranty : Extended
2. Amp Draw : 3.34A @ 12V DC
3. Input Voltage : 9-32V DC
4. Beam Patterns : 10° Top, 25° Bottom
5. LED Lifespan : 50,000 Hours
12
Qty: 2 Qty: 1
Harness
Light Harness
Dura Mini
MOUNTING INSTALLATION INSTRUCTION
1. Place the Light on the location where it will be mounted.
Remember that it must be within reach of the harness.
2. Determine where the [M6] bolt Part (B1) will be placed, and
mark where the bolt locations will be.
3. Drill a hole for the bolt (B1).
4. Place the Light over the hole, and slide the bolt (B1)
through. The washer Part (W1) is then applied on the other
end of the drilled hole followed by the nut Part (N1).
5. Tighten nut (N1) to desired tightness.
WARNING: Bolts, Nuts, and Washers are Stainless Steel.
DO NOT USE Pneumatic or Electric Tools to Tighten and
Loosen. The Hardware Will Permanently Lock Together.
TIP: For complete application guide see website

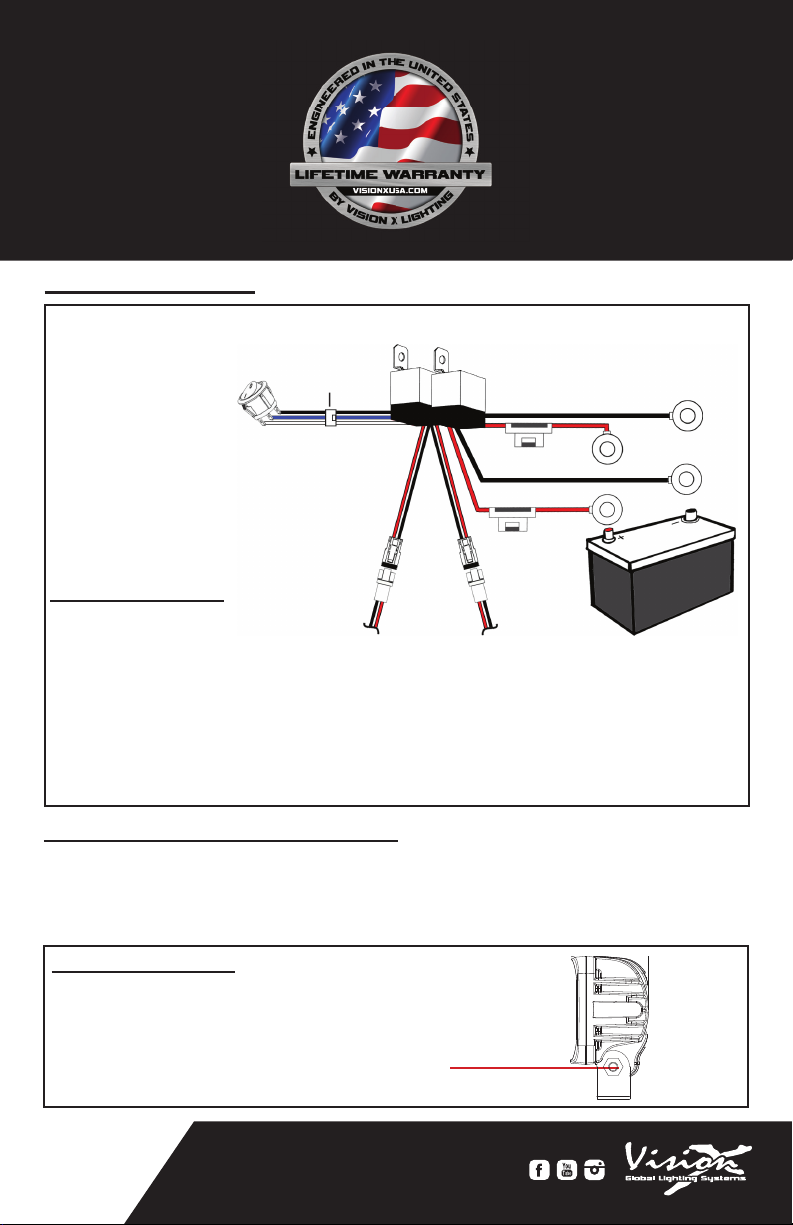

WIRING INSTALLATION INSTRUCTION
1. Find a suitable place to mount Relays Part (R1 & R2)
leaving enough room for Power & Ground wires Part
(W1,W2,W3,W4) to reach the battery & the Deutsch
connectors Part (C1 & C2) to reach the lights. Mount
Relays.
2. Run Power wires (W1, W3) & Ground wires (W2 , W4)
to the battery. Connect the Power wires (W1 , W3) to the
Positive (+) battery terminal and connect the Ground wire
(W2 , W4) to the Negative (-) Battery Terminal.
3. Run the Deutsch Connector wiring, (C1 & C2) to each light
and plug in. It doesn’t matter which Deutsch Connector
plugs into which light.
4. Disconnect the Switch Part (S1) at the white Plug Part (P1)
and run the wire through the vehicles fi re wall to desired
mounting location inside the Cab, [using a factory rubber
or plastic grommet is suggested].
5. Drill the hole to the required size for the Switch (S1) and
mount to desired position.
6. Reconnect the Switch (S1) to the Harness.
7. Test Light.
(B1)
(Mounting Bracket)
(W1)
(N1)

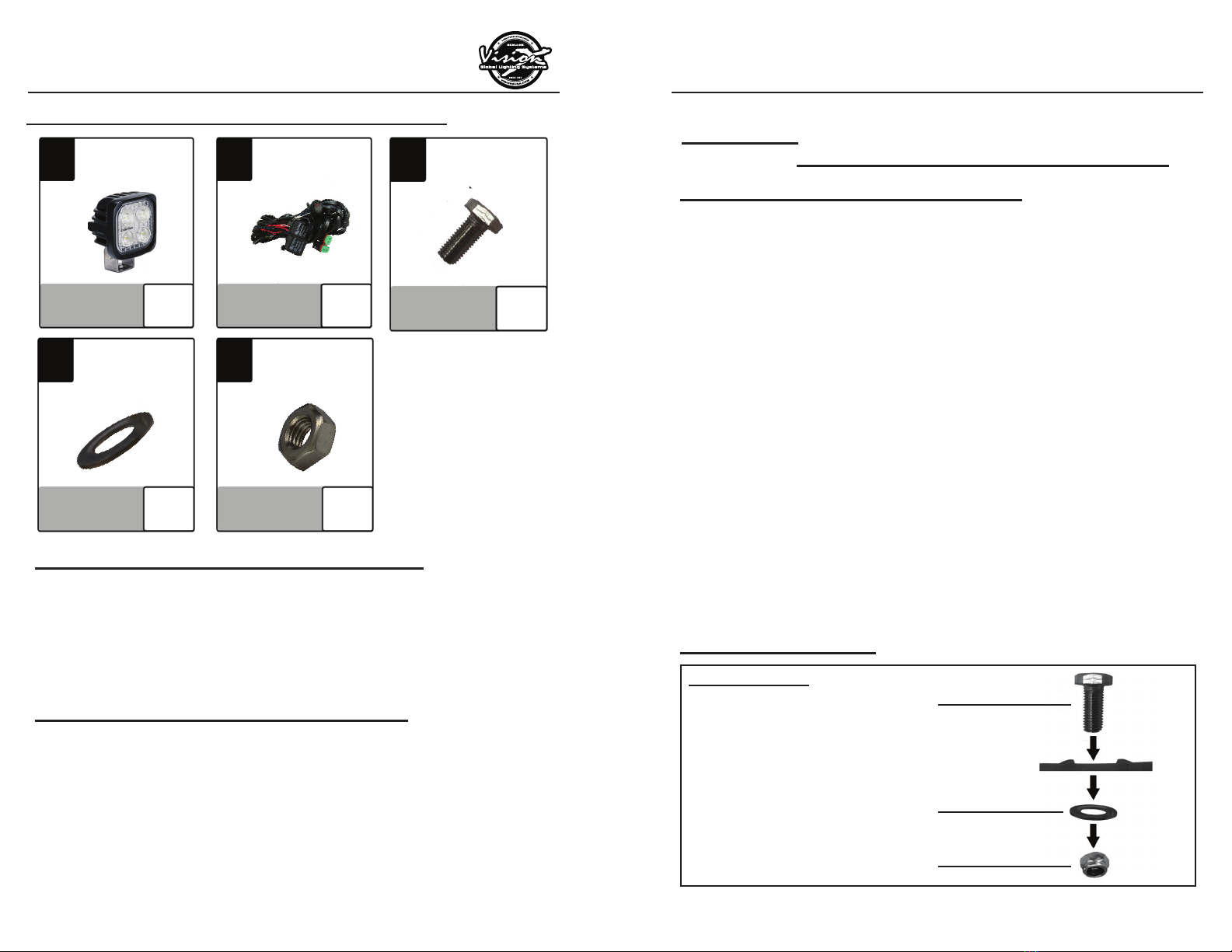

MOUNTING KEY
Part (B1) Bolt
Part (Mounting Bracket)
Part (W1) Washer
Part (N1) Nut
MOUNTING DIAGRAM
3Hex Head Bolt
[M6]
Qty: 2
PART (B1)
4
Qty: 2
Washer
[M6]
PART (W1)
5
Qty: 2
Nylock Nut
[M6]
PART (N1)
