Visiscope TVS-360-50 Manuale utente
360° Pan and Tilt Pole Inspection Camera
User Manual
TVS-360-50 & TVS-360-80
TVS-360 pan-tile pole inspection camera
Thank you for purchasing this device. This handbook can lead you to use our product and the
applied program of its adding.
NOTES
1. We try our best to make the content correct and complete, but it can’t be certified that there is no
mistake and omit of the introduction.
2. Our company is only responsible for maintaining and repairing the problem of itself existing. We
aren’t responsible for personal data deleted and losses caused by wrong operation, product repair, or
other cases. We are also not responsible for any other indirect loss caused by this.
3. Any modification of software, hardware, the introduction of this product will not be notified
separately, and our company owns the final explanation rights.
Content
Notes…….…………………………………………………………………………………1
Basic Information……………………………………………………………………….…2
Structure of Search camera&Life Detector………………………….………..............….…..3
Buttons & Interface……………………………………………………….…………….....4
Loading & Unloading of Sunshade ……………………………………………....….…....5
Monitor Installation……………………………………………………………...………. ...6
Retract Telescopic Pole…………………………………………. . . .…………. ….….…...7
Camera Rotated Operation.……………………………………………………… ……... 8
Earphone and Communication……………………………………………………………...9
About Charge…….……………………………………………………………………….9
Basic Operation .………………………………………………………………………. ..10
Turn On/Off LED lights/Adjust Brightness……………………………………………. .11
Recording & Zoom………………………………………………………………………12
Photo……………………………………………………………………………………..13
Playback Video &Pictures..……………………………………………………………...14
Delete Video & Photo..…………………………………………………………………..15
System Settings…….……………………………………………………………………16
Trouble Shooting…………………………………………………….………………… .22
Specification………………………………………………………….………………….23
Package Content…………………………………………………………………………25
1
Notes
Dear customers, thank you for choosing our device. We really hope our product can bring happiness
to you. Please read the following instructions carefully before using:
Forbid to use it in a high -temperature environment.
Please insert or pull out the TF card after the monitor is powered off. If under the
working state, the huge current will bring unpredictable damage to the machine.
Put it in the place where the children are not able to reach to avoid being fallen down or
against sharp objects, which will bring serious damage to the machine.
Please don’t dismantle the device without authorization. If any queries, please contact
the distributor or our company.
Please don’t change or poke the battery. If put the battery into fire, it will explode and
hurt people.
Please don’t use it when driving or doing the work, which needs your high attention.
We suggest customers copy the data in case any loss caused by a unstable power supply.
Otherwise, our company will not be responsible for any damage.
When inserting TF card, please make sure the inserting direction is correct. Otherwise, it
will damage the card slot, which users need to bear it themselves.
DO NOT use this product to violate others’ privacy. Monitoring others’ activities
without consent is illegal and this product is not designed and manufactured for such
purpose;
DO NOT use this product for any illegal activities. We shall not be responsible for any
consequences of illegal acts committed by the user.
2
Basic Information
360°horizontally rotate；360°vertically rotate
1080P Sony Sensor Camera
View angle:160°view angle
Light source: 8 LED, brightness is adjustable via monitor
Audio/communication range：about 300 sqm
Camera size: 34.5*51.5mm ,rotated 360 °via the control box
Telescopic Pole : about 3.5m if unfold, 1.15m if fold, 1.4kg
Monitor bracket: adjust the forward/back/left/right directions
Monitor screen : 7-inch screen 1024*600 pixel with sun visor
Monitor function：Video , Photo, Playback, 4 times Zoom
Video record resolution: 1080P HD-TVI,1920*1080px
Battery：Built-in 7500mAh high capacity Li-battery
Working Time: about 4-6 hours
Working Voltage: 5-24V
Storage: Max 128GB TF card(TF card is not include)
Languages:English,German,French,Italian,Portuguese,Spanish
Korean,Japanese,Chinese,Russian
Supports Power-saving Mode: automatic shutdown, automatic off-screen
Automatic upgrade: Supports system automatic upgrade
Aluminum Alloy case : Fully preservation
3

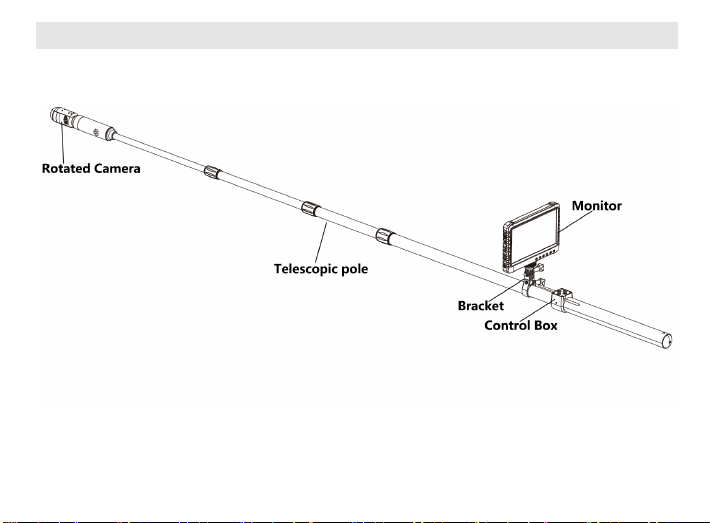

Structure of Life Detector & Search Camera
4

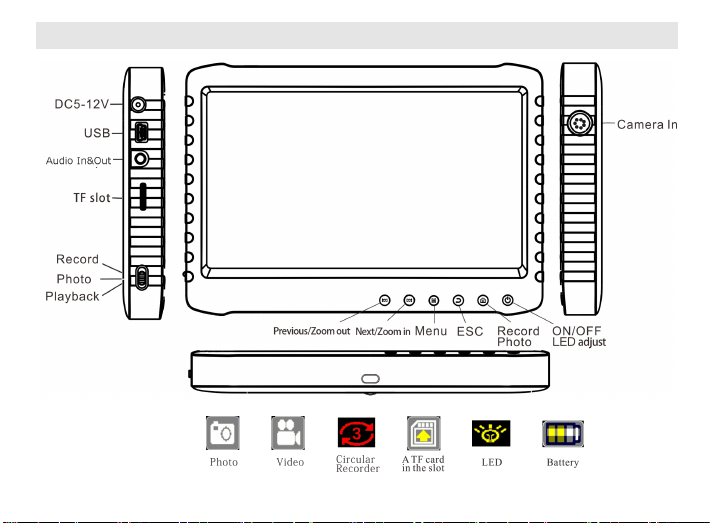

Buttons & Interface of Monitor
Tips for symbols:
5
Loading & Unloading of Sunshade
Loading & Unloading Methods of Sunshade Cover
The bottom of sunshade cover is provided with 2 buckle pins. Please aim them at the button holes
on monitor and push gently, it’s loaded in place.
If need to unload it, just gently push it to the opposite direction.
Open the sunshade cover: just push up the button in the middle of cover, it pop open.
6
Monitor Installation
Aim the notch on the monitor bottom at the inserted bolt on the pole, fasten bolt with chain. Adjust
the direction and the angle of the handle by screwing the bolt.
Catch the 4 pin connector to plug it into the monitor slot, then fasten the nut. ( When pulling it out,
just loosen the nut and pull it out.)
7
Stretch & Retract Telescopic Pole
Stretch the pole, anti-clockwise loosen the collars one by one to stretch the pole.
Then clockwise fasten the loose collars.
Retract the pole, anti-clockwise loosen the loose collars one by one.
Clockwise fasten the loose collars.
pole consists of 4 sections.
