Visplay Air Manuale dell'operatore

Instructions for assembly and use

Air

Visplay GmbH, May 2022 Edition

Content

1 General ................................................................................................. 4

1.1 Hazard levels indicated by warning notices.......................................................... 4

1.2 Explanation of symbols ........................................................................................... 5

1.3 Intended use............................................................................................................ 5

1.4 General safety ........................................................................................................ 6

2 Product description................................................................................ 7

3 Delivery ................................................................................................. 8

3.1 Unpacking ............................................................................................................... 8

3.2 Scope of delivery .................................................................................................... 9

4 Assembly ..............................................................................................10

4.1 Mounting aids and tools ........................................................................................ 10

4.2 Base frame ............................................................................................................. 10

4.3 Positioning grid ....................................................................................................... 15

4.4 Multi-Lane proﬁle ...................................................................................................16

5 Operation.............................................................................................21

5.1 Electrical connection ..............................................................................................21

6 Accessories .......................................................................................... 22

6.1 Curtain rail............................................................................................................. 22

6.2 Other accessories.................................................................................................. 22

7 Technical data...................................................................................... 23

8 Weight loads........................................................................................ 23

9 General information ............................................................................ 24

9.1 Cleaning ................................................................................................................ 24

9.2 Storage .................................................................................................................. 24

9.3 Disposal ................................................................................................................. 24

Air | General

4Visplay GmbH, October 2023 Edition

1 General

This manual is provided to ensure the safe and eective use of the “Air” product.

This manual is a component of the product and must be kept on hand in the vicinity of the product at all times.

All personnel who deal with the product must have read this manual. Compliance with all the safety instructions and handling

instructions speciﬁed in this manual is a prerequisite for safe work.

The illustrations in this manual are provided for the purposes of general understanding and may deviate from the actual

version.

All dimension information in this manual is speciﬁed inmm.

Quality assurance

All processes in our company are subject to a comprehensive management system, which conforms to the ISO9001 quality

standard.and the ISO14001 environmental standard.

The Zertiﬁzierungs- und Umweltgutachter GmbH (BSI) company audits this management system regularly and documents

compliance with the standard via a certiﬁcate.

This manual is protected by copyright. Its use is permissible as part of the use of the product.

Any use other than this is not permitted without the written consent of the manufacturer.

Our General Terms and Conditions apply for all orders.

1.1 Hazard levels indicated by warning notices

The following hazard levels alert you to potentially dangerous situations:

DANGER

This warning notice indicates a dangerous situation that will result in death or serious injury if it is not avoided.

WARNING

Awarning notice designated in this manner indicates a potentially dangerous situation that can result in death or serious injury

if it is not avoided.

CAUTION

Awarning notice designated in this manner indicates a dangerous situation that could result in slight or minor injury if it is not

avoided.

NOTE

Awarning notice designated in this manner indicates a potentially dangerous situation that could result in material damage or

environmental damage if it is not avoided.

5October 2023 Edition, Visplay GmbH

Air | General

1.2 Explanation of symbols

Speciﬁc instructions for better understanding and operation.

fIndividual step

1. Numbered instruction

2. ...

1Action number: deﬁnes the sequence of actions in illustrations and is marked in the text.

[1] Position number: Indicated by text in square brackets.

1.3 Intended use

The Air system complies with the applicable safety regulations within the scope of its intended use.

• The product may only be used in the commercial area.

• The Air system may only be used in dry indoor areas.

• The Air system may be used solely in compliance with the permissible load values (see Seite 23).

Any unintended use and unauthorised modiﬁcation of the Air system shall be deemed as unauthorised misuse that does not fall

within the manufacturer’s statutory liability limits.

Misuse

Potential sources of danger:

• Unintended use

• Operation with improperly ﬁtted or inoperative safety and protective devices

• Failure to observe the instructions in the documentation

• Unauthorised modiﬁcation of the system

Residual risks

The system can pose residual risks to persons and property. Risk of death/injury can occur due to:

• Misuse

• Incorrect operation

• Missing safety devices

Air | General

6Visplay GmbH, October 2023 Edition

1.4 General safety

Carefully read the following safety instructions and information for safe operation before starting work.

Familiarise yourself with all the functions of the system.

Air is a free-standing support system powered with a 230V electrical connection. Stability is ensured by distributing the

weight evenly across the four uprights.

CAUTION

Trip hazard

fDo not lay mains power leads and cables in thoroughfares.

ca.70 kg

7October 2023 Edition, Visplay GmbH

Air | Product description

2 Product description

Air is an electriﬁed, freestanding support system which is completely independent of walls and ceilings. The system can be used

individually or as a grid. As a result, Air can be used to create large spaces.

The optional pre-mounted power tracks allow the entire area to be supplied with power. This makes it easy to integrate

electriﬁed merchandise supports, lights, screens and digital devices. Air can be used both as a temporary and long-term

structure.

All parts are supplied pre-assembled.

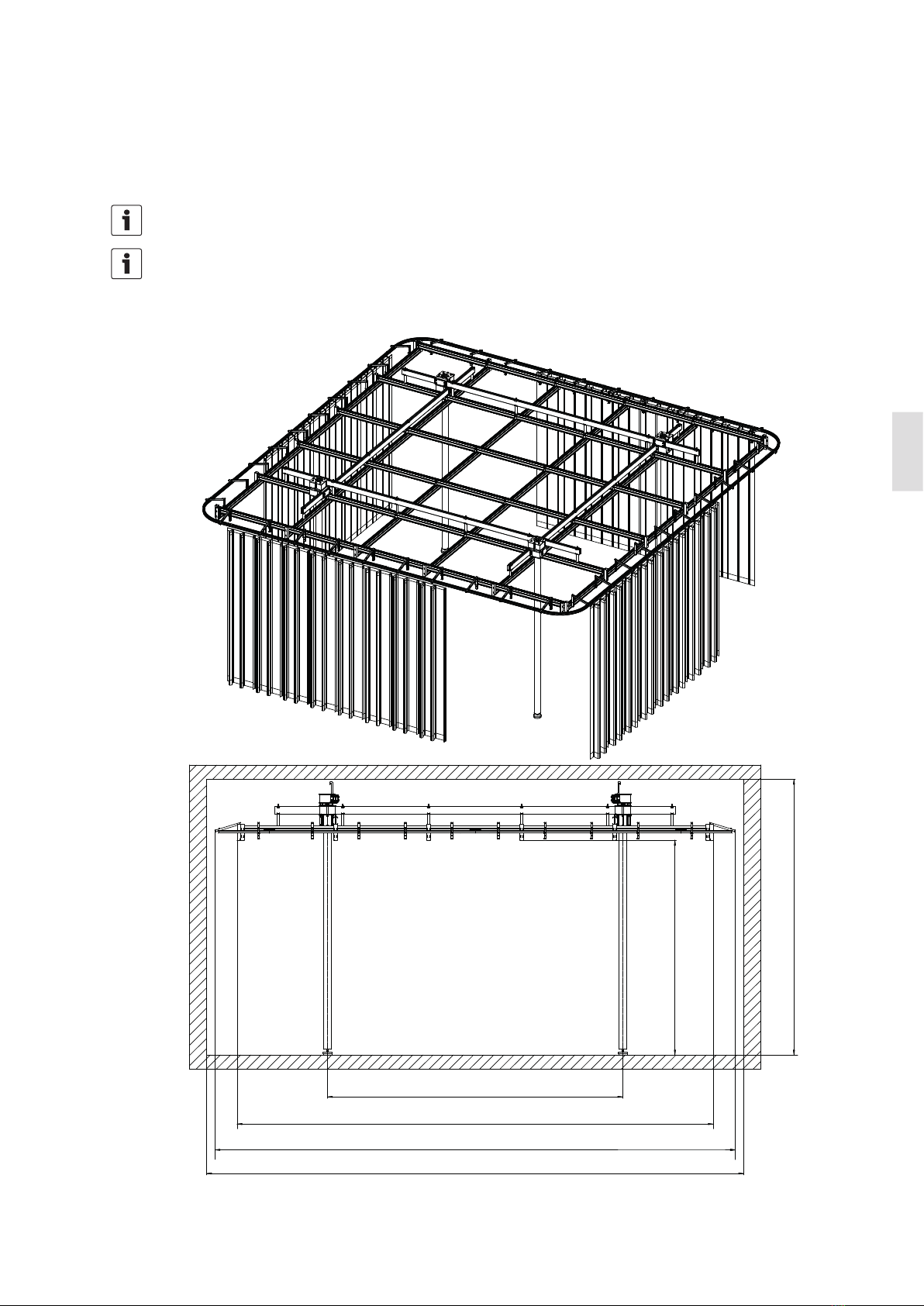

The available space must be checked before installation.

The requirements when using a curtain are at least 7,500mm x 3,850mm x 7,500mm (WxHxD).

Without a curtain, the space must measure at least 6,900mm x 3,850mm x 6,900mm (WxHxD).

4126

6650

7269

min. 7500/6900

3000

3850

Air | Delivery

8Visplay GmbH, October 2023 Edition

3 Delivery

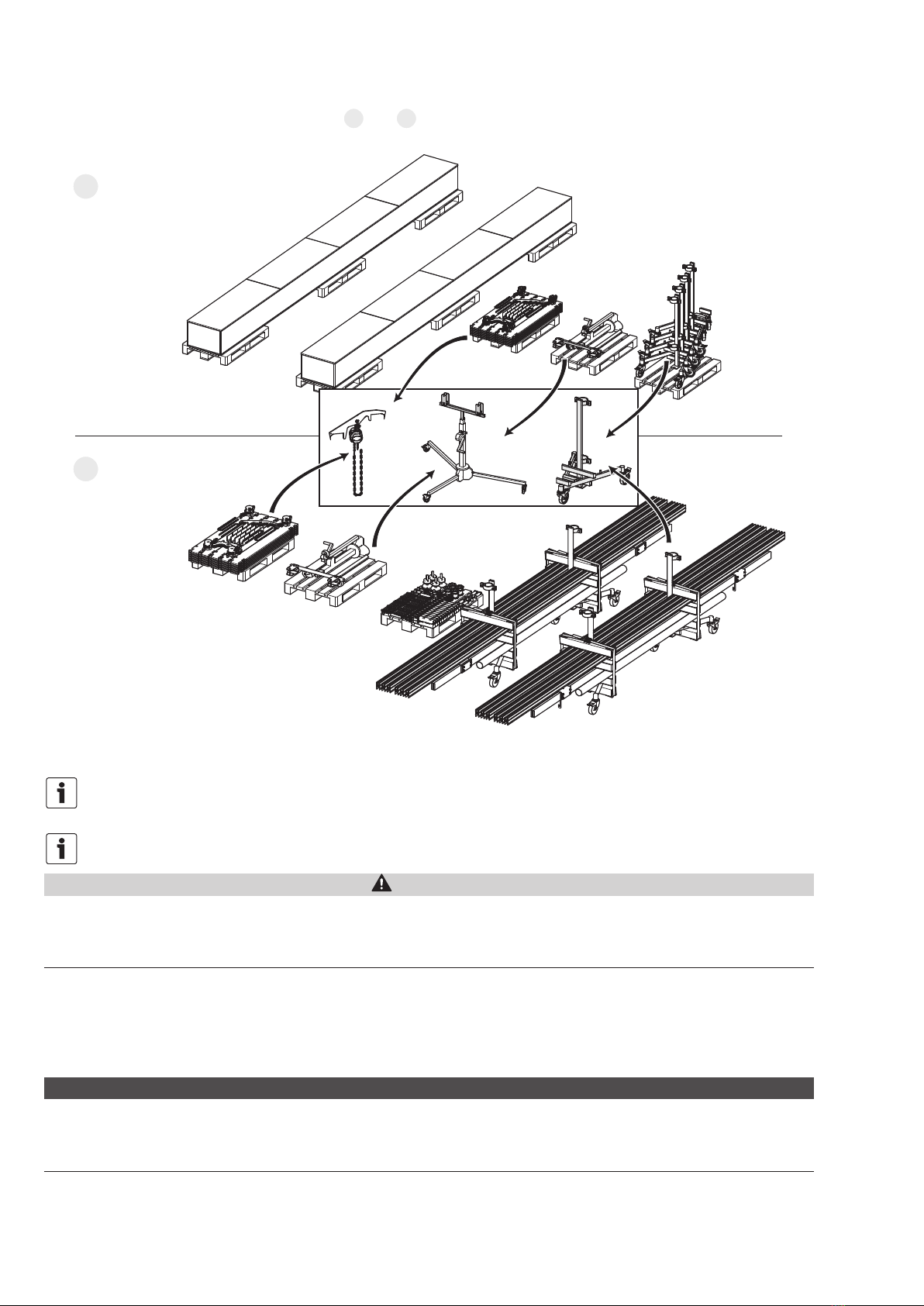

There are two delivery options for the Air system ( Aand B).

The assembly trolleys are used for delivery and as a ﬁtting aid.

3.1 Unpacking

You must check the Air system for integrity before accepting delivery. Any damage must be documented with the carrier

in order to make a claim.

If necessary, retain the packaging in case further transport is required.

CAUTION

Risk of injury from falling or tipping parts.

fThe unit must be unloaded by two people.

fCarefully unload the Air system from the pallet.

1. Remove the transport lock.

2. Remove all loose parts from the pallet.

3. Carefully unload the system from the pallet.

NOTE

Hazards to the environment can occur if product components are disposed of improperly.

fEnsure product components are disposed of in a proper environmental manner or through waste management specialists.

fSend components that can be recycled for recycling.

9October 2023 Edition, Visplay GmbH

Air | Delivery

3.2 Scope of delivery

Check the material for integrity.

1 Multi-Lane proﬁle (12items) 2 Filling piece, upright and adjustable foot (4 items)

3 Support (4items) 4 Mounting bracket (60items)

5 Connector, height 25 (4items) 6 Connector, height 125 (4items)

7 Connector, height 172 (12items) 8 Threaded rod with O-ring, spacer and nuts (24-item set)

9 Spacer tube (8items) 10 Pipe end (24items)

Air | Assembly

10 Visplay GmbH, October 2023 Edition

4 Assembly

4.1 Mounting aids and tools

The following aids and tools are required to install the Air.

1 Gantry ladders (2 at least) 2 Rubber mallet

3 Tape measure 4 Spirit level

5 Open-end wrench SW24 6 Open-end wrench SW19

7 Open-end wrench SW15 and nuts SW15 8 Impact wrench

9 Torque wrench, min. 80Nm 10 Long Allen key SW5

11 Allen key SW10 12 Attachment for impact wrench hexagon socket SW10

4.2 Base frame

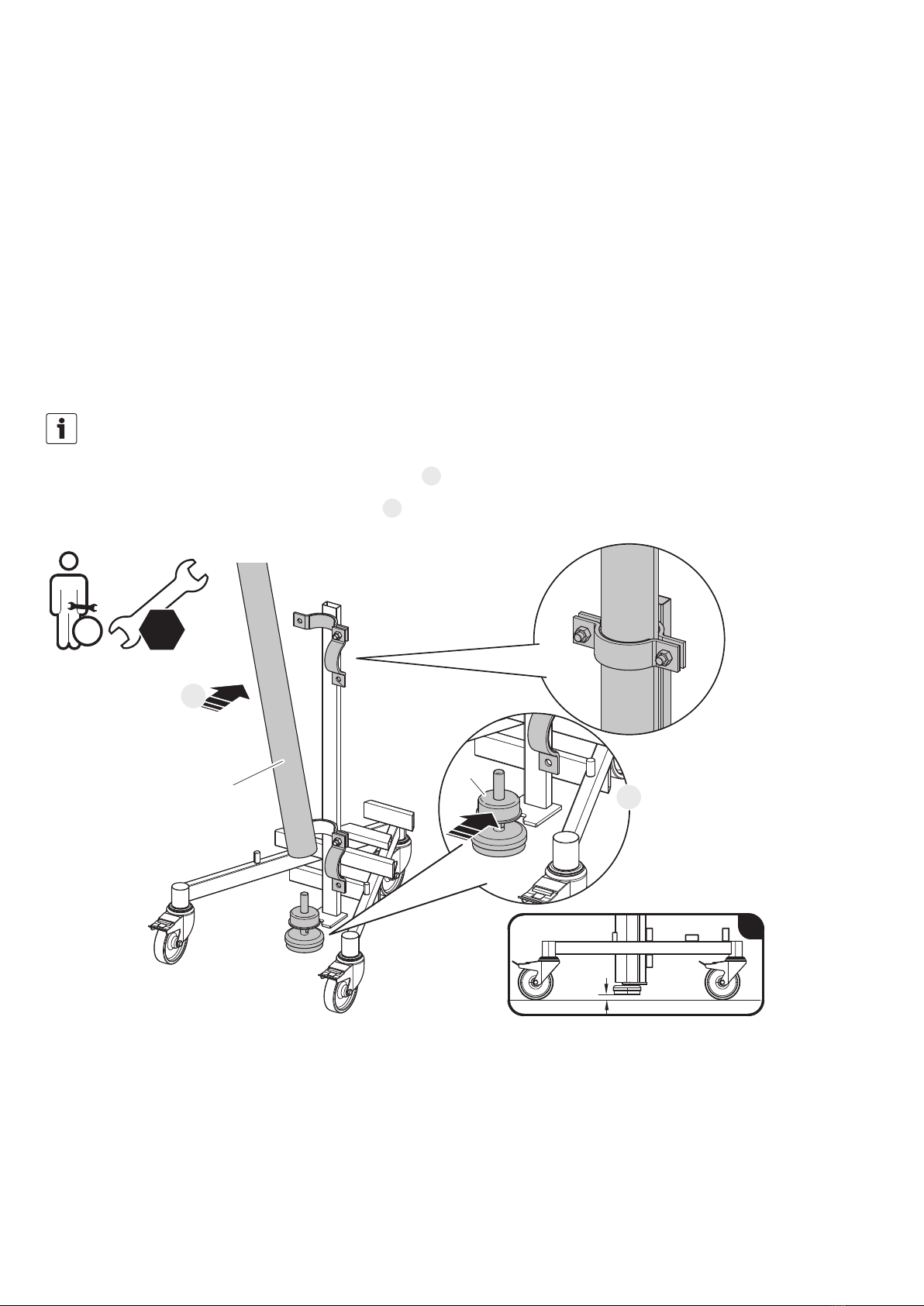

4.2.1 Mounting the upright in the assembly trolley

The adjustable feet must be at least 10 mm above the ﬂoor in the assembly trolleys.

1. Mount the adjustable feet [1] in the four assembly trolleys 1.

2. Mount the uprights [2] in the four assembly trolleys 2.
