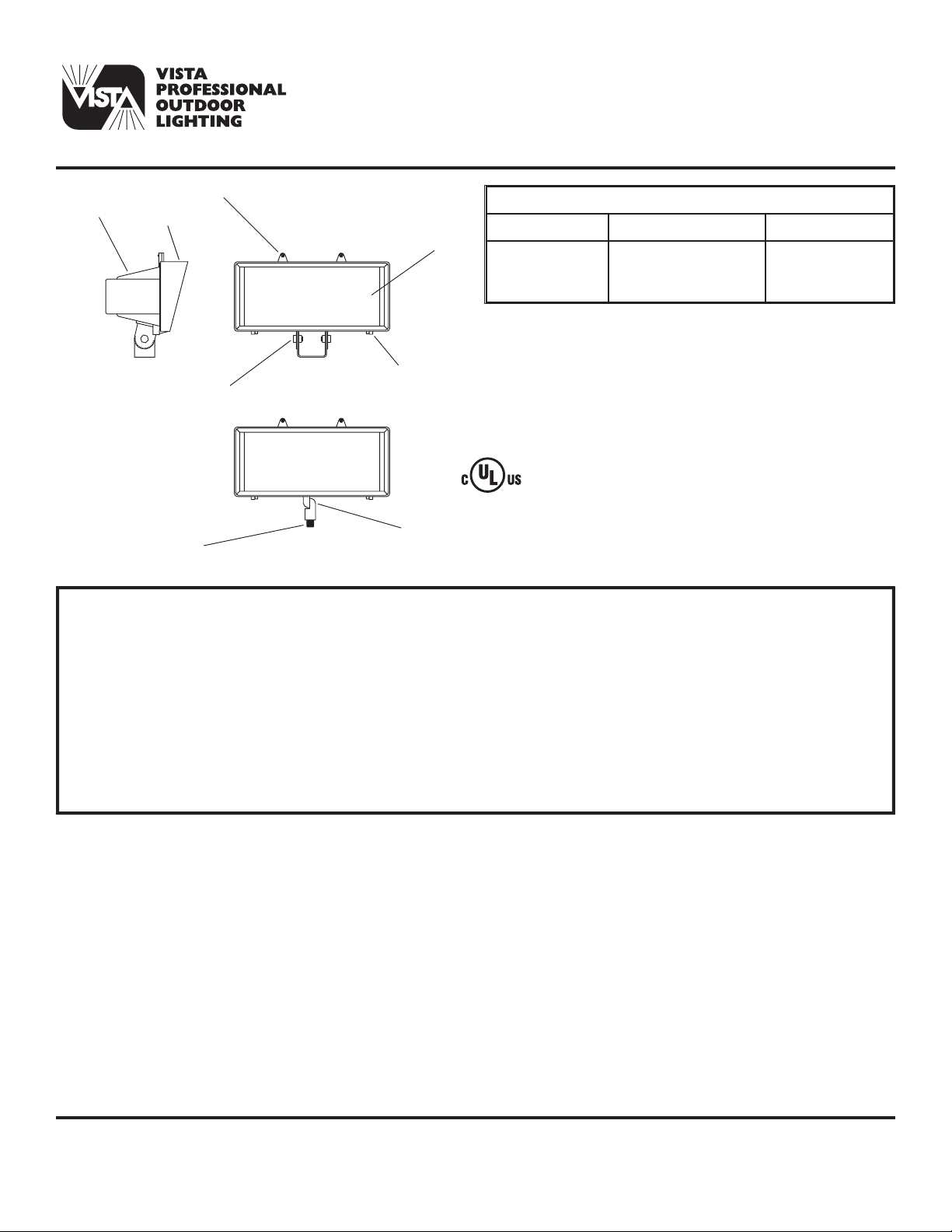

INSTALLATION INSTRUCTIONS Up and Accent Lights

1039

Heavy-duty two-piece

swivel assembly

Shroud hinge

Shroud

1/2" NPT

Swivel screw

Housing

Lens

Shroud screw

TOOLS REQUIRED FOR

INSTALLATION:

●Wire strippers

●Philips head screwdriver

●Thread sealant

●Adjustable wrench

(for models with HD

assembly)

WARNING: Luminaire must be installed and grounded in accordance with the National Electrical Code (NEC)

and local codes. For portable stake or surface mount using a cord and plug, the luminaire must be plugged into

a receptacle protected by a ground fault circuit interrupter (GFI). Failure to do so may result in serious injury and/

or damage to the luminaire.

MAINTENANCE: To assure proper operation and efciency and to prevent luminaire overheating, lens must be

kept clean and free of dirt, dust, leaves, trash and mineral deposits from water. A regular schedule maintenance

program is recommended.

SAFETY WARNING: Luminaire can become very hot depending on the lamp wattage used. Lens and housing

around the lamp can become hot enough to blister hands. Particular care should be taken not to locate

luminaires where small children can reach them if high wattage lamps are used.

NOTE: Always use UL recognized wire connectors for connections.

NOTE: Save these instructions for future reference.

IN GROUND LUMINAIRE IS UL LISTED FOR ABOVE GRADE INSTALLATION ONLY.

LUMINAIRE MOUNTING:

1. Make sure electrical supply is off at circuit breaker before starting luminaire installation or servicing luminaire.

2. Thread luminaire onto junction box or other mounting device until it is at desired direction using thread sealant. Tighten

jam nut (provided) to ensure the luminaire is locked to adjusted position.

3. Attach luminaire leads to line in leads observing polarity, black to black, white to white and green to ground using

silicone lled safety connectors (provided).

4. Attach junction box cover with luminaire to junction box (by others). Make sure not to pinch wires that may be

sandwiched between cover and box.

5. Coat exposed luminaire threads with thread sealant to keep moisture from entering junction box or other mounting

device.

6. To adjust luminaire aiming angle, untighten adjustable knuckle screw. Do not disengage totally. Hold luminaire at

selected angle and tighten knuckle screw rmly. If equiped with an HD- heavy-duty two piece swivel assembly,

loosen bolts with a crescent or adjustable wrench.

7. Install lamp.

9. Supply power to the luminaire and check for proper operation.

1625 Surveyor Avenue • Simi Valley, CA 93063 • (805) 527-0987 • (800) 766-VISTA (8478)

FAX: (888) 670-VISTA (8478) • [email protected] • www.vistapro.com

120V SERIES

Lamp Information

Cat No Lamp Type Max Watts

1039 Flat Quad Compact

Fluorescent

IMPORTANT SAFETY INSTRUCTIONS

THE LIGHTED LAMP IS HOT!!

WARNING: TO REDUCE THE RISK OF FIRE, OR INJURY TO

PERSONS:

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamps get hot quickly! Contact only switch/plug when turning on.

3. Do not touch hot lens, guard or enclosure.

4. Keep lamp away from material that may burn.

5. Do not touch the lamp at any time. Use a soft cloth. Oil from the skin may

damage lamp.

6. Do not operate luminaire tting with a missing or damaged cover.

LAMP INSTALLATION/REPLACEMENT:

CAUTION: Do not exceed maximum wattage marked on luminaire label.

1. To prevent electrical shock, disconnect from electrical supply before service.

2. Loosen screws from shroud.

3. Remove shroud and gasket to expose lamp.

4. Replace lamp with correct wattage and type marked on xture label.

NOTE: DO NOT touch lamp with bare hands. Always use soft cloth or the plastic wrapping (if available) from

lamp to handle the lamp.

5. Re-install shroud and gasket and tighten shroud screws.

1625 Surveyor Avenue • Simi Valley, CA 93063 • (805) 527-0987 • (800) 766-VISTA (8478)

FAX: (888) 670-VISTA (8478) • [email protected] • www.vistapro.com
