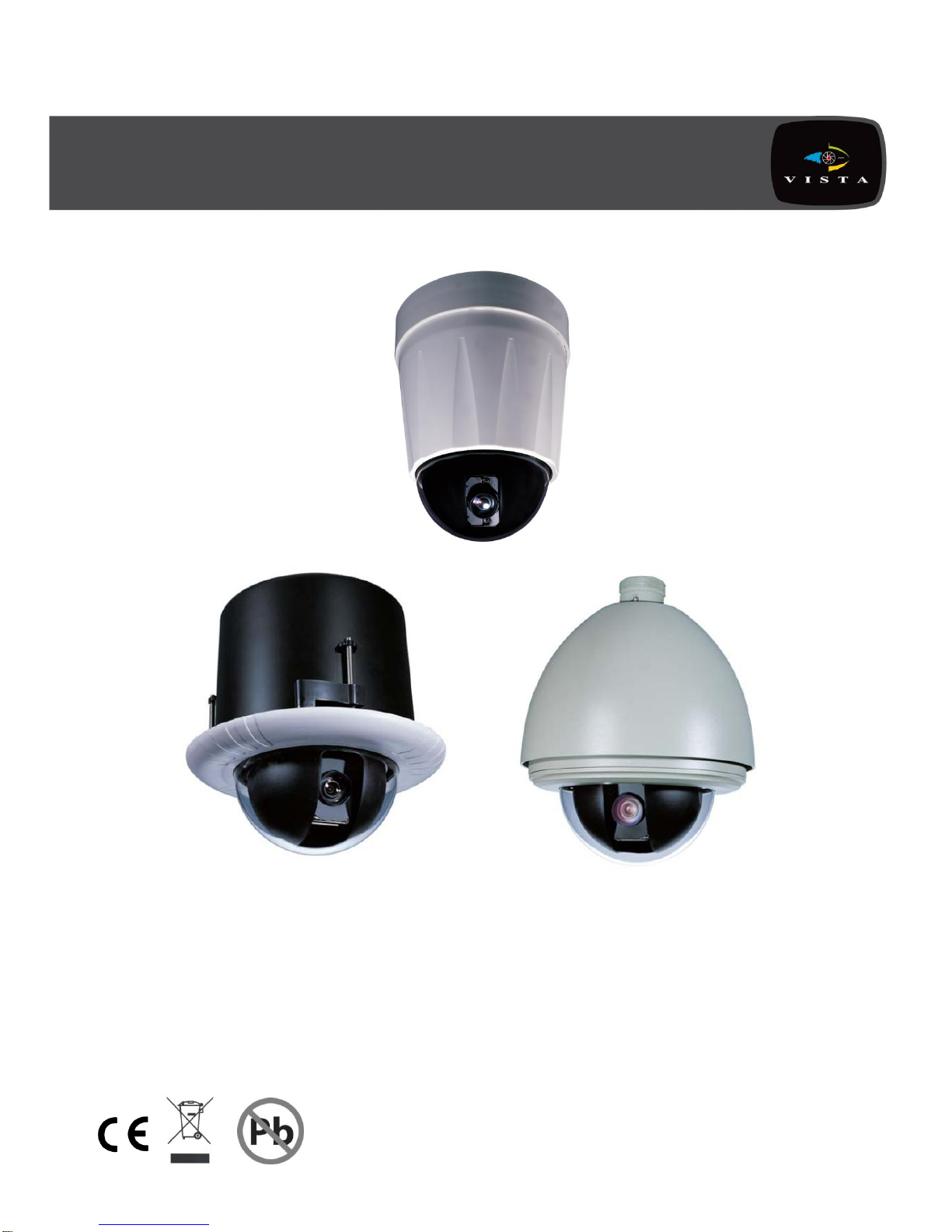

Vista Powerdome pro series Manuale utente

PowerDome PRO Installation manual

This manual covers the installation and programming of the

Vista PowerDome PRO range of high Speed PTZ domes

Vista PowerDome PRO Installation Manual

Electromagnetic Compatibility (EMC)

This is a Class A product, in a domestic environment it may cause radio interference, if this is the case the user

may be required to take remedial measures.

Manufacturer’s Declaration of Conformance

A Declaration of Conformity in accordance with the following EU standards has been made and is kept on file at

Norbain SD Ltd. 210 Wharfedale Road, Eskdale Road, Winnersh Triangle, WOKINGHAM. Berks. RG41 5TP.

The manufacturer declares that the product supplied with this document is compliant the provisions of the EMC

Directive 89/336 EEC, the Low Voltage Directive LVD 73/23, the CE Marking Directive 93/68 EEC, and all

associated amendments.

This document is intended to provide accurate information, however, the information contained herein is subject

to change without notice. Vista, in keeping pace with technological advances, is a company committed to

product innovation. Therefore, it is difficult to ensure that all information provided is entirely accurate and up-to-

date. Vista accepts no responsibility for any inaccuracies or omissions and specifically disclaims any liabilities,

loss or risk, personal or otherwise which is incurred, directly or indirectly, of the use and/or application of any of

the contents of this document.

Specification subject to change without notice

Vista PowerDome PRO Installation Manual

Contents

INTRODUCTION.....................................................................................................................6

Description............................................................................................................................................................ 7

Features................................................................................................................................................................. 7

Operation Requirements...................................................................................................................................... 7

Product Contents.................................................................................................................................................. 8

Installation Preparations...................................................................................................................................... 8

Default Menu Settings........................................................................................................................................ 10

Cable Requirements........................................................................................................................................... 10

Power Requirements.......................................................................................................................................... 10

Power Cable Size and Length ........................................................................................................................... 11

HOUSING AND CABLING INSTALLATION OPTIONS ........................................................12

Mounting and housing styles............................................................................................................................13

In-Ceiling housing installations ........................................................................................................................ 14

Surface-mount housing Installation .................................................................................................................17

Wall-Mount Housing installation (VPP-WM)..................................................................................................... 20

Pendant / Wall Mount adaptor collar ................................................................................................................ 23

Corner-Mounting (VDM-CMA)............................................................................................................................ 24

Side Pole-Mounting (VDM-EPMA)..................................................................................................................... 25

Parapet-Mounting (VPP-ESM) ...........................................................................................................................26

DOME OPERATION..............................................................................................................27

Operation Instructions .......................................................................................................................................28

Menu Tree............................................................................................................................................................29

Menu Operation .................................................................................................................................................. 30

System Setup......................................................................................................................................................31

Lens Parameters.................................................................................................................................................36

Camera Parameters............................................................................................................................................37

Pan/Tilt Parameters ............................................................................................................................................39

Vista PowerDome PRO Installation Manual

Function Settings (Presets, Tours etc.)............................................................................................................ 40

Privacy Masking.................................................................................................................................................. 45

Alarm Setup......................................................................................................................................................... 46

APPENDIX I: DIP SWITCH & JUMPER SETTINGS.............................................................47

Protocol and Baud rate setting .........................................................................................................................47

Protocol Telemetry Boards................................................................................................................................ 48

Dome Address Setting .......................................................................................................................................50

COAX or Twisted Pair Settings .........................................................................................................................54

Alarm Input connections ................................................................................................................................... 55

Alarm Output Settings........................................................................................................................................ 55

RS485 Termination ............................................................................................................................................. 55

APPENDIX II: RS-485 BUS BASIC KNOWLEDGE..............................................................56

APPENDIX III: LIGHTNING & SURGE PROTECTION.........................................................58

APPENDIX IV: TROUBLE SHOOTING & CLEANING .........................................................59

Trouble Shooting ................................................................................................................................................ 59

Cleaning the Dome Bubble................................................................................................................................ 60

APPENDIX V INSTALLING THE EXTERNAL PSU..............................................................61

APPENDIX VI - BACK BOX MEMORY.................................................................................62

Vista PowerDome PRO Installation Manual

Read these instructions before installing or operating this product.

Note: This installation should be made by a qualified service person and should conform to local codes.

This manual provides installation and operation information. To use this document, you must have the following

minimum qualifications:

A basic knowledge of CCTV systems and components

A basic knowledge of electrical wiring and low-voltage electrical connections

Intended Use

Only use this product for the designed purpose; refer to the product specification and user documentation.

Customer Support

For assistance in installing, operating, maintaining and troubleshooting this product refer to this document and

any other documentation provided. If you still have questions, please contact Norbain Technical support and

Services, during normal business hours (Monday through Friday, excluding holidays, between 8a.m. and

7p.m.). +44 (0) 11-8944-0123.

210 Wharfedale Road

Eskdale Road, Winnersh Triangle, WOKINGHAM. Berks.

RG41 5TP

www.vista-cctv.com for our on line library.

[email protected] for technical support

Note: You should be at the equipment and ready with details before calling technical support.

Conventions used in the Manual

Boldface or button icons highlight command entries. The following WARNING, CAUTION and NOTE

statements identify potential hazards that can occur if handled improperly:

* WARNING:

Improper use of this equipment can cause severe bodily injury or equipment damage.

** CAUTION:

Improper use of this equipment can cause equipment damage.

NOTE: Notes contain important information about a product or procedure.

* This symbol indicates electrical warnings and cautions.

**This symbol indicates general warnings and cautions.

Vista PowerDome PRO Installation Manual

Introduction

This manual provides step-by-step installation instructions for Vista PowerDome PRO series of PTZ domes.

In this chapter:

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Operational requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Product contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installation Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Default Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Cable requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Power cable size and length requirements . . . . . . . . . . . . . . . . . . . . . . . . . 11

Vista PowerDome PRO Installation Manual

Description

The PowerDome PRO series is a variable speed PTZ (pan/tilt/zoom) dome camera used in CCTV systems for

discreet surveillance of a remote area. It’s operational set-up configurations are customised and stored within

its own on-board programmable non-volatile memory both in the housing and camera. The PowerDome PRO is

programmed using the Vista range of VKBD keyboards and control equipment.

Features

Back-box memory: Replacement of a unit is simple; there is no need for manual reprogramming. All settings are

stored in the camera yoke assembly or housing back-box and can be up - or down-loaded as required.

Home: The dome will return to an assigned function (pre-set, learn-tour or tour) after a pre-determined time.

Schedules: The dome has 8-programmable schedules for running pre-set, learn-tour or tours.

Multiple presets and tours: The dome features 220 presets, 4-tours of up to 32 presets each, 4- autopans.

Directional indicator via OSD: The operator can set North at 0-deg, providing a clear indication of direction of

view.

RS485 and Coax(FSK) telemetry: Including Vista PD, Pelco P & D,

Up to 8-privacy masks: To prevent intrusion into unwanted areas.

Dome titles: The various dome titles can be displayed, not displayed or displayed according to a schedule.

Day/Night Switching: The dome will switch mode either automatically, manually or on a schedule.

Voltage Protection: 4,000V protection for video, data, power against lightning and surges.

Pre-set accuracy: 0.1 degree of accuracy.

Alarms: There are 7 Alarm inputs and 2 outputs in the dome head

Operation Requirements

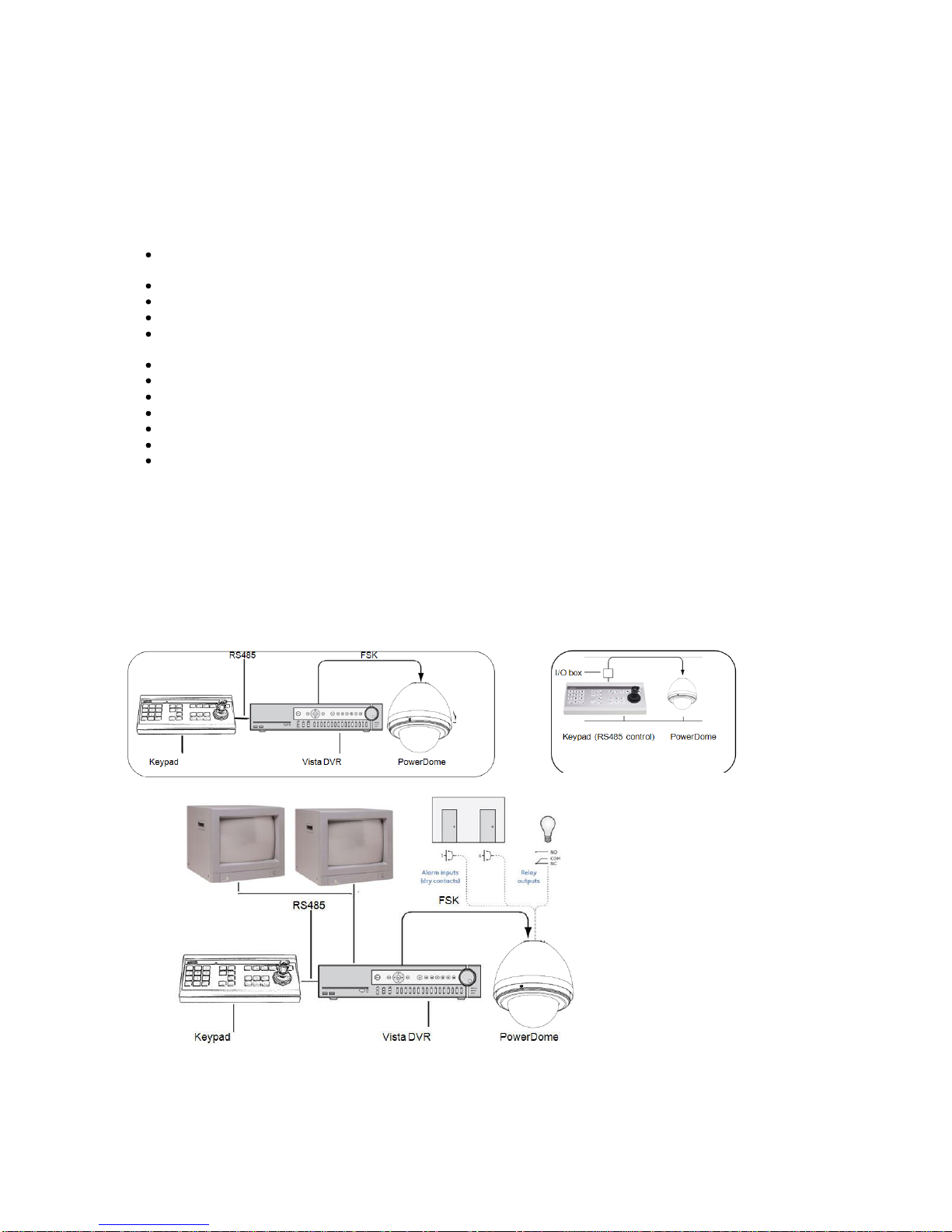

The PowerDome Pro can operate on either RS485 and coaxial FSK control. The dome’s protocols are selected

using dipswitch settings. A minimum of one controlling device is required for operation as shown below; FSK

control requires a Vista Blade or Navigator hard disk recorder and a minimum of one keyboard. See [Figure 1].

A minimum of one keyboard is required for RS485 control. See [Figure 2].

Note: This manual only covers Vista RS485 and FSK control.

Figure 1 Figure 2

Figure 3

Keypad (RS485 control) PowerDome

Vista PowerDome PRO Installation Manual

Product Contents

The PowerDome PRO domes consists of the following:

•Housing.

•Package containing three connectors (one 2-pin for power; one 6-pin for Video, RS-485 and auxiliary data,; one 14-pin for

alarms and contacts) and a small screwdriver.

•PTZ camera assembly.

•Dome

•Installation and user manuals.

Inspect the packages and contents for visible damage. If any components are damaged or missing, do not use

the unit; contact the supplier immediately. If you need to return the unit, you must ship it in the original box.

Installation Preparations

Equipment List:

You may need the following equipment for the installation of the dome: Screws and nuts, terminal driver, small

cross screw driver, wire cutters, drill and saw.

Cables:

Video Coaxial Cable

The video coaxial cable should be:

1) 75Ωimpedance.

2) Pure copper coax.

3) 95% braided copper shield.

Check the maximum transmission distance referring to the

chart.

RS-485 Cable

0.56mm (24AWG) twisted pair’s maximum transmission distance are as follows.

NOTE: Use an RS-485 distributor (VSD/16) if you need to transmit further. To learn

more about RS-485, please refer to appendix II.

DIP-Switch and jumpers settings

Please refer to appendix I to set the following:

Protocol and Baud rate, Dome address, Video cable type, Alarm output method, RS-485 termination resistor.

International Gauge

Transmission Distance (Max.)

RG59/U

229m

RG6/U

305m

RG16/U

457m

Baud Rate

Transmission Distance (Max.)

2400bps

1,800m

4800bps

1,200m

9600bps

800m

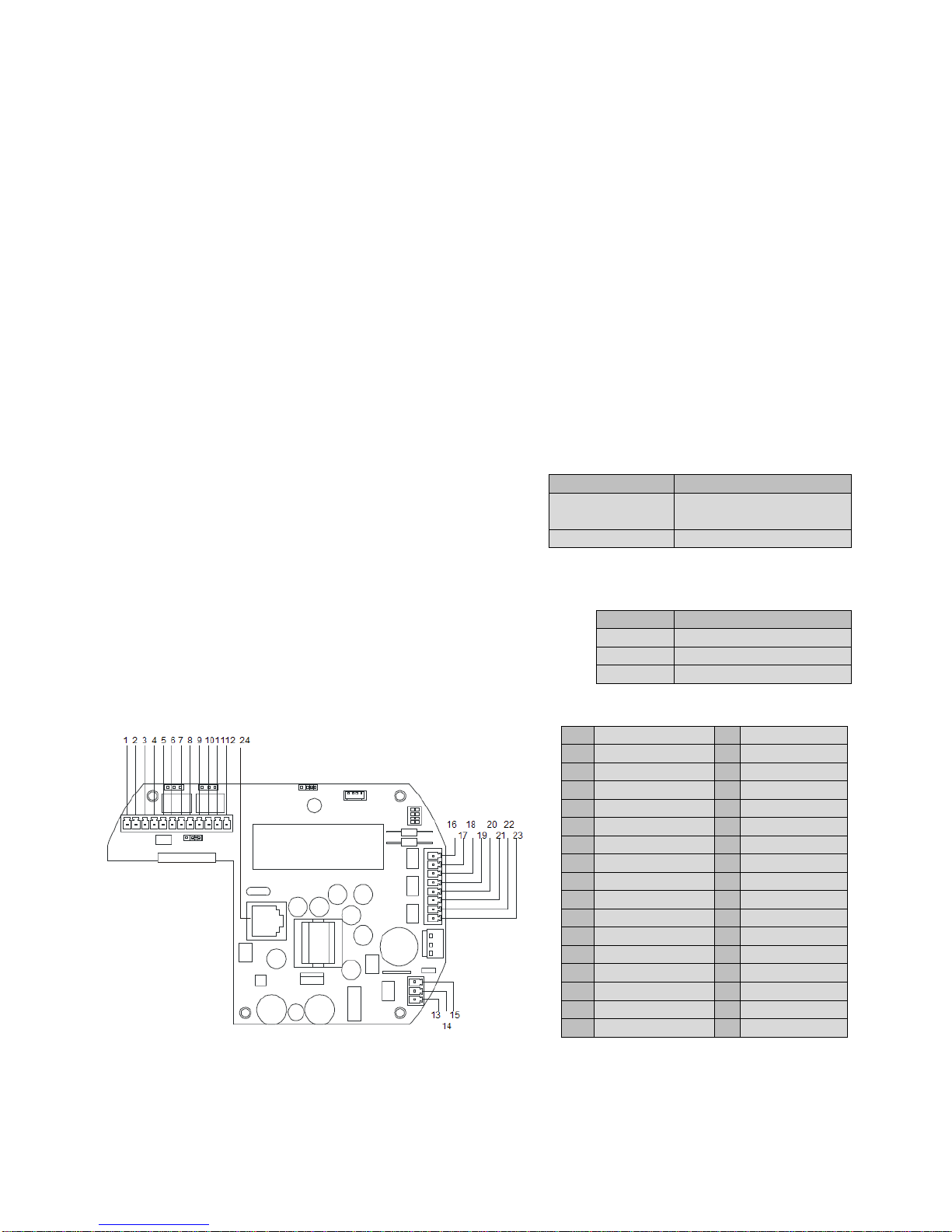

Alarm Input 1

Video Output

Alarm Input 2

Video Ground

Alarm Input 3

RS485 +

Alarm Input 4

RS485 -

Alarm Input 5

Reserved

Alarm Input 6

Reserved

Alarm Input 7

Reserved

Common Port

Reserved

RJ45

Alarm Output 1

Alarm Output 2

24V AC

Earth

24V AC

Vista PowerDome PRO Installation Manual

There is a selection of PCB boards available for connection to the power board, the table below illustrates this.

Board Type

Name of Board

Telemtry type

Protocol Board

VPP-RS485

Vista, Pelco D and Pelco P RS485

VPP-Vista -C

Vista Coax

VPP-BBV-C

BBV coax

VPP-PELCO-C

Pelco coax

VPP-PHILIPS

Philips RS422 Telemetry

VPP-AD

AD Manchester code

NOTE: The protocol board should be inserted into JP2 and JP3, these are found on the power board.

Altri manuali per powerdome pro series

Indice

Altri manuali Vista Telecamera di sicurezza

Vista

Vista VK2-3MPBIR3V9F Manuale utente

Vista

Vista VK2-4KXVRDIR36V11M Manuale utente

Vista

Vista VFD13C/HR Manuale utente

Vista

Vista powerdome pro series Guida all'installazione

Vista

Vista VK2-108VRDIR37e Manuale utente

Vista

Vista VK2-3MPBIR28V12re Manuale utente

Vista

Vista VK2-108VRDIR37e Manuale utente

Vista

Vista VFD28V12WDR Manuale utente

Vista

Vista VK2-5MPBIR36V10Re Manuale utente

Vista

Vista VPC5-704DNS Manuale utente

Vista

Vista VK2-1080MD37W Manuale utente

Vista

Vista VLI-4ED28IRQ Manuale utente

Vista

Vista VP-HDA20IR-SMW Manuale utente

Vista

Vista VPC9032/CM Manuale utente

Vista

Vista VK2-1080XVRDPTPMF Manuale utente

Vista

Vista VLI-4BL28IRQ Manuale utente

Vista

Vista Onvif VK2-1080XPTZ Manuale utente

Vista

Vista VK2-HD20-SM Manuale utente

Vista

Vista VVRD28V12MHDAW Manuale utente

Vista

Vista VK2-1080BIR35V16e Manuale utente

Vista

Vista ViP2 VK2-1080VFD3V9F Manuale utente

Vista

Vista VMI-2MPX23IR-SMW Manuale utente

Vista

Vista VVRD4V9DN Manuale di servizio

Vista

Vista VLI-4BL28V12IRQ Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente

Vista powerdome pro series Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche
