VistaQuest DV900HD Manuale utente

DV900HD

Digital Video Camcorder

For customers in North and South America

For customers in USA

This device complies with Part 15 of the FCC rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference

received, including interference that may cause

undesired operation.

For customers in Canada

This Class B digital apparatus meets all the requirements of the Canadian

Interference-Causing Equipment Regulations.

For customers in Europe

“CE” mark indicates that this product complies

with the European requirements for safety,

health, environment and customer protection.

“CE” mark cameras are intended for sales in

Europe.

•TV cable

•HDMI cable

• Lithium lon battery

•Digital Camcorder

• Installation CD

• User’s manual

Accessories

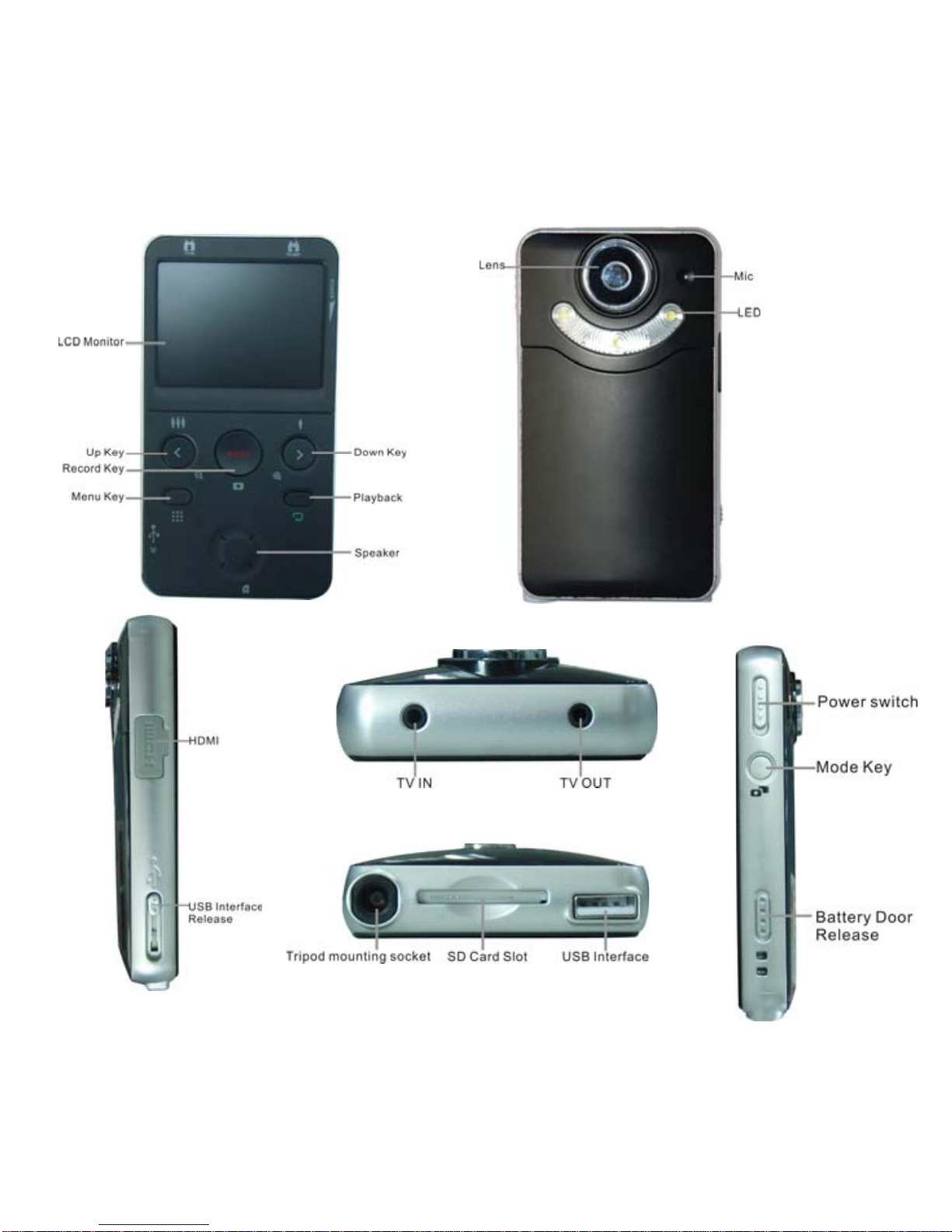

Components

Function Keys:

Power Switch: Slide it to power on/off the camcorder.

Mode Key: Switch among record mode, camera mode and TV IN mode, or exit

from playback mode.

Battery Door

Release: Slide it to open the battery door.

Record Key: Start/ stop recording or photographing; switch among the settings in a

menu; start/pause playing video under playback mode; switch from

multiple playback to single playback under playback mode

Left Key: Press it for shrink function of digital zoom in Record and Photograph

Mode; skip to the previous option in a menu interface; page up under

playback mode; fast backward while playing a video under playback

mode

Right Key: Press it for enlargement function of digital zoom in Record and

Photograph Mode; skip to the next option in a menu interface; page

down under playback mode; fast forward while playing a video under

playback mode

Menu Key: Press it to enter/quit a menu under photograph, record or playback

mode

Playback Key: Press it to enter playback mode under photograph or record mode;

quit a menu in a menu interface; enter multiple playback under

playback mode

Quick Guide

Installing the Battery

1. Slide the battery door release to open it as shown in the picture on the

right.

2. Install the battery properly according to its polarities.

3. Close the battery cover.

Charging the Battery

(1) Press down and then push the USB interface release in the direction

indicated in the picture below to withdraw the connector.

(2) Connect the USB connector of the camcorder to a USB port of a PC.

(3) Slide the Power Switch to power on the camcorder. After powering it on,

the LED lamp around the lens will flash a blue light to indicate charging until the charging is

finished.

Note: If the device cannot be powered on as it is not used for a long time, connect it to PC for

10 minutes before powering it on.

Inserting/Taking out an SD card (Required)

1. Insert an SD card into the SD card slot as shown in the picture.

2. The device has no memory itself, without an SD card, the record function,

the record function in TV-IN and the photograph function in photograph

mode will not be applicable.

3. Push the SD card slightly inwards before taking it out.

Starting the Camcorder

1. Slide the Power Switch in the direction indicted on it as shown in the picture on

the right.

2. After startup, the LED lamp around the lens will give off blue light and the

screen will enter record mode by default.

Recording and Photographing

Record Mode: enter this mode by default after startup

1. Press the Left Key for the shrink function of digital zoom; press the Right Key for

enlargement function of digital zoom.

Note: When the record size is 1920*1080, digital zoom is not supported.

2. Press once the Record Key to start recording, and press it again to stop recording.

3. Press the Menu Key to enter the menu under record mode, and press it again to quit

the menu and return to the interface under record mode.

4. Press the Playback key to enter playback mode, and after entering, press the Mode

Key to quit playback mode.

5. Press the Mode Key to switch among record mode, photograph mode and TV-IN

mode.

Photograph Mode: press once the Mode Key after startup to

switch to this mode

1. Press the Right Key for the enlargement function of digital zoom; press the Left Key

for the shrink function of digital zoom.

2. Press the RecordKey to take photos.

3. Press the Menu Key to enter the menu under photograph mode, and press it again to

quite the menu and return to the interface under photograph mode.

4、Press the Playback Key to enter playback mode, and after entering, press the Mode

Key to quit playback mode and enter record mode.

The VistaQuest Corporation is proud that you have chosen its

product and hopes you will enjoy sharing “a clearer vision” of your memories and special moments

captured with your new camera with friends and family for many years.
