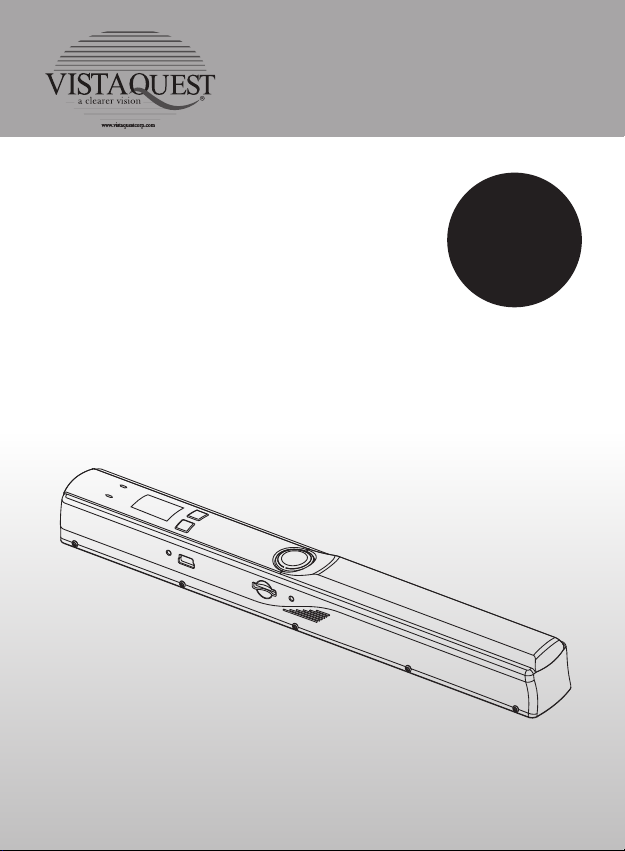

HS-500X
Portable Scanner
1
Table of Contents
1. Precaution…………………………………………….…2
2. Preparation……………………………………………..5
zStandard Accessories……………………………5
zPart Names & Functions………………………..6
3. key features…………………….….………..…….……7
4. Status Icons Explanations……….…….………….…..8
5. Use the scanner……………..……….………………..9
zInstall battery……………………….…..…………9
zInsert microSD memory card…….……………10
zSet system Date & Time……………….….…...11
zFormat microSD memory card…..……….……12
zSet resolution……………………………………12
zSet scan mode…………………..…..………….12
zHow to scan……………….……..….…..………13
zWhite Balance Calibration…………….…..…...13
6. LED light indications………………….……….…..…14
7. Connect to computer………..……………….…..…15
8. Specifications…………………………………...….…16
9. Computer system minimum requirement………..…16
10. Troubleshooting………………………………….……17
11. NimoDoc Lite…………………………………..……….18
zInstall NimoDoc Lite…..………………………..18
zStart NimoDoc…….…………………………….18
zMain Interface Introduction……………..……18
zIntroductions on Software Functions………….19
zSystem Requirements on NimoDoc Lite.….....30
EN
2
Welcome
Thank you for the purchase of VistaQuest HS500
Portable Scanner.
Please take a moment to read through this manual. Its
contents will help you to get the best use of this smart
scanner.
1. Precaution
Before using Portable Scanner, please ensure that you
read and understand the safety precautions described
below. Always ensure that the Portable Scanner is
operated correctly.
•Never operate Portable Scanner inside of an aircraft
or anywhere else where operation of such devices is
restricted. Improper use creates the risk of serious
accident.
•Do not try to open the case of Portable Scanner or
attempt to modify Portable Scanner in any way.
High-voltage internal components create the risk of
electric shock when exposed. Maintenance and
repairs should be performed only by authorized
service providers.
•Keep Portable Scanner away from water and other
liquids. Do not use Portable Scanner with wet hands.
Never use Portable Scanner in the rain or snow.
Moisture creates the danger of fire and electric
shock.
•Keep Portable Scanner and its accessories out of
the reach of children and animals to prevent
accidents or damage to the Portable Scanner.
3
If you notice smoke or a strange odor coming from
Portable Scanner, turn the power off immediately. Take
Portable Scanner to the nearest authorized service
center for repair. Never attempt to repair Portable
Scanner on your own.
•Portable Scanner may become slightly warm during
use. This does not indicate malfunction.
•If the exterior of Portable Scanner needs cleaning,
wipe it with a soft, dry cloth.
EN
4
FCC Notice
zThis equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation.
CAUTION
To comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules, this device, when
needed, must only be connected to computer equipment
certified to comply with the Class B limits.
5
2.Preparation

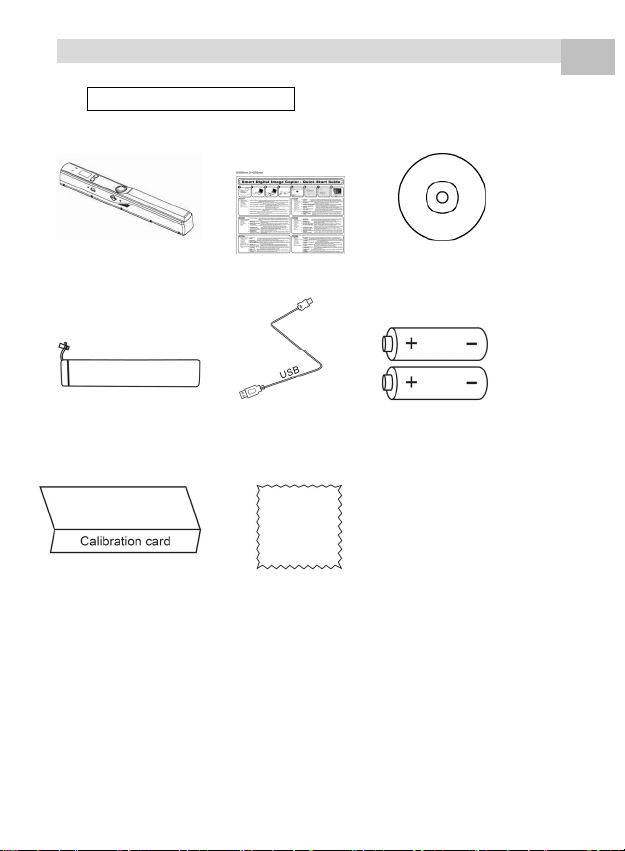

■Standard accessories
Portable scanner Quick Guide CD
Carry bag USB cable Battery
Calibration card Cleaning cloth
EN
6
■Parts Names & Functions
Parts Functions
1 Battery door For 2xAA alkaline batteries
2 Power/Scan Power on/off: Press and hold this key for 2 seconds to
turn power on or off. In power on mode, press this button
start scan, press this button again to stop
3 C/BW Select Color/Mono scan. Color/Mono mode icon will be
displayed on status LCD
4 Resolution Select High (600dpi) /Low (300dpi) resolution; High/Low
resolution mode icon will be displayed on status LCD
5 LCD screen Scanning status display
6 Error LED
indicator
Over speed: Red LED on
7 Scan LED
indicator
Ready for scan: Green LED on
8 Time set Setup system time
9 USB interface Download photo to computer via USB cable provided
10 SD card slot MicroSD card storage location
11 Formal button Press this button to format the microSD card
7
3.KeyFeatures
zColor/Monochrome (Mono) scan selection
z600/300 dpi scan selection
zDirect save JPG file to microSD card
zSupport microSD card up to 32GB
zDriver free to download for Windows XP SP2/Vista/7
and Mac OS 10.4 or above (direct plug-in, driver
installation not required)
EN
8
4.StatusIconsExplanations
Item Function Description
1 SD card
indicator Photos will be stored in microSD card
2 Battery indicator Battery is full
Empty battery
3 Effect indicator Color or Mono
4 Counting indicator Show qty of scanned files in microSD card
5 Selected resolution High: 600dpi/Low: 300dpi
9
5.Usethescanner
5.1 Install battery
1). Open the battery door by sliding it outward.
2). Insert 2x AA batteries into the battery compartment
according to the polarities shown in the compartment.
3). Turn on the scanner by pressing the [POWER]/Scan
button for 2 seconds.
EN
