Vitamix Touch and GO Manuale utente

120 VAC Models

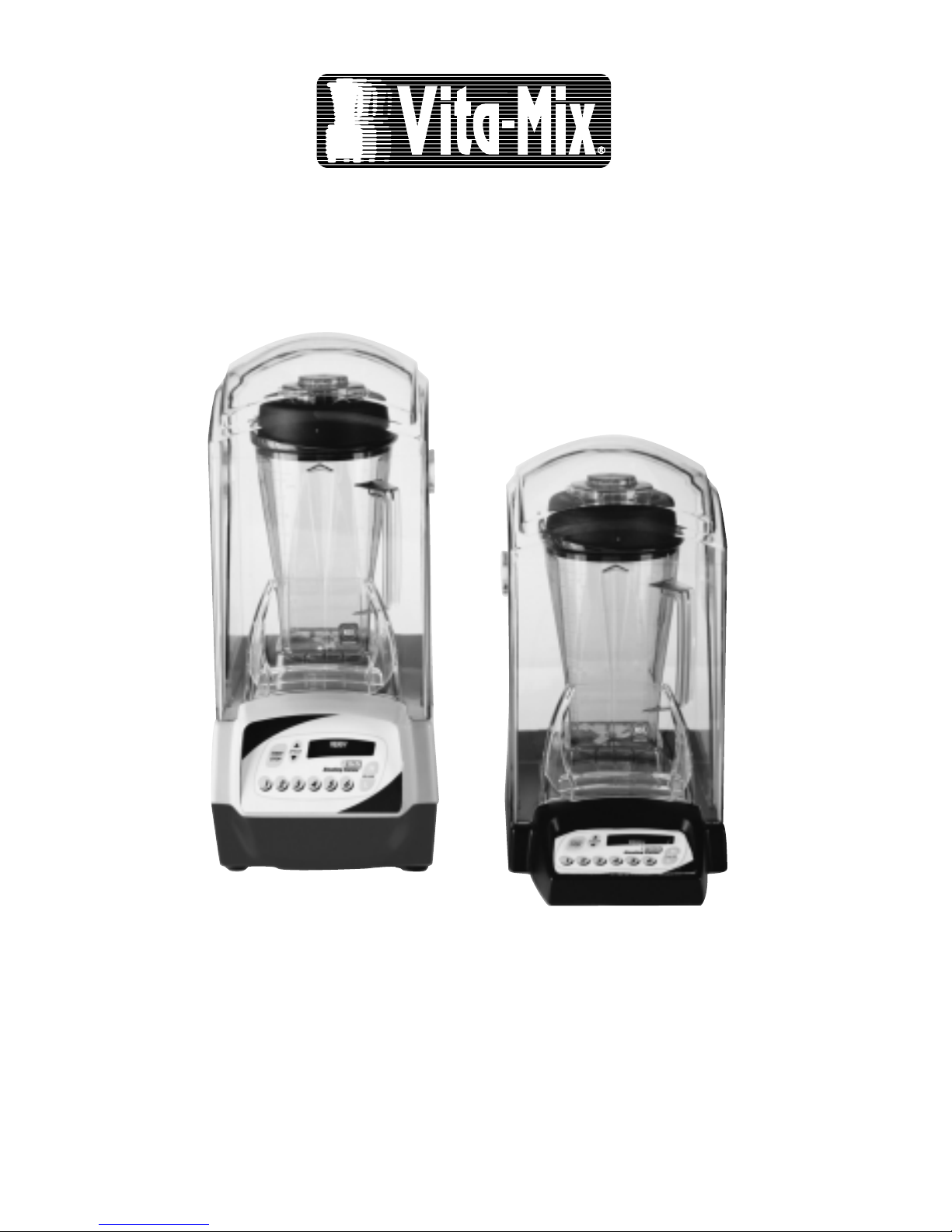

Touch and GoTM

Blending Station®

High Performance Commercial Blender

Owner’s Manual

ReadAnd Save These Instructions

FOODSERVICE

1. Read all instructions.

2. To protect against risk of electrical shock, do not put motor base in

water or other liquid.

3. Close adult supervision is necessary when appliance is used by or

near children.

4. Unplug the power cord from the wall outlet when the Touch and GoTM

Blending Station®is not in use, before putting on or taking off parts, and

before cleaning other than washing the container.

5. Never contact moving parts.

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions or is dropped or damaged in any manner.Call

Vita-Mix®Service, (800) 4DRINK4, (800-437-4654) or 440-235-0214

at once for possible replacement, examination, repair, electrical or

mechanical adjustment. If you live outside the USA, contact your

Vita-Mix Distributor.

7. The use of attachments not recommended or sold by Vita-Mix

Corporation may cause fire, shock, or injury.

8. Do not use outdoors.

9. Do not let the power cord hang over edge of table or counter,

or touch hot surfaces.

10. Keep hands and utensils out of the container while motor is running

to prevent the possibility of severe personal injury and/or damage

to the Blending Station. Arubber scraper may be used, but only

when the Blending Station is not running.

11. CAUTION: Blade is sharp. Handle carefully.

• Never try to remove blade while container is sitting on the motor base.

• Do not operate with loose, knicked or damaged blades.

• To reduce the risk of personal injury, never place blade assembly on

motor base without blender container properly attached.

12. The maximum normal load is equivalent to the ounces (liters) listed on

the container, i.e. 64 oz. (2 liters), 48 oz. (1.4 liters), and substantially

less with thick mixtures.

13. Always operate with the lid in place.

IMPORTANT SAFEGUARDS

14. WARNING: When processing hot liquids:

• The 2-part latching lid must be securely in place.This allows steam

to escape naturally, and will prevent the lid from coming off when

the machine is turned on.

• Use caution with hot liquids. Spraying from under the lid plug can

occur, or escaping steam may cause scalding.

• Donotprocess hot liquidswiththe non-latching lid.

15.Displaywindowarea will scratchwhencontacted with ascouringpad or

sharpobject.Use a softclothto wipe thecontrolpanel area clean.

Enjoy the safety of this grounded appliance. The Blending Station®U.S.

power cord comes equipped with a three-prong (grounding) plug which

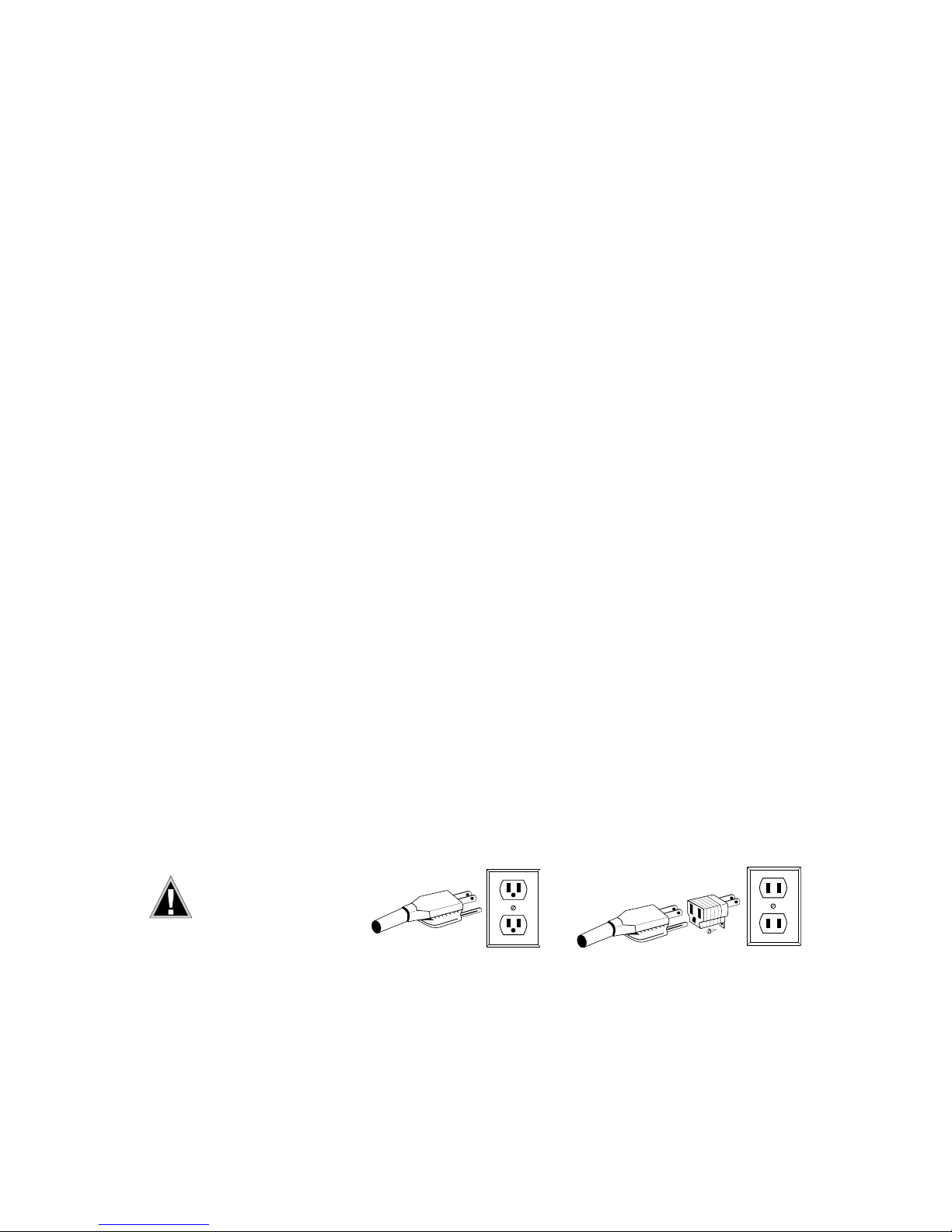

mates with a standard three-prong wall outlet (FigureA).

Adapters (Figure B) are available for two-prong outlets. Do not cut or

remove the third (ground) prong from the plug or power cord.

Consult your electrician if you are not sure if the wall outlet is grounded

through the building wiring. With a properly grounded two prong wall outlet,

ground the Blending Station by attaching the tab on the adapter to the wall

outlet cover by means of the screw in the center of the cover (Figure B).

SAVE THESE INSTRUCTIONS

FigureA Figure B

THREE PRONG

ADAPTERS

ARE NOT TO

BE USED IN

CANADA.

Touch and GoTM Blending Station®

ON/OFF switch - Located on the side of the Motor Base the ON/OFF

switch controls the power to the machine. With the machine plugged in,

switch the machine to ON to ready the machine for blending.

START/STOP button - Pressing START/STOPonce starts and runs the

machine and turns the blades. Press the START/STOPbutton again to

stop the machine and the blades. (NOTE: Pressing one of the PRE-SET

PROGRAM buttons, while the motor is running, will also stop the machine.)

SPEED CONTROL button - Press the ▲ button to gradually increase the

speed of the blades in increments of 1%, up to 100%. Press the ▼ button

to gradually decrease the speed of the blades in increments of 1%, down

to 7%. SPEED CONTROLis used to set the blending speed of the PULSE

buttons (See Instructions, pg.15) and the START/STOP button (See

Instructions, pg. 16). NOTE: These settings will reset if the power is shut off.

PRE-SET PROGRAM buttons - These buttons, numbered 1 thru 6, are

pre-programmed blending cycles designed for the most commonly made

drinks. Depending on the viscosity of the drink you are creating, pressing

one of the six PRE-SET PROGRAM buttons will run the machine for a

full cycle. The machine will stop by itself when the cycle is complete.

Acyclevaries inspeed andlength, see the Instructions onpage 14for

acomplete descriptionof therange of each PRE-SETbutton.

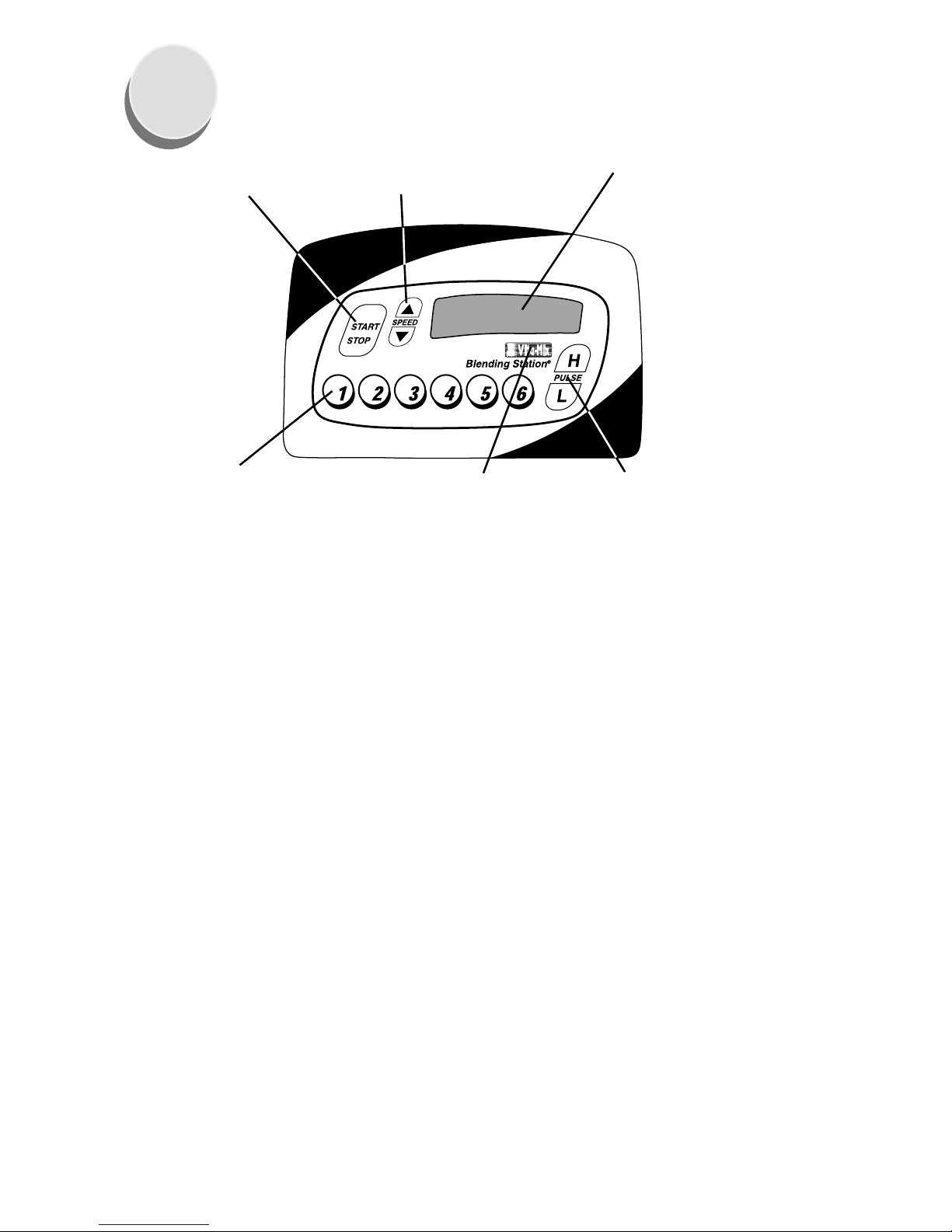

Start/Stop Speed Control

Six Factory Pre-Set

Programs Owner Controls High/Low Pulse

Display Window

ontrol Panel

Dueto thedifferenceof recipes, your results mayvary.

Seepage 6for informationon Custom Programming these six buttons.

DISPLAY WINDOW-Thisareadepending onwhat buttonis pressed,

displaysa varietyof operationmessages.A‘Ready’

messageappears whenthere ispower to the machine.

OWNER CONTROLS- AcontrolpanelaccessiblebypressingtheVita-Mixlogo.

•Press once to reveal the mode message. Press button

1then6 within fivesecondsto continue. Oncethecorrect

code is entered the display will indicate the motor

temperature (Norm, Warm, Hot), a usage count and a

total. The ‘count’is a machine usage total and can be

reset. This can be used to keep a count of the number

of drinks sold in a week, day or even an hour. To clear,

press and hold the START/STOPbutton for 5 seconds.

The ‘total’keeps track of the machine usage, including

production and testing, and cannot be cleared.

• Press twice to reveal the name of the program control-

ling the PRE-SET buttons. If you are using the factory

settings this will read VITA-MIX BASIC PROGRAM.

• Press a third time to reveal an option to reset the

PRE-SET buttons to the original factory settings.

• Press a fourth time to exit and continue blending.

HIGH/LOW PULSE button - The pulse provides a quick increase or

decrease in speed of the blades when blending. Press H to increase the

motor to speeds that range from 51%-100%. Press Lto decrease

the motor speed down to a range of 50% -7%. The PULSE button will

override the running program (as long as it is depressed). Once released

the original program continues its cycle.

• The PULSE high(H) and low(L) speed is set by using the SPEED

CONTROLbuttons.To set, while pressing and holding a PULSE

button, press the SPEED CONTROL▲ or ▼ button until the

desired motor speed is reached. The PULSE speed will remain at

this setting until changed again with the SPEED CONTROL buttons.

MODE

READY

TEMP COUNT TOTAL

NORM 25 100

VITA-MIX BASIC

PROGRAM

4 TO OVERWRITE

CURRENT PROGRAM

TheTouchand GoTM Blending Station®advanced electronic control can be

customprogrammed, requiringan optionalprogramming chip, available

fromVita-Mixfor a nominal fee and with aminimum unitpurchase. Contact

yourVita-Mixrepresentative for moreinformation .

Programming your Touch and Go

Blending StationPRE-SET buttons

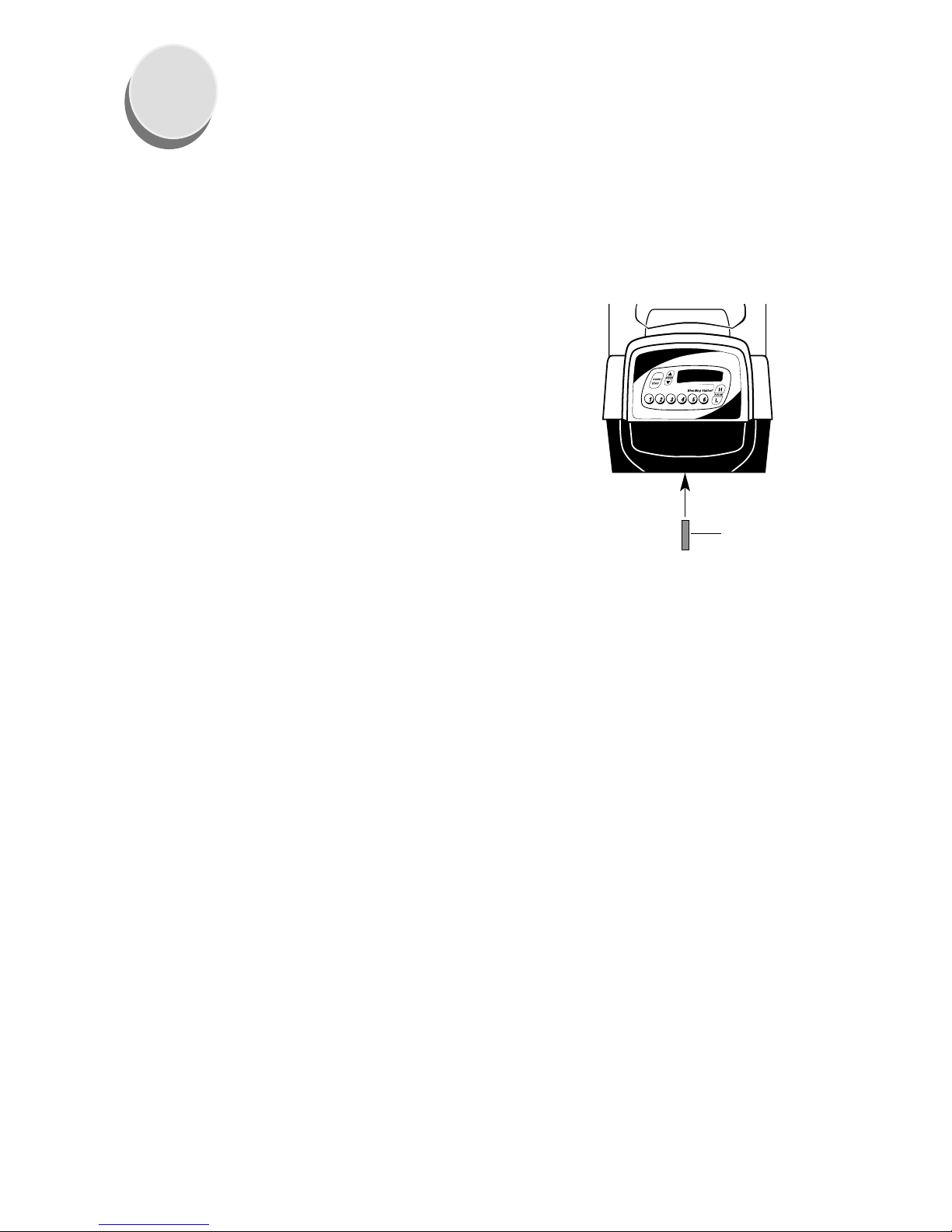

1.Insertthe customprogrammed chipwith the

words,“THIS SIDEFACING TOTHEFRONT

OFTHE MACHINE”toward you,into the port

locatedbelow thelabel areaon the front of the

BlendingStation.The DISPLAY WINDOW will

read‘New Module’.

2.Within10 secondsthe SIXPRE-SETbuttons will bere-programmed and

theDISPLAYWINDOWwill read ‘Saved’then‘Ready’.If nothing happens

whenthe programmingchip isfully inserted, turn the chip in theopposite

directionand tryagain.

3.Remove theprogramming chipand return it to the original package.

4.Pressoneof the sixPRE-SETbuttonstoreveal, in theDISPLAY WINDOW,

thename ofthe program/drink.

NOTE: If for any reason the programmed times are incorrect, they can be

reset to the original factory settings following the instructions on page 7.

Programming your In Counter Touch and Go

Blending StationPRE-SET buttons

1.Removethe containerfrom themachine.

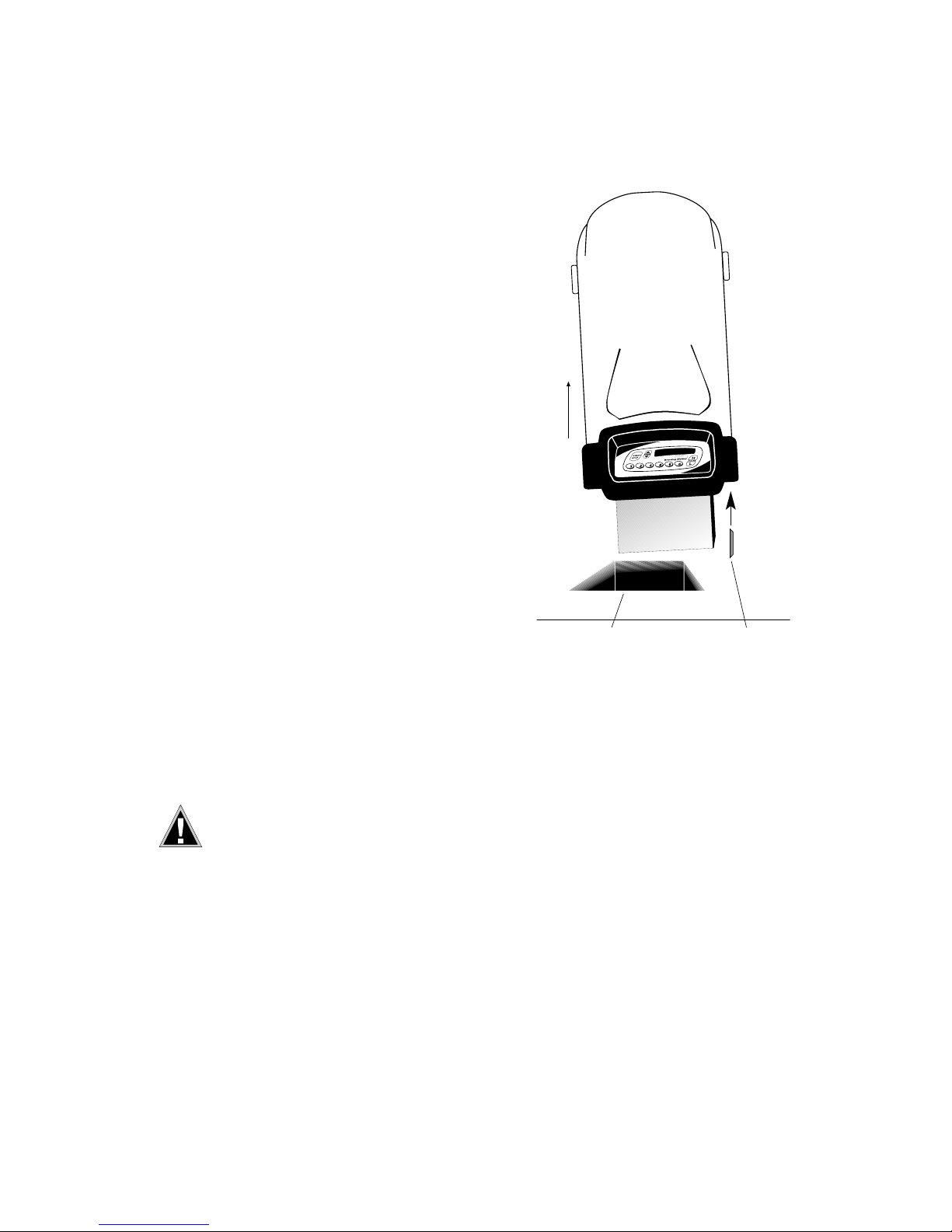

2.Liftthe machinefrom thebottom edges to reveal the motor andhousing

area.With themachine facingtowards you, locate the slot underneath on

theright handside ofthe machine between the motor and theouter wall.

3.Insertthe customprogrammed chipinto the slot with the words, “THIS

SIDEFACING TOTHEFRONTOF THE MACHINE” turned facingout to

theright ofthe machine.Once inserted the DISPLAYWINDOWwill read

‘NewModule’.

ustom Programming

Custom

Programmed

Chip

4.Within10 secondsthe SIXPRE-SET

buttonswill bere-programmed andthe

DISPLAYWINDOW will read ‘Saved’then

‘Ready’. If nothing happens when the

programmingchipis fully inserted,turnthe

chipinthe opposite directionandtry again.

3.Removethe programmingchip andreturn

itto theoriginal package.

5.Pressoneof the sixPRE-SETbuttonsto

reveal,in the DISPLAY WINDOW, the

nameof theprogram/drink.

6.Carefullyplace theBlending Stationmotor

backinto thehole inthe counter.

NOTE: If for any reason the programmed

times are incorrect, they can be reset to

the original factory settings following the

instructions below.

Resetting the PRE-SET buttons to the original

factory settings

WARNING: Reverting your PRE-SET PROGRAM buttons to the

original factory setting, will erase any programming installed with a

custom program chip.

1. Enter the OWNER CONTROLS (press the Vita-Mix Logo) and press the

PRE-SET buttons 1 and 6 when the DISPLAY WINDOW says ‘Mode’.

2. Press the Vita-Mix Logo two more times to reveal the instructions on

resetting the PRE-SET buttons.

3. Press and hold the #4 button until the DISPLAY WINDOW reads

‘Restoring Please Wait’. The PRE-SETbuttons are now reset to the

original factory settings.

Custom

Programmed

Chip

In-Counter

Hole

Two-part Lid

48 oz. polycarbonate container

The two part lid is easy to clean and easy to put on,

take off & seal.

• To remove fully latched lid, squeeze tabs

together on both sides of the container, pull

upward and off.

• Twist the center lid plug to fasten or remove.

NOTE: To make new lids easier to insert and remove, rub a light coating of

cooking oil around bottom where it seals. Place it in container for several

minutes, remove and lightly wipe oil off lid.

Two-part Lid

64 oz. polycarbonate container

Thetwo partlid iseasy to clean and easy

toput onand takeoff.(Note: Brand new

lidsare alittle stiff.This istemporary.)

• The lid has a continuous rim which

latches inside the container tabs.

Pushone sideof therim under one

tab,and withthe heelof your hands

pushdown, overthe oppositetab,

tosnap lidinto position.

• To remove lid, place hands around

the lid, pressing thumbs above

one of the container tabs. Push

in and lift off.

• Twist the center lid plug to fasten

or remove.

CUPS

FigureA

Figure B

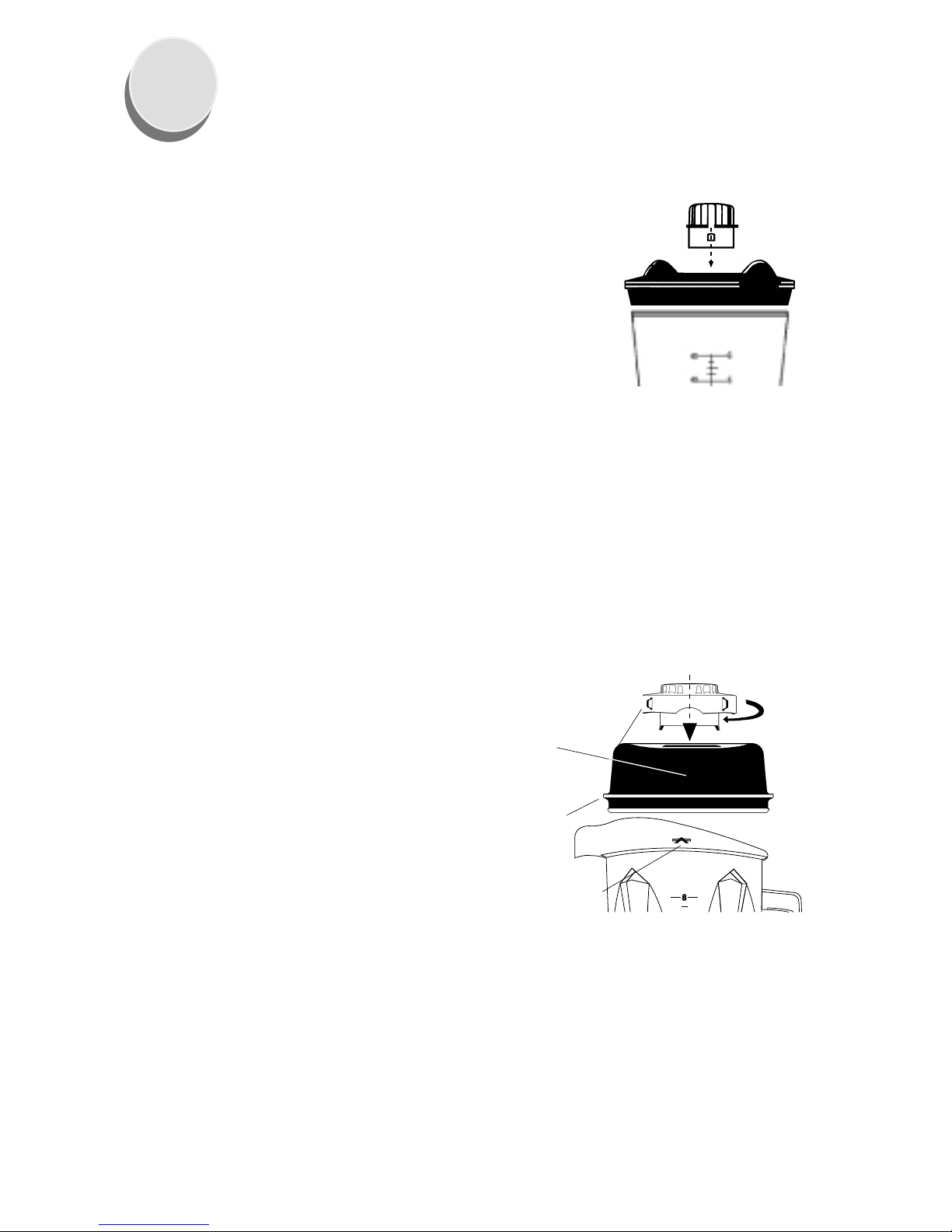

To secure lid plug, rotate it

so one tab locks between the

stops on top of rubber lid.

Always latch lid when

processing hot liquids.

Press in

above

container

tab to

remove

lid

Rim

Container

Tab

id Assembly

Tamper

One Piece Lid (optional)

64 oz. polycarbonate container

The one piece lid is easy to clean and easy to put

on and take off.

(Note: Brand new lids are a little stiff.This is temporary.)

• There is no latch on this lid.

• Add ingredients through port on top.

CAUTION: Do not use non-latching lid when processing hot ingredients.

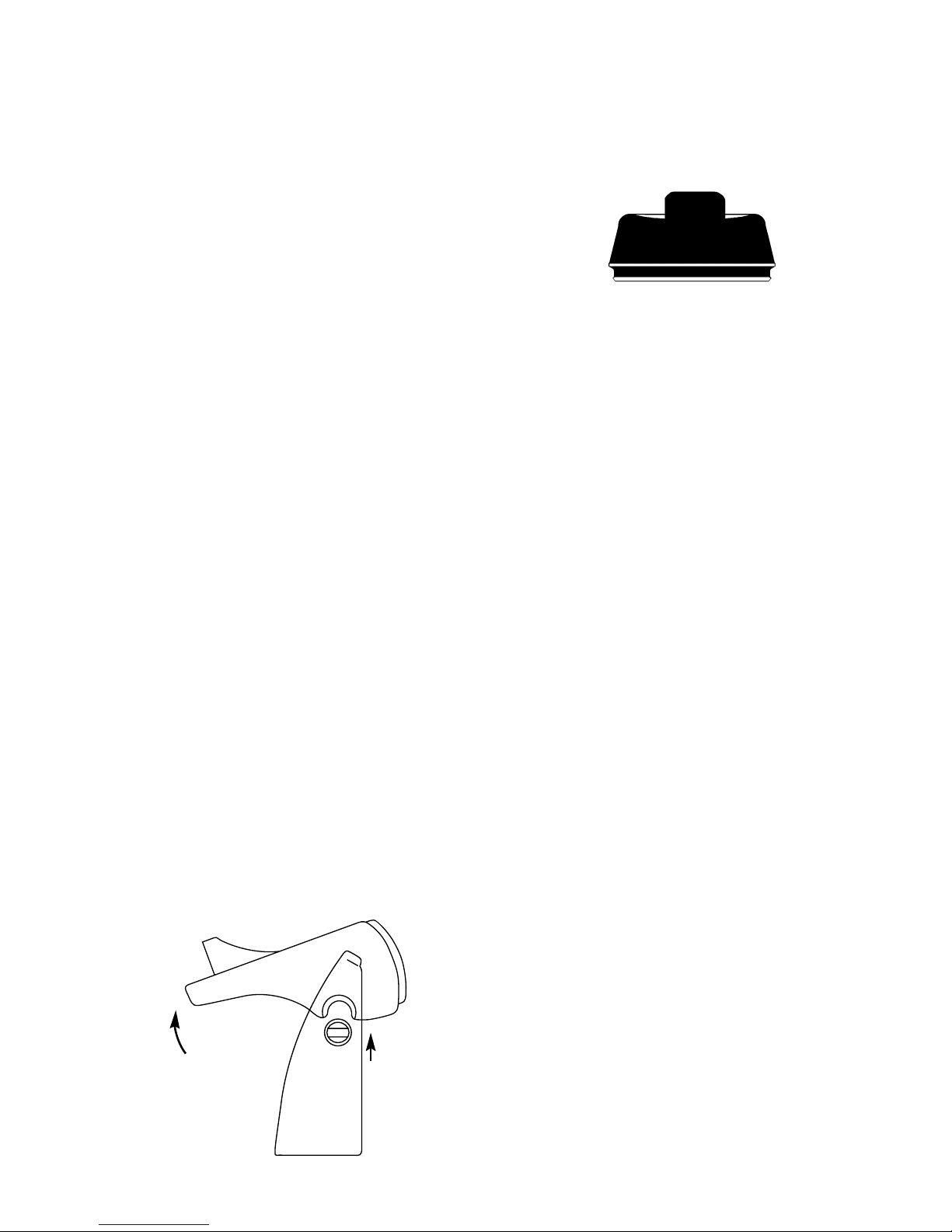

Cover with Removable Hinge Design

Cover Door:

• The cover door can be removed by opening it until the curved bottom

of the cover and the back cover form a 90˚ angle. Then lift straight up.

(Figure D)

• To reinstall the cover door, align the hinge opening with the hinge on

the back cover and slide the two together.

Back Cover:

• The back cover can be removed by loosening the two screws in the

back of the machine. Then lightly tap or pull the back cover toward

the front of the machine until it loosens from the grooves on the base.

(Figure E)

• To reinstall the back cover slide on to the base until latched in place.

Reinstall screws.

• The back cover should only be removed if in need of replacement.

Figure C

Figure D Figure E

Back Cover

Preparing the counter area:

• Before cutting holes, make sure that there is adequate clearance under

the counter for the motor. The motor will extend about 5-2/3" (14.4 cm)

below the counter but it is best to allow at least 10" from the under-counter

to shelves or any other equipment under the counter.Also, when using the

removable cover design, the back of the hole must be at least 6” (15.2 cm)

from any wall to allow for cover door clearance.

•An extra 6.5” (16.5 cm) of open space, above the top of the cover will be

needed for placement and removal of the In-Counter machine and for

custom programming the SIX PRE-SET Buttons.

• If installing unit into a closed cabinet, use a 4” dia. (10.1 cm) flexible vinyl

duct (dryer hose) to vent exhaust.Attach the vinyl duct to the bottom of

your In-Counter Touch and GoTM Blending Station®by forcing the end of

the hose over the exhaust baffle of the unit. Run the vinyl duct out of the

cabinet for proper ventilation. Do not vent hose into a wall, ceiling, or a

concealed space of a building. Multiple units should not vent to a common

manifold unit but to separate places. If running your Blending Station

causes a suction on your cabinet door, place a spacer in the door frame

to allow proper intake of air.

Do not use hose clamps or equivalent to attach exhaust hose

on machine.

• When cutting holes for placement of multiple In-Counter units, position

the edge of the machines at least 12” (30.48 cm) apart to ensure quick

cleaning and proper venting between machines.

• In-Counter installation also requires you to have at least one 20 amp outlet

per machine under the counter, available within six feet of the Blending

Station. Consult an electrician for proper electrical needs.

•The In-Counter Blending Station also requires a foam gasket (provided

in the machine’s original package) to be placed between the machine

and the counter. See page 12 for instructions.

n-Counter Installation

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Vitamix Miscelatore

Vitamix

Vitamix PROFESSIONAL SERIES Manuale utente

Vitamix

Vitamix VM0103 Manuale utente

Vitamix

Vitamix VM0104 Manuale utente

Vitamix

Vitamix Vita-Prep 3 Manuale utente

Vitamix

Vitamix High-Performance Commercial Blenders Manuale utente

Vitamix

Vitamix The Quiet One Manuale utente

Vitamix

Vitamix VITA-PREP 3 Manuale utente

Vitamix

Vitamix 6300 Manuale utente

Vitamix

Vitamix Total Nutrition Center Manuale utente

Vitamix

Vitamix Ascent SERIES Manuale utente

Vitamix

Vitamix VM0226 Manuale utente

Vitamix

Vitamix ASPIRE Manuale utente

Vitamix

Vitamix 101807 Manuale utente

Vitamix

Vitamix Venturist Series Manuale utente

Vitamix

Vitamix PROFESSIONAL SERIES 500 Manuale utente

Vitamix

Vitamix EXPLORIAN Series Manuale utente

Vitamix

Vitamix Creations Galaxy Class GC Manuale utente

Vitamix

Vitamix On-Counter Blending Station Advance Manuale utente

Vitamix

Vitamix Touch & Go Advance VM0199 Manuale utente

Vitamix

Vitamix EXPLORIAN Series Manuale utente

Vitamix

Vitamix Ascent SERIES Manuale utente

Vitamix

Vitamix Certified Reconditioned 780 Manuale utente

Vitamix

Vitamix VM0102 Manuale utente

Vitamix

Vitamix Ascent SERIES Manuale utente

Manuali Miscelatore popolari di altre marche

ROTOR

ROTOR 1125.201 Manuale utente

Braun

Braun Multiquick 5 Vario series Manuale utente

ARENDO

ARENDO MIRA 305424 Manuale utente

CHEF-BUILT

CHEF-BUILT CCB-3500 Manuale utente

Viconte

Viconte VC-4406 Manuale utente

Oster

Oster BLSTAB-CB0 Manuale utente

HOFFEN

HOFFEN MC-3005 Manuale utente

Black & Decker

Black & Decker BLC18750DM Manuale utente

Sunbeam

Sunbeam 4182 Manuale utente

Bialetti

Bialetti FMX35 Manuale utente

Black & Decker

Black & Decker BL8000 Manuale utente

Duronic

Duronic BL530 Manuale utente

Exquisit

Exquisit MS 3002 wes Manuale utente

Lumme

Lumme LU-KP1891A Manuale utente

Binatone

Binatone HB-735 Manuale utente

Moulinex

Moulinex LM936E10 Manuale utente

Oster

Oster VERSA Manuale di installazione e funzionamento

Ninja

Ninja NN210Q Manuale utente
