Vitavia VA0040-TRP Manuale utente

Assembly instructions

0111.01.2210

VA0040-TRP

5000P

Montageanleitung

Notice de Montage

Montage Instructies

Montagevejledning

Monteringsanvisning

Montasjeveiledning

Kokoonpano-ohjeet

Istruzioni di Montaggio







Szerelési útmutató

Skupština Upute

Skupština Uputstvo



Popis konštrukcie





VA0040-TRP

0111.01.2210

Contents

Inhalt

Indhold

Page

Seite

Side

Table of Contents

Inhaltsverzeichnis

Indholdsfortegnelse

Symbols

Symbole

Symboler

4 - 5

Carton part lists

Kartonteilelisten

Liste over indhold i kartonnen

6 - 8

Foundation / Steel Base

Fundament / Stahlfundament

Fundament / Stålsokkel

9 - 10

Side Elements

Seitenwände

Sideelementer

11 - 12

Gable End

Giebelende

Gavle

13 - 16

Connecting the Separate Elements / Roof

Zusammenbau der einzelnen Elemente / Dach

Samling af de enkelte Elementer / Tag

17 - 21

Glazing - Polycarbonate

Verglasung - Hohlkammerplatten

Montering af Glas - Kanal plader i polykarbonat

22 - 25

S7A

Swing Door

Schwingtür

Svingdør

26 - 29

S7B

Sliding Door

Schiebetür

Skydedøre

30 - 35

Roof Vents

Dachfenster

Tagvindue

36 - 39

4VA0040-TRP 0111.01.2210

View from Inside

Innenansicht

Set indefra

View from Outside

Außenansicht

Set udefra

Max. tightening Torque

Max. Drehmoment

Maksimalt moment



90°

Important!

Achtung!

Vigtigt!

Important Tip

Hinweis

Vigtigt Tip

Look closely / go to

Detail beachten / Siehe auch

Observer nøje / Se også

Mirror of

Spiegelung von

Spejl af

Adjust by Hand

Ohne Werkzeug

Brug hænder

Step for later

Späterer Schritt

Vises senere

Outside

Außenseite

Uden for

Exactly square

Absolut rechtwinklig

Nøjagtig ret vinklet

Recycle

Recycelbar

Genbrugeligt

Alternative options

Alternativen

Alternative muligheder

High Wind

Bei starkem Wind

Vind

Protected location!

Windgeschützter Standort!

Beskyttet placering!

Incorrect!

Falsch!

Forkert!

x Persons required

x Erforderliche Personen

x Personer, der kræves

View from

Blickrichtung

Set fra

Instructions

Anleitung

Instruktion

Not included in product!

Nicht im Lieferumfang enthalten!

Indgår ikke i leverancen!

Version 1 to 3

Variante 1 bis 3

Version 1 til 3

Not required

nicht benötigt

Ikke nødvendig

2033

Version 1 only

Nur Variante 1

Kun version 1

≤ 3Nm

1002

≤ 8Nm

3002

VA0040-TRP

0111.01.2210

10mm 10mm PH2



Not included in product!Persons required.

Important! Go to

pg. 17 - 21

pg. 36 - 39

Pack Bundle System

Bündelungssystem nach Aufbauschritten

Bundtnumre følger vejledningen

Glazing Options

Verglasung möglichkeiten

Forskellige glas muligheder

Polycarbonate

Hohlkammerplatten

Kanal plader i polykarbonat

Split Pane Glass

Klinkerverglasung

Delt glas

Full Pane Glass

Ganze Scheiben

Hele baner

Frosted Pane Glass

Nörpelglas

Uigennemsigtigt glas

SPG

FPG

FRG

6VA0040-TRP 0111.01.2210

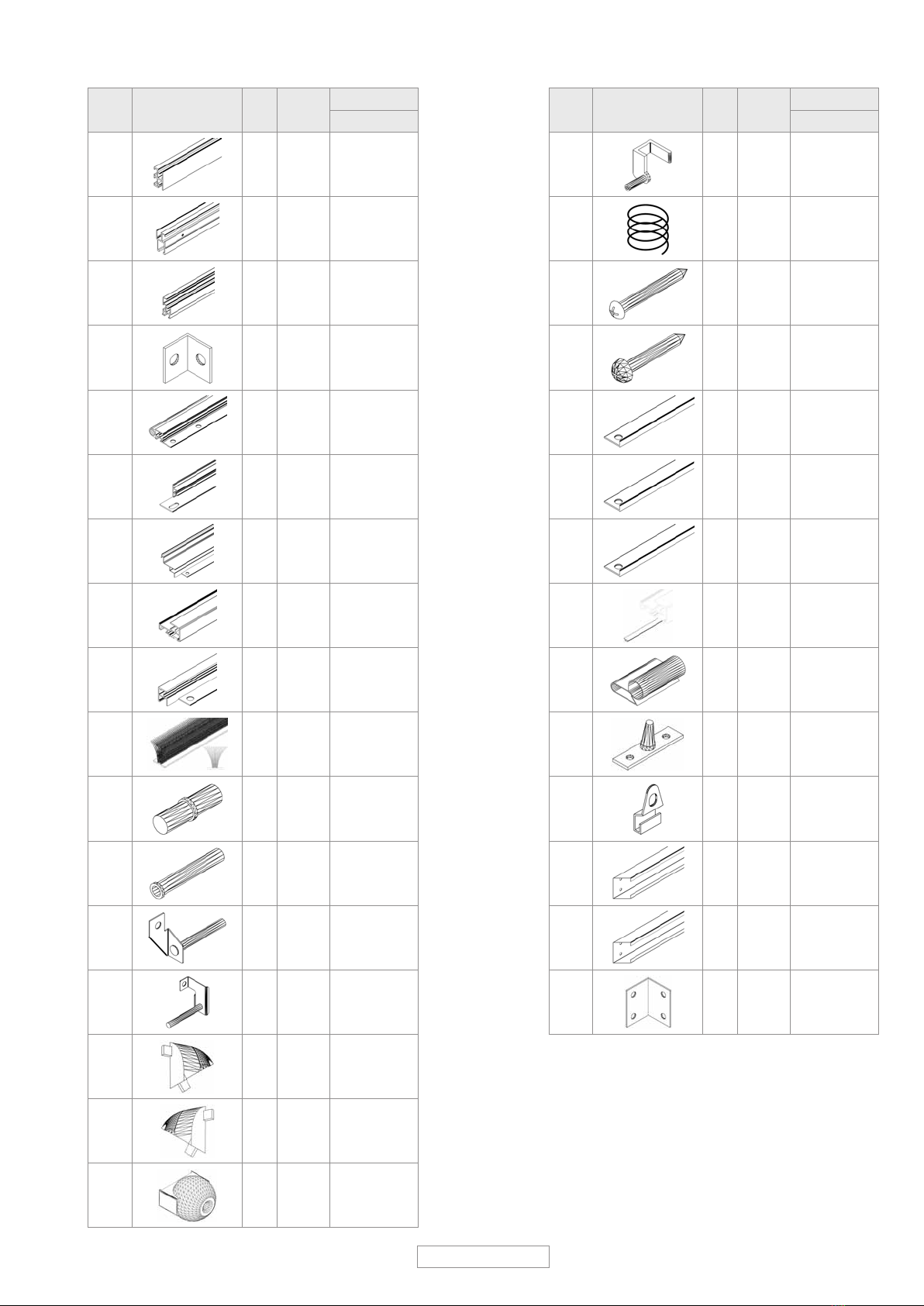

Item

No. Part Sect.

Ref.

Size

Quantity

5000P

2225P 3 1002.5 1x

2230P 2 515 4x

2231P 1 515 6x

2235P 2 694 2x

2236P 2 694 2x

2237P 2 275 2x

2240P 2 455.5 2x

2241P 2 455.5 2x

2242P 3 445.5 6x

2244P 2 271 2x

2245P 2 271 2x

2248P 2 104.5 2x

2249P 2 104.5 2x

2250P 7B 202 1x

2251P 7B 523 1x

2252P 7 665 2x

2253P 7 216 2x

Item

No. Part Sect.

Ref.

Size

Quantity

5000P

1001 0-8 M6 x 12 170x

1002 0-8 M6 173x

1006

3.5 x 6 6x

1019 8 15 1x

1056P 3 130 3x

1067 8 295 1x

1092 3

7A 120 12x

1343 2 170 4x

1404 4 20 4x

1500 7 M6 x 5 4x

1515 7 M6 4x

2001 7B M6 x 12 3x

2207P 1 1002.5 2x

2209P 2 756 2x

2210P 4 1002.5 2x

2214 7B 20 2x

2215P 1 1002.5 2x

VA0040-TRP

0111.01.2210

Item

No. Part Sect.

Ref.

Size

Quantity

5000P

2286 7A 27 1x

2287 7A Ø 7 x 10 1x

2288 7A 3.5 x 30 1x

2289 7B 3.9 x 34 1x

2290P 2 254 4x

2292P 2 493.5 4x

2293P 3 510.5 4x

2391P 8 235 2x

2399 4 20 7x

6056 4 46 1x

9029 3 19 14x

9030P 0 796 2x

9031P 0 1042 2x

9106 0 50 4x

Item

No. Part Sect.

Ref.

Size

Quantity

5000P

2254P 7 216 2x

2255P 7B 216 1x

2256P 7A 216 1x

2257 7B 23.5 1x

2258P 7 665 2x

2260P 4 268 1x

2261P 8 247 1x

2262P 8 235 2x

2263P 8 247 1x

2270P 7 665 4x

2271 7B 37 2x

2272 7A 62 2x

2275 7A 50.7 1x

2276 7A 46.7 1x

2280 2 36 2x

2281 2 36 2x

2285 7 20 2x

Nylon

PVC

8VA0040-TRP 0111.01.2210

PC No. 4mm mm (E3mm) 5000P

AL 40002014 242 x 508.5 / 678 2x

AR 40006239 242 x 678 / 508.5 2x

D40002015 177.5 x 0 / 62 / 0 2x

E40002011 242 x 516 8x

F40002012 242 x 454 7x

G40002013 242 x 207 1x

H40002010 242 x 318 4x

J40002009 242 x 254 1x

Total 27x

Mirror of

0111.01.2210 VA0040-TRP

1001

16x

9031P

1002

16x

9106

9030P

0.1

{S0}

0.2

9030P

9031P

9106

0111.01.2210

VA0040-TRP

10mm 10mm

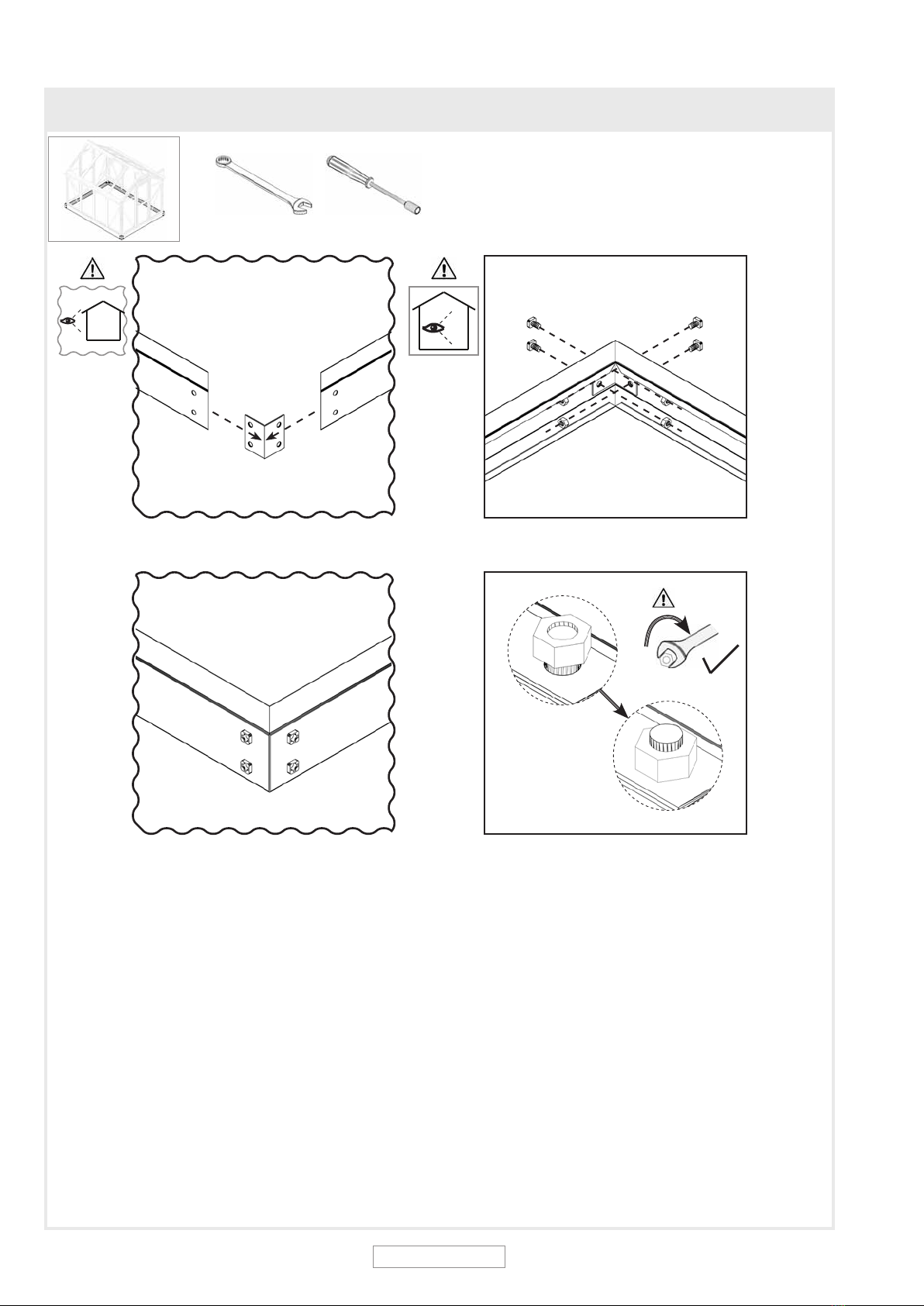

0.3B

0.4 1002

≤ 3 Nm

0.3A

9106

9030P / 9031P 9030P / 9031P

2x 1001 2x 1001

2x 1002 2x 1002

0.3C
