Vitek Mighty VTD-MP2810WDR Manuale utente

blackyellowmagentacyan

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

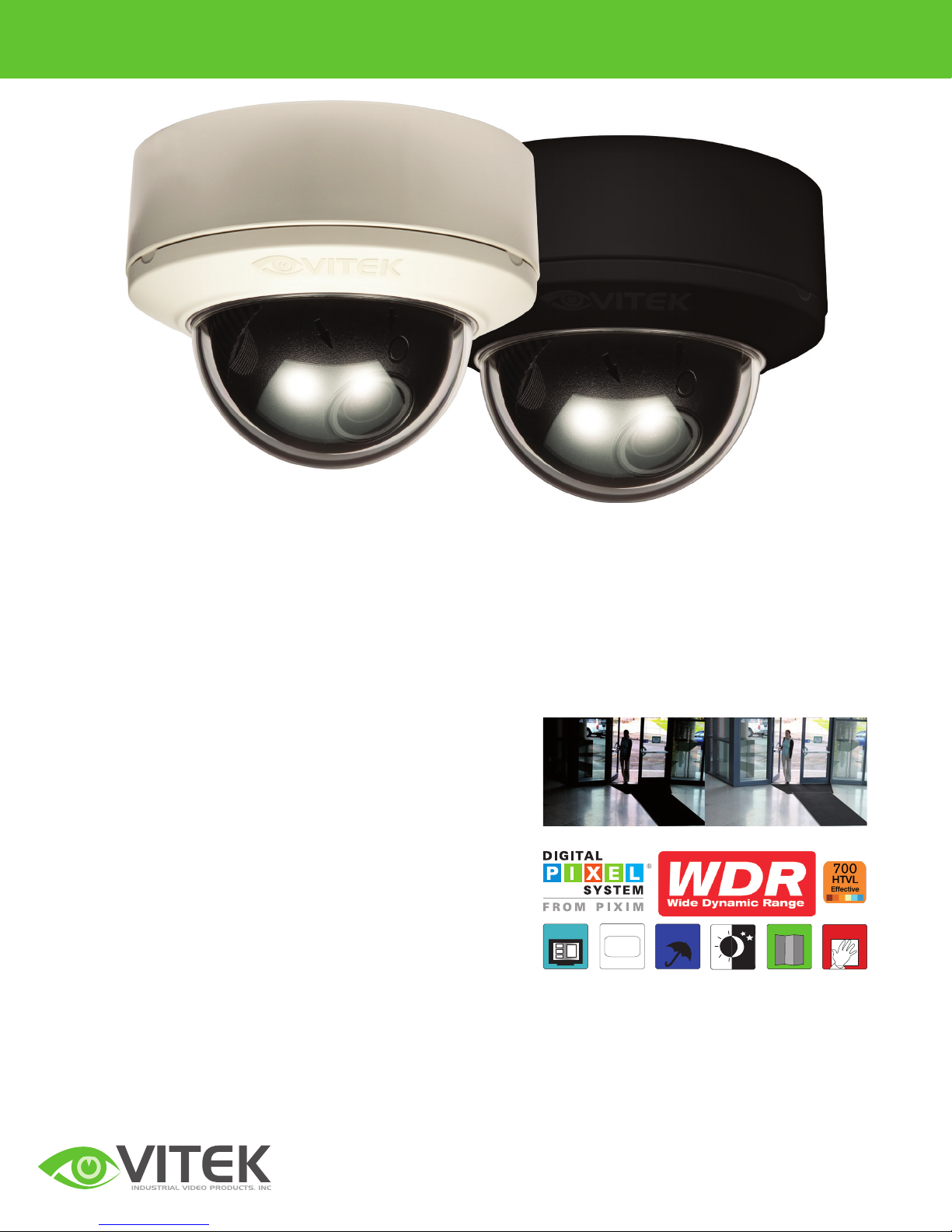

Indoor WDR Mighty

Dome Cameras 700 TV Line WDR

Dome Camera Series

• Pixim D8800C Seawolf Digital Imaging System

CMOS

• 700 TVL High Resolution

• WDR - Wide Dynamic range

• 3DNR - Three Dimensional Motion Adaptive

Noise Reduction

• Secondary Video Output (Cable Included)

• OSD (On Screen Display) for Camera Function

Setup

• Flush or Surface mount

• Infinity Ball Mount for Any Viewing Angle

• UTP Interface Option Available

• UTC CONTROL - Serial Control over Coax

• 1” Conduit Knockout

• Available in Ivory or Black color

• With Night Watch DSS Low Light Color

Technology

• Dual Voltage 12VDC & 24VAC

FEATURES

VTD-MP2810WDR

Indoor Pixim Seawolf Powered WDR Mighty Dome 700TVL Camera w/2.8-10mm

Lens, OSD, Day Night w/ICR and “Night Watch” DSS -12VDC/24VAC

VTD-MP922WDR

Indoor Pixim Seawolf Powered WDR Mighty Dome 700TVL Camera w/9-22mm

Lens, OSD, Day Night w/ICR and “Night Watch” DSS -12VDC/24VAC

Available Configurations Include:

Example of WDR

Conventional Camera VTD-MVP2910WDR

NTSC

PAL

Standards

Supports

OSD Menu

Vandal

Resistant

Day

Night

Privacy

Motion

Detection

Lighting conditions play a critical role in producing useable video images in a surveillance system. The Pixim-

Powered WDR Dome Camera was created to meet and solve the challenges brought on by varying lighting

conditions within a single capture area.

By use of the PIXIM Seawolf Wide Dynamic Range DSP we are able to control and display clear crisp images

in varied lighting conditions more accurately than ever before. Its improved resolution of 700TV Lines is un-

equaled by any other WDR Surveillance camera. Advanced on screen display and True ICR Day/Night function

are among the many other features which place this camera at the best in its class.

(888) VITEK-70 | WWW.VITEKCCTV.COM

28492 Constellation Road Valencia, CA 91355

Indoor WDR Mighty

Dome Cameras 700 TV Line WDR

Dome Camera Series

blackyellowmagentacyan

Detailed Specifications

Image Device

Effective Pixels

Scan Frequency

Synchronization

H. Resolution

Sensitivity

S/N Ratio

White Balance

WDR Mode

Motion Detection

Digital Zoom

FLIP

Privacy Zone

Auto Iris Control

SLOW SHUTTER

Day & Night

Lens Options

Video Output

Operating Power

Operating Condition

Dimensions (H x Dia.)

Weight (Camera)

Weight (Carton)

Pixim D8800C Seawolf Digital Imaging System CMOS

758(H) x 540(V)

59.94HZ(V), 15.734K HZ(H) 50HZ(V), 15.625KHZ(H)

Internal / Line Lock (phase adjust)

700TVL

0.00008Lux at F1.2@40IRE, 32x (DSS+ICR mode)

More than 52dB with AGC OFF at 50IRE

2,000 ~ 11,000’K Automatic tracking / AWB / MANUAL

[Low / Middle / High / Custom (User adjustment)]

On / Off (4 Programmable Zone)

Up to X12 Digital Zoom

OFF / H-FLIP / V-FLIP / H/V-FLIP

On / Off (6 Programmable Zone)

DC Drive Iris Control

2 ~ 32X

Infrared Cut-Filter Removable built-in

F1.2 2.8~10mm DC Auto Iris IR Corrected ICR / F1.8 9~22mm DC Auto Iris IR Corrected ICR

VBS 1 Vpp +/- 10%, 75ohm

12VDC / 24VAC 3 Watts / 220 mAmp

-4’F ~ 122’F / -20’C ~ 50’C, 85% RH. Max. Non-condensing

4.45” x 5.71” (113mm x 145mm)

1lb / .46Kg

1.6lb / .72Kg

NTSC PAL

VT-MDPLMT

Mighty Dome Pole

Mount

VT-MDCNMT

Mighty Dome Corner

Mount

VT-MD/CMT

Mighty Dome Ceiiling

Mount

VTD-MD-FMP

Mighty Dome Flush

Mount Decorator

Plate

VT-MD/WMT

Mighty Dome Wall

Mount
