ELEMENT™
THERMOSTAT
USER GUIDE
Welcome
The Vivint Element™ Thermostat is a smart wireless thermostat that
combines comfort and savings while blending seamlessly with
your home interior,
With it’s built-in smart assistant, it automates comfort and energy
savings to keep your home temperature exactly where you want it.
Climate controls, including temperature and humidity tracking, can
be monitored and adjusted anywhere with the Vivint Smart Home
app. When you’re at home you can just ask Alexa to adjust the
temperature for hands-free control.
Now you can start the air conditioning on your way home, or keep
your home office toasty during a blizzard-all from the same mobile
app that controls your locks, cameras, and garage door.
Element INSTALLATION GUIDE
Table of Contents
Getting Started .................................................................................................................................3
Unit View ...........................................................................................................................................................5
Installation Location...................................................................................................................................6
Wiring .............................................................................................................................................................7
Mounting Plate ..............................................................................................................................................9
Prepare Wires ..............................................................................................................................................10
Connecting Wires .......................................................................................................................................11
Power Supply ...............................................................................................................................................12
Wiring Diagrams ...........................................................................................................................26
Detailed Wire Diagram .......................................................................................................................... 27
Step By Step Wiring Diagrams ........................................................................................................28
Wire Reference Table ............................................................................................................................32
Setup .......................................................................................................................................................... .14
Connecting to a Z-Wave network ...................................................................................................15
Set up HVAC - Humidity ........................................................................................................................16
Set up HVAC - Heating .......................................................................................................................... 17
Set up HVAC - Warming ........................................................................................................................18
Z-Wave and Thermostat Programs ................................................................................................19
Select HVAC & Heat Types ..................................................................................................................19
Navigating Screens .................................................................................................................................20
Test Installation ..........................................................................................................................................23
5
Getting Started
6
Vivint Element Installation Guide
Getting Started

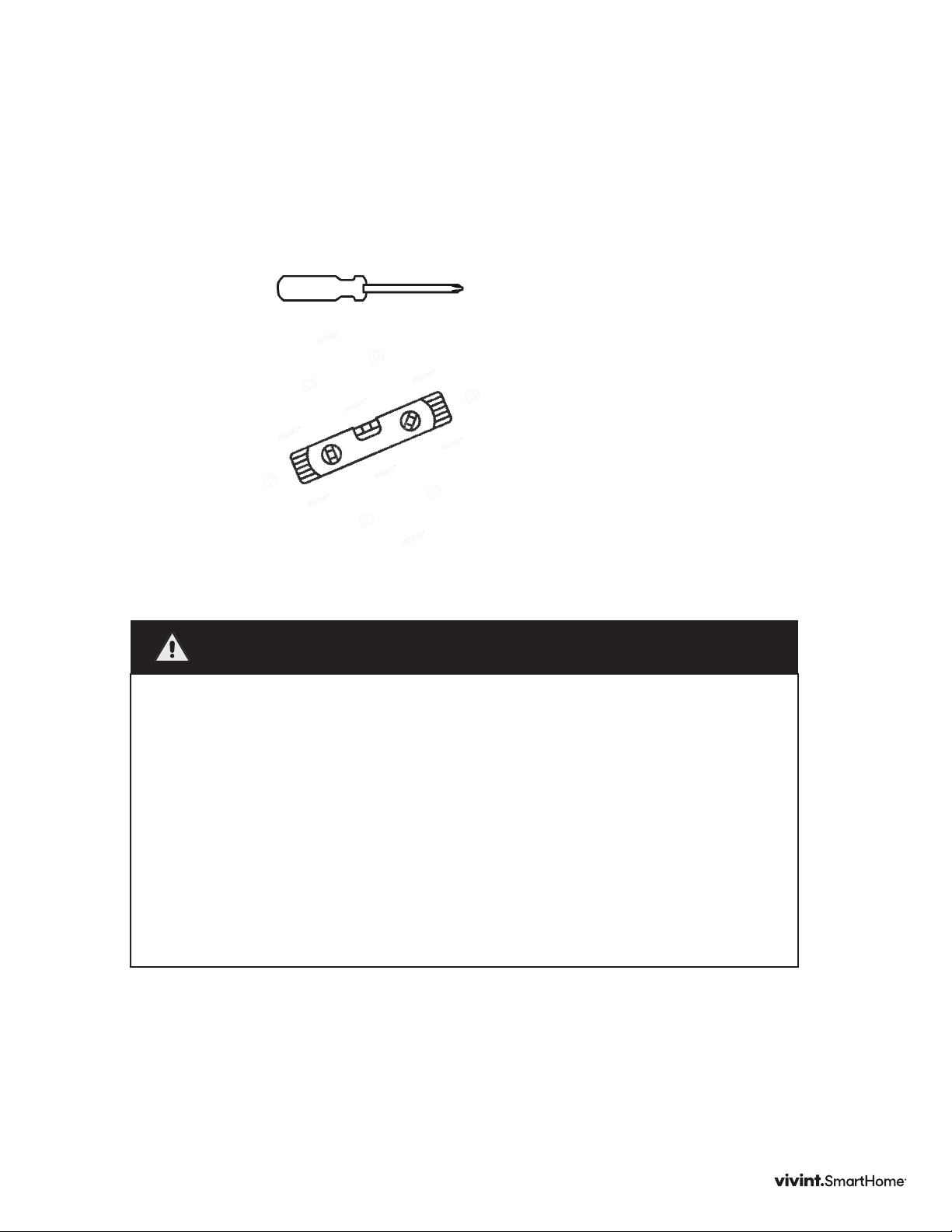

Tools Needed
Small Phillips screwdriver
Level
To avoid electrical shock and to prevent damage to the furnace and thermostat, disconnect
the power supply before installing or servicing the thermostat or any part of the HVAC
system. This can be done at the circuit breaker labeled either furnace or air handler.
• Do not turn power back on until work is complete.
• Do not short (jumper) across electric terminals at the control on the furnace or air
conditioner to test the system. This can damage the thermostat.
• Your thermostat is a precise instrument. Handle it with care.
• All wiring must conform to local codes and ordinances.
• This thermostat is designed for use with 4AA alkaline batteries and/or 24-volt AC C
wire (or a 12- 24 AC or DC source) or millivolt gas systems. Each thermostat relay load
should be limited to 1.0 amp; higher amperage can cause damage to the thermostat.
CAUTION
CAUTION
7
Vivint Element Installation Guide
Getting Started

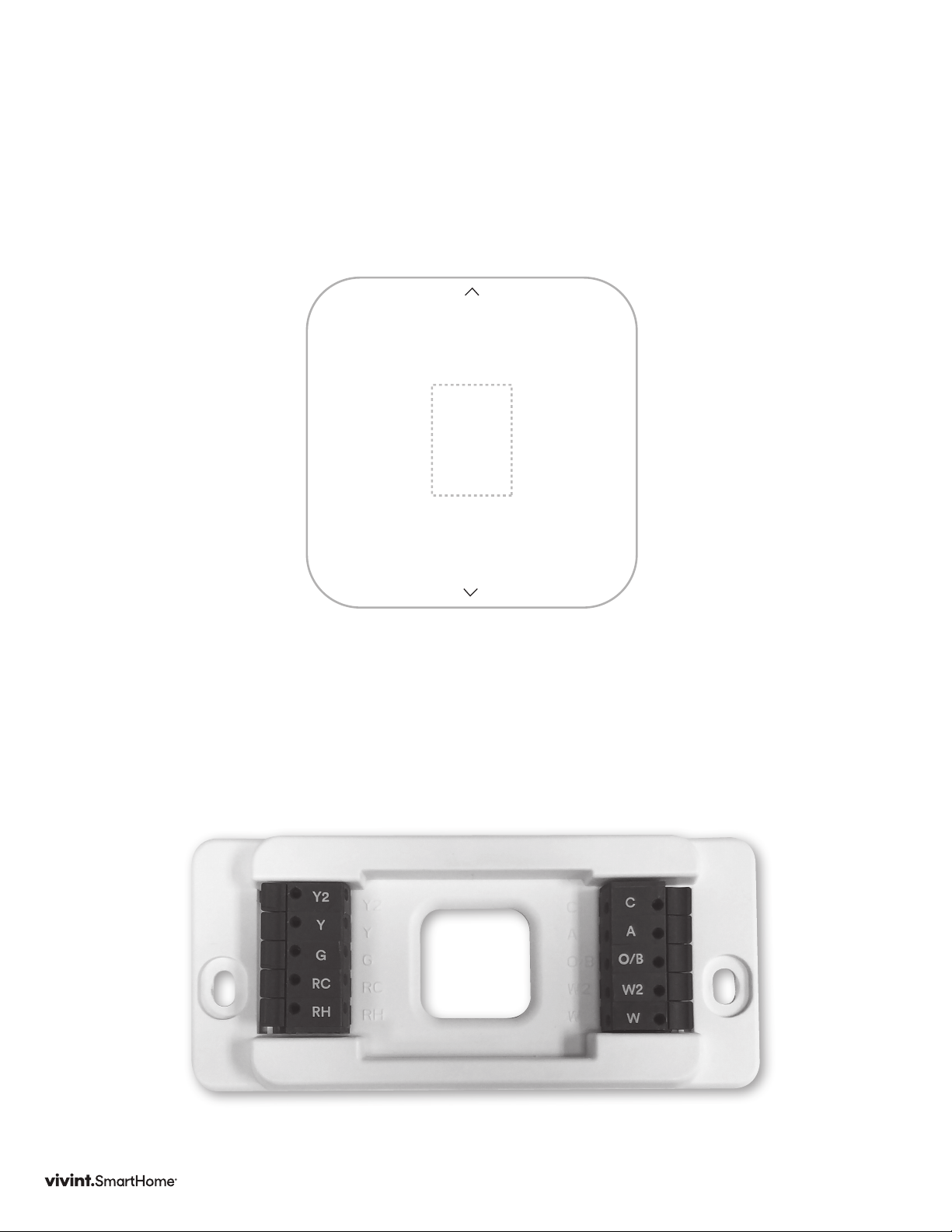

Mounting Plate and Wire Terminals
Unit Front
72 Side
Button
Up Button
Screen
Down Button
Bottom
Edge Light
8
Vivint Element Installation Guide
Getting Started

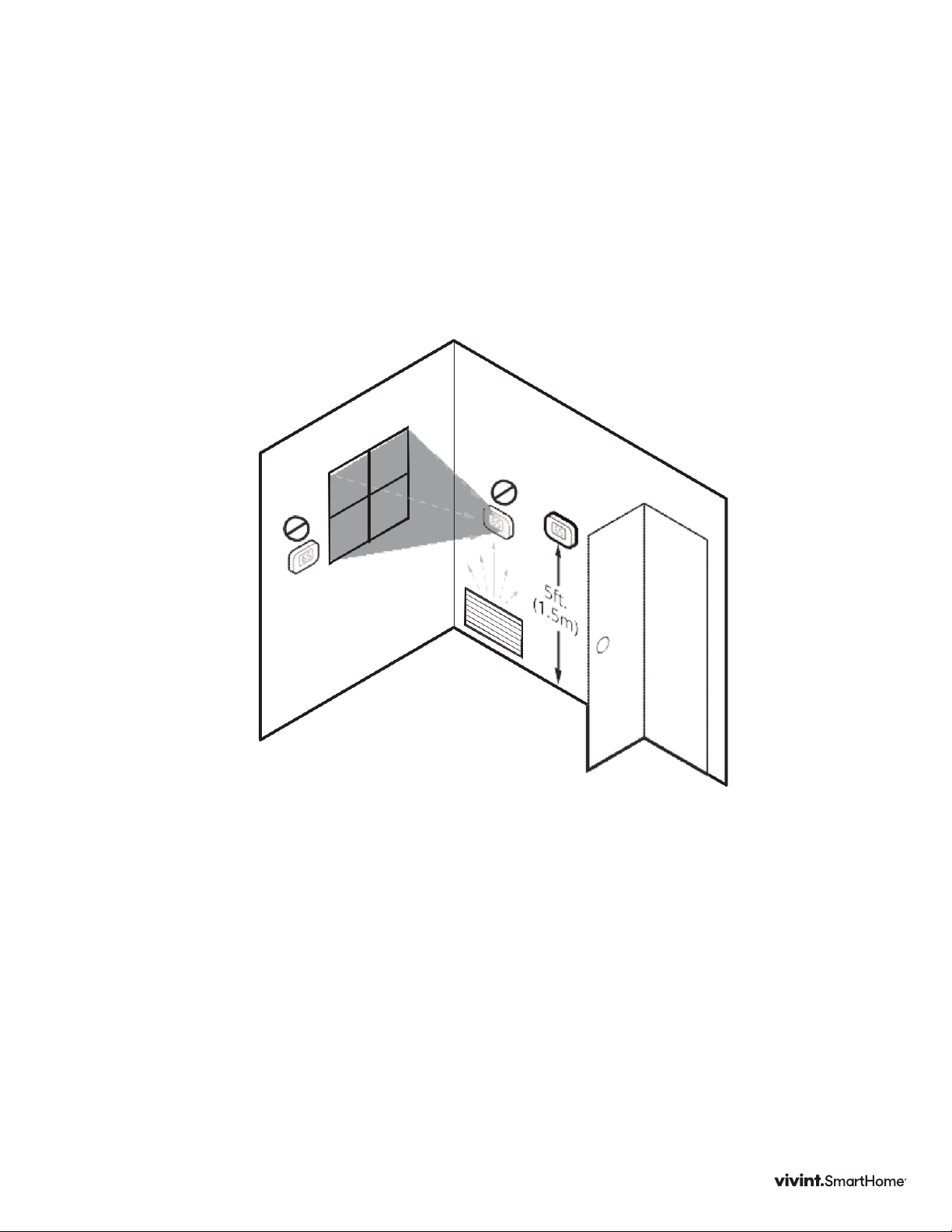

Installation Location
To avoid having to move your wiring to a new location, mount the
thermostat in place of the old thermostat.
• Install the thermostat on an inside wall of an often-used room, about 5 ft. (1.5m) above
the oor.
• Do not install where there are unusual heating conditions, such as: in direct sunlight;near
a lamp, radio, television, radiator register, replace; near hot water pipes in the wall; or
near a stove on the other side of a wall.
• Do not locate in unusual cooling conditions, such as: on a wall separating an unheated
room; or in a draft from a stairwell, door, or window .
• Do not locate in a damp area. This can lead to corrosion that will shorten the
thermo- stat’s life .
• Do not locate where air circulation is poor, such as: a corner, an alcove, or behind an
open door.
• Ensure that the thermostat is level on the wall.
9
Wiring
10
Vivint Element Installation Guide
Wiring
1. Turnopowertothefurnaceorairhandler(i.e.heatingandcoolingsystems).
Thiscanbedoneatthecircuitbreaker.
2. Removethecoverfromtheexistingthermostat.Checkforlockingscrewson
thesideorfrontthatmustbeloosenedrst.
3. Attachprovidedlabelstoeachwireforidentication.Refertothelettered
terminalwherethewiresattach;donotusethecolorofthewires.

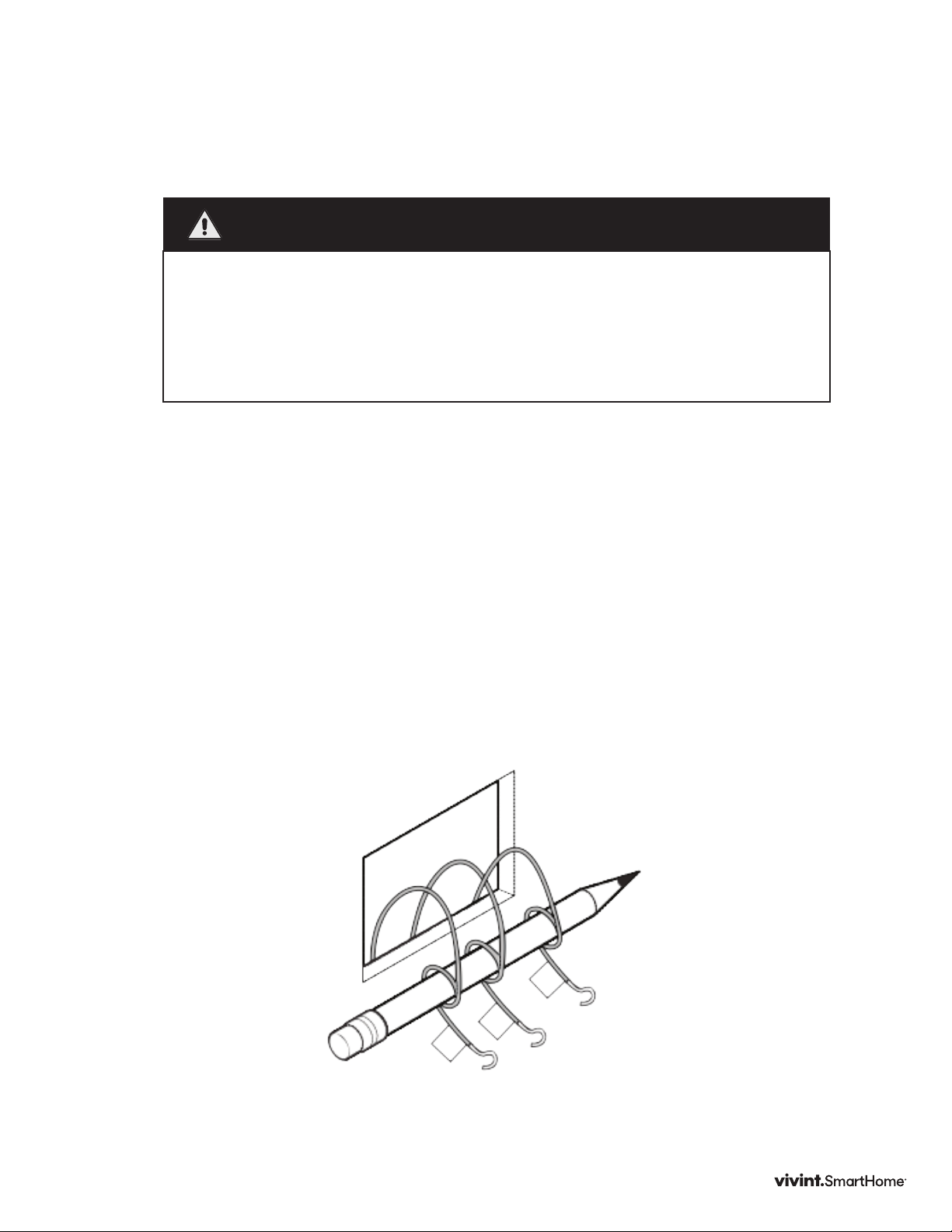

4. Disconnectwiresfromtheexistingthermostat,andwindthemaroundapencil
tokeepthemfromfallingbackinsidethewall.
5. Loosenallmountingscrewsontheoldthermostatandremovefromthewall.
• Read instructions carefully before removing any wiring from an existing
thermostat.
• Label all wires before disconnecting them form the existing thermostat.
• Test existing thermostat before turning off HVAC power to ensure HVAC
system is working appropriately
CAUTION
CAUTION
4
Step 4 Diagram
