Vivitar VIV-PRO-648 Manuale utente

INSTRUCTION MANUAL

DSLR AF Flash Pro 648 Power Zoom

VIV-PRO-648

Thank you for purchasing the VIV-PRO-648 digital power zoom flash gun.

Your electronic flash is innovatively designed for both digital cameras and film

cameras with features that are leading photography into the digital era.

Advanced technology is used in your flash to control the correct amount of

light output. Please take a few minutes to read the instruction manual before

using.

Introduction

-1-

Compatibility

-2-

Check to see which item number you have purchased to see compatiility

Digital TTL / Auto Focus flash for:

PRO-648-CAN - Canon Digital E-TTL, E-TTL II cameras & E-TTL film cameras

PRO-648-NIK - Nikon Digital TTL, i-TTL cameras & TTL, i-TTL film cameras

PRO-648-OLY - Olympus Digital TTL cameras

PRO-648-PANA - Panasonic Digital TTL cameras

PRO-648-PEN - Pentax Digital P-TTL & film cameras

PRO-648-SON - Sony Alpha & Konica Minolta Digital ADI, D Lenses cameras & TTL film cameras

Features

• LCD Display

• Auto and manual zoom from 24-28-35-50-70-85mm

• Red focus assist beam for low light focusing

• TTL metering

• Automatic shutter speed setting

• 5 levels of power ratio 1/1, 1/2, 1/4, 1/8, and 1/16

• Flash readiness indication in viewfinder

• Front and rear curtain synchronization

• Red eye reduction (Type NIK, OLY, PANA &PEN)

• Built-in slave function

• Built-in reflecting plate and diffuser

• Power saving function

A Look at Your Flash

-3-

Special Mounting Shoe for

SON, OLY and PANA flashes

Type SON

Mounting Shoe

Type OLY

& PANA

Mounting Shoe

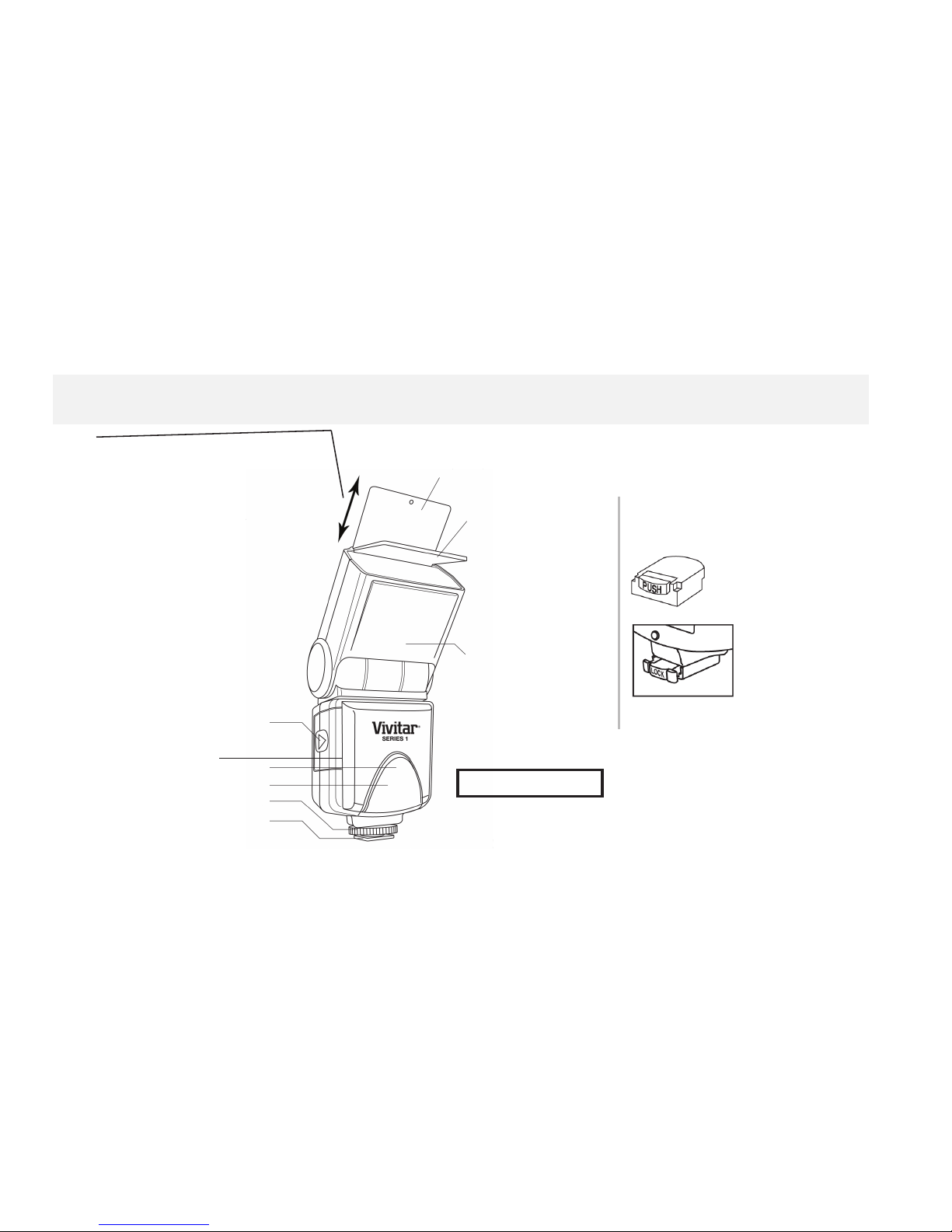

FRONT VIEW

Built in Reflecting Plate

Pull Out Diffuser

Flash Head

Battery

Compartment

Cover

Slave Sensor

AF Red Light

Lock Ring

Mounting Shoe

Note:

Both the reflecting plate and

the pull out diffuser are housed

inside of your flash. When you

would like to use them, you can

slide them out and slide them

back in when you’re finished for

easy storage.

A Look at Your Flash

-4-

1. LCD Display

2. Auto Check Indicator

3. Mode Indicator

4. Beeper Indicator

5. Power Level Setting

6. Flash Range Distance

Bar

7. Power Off Indicator

8. Zoom Position

9. Film Speed Indicator

10. F-Stop Indicator

11. Mode Selector

12. Film Speed Selector

13. F/Stop Selector

14. Beeper on/off

15. Zoom Selector

16. Back Light

17. Ready / Test

18. Power ON/OFF Switch

19. Slave Mode Switch

20. Auto OK

21. Mode Indicator (NIK

only)

Specifications

-5-

Guide Number (ISO 100):

Motor zooming reflector:

Power Source:

Flash Duration:

Recycling Time:

Number of Flashes:

Color Temperature:

Dimensions:

Net Weight:

(50(m)/164ft) at 85mm position

24 - 28 - 35 - 50 - 70 - 85mm

4x 1.5V AA size alkaline batteries

1/1,000 - 1/20,000 second

0.5 - 9 seconds

80 times with fresh alkaline batteries

Daylight

Approx. 72 x 100 x 125 mm

Approx. 270 grams (w/o batteries)

* Specifications are subject to change without further notice.

* For Minolta Dynax 3 and 5, select WL from the functional dial to the on position before using

PRO-648-SON.

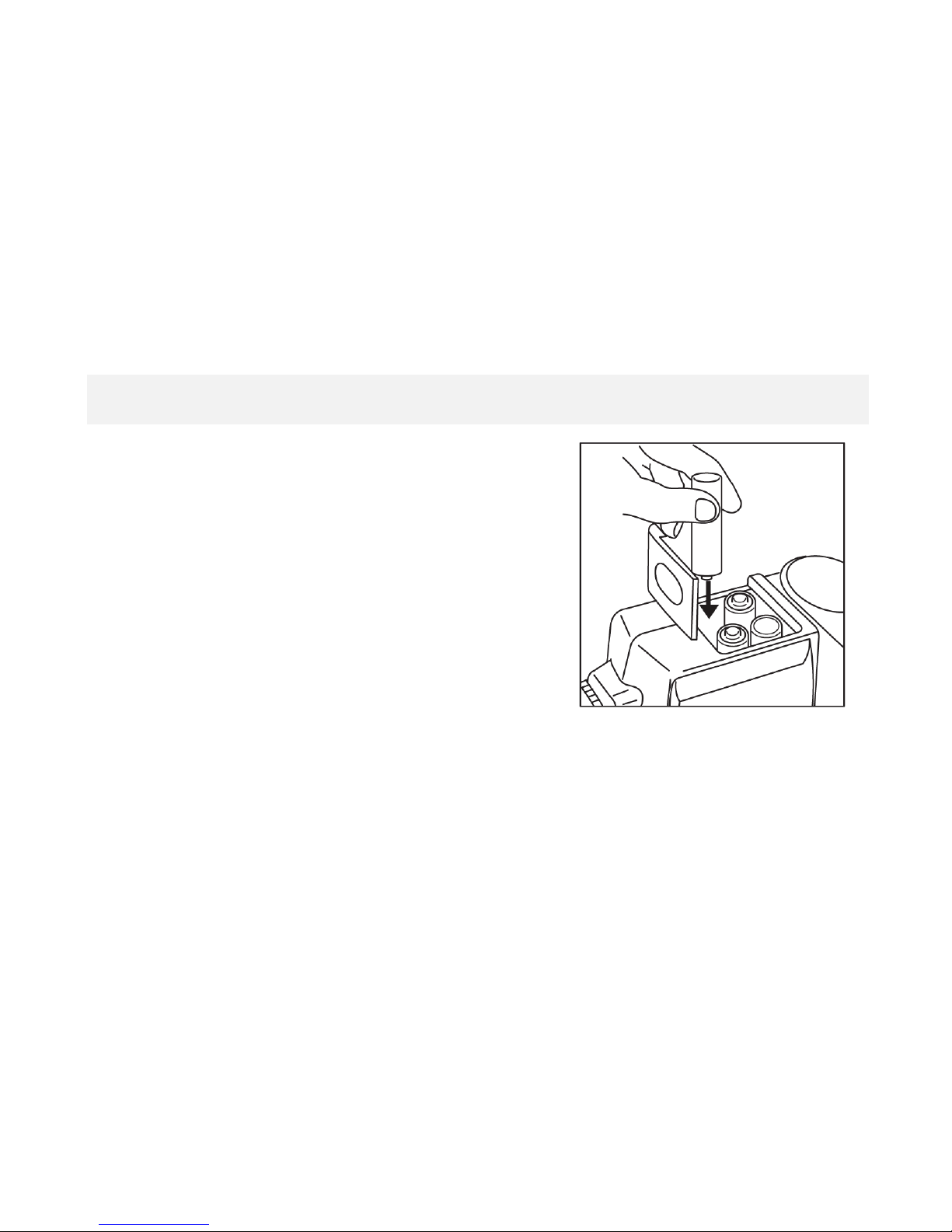

Loading Batteries

-6-

Make sure the On/Off Switch is in the Off position. Slide

open the Battery Compartment Cover and insert 4 x AA

batteries with correct polarity(-,+), as indicated in the

battery compartment. Close the Battery Compartment

Cover. Inserting batteries with the wrong polarity may

cause the batteries to heat up, leak, explode and damage

the flash.When you need to replace batteries, make sure all

batteries are of the same brand, type and same capacity.

Mounting the Flashgun onto Your Camera

-7-

• For Type CAN, NIK & PEN flashes: Loosen the lock ring. Slide the

flash into the camera accessory shoe. Tighten the flash with the

lock ring.

• For Type OLY & PANA flashes: Insert the mounting foot of the

flash into the camera accessory shoe and press "LOCK" to lock

the flash in place.

• For Type SON flashes: Insert the mounting foot of the flash into

the camera accessory shoe. This will lock the flash in place.

Removing Your Flash

-8-

• For Type CAN, NIK & PEN flashes : Loosen the lock ring and

remove the flash by pulling it backwards.

• For Type OLY & PANA flashes: Press both sides of the

Lock/Release Button towards the direction indicated by the

arrow symbols and then take the flash off by pulling it

backwards.

• For Type SON flashes: Push the Shoe Release Button and pull the

flash off by pulling it backwards.

ON/OFF Switch and Flash Test Operation

-9-

To switch on the flashgun, slide the main switch to the "ON" position.

On the ready indicator "READY" lights up as soon as flash readiness is

established. Press the Test Button to ensure the flashgun works properly.

If the flashgun discharges, wait until the "READY" light glows again.

To switch off, slide the main switch to "OFF" position.

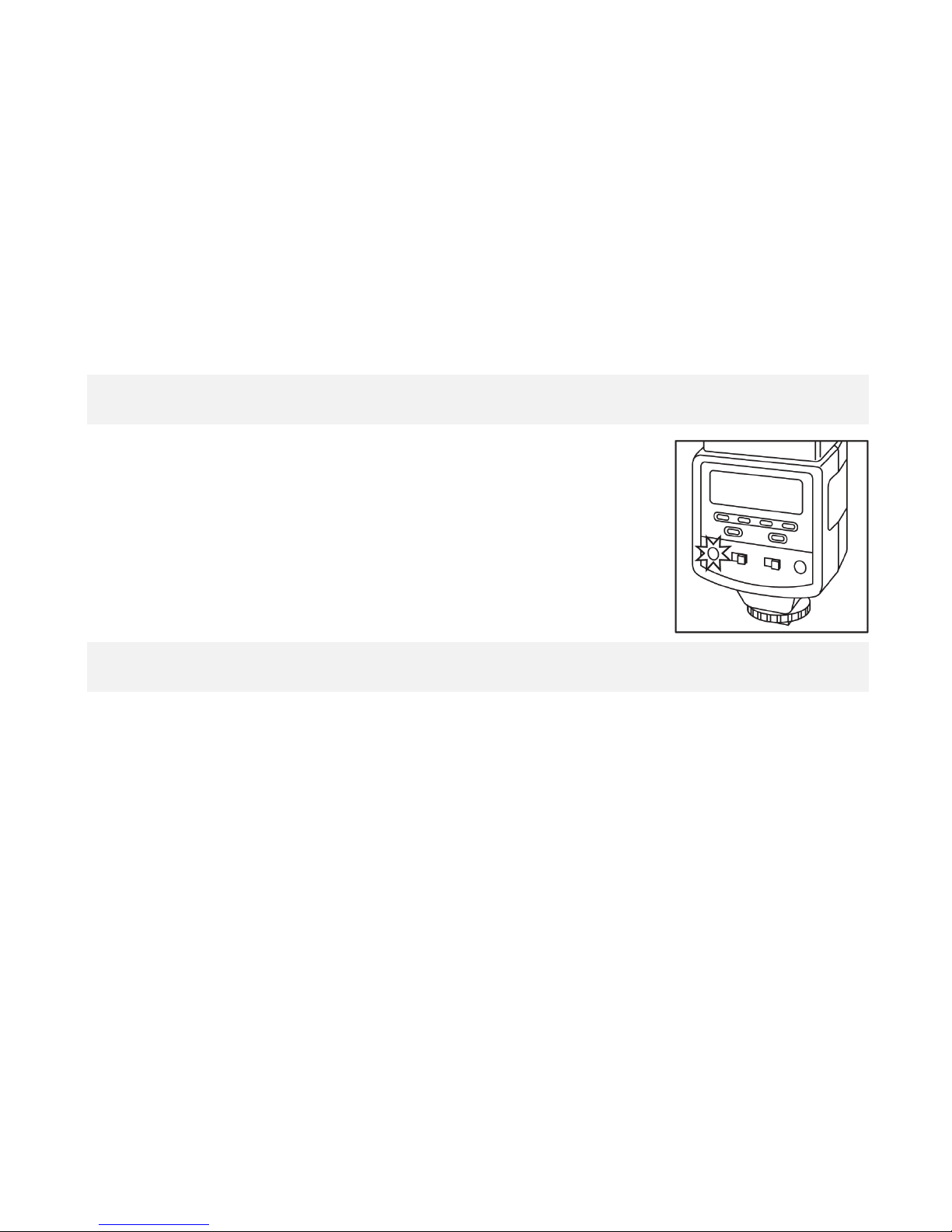

Illumination of LCD display

The LCD display is used to show general information about your camera and the current

status of the flashgun. Every time the "LIGHT" key is lightly tapped, the LCD

display will be illuminated for about 5 seconds.
