Overview
Thank you for purchasing this product!
PANOVIEW 360°Camera is a digital panoramic camera with two lenses.
Through the application of up-to-date technologies, it enables you to get
panoramic videos and photos, creating an experience of brand new
panoramic world.
Important
Before using this product, please carefully read this Manual
Prepare one 32G Micro SD card
Check the camera power. A full charging is recommended before
use (Until the charging indicator goes out)
Scan the QR Code on next page, or search for “VRCAM720” on
Apple Store and Google Play, and then download and install it

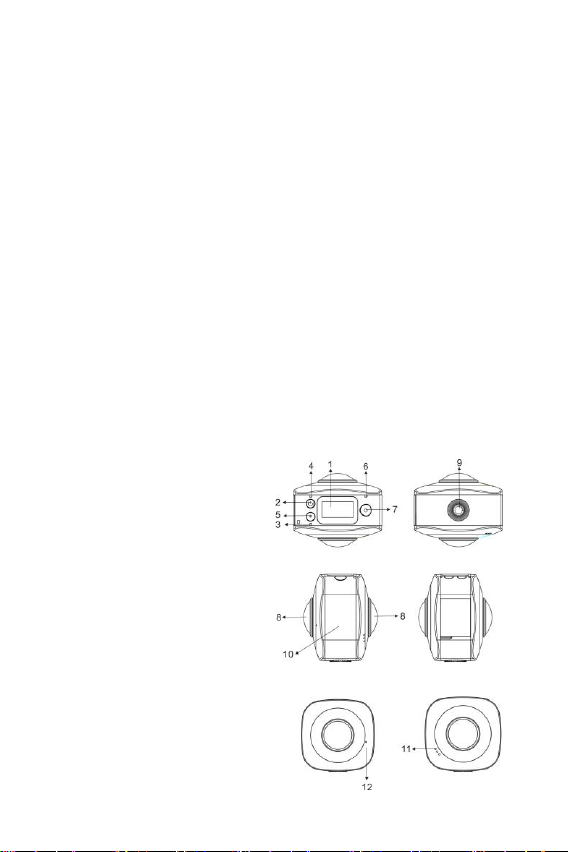

About Camera
1. OLED display
2. Power button/Mode button
3. WIFI indicator (red)
4. Power indicator（red）/Charging indicator (blue)
5. Wifi button/MENU button
6. Busy indicator (red)
7. Shutter button/OK button
8. Lens×2
9. Triangle nut
10. Interface cover (USB/TF)
11. Speaker
12. Microphone
PDV3635
2
QR Code:
For IOS system, please scan this QR Code to get access to Apple Store
to download and install “VRCAM720”.
or Android system, please scan this QR Code to get access to Google
Play to download and install “VRCAM720”.
3
Quick start guide
1. Install SD card:
Insert the Micro SD card you prepare into the slot as indicated, as
shown on the right.
Important:
A high-speed Micro SD card is Class10 above ; or else, this
product may not work normally.
3.5K@28FPS usd U3 high-speed Micro SD card.
Always turn off the camera before inserting or pulling out of the
card.
2. Power-on/off
Power-on: Press and hold Power button for about 2 seconds and
release, until it beeps. The display screen will be lighted, as shown
below, indicating the product is ready to work (the default work mode
after power-on is Shooting mode).
Important:
If power-on fails, charge the camera first, and see whether the
blue indicator lights up during charging. If yes, it indicates the
product is being charged.
Power-off:After shooting stops, press and hold Power button for about
3 seconds and release. The Display will display “GOODBYE” and turns
off. No operation on mainframe for 3 minutes under Power-save mode
(default), the camera will automatically power off.
4
3. Charging
Use data cable included in the product pack for camera charging. During
charging, the indicator displays in blue and lights constantly; when
charging completed, the blue indicator goes out.
Important:
If other charger is used, check the output power before use to
ensure it within 5V/1.5A above.
4. Recording or shooting
This camera has Recording mode and Shooting mode. After power-on,
press MODE (Power button) to switch between different modes, and the
corresponding mode icon will be displayed on the screen.
Video: In Recording mode, press Shutter button, and the camera get
started to work. The display screen displays the video recording timing.
Stop recording: During recording, press Shutter button to stop it. The
video will automatically be saved on your camera storage card.At that
moment, the display screen will show remaining time available for
recording as below:
Shooting: In Shooting mode, press Shooting button to take photos.
After shooting, the display screen will display the number (estimated
value) of pictures the available space on you camera storage card can
save.
5
5. Menu setting
To operate Menu, press and hold WIFI button for about 2 seconds to
enter menu setting (as shown below):
Menu operation:
In Menu mode, press WIFI button to move cursor. Press Shutter button
to confirm. Press and hold WIFI button to back to previous menu or exit
Menu mode.
Explanation of menu functions:
Movie Size：3.5K（28FPS）、3.5K（15FPS）、 2.7K（30FPS）、
960P（30FPS）
Resolution：24M(6912x3456) 、18M(6000x3000) 、16M(5760x2880) 、
12M(4896x2448) 、8M(4000x2000) 、4M（2880x1440）
Power Save: Set Power-save mode. You may set the camera to enter
Power-save mode after a certain period of time. The available options
are 1min/3min/5min or Power-save mode off.
Date & Time: Set system time for the camera manually.
Language: Set system language for the camera, with English as its
default language.
Factory Reset: Restore factory default settings.
System: Check system and storage card information.
Format: Format storage card.
Important:
After formatting, all existing data on the storage card will be lost due to
such formatting. Please be cautious to this operation!
6
6. How to use accessories properly
It is strongly recommended to use the accessories originally provided by
the manufacturer. It helps create a better product use experience and
better shooting/recording effect.
Tripod: Screw the tripod nut attached into the screw hole on the bottom
of the camera. It serves both as a hand-held or fixed device.
Fix to use tripod Hold to use tripod
7. Use of watch remoter (optional)
1. Power button
2. Shooting button
3. Recording button
7
Play panoramic video or picture
Note: The videos or pictures may be played in right panoramic effect
only on smart mobile phone, panel computer or PC procedures.
1. Use mobile phone or panel computer to play
Follow these steps to play panoramic videos or pictures on mobile
phone or tablet.
Download APP:
Scan QR Code on Page 2 or search for
“VRCAM720” on App Store to download and
install the product APP.
Connect mobile phone and camera: Connect mobile phone and camera
through WIFI connection
i. Turn on camera WIFI: Press camera WIFI button, and the display
screen will display “WI-FI ON”, and then “P3635SA_XXXXX”, and
initial password is “1234567890”.
ii. Turn on mobile phone WIFI, search for
AP hot “P3635SA_XXXXX” and select
Connect.
iii. If connected, the camera display screen
will display as below picture.
8
Activate APP: Activate “VRCAM720” APP on mobile phone or tablet,
and click the upper right corner to “Search for Camera”.
Download: Enter camera folder, select the file to be downloaded and
click to download.
Play: Select the file on mobile phone and click to play.
Important
It is recommended to follow the above steps in order to achieve the best
HD video or picture playing effect.
Before connection, remember to make sure the SD card properly
inserted into camera.
After connection, it will not affect 4G communication function of mobile
phone or tablet .
9
Share：
Videos files can be shared via Youtube, Facebook, Wechat, QQ and etc.
The sharing videos can be searched on its relevant websites or
webpages.
The share files can be played with effects playing: Plane mode、Fisheye
mode、Tiny planet mode、VR mode.
Notice: The merged video file is in .mov format.
Effect of panoramic playing
The following effects are available if played onAPP player
Tiny planet mode
