Vivo MOUNT-DS01 Manuale utente

Universal Docking Station Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-ds01

SKU: MOUNT-DS01

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

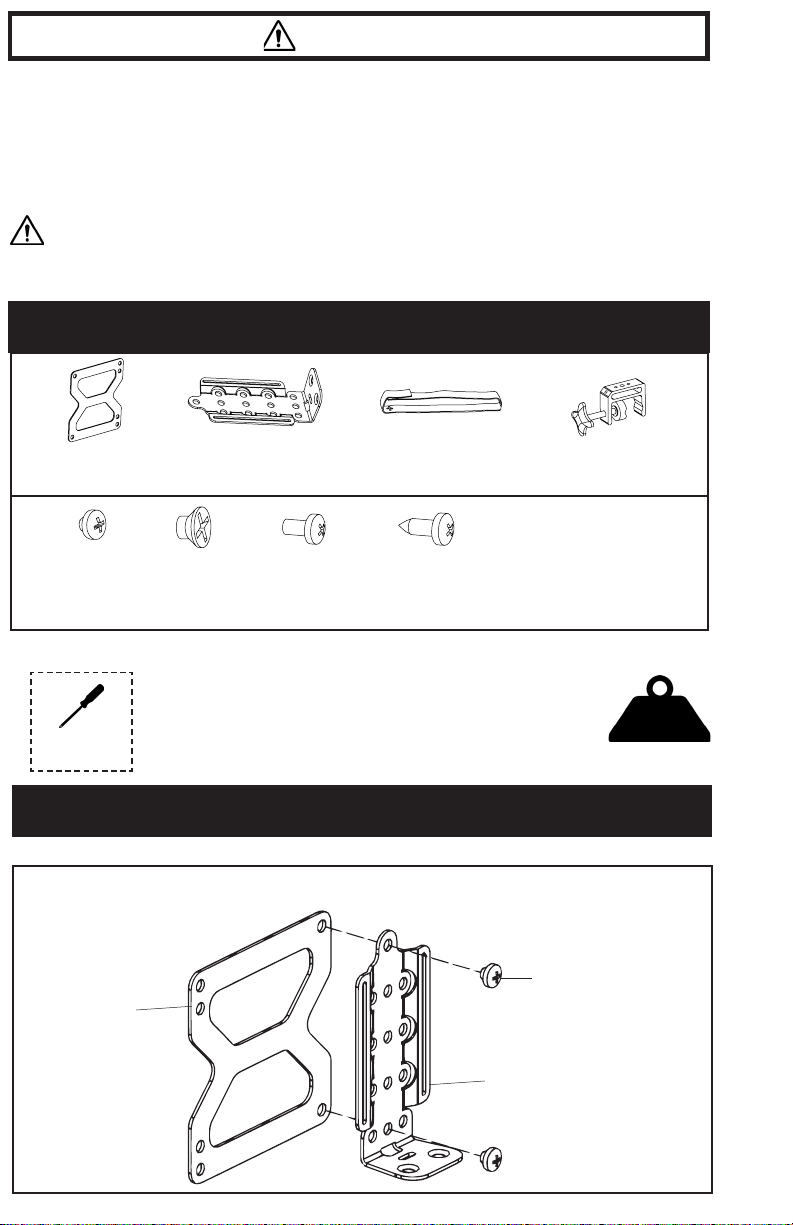

PACKAGE CONTENTS

TOOLS NEEDED

17.6lbs

(8kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

Phillips

Screwdriver

A (x1)

VESA Adapter

B(x1)

Mounting Bracket

C(x2)

Velcro Strap

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

S-A (x2)

M6x5mm

Screw

M-B (x4)

ST5x14mm

Screw

M-A (x4)

M4x10mm

Screw

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

S-B (x2)

0.25” x 0.5”

Screw

D(x1)

Clamp

ASSEMBLY OPTION A | VESA Mounting

STEP 1

Connect Mounting Bracket (B) to VESA Adapter (A) using M6x5mm Screw (S-A) and a Phillips

screwdriver.

S-A

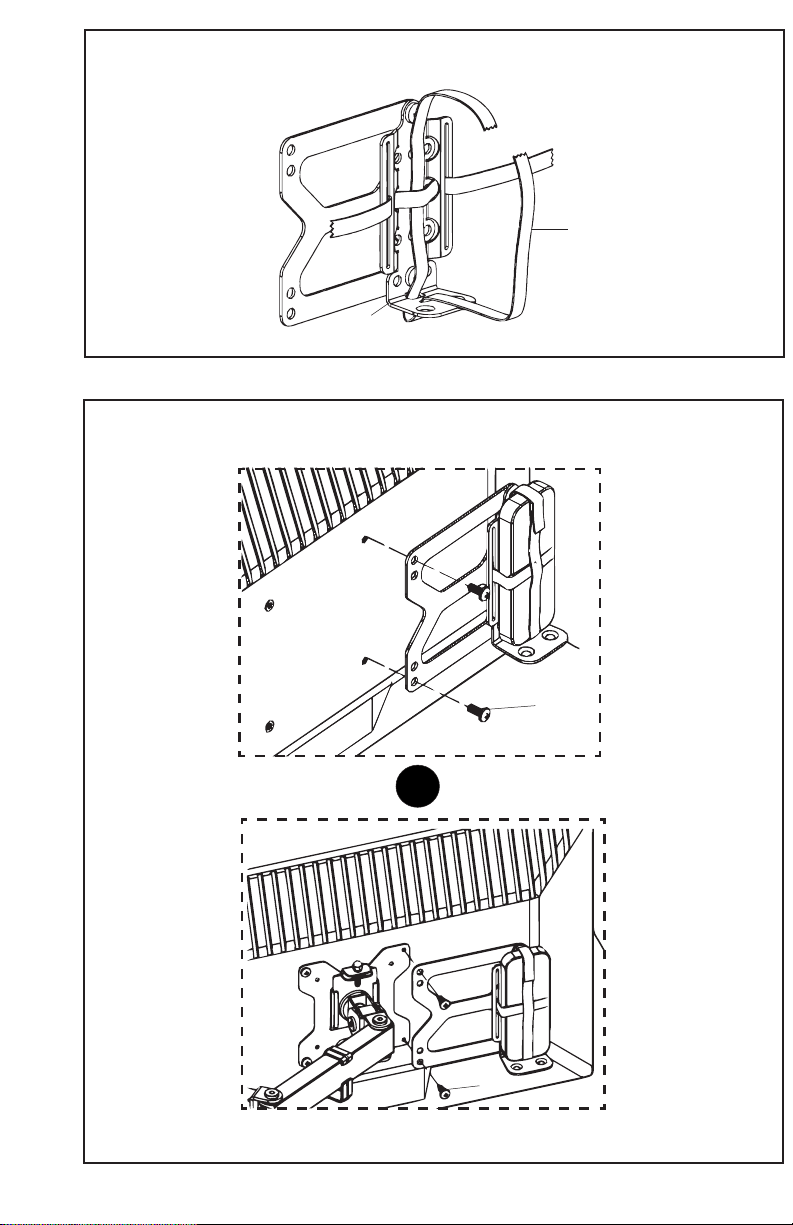

STEP 2

STEP 3

Mount assembly to VESA holes on monitor or over VESA plate using M4x10mm Screws (M-A) using a

Phillips screwdriver.

Slide Velcro Straps (C) through the bottom and side slots on Mounting Bracket (B), as shown.

M-A

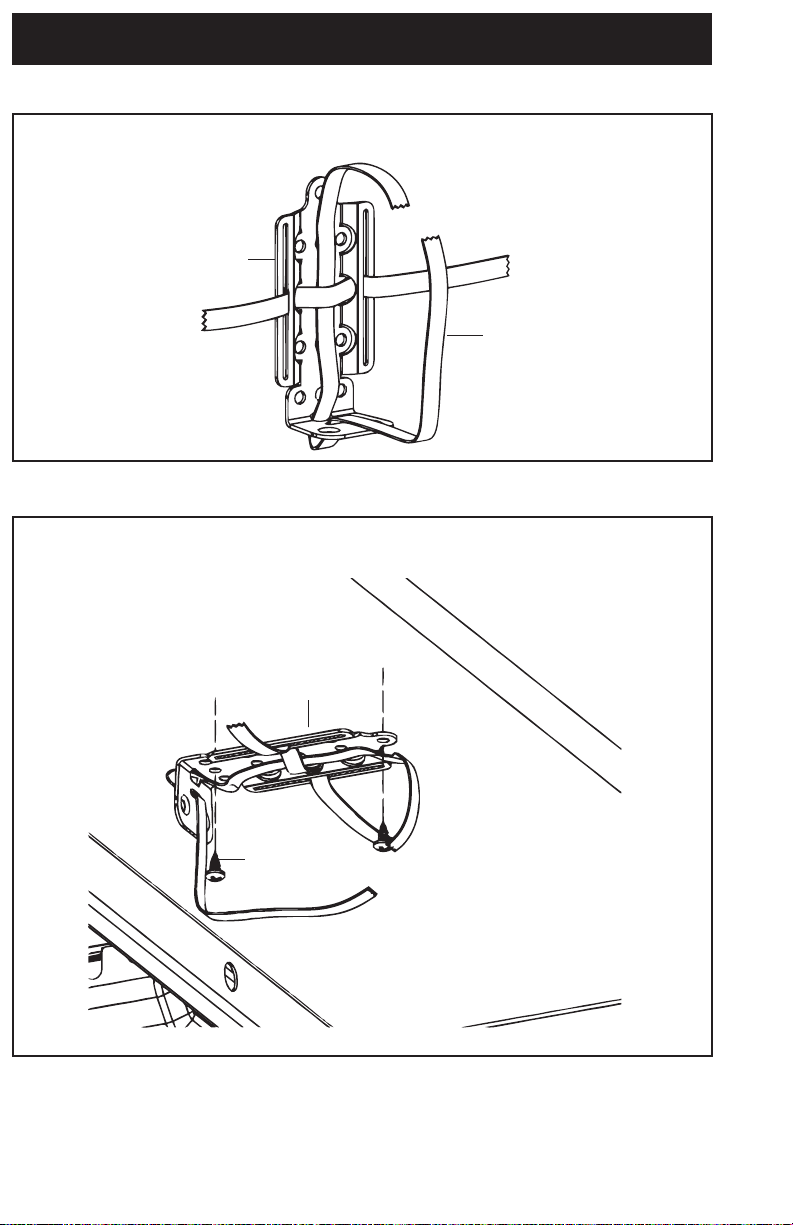

ASSEMBLY OPTION B | Under Desk Mounting

STEP 1

STEP 2

Slide Velcro Straps (C) through the bottom and side slots on Mounting Bracket (B), as shown.

Mark and drill pilot holes using a 3/32” (2.5mm) bit, drilling 3/8” (10mm) deep. Install Mounting Bracket

(B) to underside of desktop using ST5x14mm Screws (M-B) and a Phillips screwdriver.

M-B

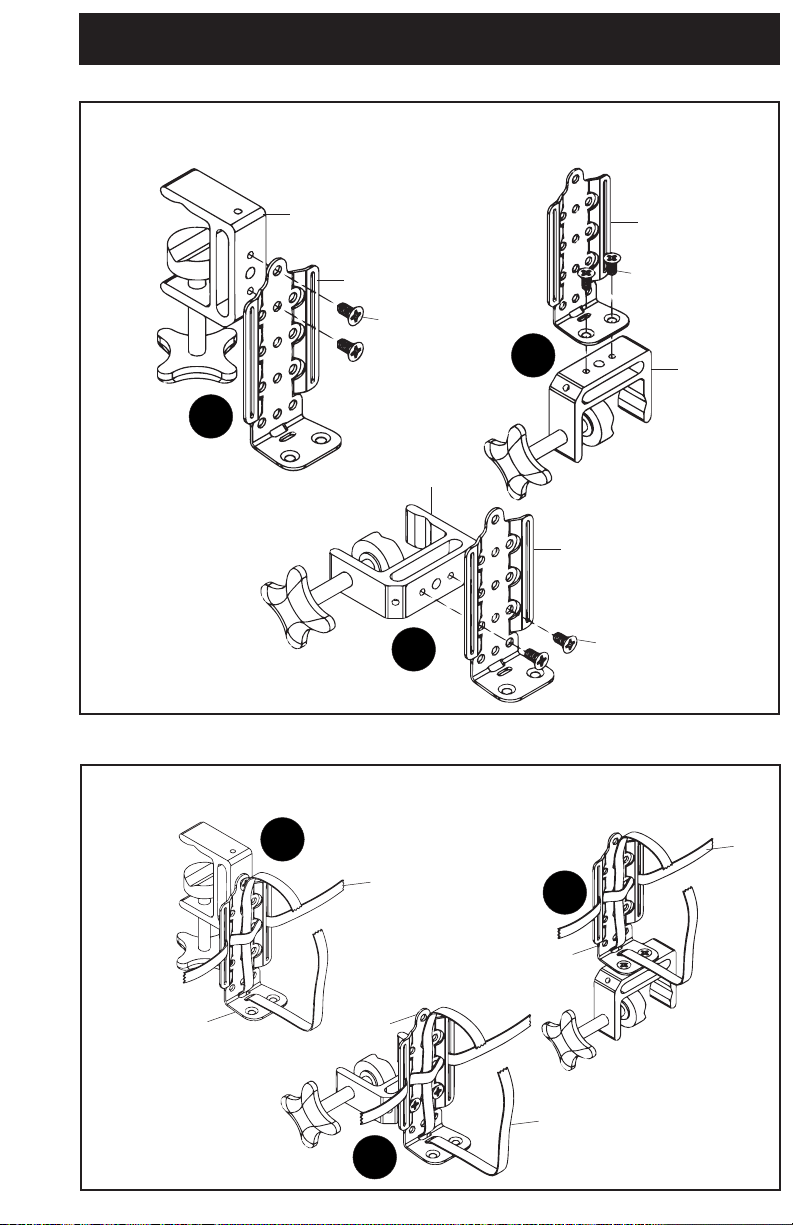

ASSEMBLY OPTION C | Clamp Mounting

STEP 1

STEP 2

Choose one of the orientations below and attach Mounting Bracket (B) to Clamp (D) using 0.25” x 0.5”

Screws (S-B) and a Phillips screwdriver.

Slide Velcro Straps (C) through the bottom and side slots on Mounting Bracket (B), as shown.

S-B

STEP 3

Secure Clamp (D) to desired location.

THIS PAGE INTENTIONALLY LEFT BLANK

LAST UPDATED: 07/25/2022

REV1.1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
