Vivo MOUNT-SONOS1 Manuale utente
Wall Mount Designed for Sonos Playbar Soundbar
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/mount-sonos1
SKU: MOUNT-SONOS1
2

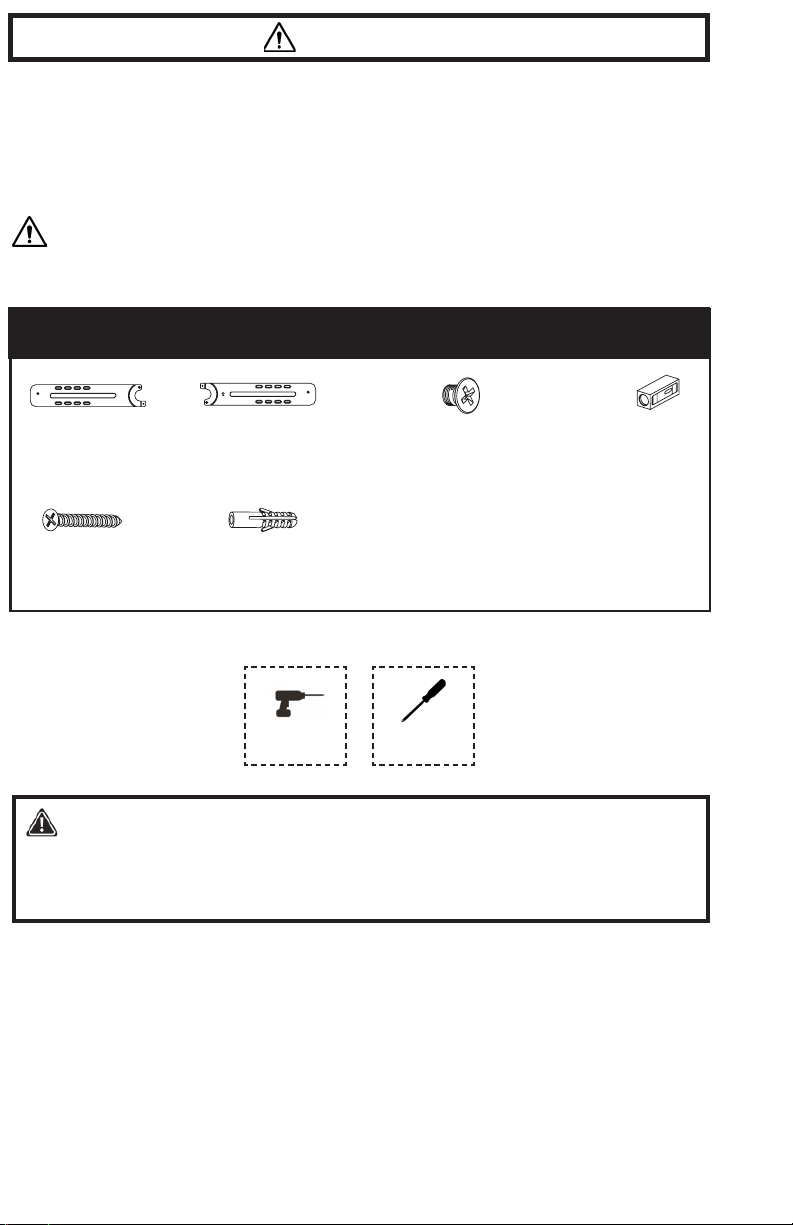

PACKAGE CONTENTS
WARNING!
A (x1)
Mounting
Bracket 1
B(x1)
Mounting Bracket 2
C(x2)
Screw
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
TOOLS NEEDED
Phillips
Screwdriver
Drill
D(x1)
Level
W-A (x6)
Screw
W-B (x6)
Anchor
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
CAUTION!
DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO
MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.
3

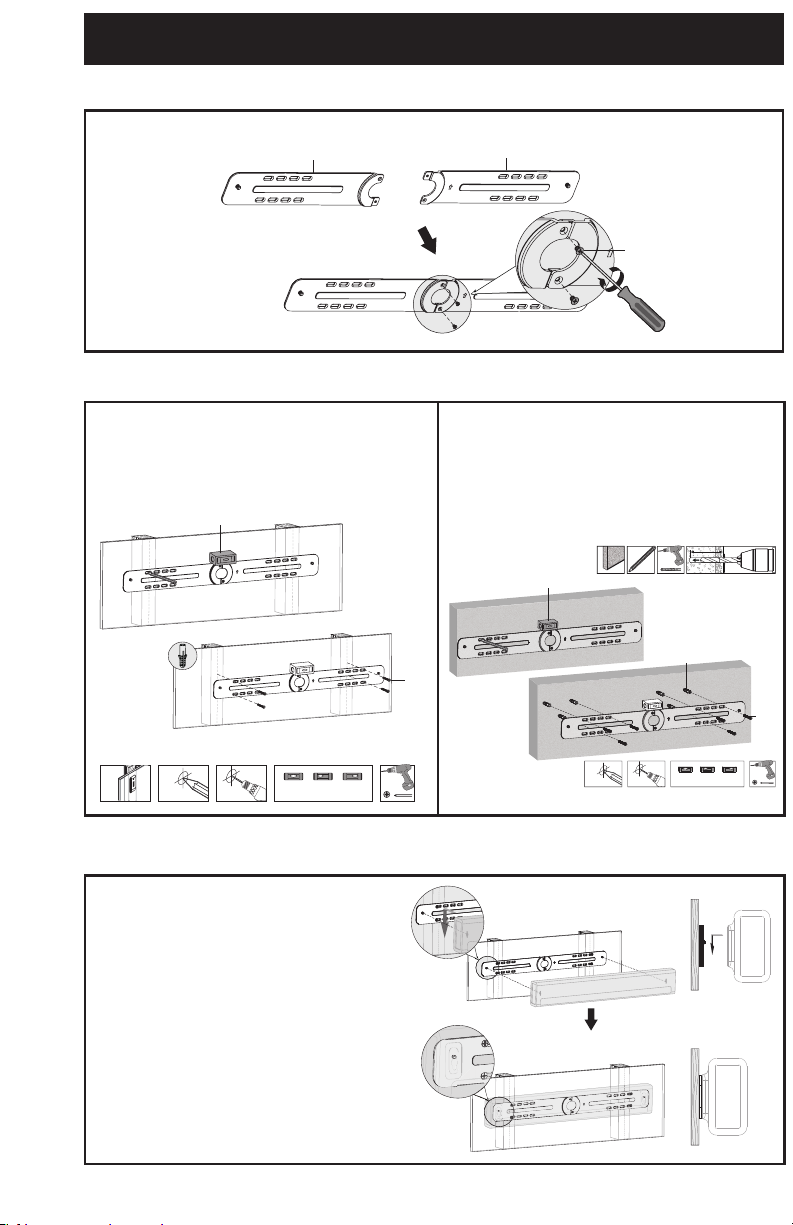

ASSEMBLY STEPS
STEP 1
Attach mounting bracket 1 (A) and mounting bracket 2 (B) with screws (C).
AB
C
STEP 2
OPTION A: Wood Wall Installation
Place mount up to wall and mark holes with pencil
using level (D). Drill 2” (50mm) holes using a 1/8”
(3mm) drill bit. Hold mount up to wall and insert
screws (W-A) into marked holes.
NPO
uu
√
D
u
W-A
55mm
(2.2")
2
1
XX
√
W-A
W-B
D
(ø 5/16")
ø 8mm
55mm
(2.2”)
OPTION B: Concrete/Brick Wall Installation
Place mount up to wall and mark holes with
pencil using level (D). Drill 2” (50mm) holes using
a 5/16” (8mm) drill bit. Insert anchors (W-B).
Hold mount up to wall and insert screws (W-A)
into marked holes.
STEP 3
Slide Playbar down onto mounting bracket.
Please make sure Playbar is tightly latched
on VIVO mounting bracket.
LAST UPDATED: 10/14/2019
Open Monday-Friday from 7:00am-7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times.
If any parts are received damaged or defective, please contact us.
We are happy to replace parts to ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
www.vivo-us.com
309-278-5303
AVG. RESPONSE TIME (within oice hrs): 1HR 8M
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
AVG. RESOLUTION TIME (within oice hrs): < 15 M
