Vivo MOUNT-TS32B Manuale utente

Telescoping Dual Monitor Wall Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

SKU: MOUNT-TS32B

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

https://vivo-us.com/products/mount-ts32b

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualied technician.

Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use

this product for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity. We cannot be liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

A (x1)

Wall Mount

ASSEMBLY STEPS

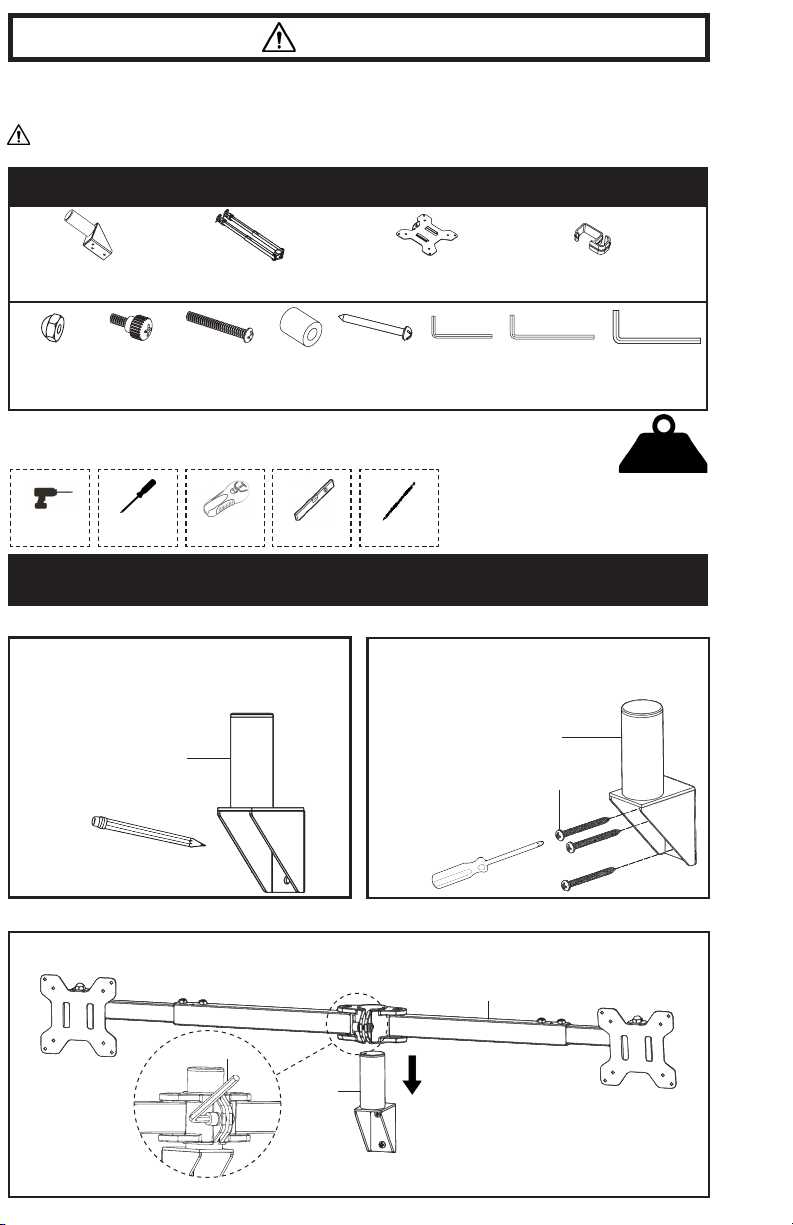

Using a 4.5mm (11/64”) drill bit, drill

approximately 55mm (2.2”) into marked

locations. Secure Wall Mount (A) to wall using

ST6x60mm Screws (W-A) and

a Phillips screwdriver.

22lbs

(10kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

STEP 1

Phillips

Drill Stud Finder Level Pencil

Stud mounting is required. Use of a stud nder

and level is recommended. Place Wall Mount (A)

in the desired location, and use a pencil to mark

drilling locations.

W-A

T-C

B(x1)

Arm

C (x2)

VESAPlate

D (x2)

Cable Clip

W-A (x3)

ST6x60mm

Screw

M-A (x8)

M4x12mm

Thumbscrew

M-B (x8)

M4x30mm

Screw

M-C (x8)

M4 Spacer

T-A (x1)

3mm Allen

Wrench

T-B (x1)

5mm Allen

Wrench

T-C (x1)

6mm Allen

Wrench

STEP 2

STEP 3

S-A (x2)

M6 Cap

Nut

Slide Arm (B) onto Wall Mount (A) and secure using 6mm Allen Wrench (T-C).

PER ARM

STEP 5

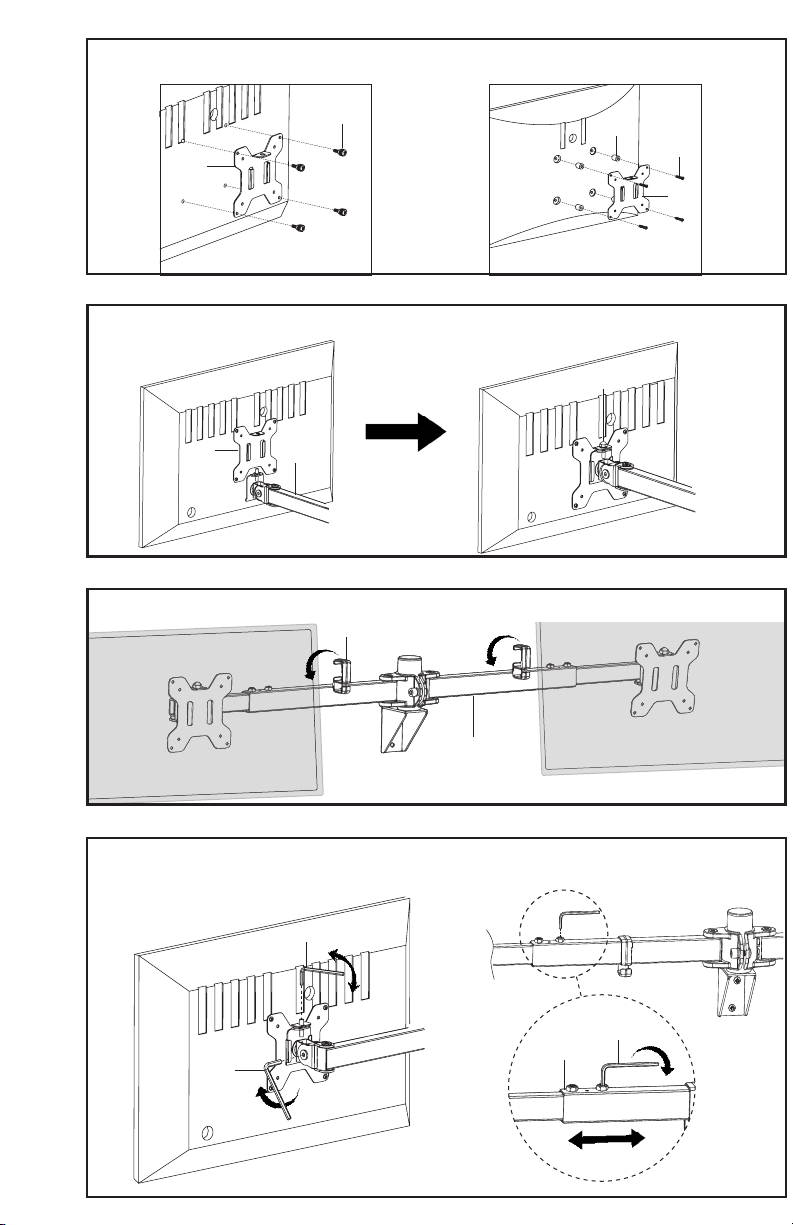

Slide VESA Plates (C) with monitors onto the Swivel Arm (B) and secure using M6 Cap Nuts (S-A).

STEP 4

STEP 6

Secure Cable Clips (D) to Arm (A) and manage cables.

STEP 7

Assemble VESA Plates (C) to the back of the monitors using M4x12mm Thumbscrews (M-A). For curved

monitors, use M4x30mm Screws (M-B) with M4 Spacers (M-C).

M-A

M-B

M-C

S-A

Adjust the tilt using 5mm Allen Wrench (T-B). The monitors can be leveled using 3mm Allen Wrench

(T-A). Adjust the length of Arm (B) using 3mm Allen Wrench (T-A).

T-B

T-A

LAST UPDATED: 04/24/2023

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
