Vivo STAND-EV01C Manuale utente
Black EV Charging Stand
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-ev01c
SKU: STAND-EV01C
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
PACKAGE CONTENTS
WARNING!
A (x1)
Stand
B(x1)
Mounting Plate
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualied technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
C (x1)
Bale
E (x1)
Cable Holder
D (x1)
Cover
F (x1)
Plug Mount
S-A (x4)
M6x8mm Screw
M-D (x6)
M5 Nut
T-A (x1)
4mm Allen Wrench
M-E (x6)
M6 Nut
W-A (x4)
ST6.3x55mm Screw
W-B (x4)
Concrete Anchor
W-C (x4)
M6 Washer
T-B (x1)
Wrench
S-B (x5)
M5x8mm Screw
S-C (x4)
M5x25mm Screw
M-A (x6)
M4x16mm Screw
M-B (x6)
M5x16mm Screw
M-C (x6)
M6x16mm Screws
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF CHARGING STAND.
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
3
ASSEMBLY STEPS
33lbs
(15kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
TOOLS NEEDED
Phillips
Screwdriver

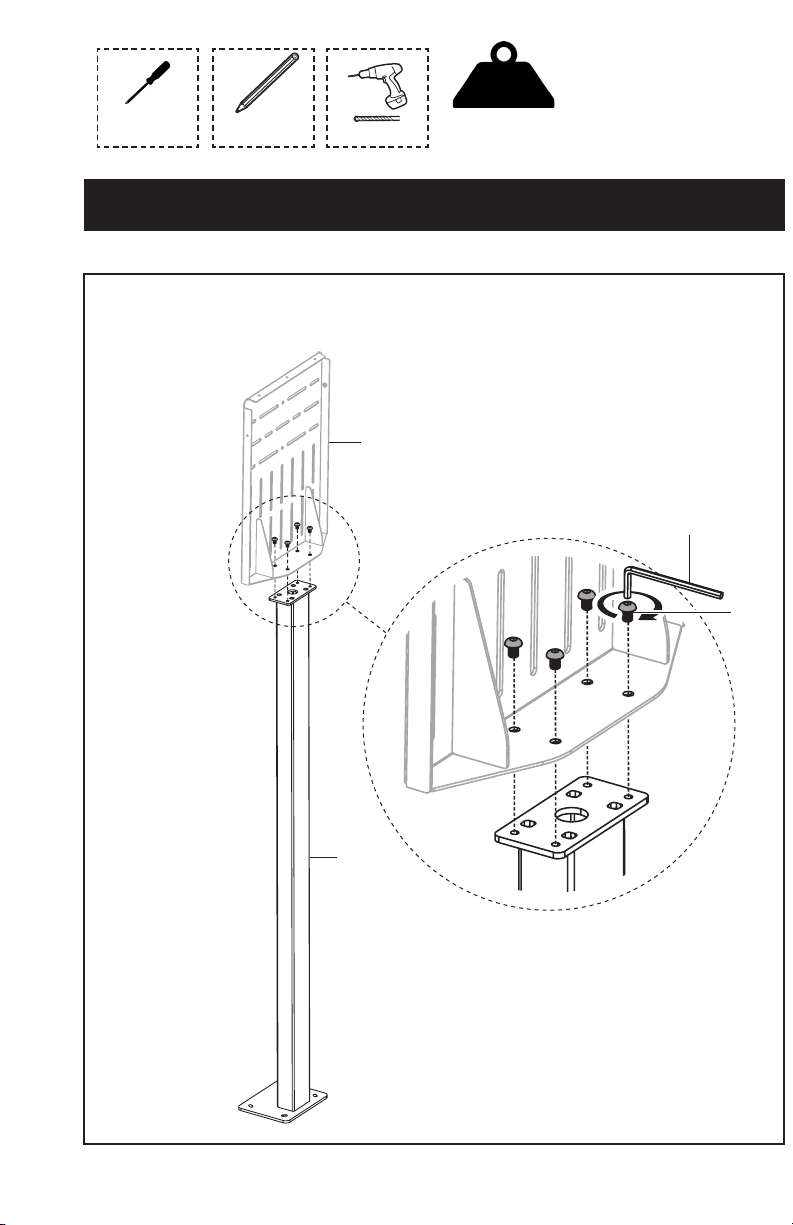

STEP 1
Pencil Drill
Assemble Mounting Plate (B) to Stand (A) using M6x8mm Screws (S-A) and 4mm Allen Wrench (T-A).
B
A
S-A
T-A
4
STEP 3
Assemble Plug Mount (F) with Cable Holder (E) to Stand (A) using M5x25mm Screws (S-C) and a
Phillips screwdriver.
F
E
S-C

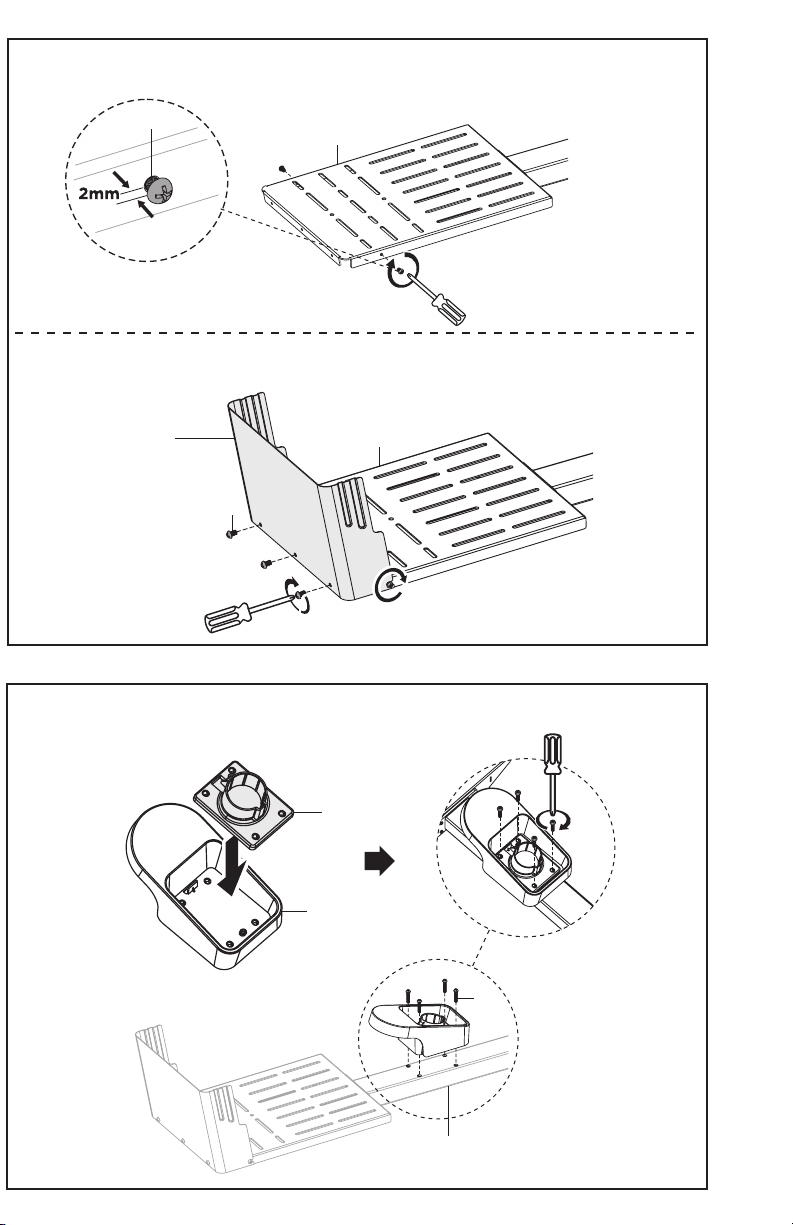

STEP 2
Partially install two M5x8mm Screws (S-B) into the sides of Mounting Plate (B) using a Phillips
screwdriver, leaving 2mm remaining.
Attach Bale (C) over Mounting Plate (B) using remaining M5x8mm Screws (S-B) and a Phillips
screwdriver. Fully tighten the previously installed screws with a Phillips screwdriver.
B
C
S-B
B
S-B
A
5

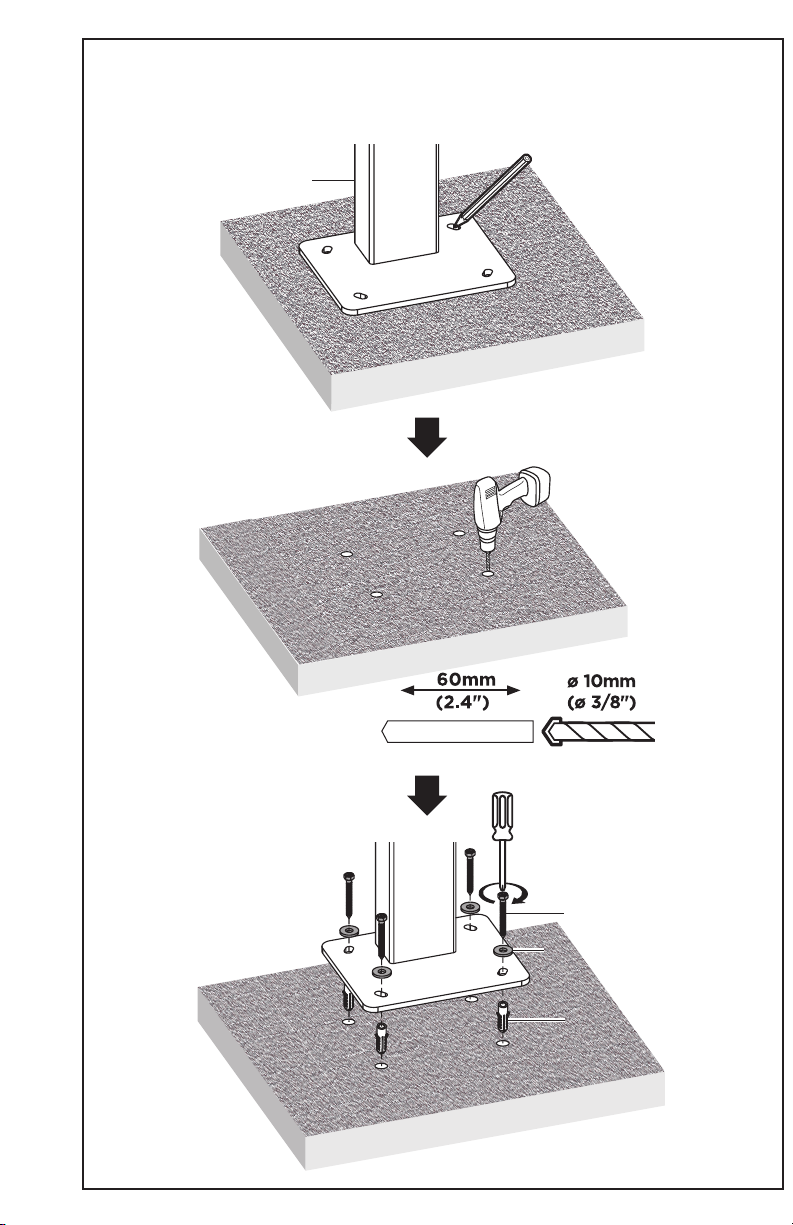

STEP 4
Place Stand (A) in the desired location and mark mounting holes with a pencil. Predrill four 60mm (2.4”)
deep holes into concrete using a drill with a 10mm (3/8”) bit. Secure Insert Concrete Anchors (W-B)into
predrilled holes and secure Stand (A) to concrete using ST6.3x55 Screws (W-A) with M6 Washers (W-C).
Tighten using a Phillips screwdriver.
W-BW-B
W-CW-C
W-AW-A
A
6

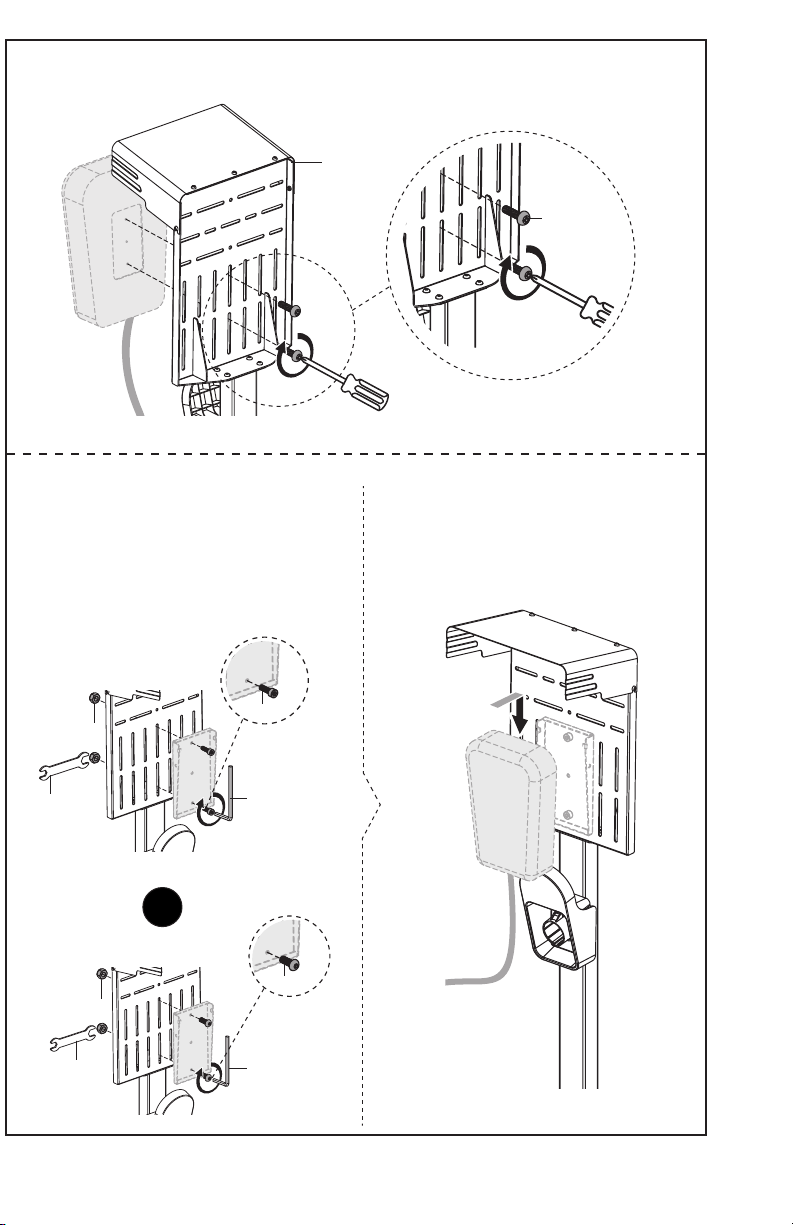

STEP 5
Option A - Direct Mounting:
Secure charging base to Mounting Plate (B) using M4x16mm Screws (M-A) and a Phillips screwdriver.
M-A
B
OR
T-B
M-D
M-E
T-B
M-B
M-C
T-A
T-A
Option B - Adapter Mounting:
If your charging station came with a wall
bracket or adapter, you may attach that
bracket/adapter directly to the stand for an
alternative mounting option. Attach the bracket
to Mounting Plate (B) using appropriate Screws
(M-B or M-C), Nuts (M-D or M-E), Wrench (T-B),
and 4mm Allen Wrench (T-A).
Secure charging base to mounted adapter
bracket.
7

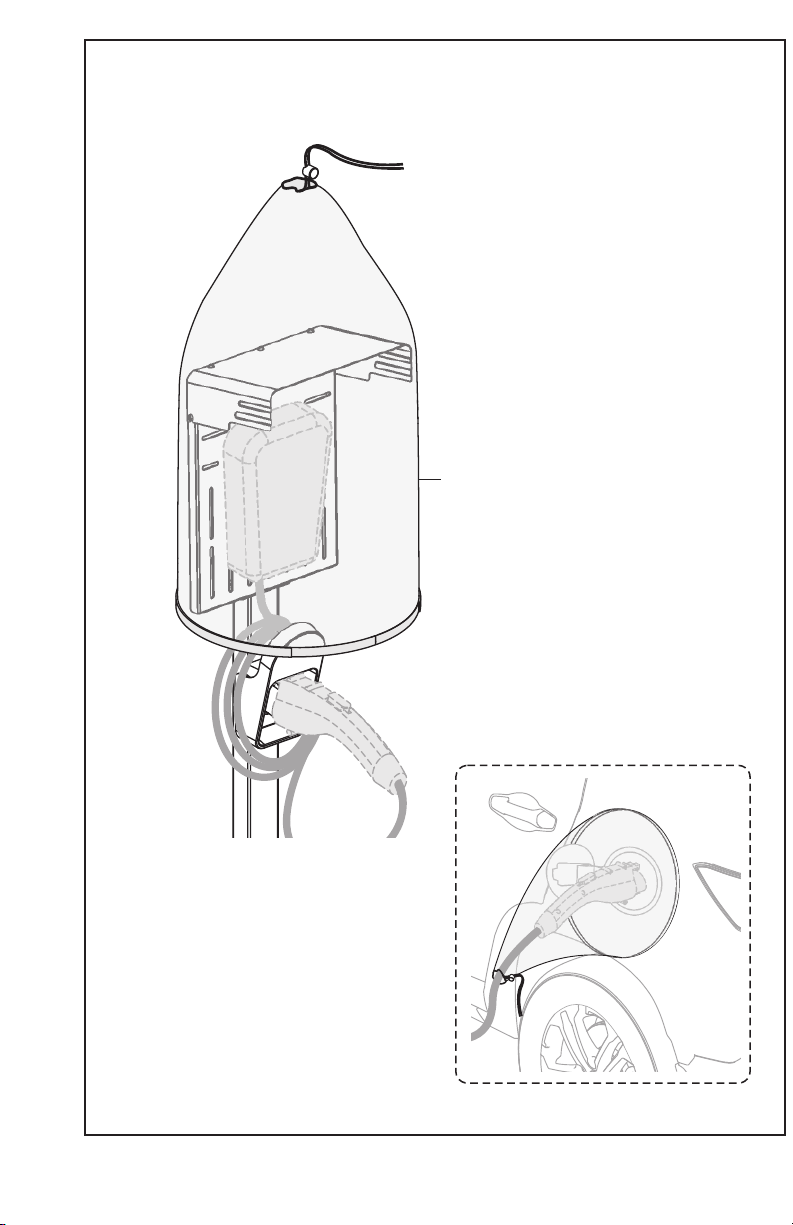

STEP 6
Place Cover (D) over the top of assembled stand. Cover can slide over charger to protect against
rain when activitely charging. Outer ring is magnetic and can easily attach to side of car to create a
protective barrier.
D
LAST UPDATED: 10/17/2022
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
