Vivo STAND-V032F Manuale utente
Dual Monitor Desk Stand
Scan the QR code with your mobile device or follow the link
for helpful videos and specications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v032f
SKU: STAND-V032F
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

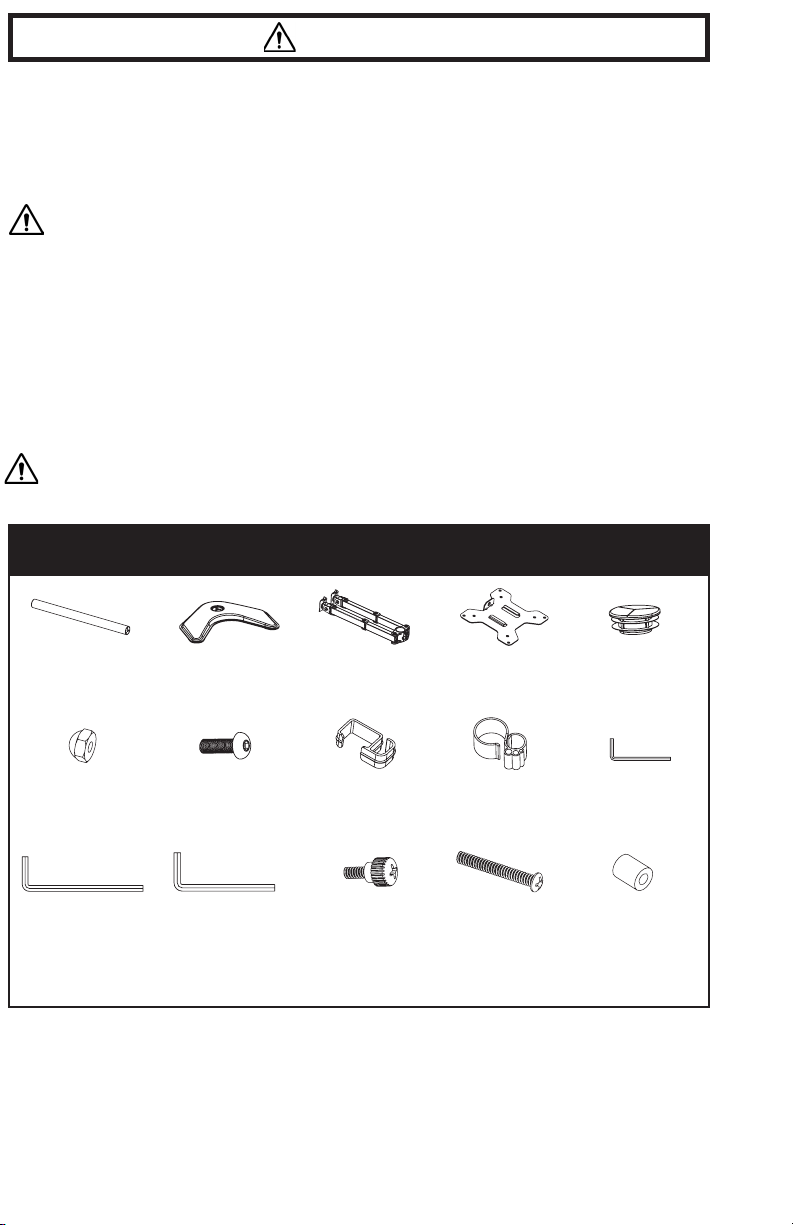

PACKAGE CONTENTS
WARNING!
A (x1)
Pole
B(x1)
Base
C(x1)
Swivel Arm
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualied technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
D(x2)
VESA Plate
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
F (x2)
Nut
I(x1)
Wire Clip
H (x4)
Wire Clip
M-A (x8)
M4x12
Thumbscrew
M-B (x8)
M4x30 Screw
M-C (x8)
M6 Spacer
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• TO PREVENT TIPPING, PLEASE BE CAREFUL NOT TO EXTEND THE ARMS TOO FAR FORWARD
OR BACKWARD.
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
G(x3)
M6x16 Screw
E(x1)
Pole Cap
J (x1)
3mm Allen
Wrench
K (x1)
5mm Allen
Wrench
L (x1)
6mm Allen
Wrench
3
ASSEMBLY STEPS
STEP 1

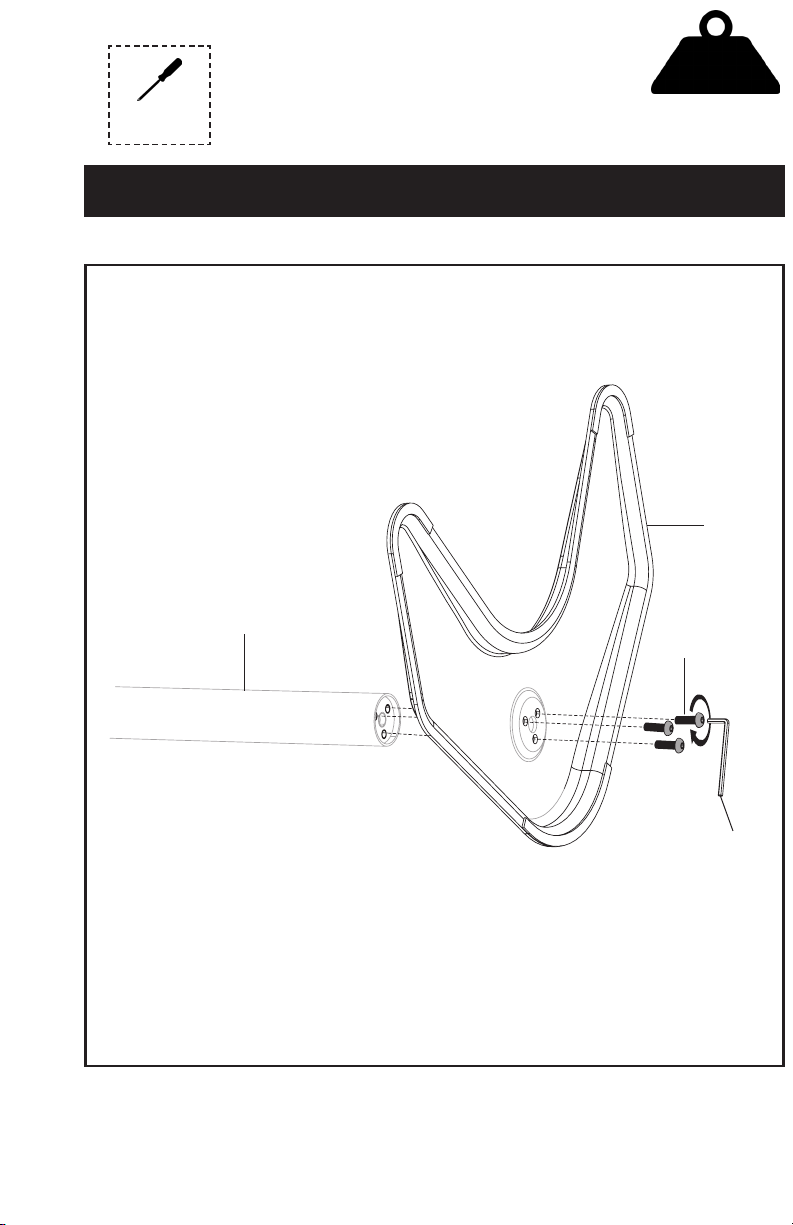

Install the pole (A) to the base (B) using M6x16 Screw (G). Tighten with the 3mm Allen wrench (J).
TOOLS NEEDED
Phillips
Screwdriver
22 lbs
(10kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
J
G
A
B
PER ARM
4
STEP 2
OPTION A: Flat Back Monitor
Attach the VESA plates (D) to the monitors using M4x12 Thumbscrew (M-A).
NOTE: Hand tighten screws to avoid stripping the plastic screw heads.
STEP 3
Slide Wire Clip (I) and Swivel Arm (C) down onto the Pole (A) and tighten the screw with 6mm Allen
Wrench (L). Attach the Pole Cap (E) to the top of the Pole (A). Attach the Wire Clips (H) to the Arms.
E
I
AL
C
M-A
D
H
5
STEP 3 (Continued)
STEP 4
OPTION B: Curved Back Monitor
Attach the VESA plates (D) to the monitors using M6 Spacers (M-C) and M4x30 Screws (M-B). Tighten
with a Phillips screwdriver.
Slide the monitors onto the heads of swivel arm and install the Security Nuts (F). Make sure the
security nuts are installed before you rotate the monitors.
M-C
M-B
D
F
6
STEP 5
Tighten the bolt on the side of the tilt joint with the 5mm Allen Wrench (K) to x the tilt angle.
To level the monitors, remove the security nut and turn the bolt with the 3mm Allen Wrench (J) to raise
or lower the monitor. Replace nut aer the adjustment.
Fix the tilt angle
Ignore this step if
monitors are level
K
J
7
h
g1
STEP 6
Use the 5mm Allen Wrench (K) to adjust swivel joints if needed. Manage cables and store the Allen
Wrenches (J, K, L) in Wire Clip (I) for future use.
STEP 7
CAUTION: To prevent tipping, please be careful not to extend the arms beyond arrow range.
K
I
LAST UPDATED: 08/04/2022
REV1
