Vivo STAND-V101D Manuale utente
Single Monitor Desk Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-v101d
SKU: STAND-V101D
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2

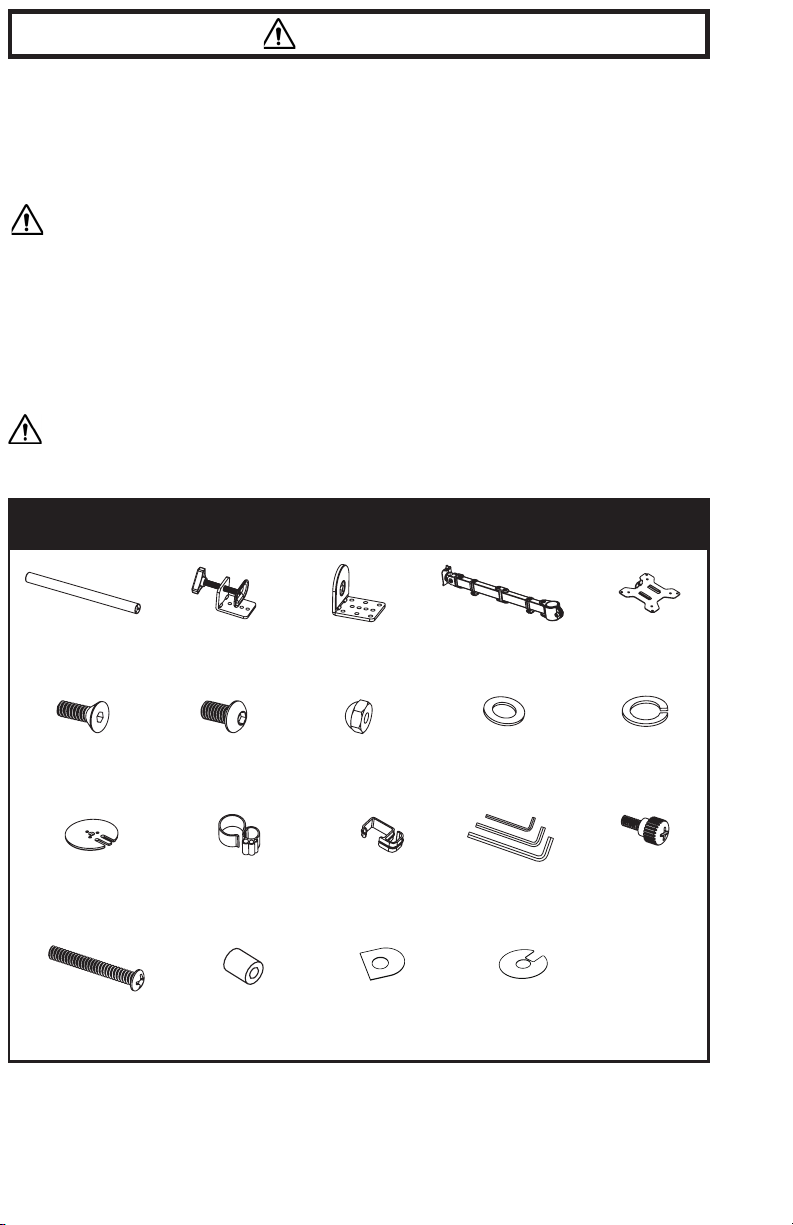

PACKAGE CONTENTS
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR
STAND.
• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
A (x1)
Pole
B(x1)
Clamp
C(x1)
Clamp Brace
D(x1)
Swivel Arm
E(x1)
VESA Plate
F (x3)
M5x14
G(x2)
M8x12
H (x1)
Nut
I (x1)
M10 Washer
L1 (x1)
Wire Clip
M(x1)
Allen Key
J (x1)
Spring Washer
K (x1)
Grommet
Base Plate
P (x4)
M4 Spacer
N (x4)
M4x12
O (x4)
M4x30
Q1(x1)
So Pad
Q2 (x1)
So Pad
L2 (x2)
Wire Clip
3
ASSEMBLY STEPS
STEP 1
TOOLS NEEDED
Phillips
Screwdriver
22lbs
(9.98kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
Drill
Option A: Desk Clamp Install
1. Install the clamp brace (C) to the pole (A) using x3 M5x14 bolts (F). See Figure 1.
2. Attach so pad (Q1) to the clamp brace (C) , see Figure 2.
3. Install the clamp (B) to the pole assembly according to the thickness of the desktop. The
thickness can be changed to 3 positions. Connect using x2 M8x12 bolts (G) and tighten using the
Allen key (M). Tighten the clamp to the desktop using the plastic knob. See Figure 3.
Option B: Grommet Install
1. If desk does not have an existing grommet
hole, drill a 3/8” (10mm) diameter hole at the
desired position through the mounting surface.
2. Completely disassemble clamp (B) into
individual parts. Set knob (B1) and clamp
plate (B2) aside for later use. The L bracket,
bolt, washer and bushing will not be used.
3. Install grommet base plate (K) to the pole (A)
using x3 M5x14 bolts (F). See Figure 4.
4. Attach so pad (Q2) to the grommet base plate
(K), see Figure 5.
5. Position pole (A) on the mounting surface
and secure using the clamp plate (B2), spring
washer (J), M10 washer (I) and knob (B1). See
Figure 6.
a
Figure 1 Figure 2
B1
B2
B2
B1
a
m
f
Figure 4
t2 Figure 5
a
m
f
Figure 4
t2 Figure 5
Q1
F
C
A
A
K
M
G
B
J
I
Q2
F
4
STEP 2
Install Swivel Arm (D) to the Pole (A). Fasten the bolt with supplied Allen Key (M). Attach the Wire Clip
(L1, L2) to the Pole (A) and Swivel Arm (D).
D
L2
ML1
5
STEP 3
OPTION A: Flat Back Monitor
Attach VESA Plate (E) to monitor using bolts (N). Tighten all four bolts using phillips screwdriver.
OPTION B: Curved Back Monitor
Attach VESA Plate (E) to monitor using bolts (O) and spacers (P). Tighten all four bolts using phillips
screwdriver.
N
P
O
6
STEP 5
Tighten the bolt with the supplied Allen Key (M) to fix the tilt angle. Use the supplied Allen Key (M) to
make the necessary adjustments.
STEP 4
Slide the monitor onto the head of Swivel Arm (D). Install the security Nut (H). Make sure the security
nut is installed before you rotate the monitor.
Fix the tilt angle
H
M
7
STEP 6
Store allen keys (o) in wire clips (n1) for future adjustment.
L2
L1
LAST UPDATED: 09/17/2020
REV1
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
