Vivo MOUNT-SPSB5 Manuale utente
Soundbar Speaker TV Mount
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-spsb5
SKU: MOUNT-SPSB5
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
VESA mount type: Plate
Instruction Manual
2
TOOLS NEEDED
33 lbs
(15 kg)
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
Phillips
Screwdriver
If you do not understand these directions, or if you have any doubts about the safety of the installation, please
call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper
installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly
specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by
improper mounting, incorrect assembly or inappropriate use.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

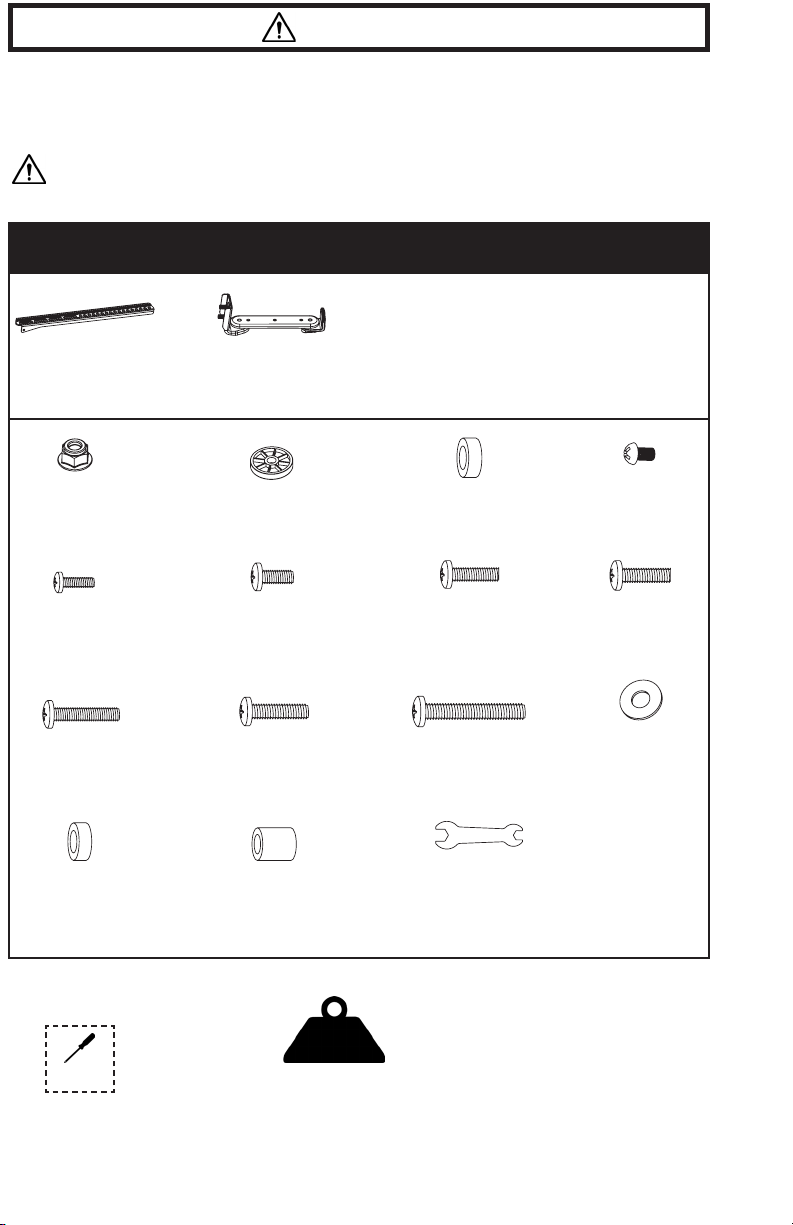

PACKAGE CONTENTS
A (x2)
VESA Bracket
B (x2)
Support Arm
S-B (x2)
40x6mm Pad
S-C (x4)
5mm Spacer
S-A (x4)
M8 Flange Nut
S-D (x4)
M6x10 Screw
M-A (x4)
M5x16
M-B (x4)
M6x16
M-C (x4)
M5x25
M-D (x4)
M6x25
M-E (x4)
M6x40
M-F (x4)
M8x40
M-G (x4)
M8x60
M-H (x4)
D5 Washer
M-I (x8)
5mm Spacer
M-J (x8)
15mm Spacer
T-A (x1)
Wrench
3
ASSEMBLY STEPS

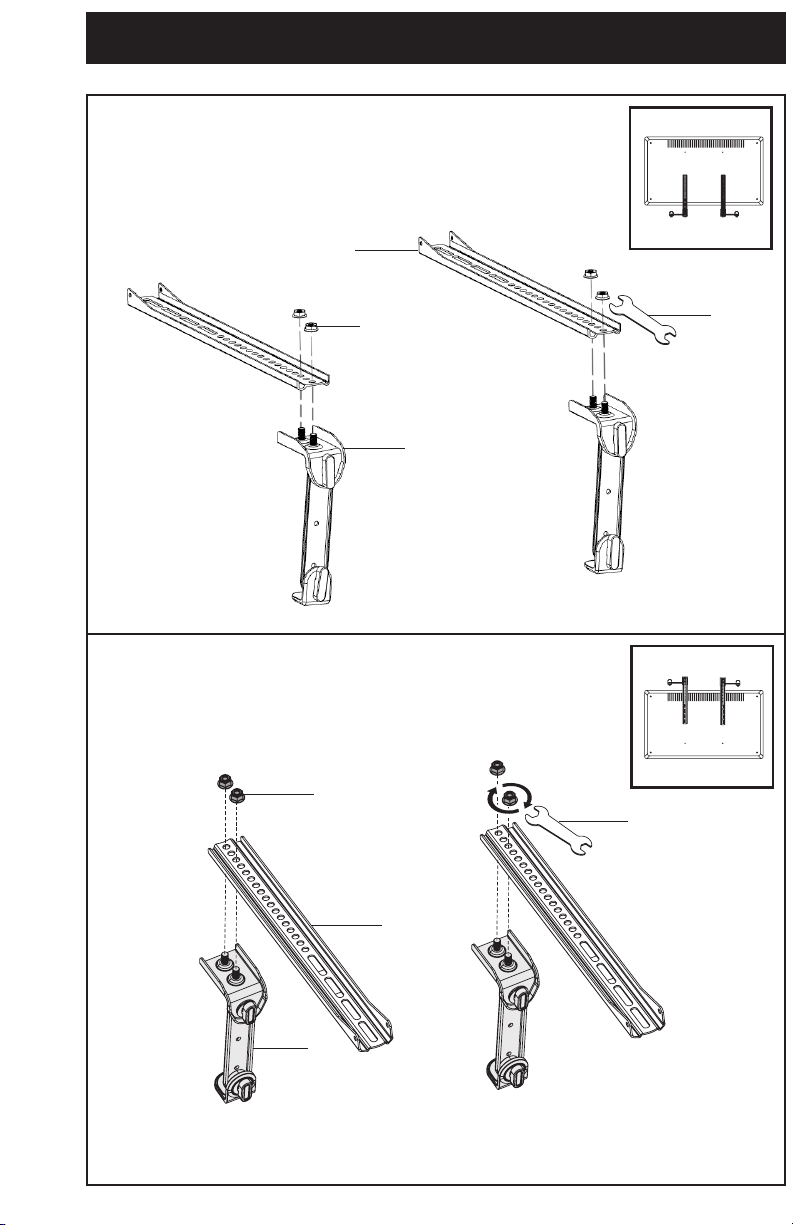

STEP 1
OPTION A: Under TV
Mount the Support Arms (B) to the first and third holes of the VESA Brackets
(A) using the M8 Flange Nuts (S-A). Tighten with the Wrench (T-A).
A
B
OPTION B: Over TV
Mount the Support Arms (B) to the first and third holes of the VESA Brackets
(A) using the M8 Flange Nuts (S-A). Tighten with the Wrench (T-A).
T-A
A
B
S-A
S-A
T-A
4

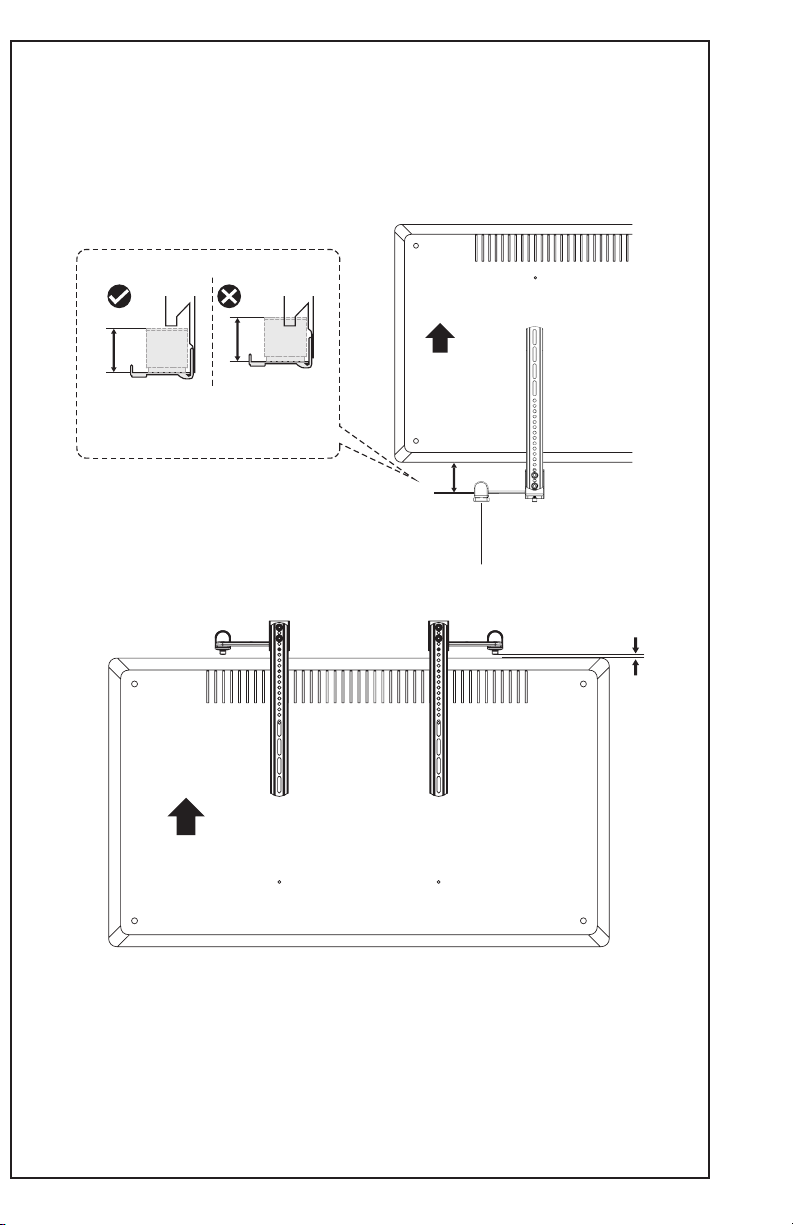

STEP 2
Determine the correct mounting height for the assembled brackets. For under TV mounting, ensure
the distance between the Support Arms (B) is equal to or greater than the height of the soundbar
to be installed. For over TV mounting, ensure the space between the support arm knobs is at least
5mm (0.2”) above the top edge of the TV.
>a
TOP
a
a
No te : Me asur e th e sp eaker he ig ht b ef ore
insta llation . M ake su re t here i s am ple ro om
for th e sp eaker.
so un db ar
so un db ar
>5mm
TOP
B
5

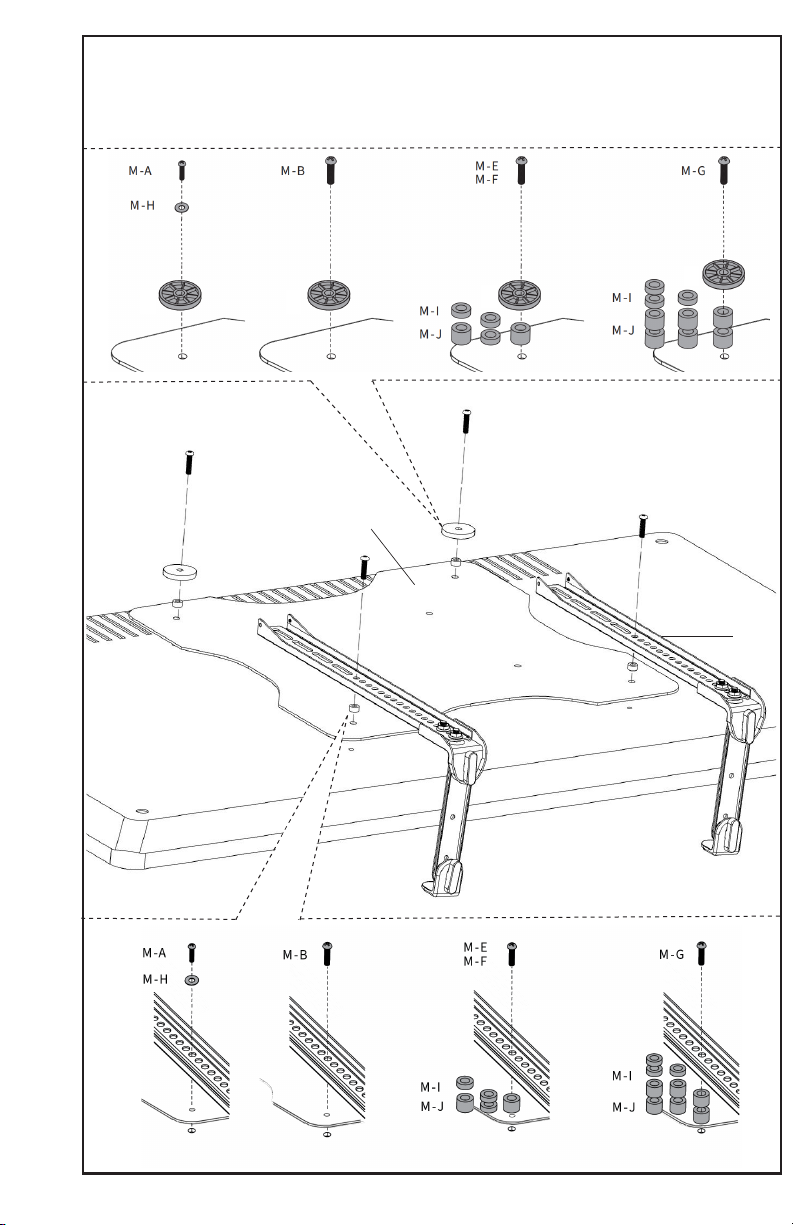

STEP 2 (Continued)
OPTION A: Under TV
Install the VESA Brackets (A) and 40x6mm Pads (S-B) on the back of the TV with VESA plate from the
TV mount, and secure using Screws (M-A through M-G) of the correct size for your TV. Use D5 Washers
(M-H) and Spacers (M-I, M-J) if needed.
A
S-B S-B S-B
S-B
TV Mount
VESA Plate
6

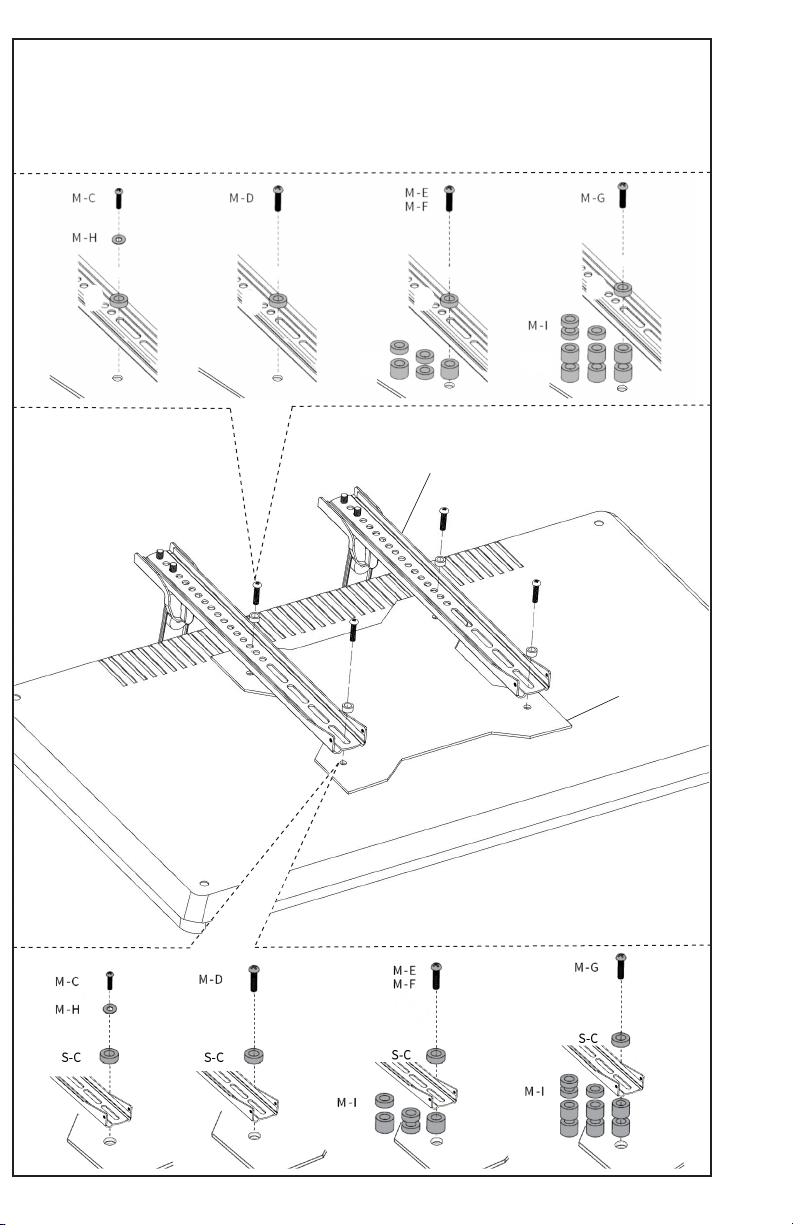

STEP 2 (Continued)
OPTION B: Over TV
Install the VESA Brackets (A) on the back of the TV with VESA plate from the TV mount, and secure
using Screws (M-A through M-G) of the correct size for your TV. Use D5 Washers (M-H) and Spacers
(M-I, M-J) if needed.
NOTE: To ensure the mount is installed securely, top mounting requires the use of all four TV
mounting holes as shown below.
S-C S-C S-C
S-C
M-I
M-J M-J
A
TV Mount
VESA Plate
M-J M-J
7

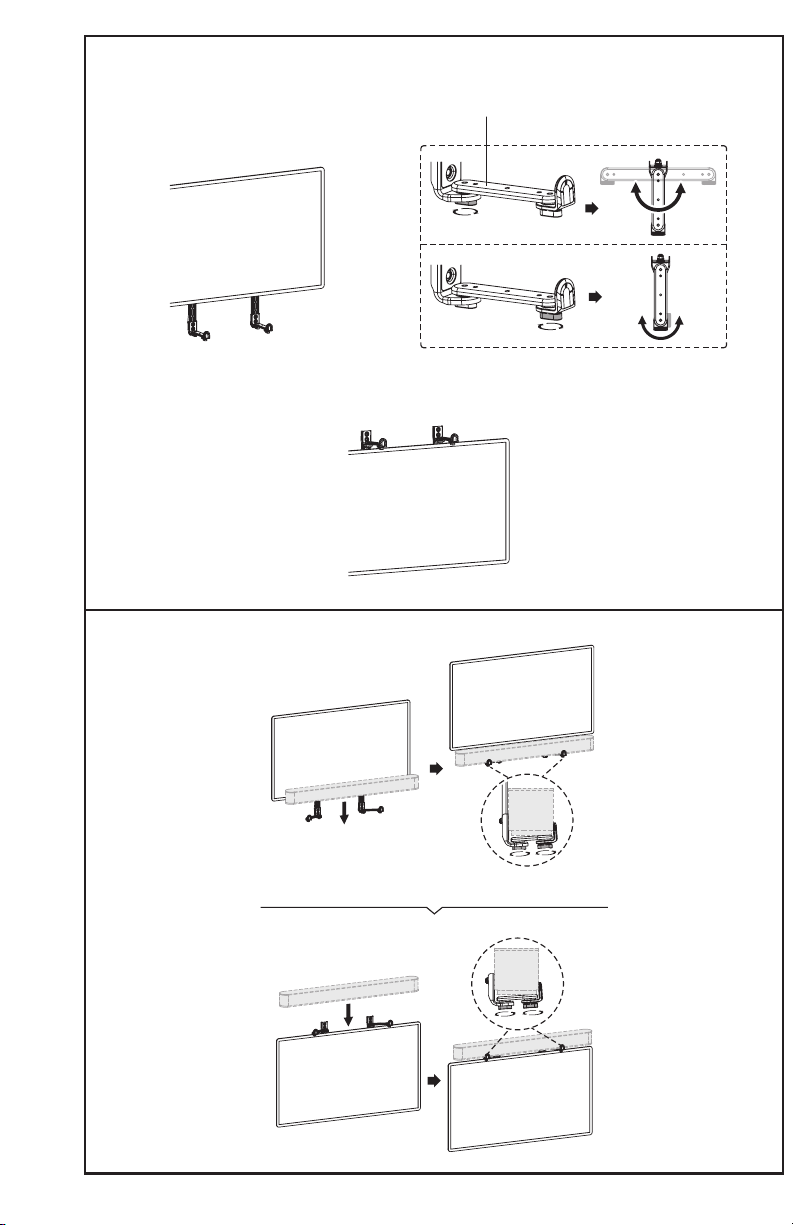

STEP 3
Loosen the knobs on the Support Arms (B). Place the soundbar on the Support Arms (B), adjust the
angle of the support arms to secure the soundbar, then retighten the knobs.
B
LAST UPDATED: 06/10/2021
REV1.2
Open Monday - Friday 7:00am - 7:00pm CST,
our dedicated support team can oer immediate assistance with rapid response times. If any
parts are received damaged or defective, please contact us. We are happy to replace parts to
ensure you have a fully functioning product.
FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com
- 23% within < 15m
- 38% within < 30m
- 61% within < 1hr
- 83% within < 2hr
- 92% within < 3hr
Love your new VIVO setup and want to share?
Tag us in your photo! @vivo_us
AVG. RESOLUTION TIME (within oice hrs): < 15 M
www.vivo-us.com
Chat live with an agent!
AVG. RESOLUTION TIME (within oice hrs): 5M 4S
309-278-5303
