Vivotek AM-10F Manuale utente
IP Surveillance
Installation Guide
AM-10F Mounting Bracket
VIVOTEK Multi-lens Dome Series
In-ceiling Mount
Rev. 1.0
Corresponding part number:
AM-10F: 100213100G
Document part no.: 625053200G
2

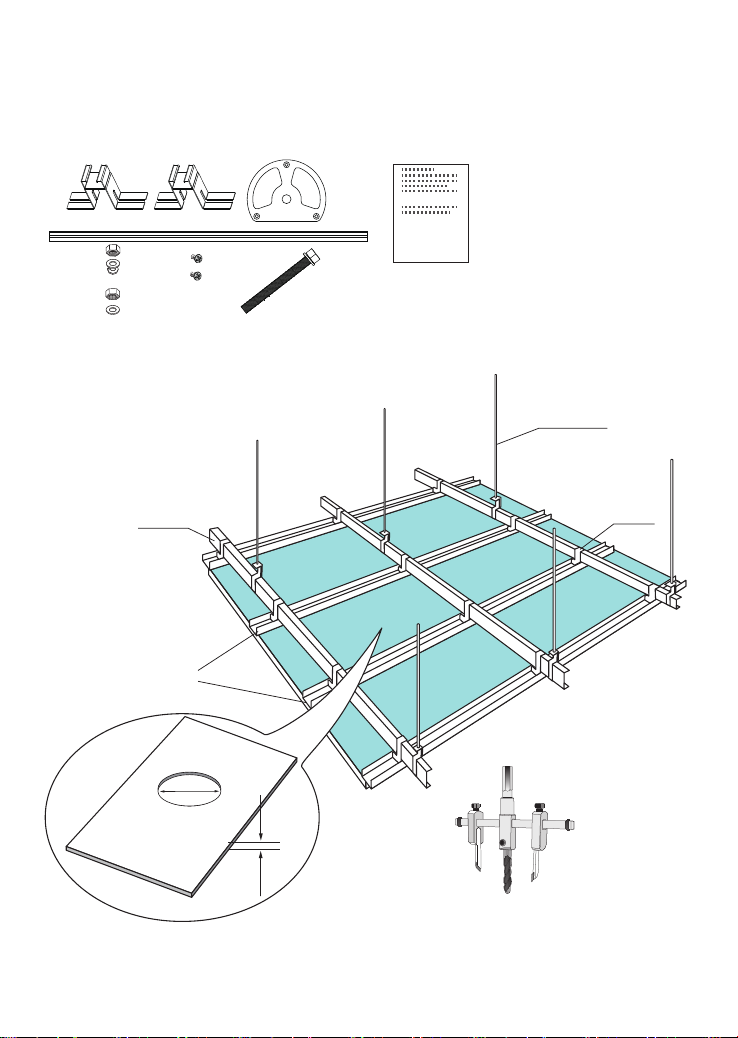

AM-10F Mounting Bracket Package Contents
x2
x1
Revison History:
Rev. 1.0: Initial release.
Applications
hanging rod
rail
secondary keel
main keel
Ø27.5cm ≦25mm
3
English
WARNING:
1. If the need should arise, add hanging rods to strengthen your suspended ceiling
structure.
2. Select a suitable location where the camera is free from accidental damage, tampering,
or harsh environmental conditions.
3. Locate a place for the installation where the camera can not be intentionally or
unintentionally interfered.
4. Select a solid and at mounting surface that can support the combined weight of the
camera and associated hardware. Vibration and temperature range should also be taken
into consideration.

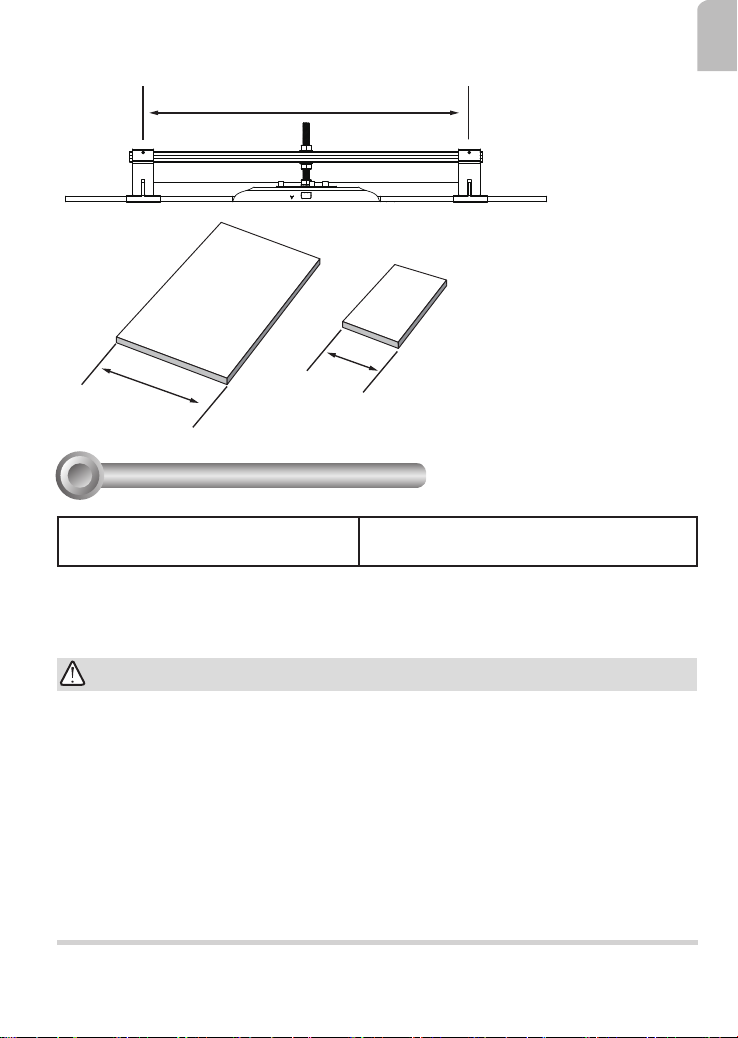

Compatible VIVOTEK Cameras
1
Standard suspension ceiling tile
installation:
MA9322-EHTV
Weight: main body: 2705g; bracket: 1084g
Up to 60cm or 2 feet
60cm 30cm
4

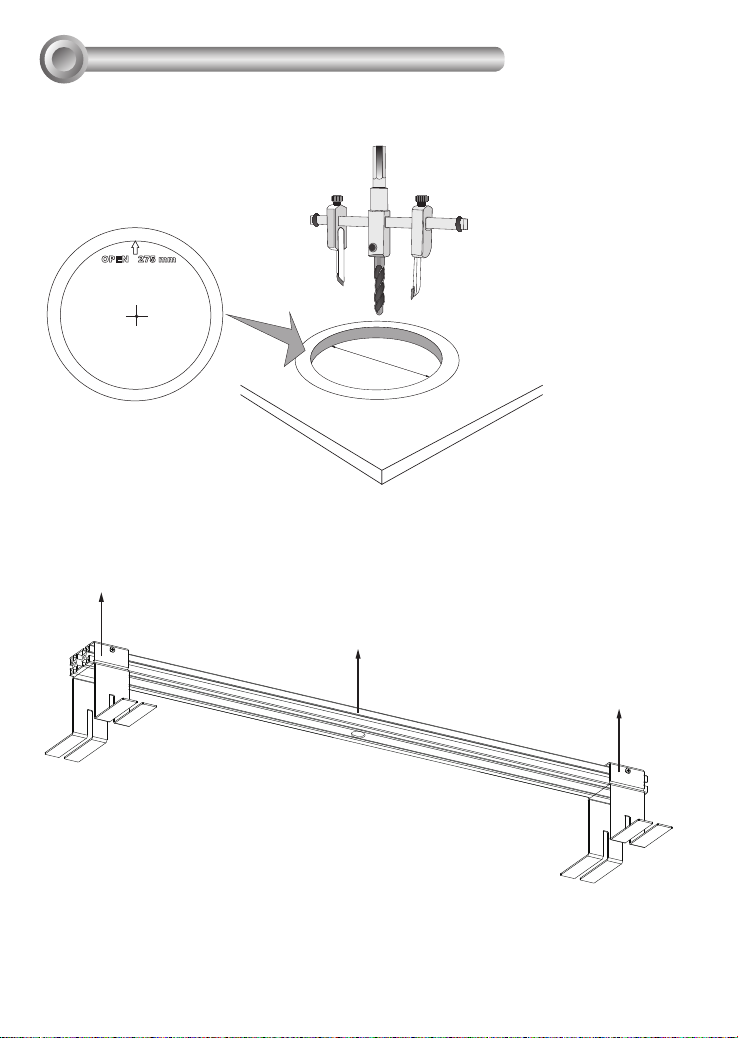

Installation
2
OPEN Ø275 mm
275mm
1. Remove a ceiling tile from your suspended ceiling. Drill a hole on the ceiling tile that is
275mm in diameter.
2. Assemble the bracket hang rod with the two bracket stands.
Bracket hang rod
Bracket stand
Bracket stand
5
English

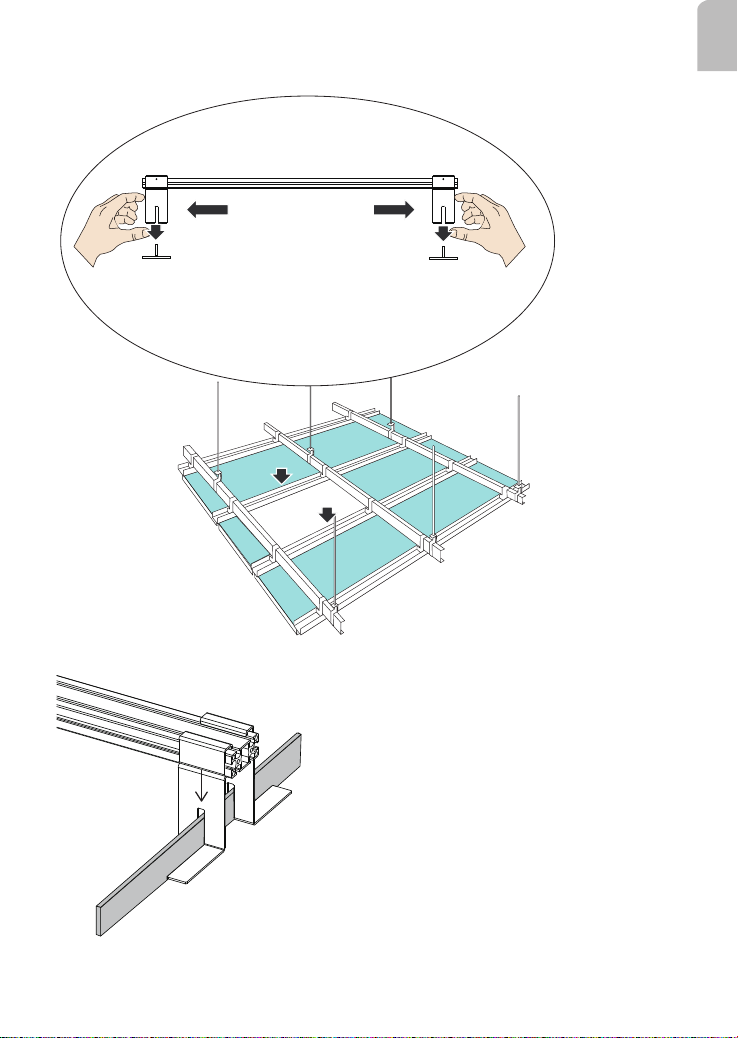

3. Place the bracket assembly at the desired location. Spread and place the bracket
stands onto the secondary keels (or ceiling rails).
Secondary keel
on the suspension ceiling
Secondary keel
on the suspension ceiling
6
4. Fasten 2 included athead screws to secure the positions of bracket stands on the hang
rod. Once done, you can temporarily remove the assembly from the ceiling and proceed
with the following steps.
5. Insert the long threaded bolt through the adapter plate and the center hole on the hang
rod. Use hex nuts, lock washers, and plain washers to secure the positions of these
components. The combination details are shown below. Do not completely tighten the
hex nuts yet.
Adapter plate
Hex nut
Flat washer
Hex nut
Flat Washer
Lock washer
Bolt
7
English

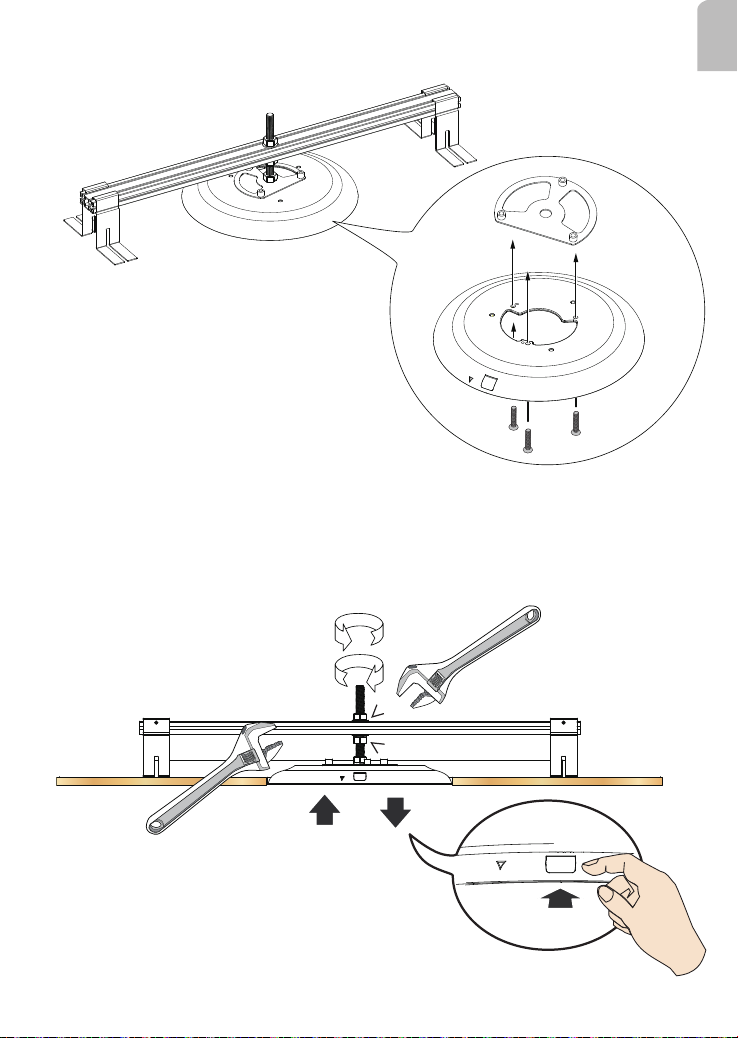

6. Secure the MA9322's top mounting plate to the adapter plate using the included Phillips
screws.
7. Loosen or tighten the hex nuts and lock washers on the top and bottom of the hang rod.
Adjust the position of the whole conguration relative to the ceiling tile. The mounting
plate should be a little bit higher than the lower edge of the ceiling tile. Make sure you
can still press the release button on the mounting place from the top of the ceiling tile in
case you need to un-install the camera.
8
8. Tighten the hex nuts on top and below the hang rod when the adjustment is done.
9. Install the ceiling tile.
10. Lift and install the whole conguration into place. To do so, you may need to open the
adjacent ceiling tile on the suspension ceiling. Refer to the camera's QIG for the rest of
the installation details.
