Vivotek FD8163 Manuale utente

EN - 1

English

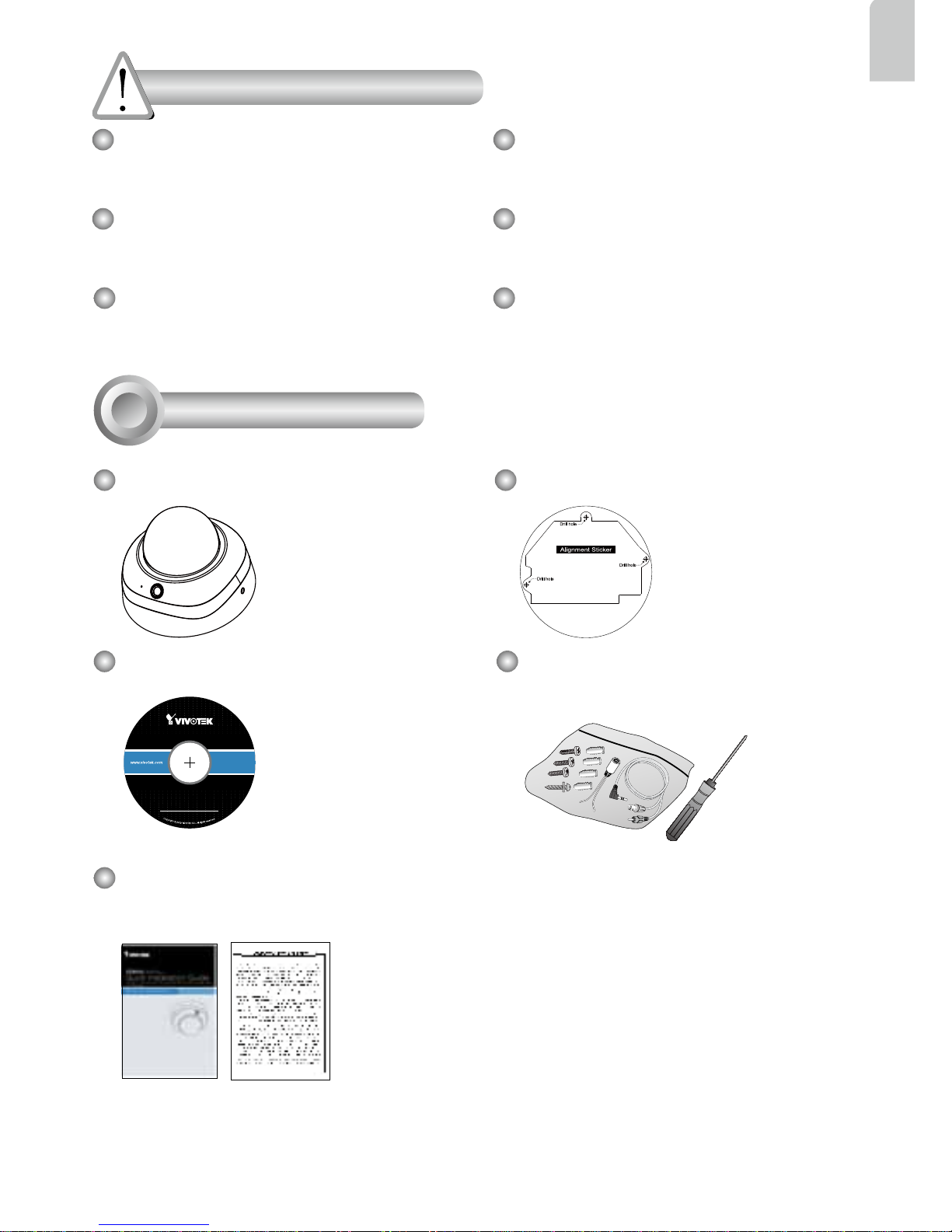

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Keep the Network Camera away

from water. If the Network Camera

becomes wet, power off immediately.

Do not place the Network Camera

around heat sources, such as a

television or oven.

Refer to your user's manual for the

operating temperature.

Keep the Network Camera away from

direct sunlight.

Do not place the Network Camera in

high humidity environments.

Warning Before Installation

Software CD

FD8163 Alignment Sticker

T10 Torx Screwdriver/ Screws / DC

connector / Plastic Anchors / AV

Cable

Package Contents

Quick Installation Guide /

Warranty Card

EN - 2

Physical Description

1 23 74 5 86

Ethernet

Micro SD Card

Audio InAV Out

Reset

Int. NTSC

PALExt.

Camera Front View

Camera Rear View

Light Sensor

Lens

Built-in

Microphone

PIR Sensor

Black Cover

IR LEDs

(8 units, effective up to 15m)

Auto Focus Button

General IO Terminal

Block

Microphone In (pink)

Audio/Video Out

(green)

Jumpers

Microphone Video Output

internal

external

NTSC

60Hz

PAL

50Hz

1 2

Reset Button

Micro SD/SDHC/

SDXC Card Slot

10/100BaseT

Ethernet

The max. output load from

pins #7 and 8 is 50mA.

NOTE:

1 DC 12V-

2 DC 12V+

3 AC24V_2

4 AC24V_1

5 DI- (GND)

6 DI+

7 DO-

8 DO+ (+12V)

Remove foam pad.

EN - 3

English

Hardware Installation

FD8163

41 5m

Before installing your camera,

make sure the built-in PIR (Passive

Infrared Sensor) can be directed

toward the area of interest, where

possible intrusion may occur. (The

sensitivity of PIR sensor depends

on the object size and temperature

differences between the object and

the background environment.)

Dome Cover Bottom of the Camera

Top View Side View

LCD Monitor/

Camera tester AV Out

NOTE:

You may use the included AV cable to connect a camera tester for initial conguration at

the installation site.

Remove the dome cover using the included T10 Torx

screwdriver. You should then jot down the MAC address

at the bottom of the camera.

EN - 4

General Connection (without PoE)

Network Deployment

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

1. If you have external DI devices, make the connection from general I/O terminal block.

2. Ethernet, power, and other cables are user-supplied.

3. Connect the AC cables from the terminal block as an alternate power source. The IO

cables are user-supplied.

1. Attach the alignment sticker to the ceilling/wall.

2. Through the two circles on the sticker, drill two pilot holes into the ceilling/wall.

3. The Network Camera can be mounted with the cable routed through the ceiling/wall or

from the side. If you want to feed the cable through the ceiling/wall, drill a cable hole.

4. Hammer the supplied plastic anchors into the holes.

5. Align the two holes on each side of the camera base with the two plastic anchors on the

ceilling/wall, insert the supplied screws to corresponding holes and secure them with a

screwdriver.

Wall Mount

Ceiling Mount

Ethernet

Switch

Pin3 & 4 AC 24V

Pin #3 & 4 AC 24V as alternate power are for

indoor use only

NOTE:

EN - 5

English

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

Power over Ethernet (PoE)

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a

non-PoE switch.

When using a PoE-enabled switch

This Network Camera is PoE-compliant, allowing transmission of power and data via a

single Ethernet cable. Follow the below illustration to connect the Network Camera to a

PoE-enabled switch via Ethernet cable.

Non-PoE Switch

PoE Power Injector

(optional)

PoE Switch

1. This equipment is only to be connected to

PoE networks without routing to outside

plants.

2. For PoE input connections, use only UL

listed I.T.E. with PoE output.

NOTE:

EN - 6

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is

analyzed, please click on the “Next” button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC

address that matches the one printed on the camera label or the S/N number on the

package box label to open a browser management session with the Network Camera.

Assigning an IP Address

For further setup, please refer to the user's manual on the software CD.

Ready to Use

1. A browser session with the Network Camera should prompt as shown below.

2. You should be able to see live video from your camera. You may also install the 32-

channel recording software from the software CD in a deployment consisting of multiple

cameras. For its installation details, please refer to its related documents.

EN - 7

English

Based on the live image retrieved from the camera, adjust the camera lens to the desired

view angle:

1. Turn the lens module left and right.

2. Loosen the tilt adjustment screws on both sides of the camera and then turn the lens

module up and down. Upon completion, tighten the screws.

3. Turn the lens to adjust the image orientation.

Adjusting the Lens

Pan 350° Rotate 350°

Tilt 65°

The sophisticated 3-axis mechanism design offers very exible, easy hardware installation

for either ceiling or wall mount.

3-axis Mechanism Design

Focus window

To adjust the zoom factor and focus range

1. The camera comes with a motorized vari-focal lens

module. With a web console, you can enter the

Conguration > Media > Image > Focus page to

tune the image zoom and focus.

2. On this page, you can pull the Zoom and Focus

pointers, set up a Focus window, and use the

Perform auto focus button to automatically obtain

an optimal focus result. You may also manually

fine-tune zoom and focus using the various

functional buttons. Please refer to your User

Manual for more information.

EN - 8

When mounting the camera, you can use the key hole slot at the bottom. The key hole

slot helps facilitate installation and a safe mounting.

1. First fasten a pioneer screw to the wall/ceiling. Mount the camera to the screw.

2. Use a pencil to mark the locations of the 3 permanent mounting holes.

3. When cabling and the initial adjustment is done, mount the camera by fastening

screws to the 3 mounting holes.

Mounting Holes

Key Hole Slot

Pioneer Screw

NOTE:

3. You may also push the Auto Focus button on the

camera to obtain the same results especially when

you are using camera tester for onsite adjustment.

EN - 9

English

1. If you choose to feed the cable through the ceiling/wall, arrange the cables neatly

through the cable hole A (not shown in the drawing). If you choose to feed the cable

from the side, remove plate B.

2. Attach the dome cover to the camera as the direction shown below. Tighten two screws

from the sides of the dome cover.

3. Finally, make sure all parts of the camera are securely installed.

Completion

Be aware of the

cable route!

Dome Cover
