Vivotek ip8364-c Manuale utente
EN-1
English
Warning Before Installation
Refer to your user’s manual for the
operating temperature.
Power off the Network Camera as
soon as smoke or unusual odors are
detected.
Do not touch the Network Camera
during a lightning storm.
Do not place the Network Camera on
unsteady surfaces.
Do not drop the Network Camera.
Do not insert sharp or tiny objects
into the Network Camera.
Replacing or failing to properly
install the waterproof components,
e.g., cables or cable glands, will void
our IP65/66/67 warranty.
Package Contents
1
5
0
0
0
2
4
7
0
1
G
Software CD
IP8364-C
L-type Hex Key Wrench / Dessicant
Bag / Screws / Rubber seal
Quick Installation Guide / Warranty
Card / Alignment Sticker
Ball Swivel
Mount Bracket
EN-2

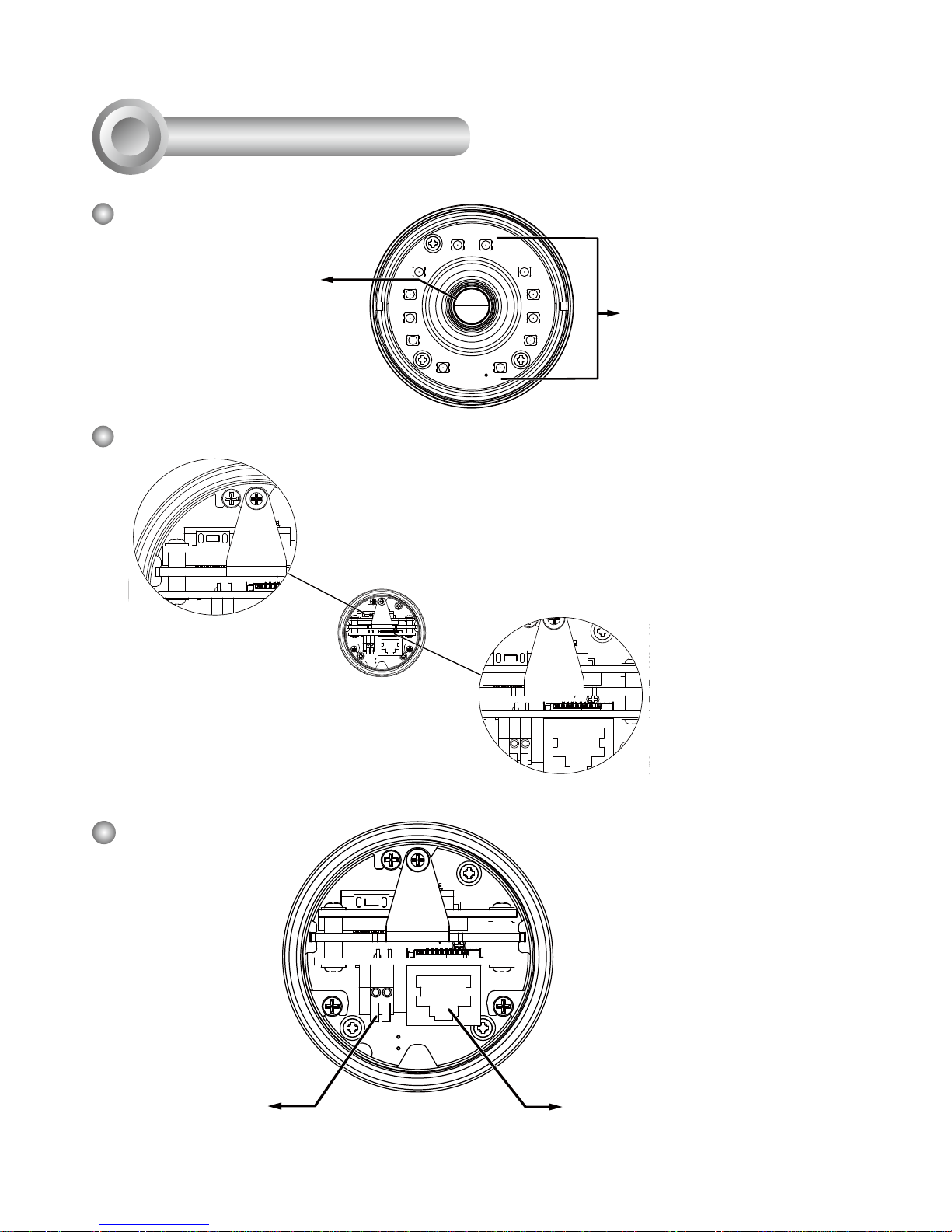

Physical Description
2
Connectors
Ethernet 10/100 RJ45 Plug
General I/O Terminal
Block
Front Panel
IR LEDs
Lens
Reset Button
MicroSD/SDHC
Card Slot
Rear Panel
EN-3
English

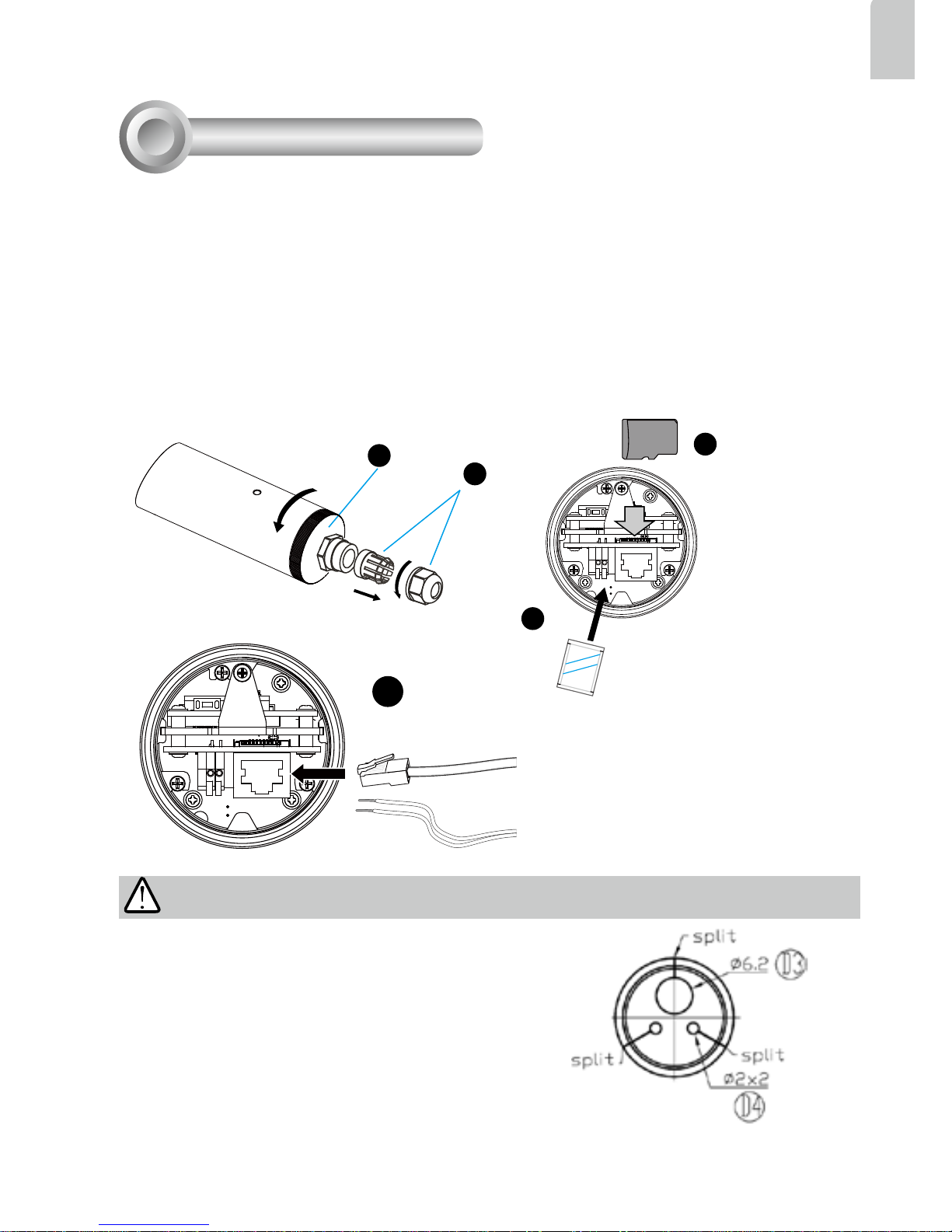

Hardware Installation
3
IMPORTANT:
The diameters of the cable holes on the rubber
seal are shown on the right. Please properly install
the waterproof cable gland and cables through it to
obtain IP66 waterproof functionality.
All units are in millimeters. The cable range for the
Ethernet cable is 6.4 to 4.3mm, 1.6mm for DI lines.
3
1
2
4
Silica gel
Micro
SD
If you prefer installing a MicroSD card as onboard storage:
1. Loosen the waterproof connector, and then remove the rubber seal, and the
waterproof connector.
2. Loosen and open the rear cover.
3. Install a MicroSD/SDHC card.
4. Tear down the aluminum foil vacuum bag and take out the dessicant bag. Attach the
supplied dessicant bag to the inner side of the Network Camera. (Please replace the
dessicant bag with a new one every time you open the rear cover.)
5. Connect an Ethernet cable and DI lines to the camera, and pass them through the
rubber seal.
5
EN-4
6. Install and tighten the camera's rear cover.
7. Tighten the rubber seal, seal clamp, and cap nut of the waterproof connector.
9
8
6
7
8. Pass the cables through the center of the ball swivel mount bracket, one at a time.
9. Fasten the bracket to the camera using 3 hex socket screws.
NOTE:
The camera weighs up to 1.28 kgs. Make
sure the mounting surface can support this
camera.
IMPORTANT:
Whenever you want to open the camera canister, loosen the waterproof cable gland
before you loosen the rear cover. Otherwise, you can damage the cables attached to
the inside of the camera.
EN-5
English
10. Loosen the fastening ring on the mount bracket, and aim the camera at the area of
your interest. When done, tighten the fastening ring.
Fastening ring
75º Tilt
360º Pan
Ceiling Mount
Wall Mount
11. Secure the Network Camera to a wall or ceiling.
EN-6
Power over Ethernet (PoE)
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and
a non-PoE switch.
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data
via single Ethernet cable. Follow the below illustration to connect the Network
Camera to a PoE-enabled switch via Ethernet cable.
POWER C
OLLIS
ION
LINK
RE
CEIVE
PARTITION
12345
Non-PoE Switch
PoE Power Injector
(optional)
POWER C
OLLIS
ION
LINK
RECEIVE
PARTITION
12345
PoE Switch
Network Deployment
4
EN-7
English
1. Install the "Installation Wizard 2" from the Software Utility directory on the software
CD.
2. The program will conduct an analysis of your network environment. After your network
is analyzed, please click on the "Next" button to continue the program.
3. The program will search for VIVOTEK Video Receivers, Video Servers or Network
Cameras on the same LAN.
4. After a brief search, the main installer window will pop up. Double-click on the MAC
address that matches the one printed on the camera label or the S/N number on the
package box label to open a browser management session with the Network Camera.
Assigning an IP Address
5
For further setup, please refer to user’s manual on the software CD.
Ready to Use
6
1. A browser session with the Network Camera should prompt as shown below.
2. You should be able to see live video from your camera. You may also install the
32-channel recording software from the software CD in a deployment consisting of
multiple cameras. For its installation details, please refer to its related documents.
