Vivotek IZ7151 Manuale utente

EN - 1

English

Contact your distributor when such

cases happen.

Keep the Network Camera away

from water. If the Network Camera

is wet, power off immediately.

Refer to your user's manual for the

operating temperature.

Power off the Network Camera

as soon as it is found smoking or

smelt unusual.

Do not place the Network Camera

around the heat sources, such as

television or oven.

Keep the Network Camera away

from direct sunlight.

Do not place the Network Camera

in high humid environments.

Contact your distributor when such

cases happen.

Warning Before Install

EN - 2

Do not place the Network Camera

on unsteady surfaces.

Do not touch the Network Camera

when it's lightening.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert any object into the

Network Camera, such as needles.

EN - 3

English

Camera stand Screws and top mounting stand

IZ7151

Warranty card

Power adapter

Quick installation guide Software CD

1Check Package Contents

EN - 4

2Physical Description

Mic

RESET

Ethernet

Ext. Int. Audio

Out

12345678

Power cord socket

Ethernet 10/100

RJ45 socket

Indented reset button

General I/O

terminal block

Audio out

Microphone in

External/Internal

Microphone switch

Front panel

Back panel

Built-in Microphone

Status LED

EN - 5

English

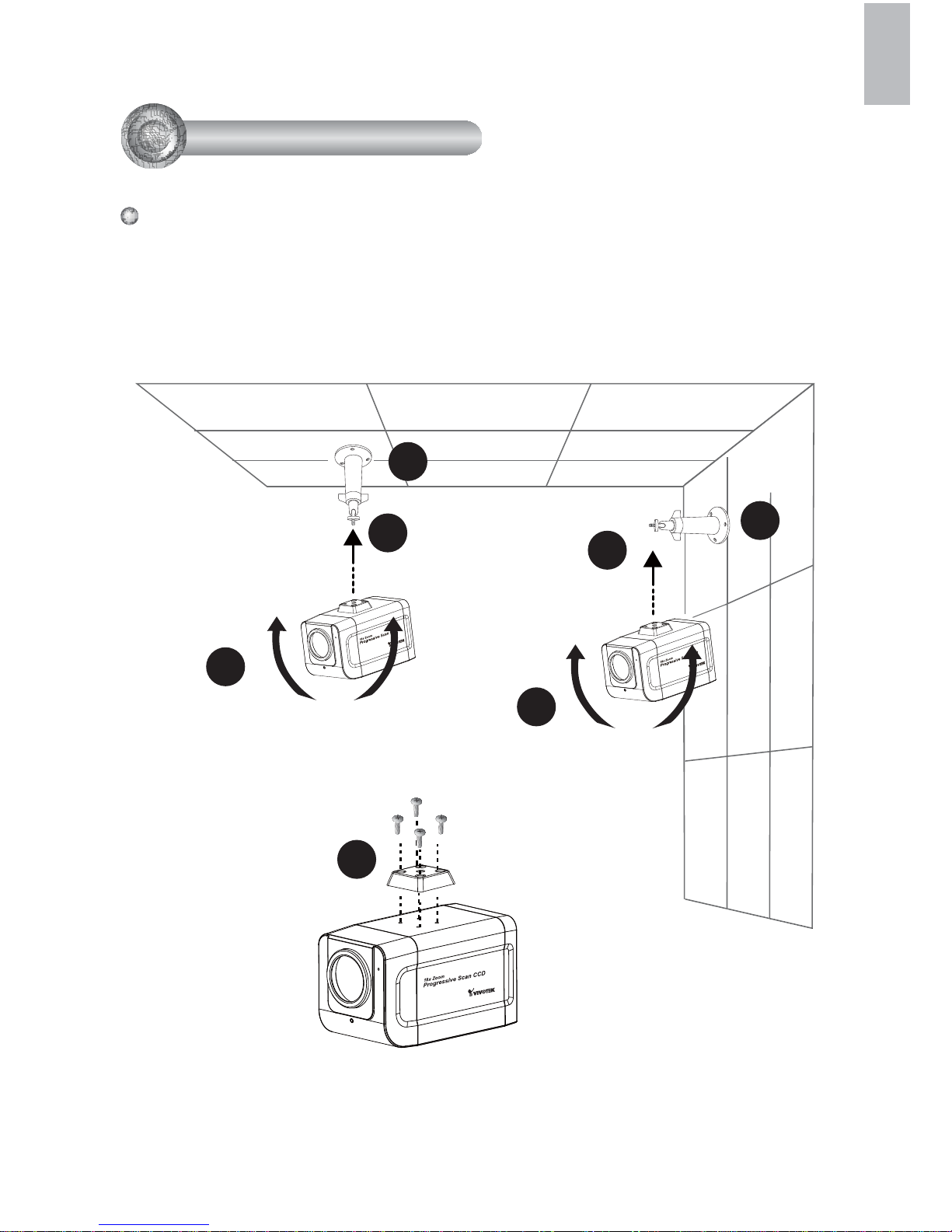

3Hardware Installation

Mounting the camera

1. Attach the top mounting stand to the camera using the supplied screws.

2. Fasten the camera stand to the wall / ceiling.

3. Secure the camera to the camera stand.

4. Position the camera with the lens facing the desired monitoring area.

EN - 6

General Connection (without PoE)

1. Connect the camera to a switch via Ethernet cable.

2. Connect the supplied power cable from the camera to a power outlet.

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

Ethernet switch

4Network Deployment

EN - 7

English

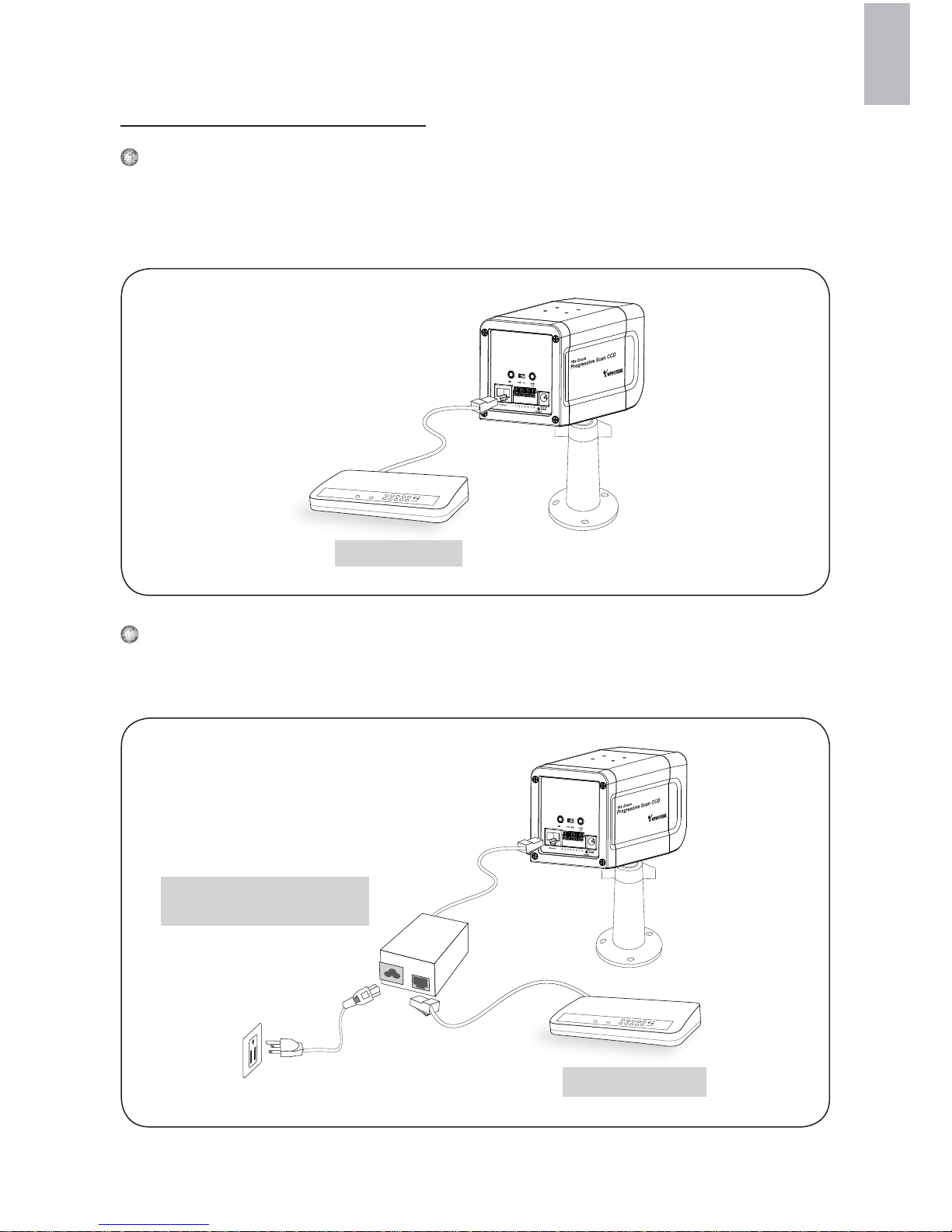

Power over Ethernet (PoE)

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE switch

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the camera and a non-

PoE switch.

non-PoE switch

PoE power injector

(optional)

When using a PoE-enabled switch

The camera is PoE-compliant, allowing transmission of power and data via single

Ethernet cable. See the following illustration to connect the camera to a PoE-

enabled switch via Ethernet cable.

EN - 8

0002D1ABCD99

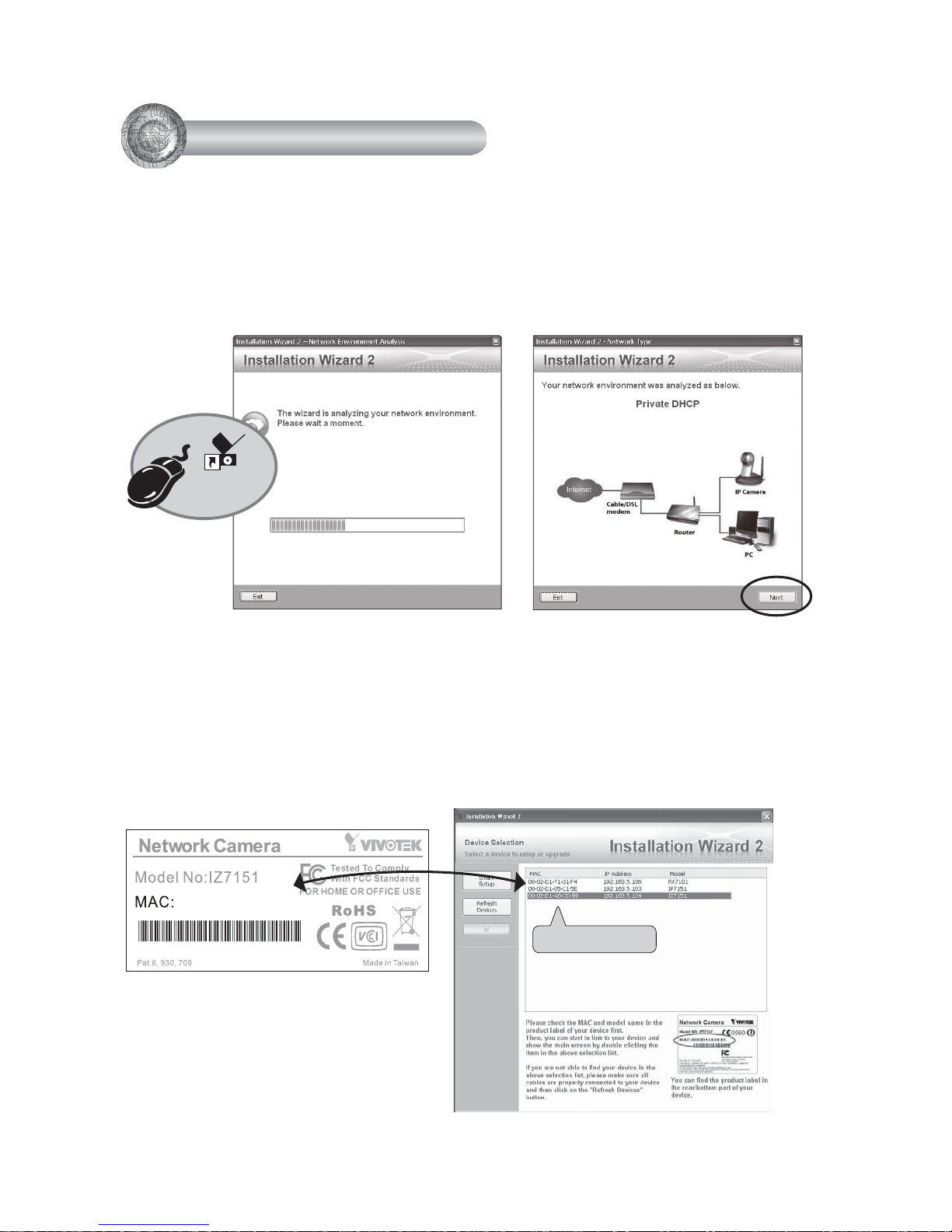

1. Install the "Installation Wizard 2" under the Software Utility directory from software

CD.

2. The program will conduct analyses on your network environment. After your

network is analyzed, please click on the "Next" button to continue the program.

3. The program will search the VIVOTEK Video Receivers, Video Servers or Network

Cameras on the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that

matches the one labeled on the bottom of your device to connect the Internet

Explorer to the Network Camera.

0002D1ABCD99

Installation

Wizard 2

5Assigning IP Address

EN - 9

English

For further setup, please refer to user's manual on the software CD.

6Retrieving Images
