E220MV / E260MV – QUICK START GUIDE
EDGE LIT RAZOR LED™LCD HDTV

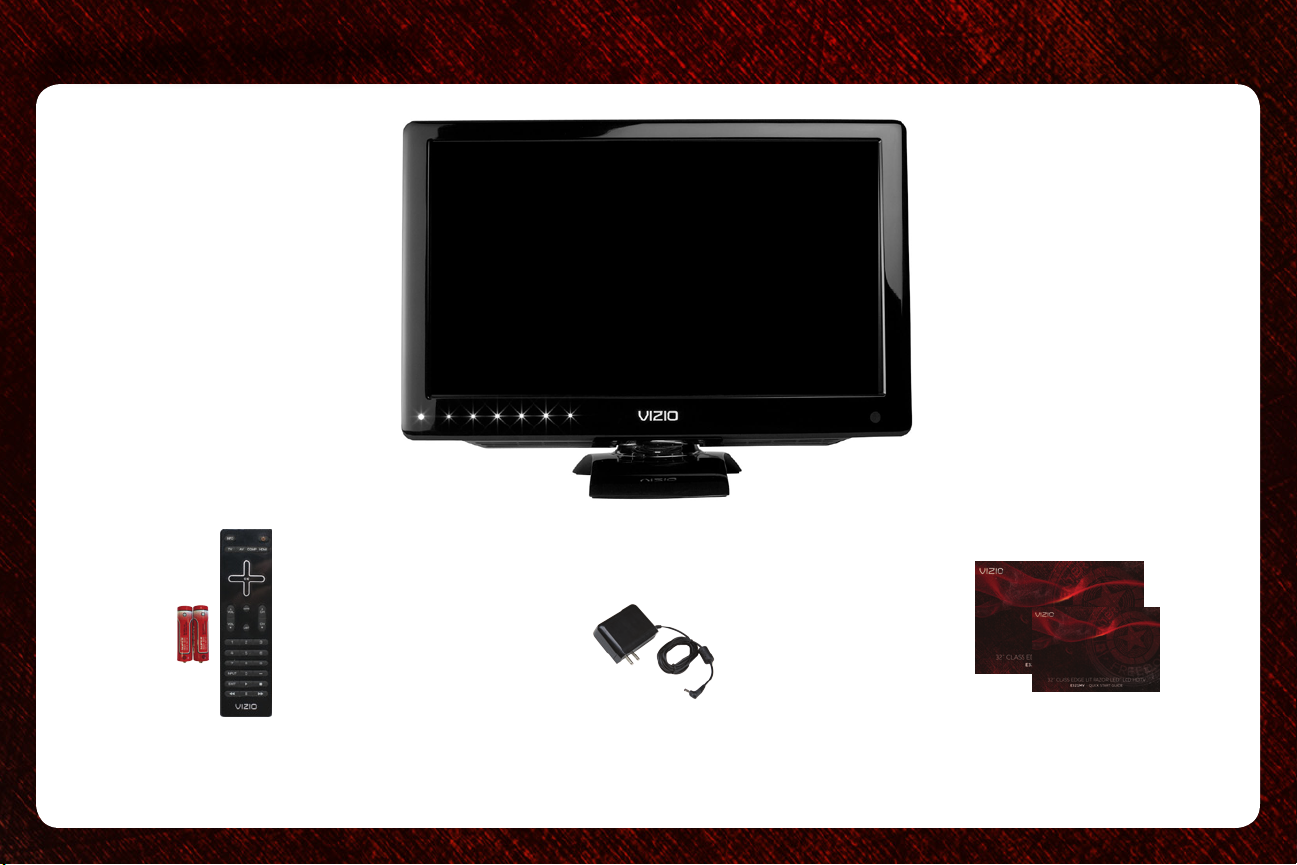

PACKAGE CONTENTS
Edge Lit Razor LED™LCD HDTV
Remote Control with
Batteries
User Manual and
Quick Start Guide
Power Cord/Adapter
(Appearance may vary)
USING THE REMOTE
Power/Standby: Turn the TV on or off.
Input (Specific): Change the input device. Press the button that
corresponds to the input device you wish to
view.
Info: Display the Info Window.
Arrow: Navigate the on-screen menu and episode
guide.
OK: Display the on-screen menu or select highlight-
ed menu option.
Mute: Turn the sound off or on. When mute is acti-
vated, the TV’s audio is turned off.
Volume Up/Down: Increase or decrease the loudness of the TV’s
audio.
Channel Up/Down: Change the channel. With each press of the
button, the channel will increase or decrease
by one.
Last: Return to the channel last viewed.
Number Pad: Use the number pad to manually enter a chan-
nel.
Input: Change the input device.
Dash (-): Use with number pad to manually enter a digital
sub-channel. (For example, 18-4 or 18-5.)
A/V Controls: Control USB slideshow playback.
Exit: Close the on-screen menu.
Power/Standby
Arrow
Channel
Up/Down
Number Pad
Input
Last
Volume
Up/Down
OK
Input
Info
Dash (-)
Mute
A/V Controls
Exit
INSTALLING THE BASE
1
Place the TV screen-down on a clean, flat surface. To prevent
scratches or damage to the screen, place the TV on a soft
surface, such as carpet, rug, or blanket.
2
Align the base with the stand neck.
Gently push the base onto the stand neck. The arrow on the
bottom of the stand should point towards the front of the screen.
If the base is not joining with the stand neck, you may have it
facing backwards.
3
Turn the attached thumbscrew until it is completely tightened.
Fold down the thumbscrew tab so it is flat against the bottom of
the base.
4
Move the TV with attached stand into an upright position and
place on a flat, level, and stable surface.
FIRST-TIME SETUP
2
Connect the power adapter/power cord to the TV, then connect
the TV’s power cable to an electrical outlet.
(The appearance of the adapter/power cord may vary.)
1
Remove the battery cover by pressing gently and sliding away
from the remote.
Insert the batteries. The +and -symbols on the batteries
must correspond to the +and -symbols inside the battery
compartment.
Replace the battery cover by gently sliding it back into place.
3
Connect your antenna or cable/satellite box to the coaxial port on
the back of the TV.
4
Turn the TV on by pressing the Power/Standby button on the
remote.
The Setup App is displayed.
Press the Right Arrow button on the remote to go to the next
screen.
5
5
Press the Up/Down Arrow buttons on the remote to highlight
your preferred language.
Press Right Arrow to go to the next screen.
6
Press the Up/Down Arrow buttons on the remote to highlight
Home.
Press Right Arrow to go to the next screen.
7
If the TV is connected to an external antenna, select Antenna,
then press Right Arrow and go to step 7.
If the TV is connected to a cable service without a set-top box
(cable is connected directly from the wall outlet) select Cable,
then press Right Arrow and go to step 7.
If the TV is connected to a cable or satellite set-top box, press the
EXIT button on the remote, then select the input to which your
set-top box is connected (HDMI, COMP, or AV).
8
Press the Up/Down Arrow buttons on the remote to highlight
Scan.
Press Right Arrow to begin the channel scan.
Wait for the channel scan to finish.
When the channel scan is complete, the first-time setup is
complete.
VIZIO RECOMMENDS
CONNECTING YOUR DEVICES
To get the best high-resolution picture and sound on your new
VIZIO TV, connect your devices with an HDMI cable.
VIZIO High Speed HDMI Cables are manufactured to produce
the best picture on VIZIO TVs and feature:
•1080p and for full HD video and future Ultra-HD video
•Great flexibility for thin wall mounts
•Stays securely connected at sharp angles
•Limited lifetime warranty
Visit www.VIZIO.com to purchase online.
1
Ensure your device has one of the above ports.
Turn your device and the TV off.
Connect your devices using the connection chart on the next
page. This chart shows the most common connections. If you
would like to see additional connection options, see
Connecting
Your Devices
in the user manual.
HDMI
Component
Composite AV
