BVD-431DXKCB

BVD-431DXKCB BUD-420M VIZITDoorstation operates together with Control Unit in multi apartment doorphones

and video doorphones of Series 400.

Abbreviations used:

VIZIT-RF2

VIZIT-TM

- LCD-display; - Colour camera;

- Concierge button; - Lens: board.

- RF-keys reader (PROXIMITY);

Only keys (125 KHz ) are supported.

Only keys (DS1990A/ iButton® ) are supported.

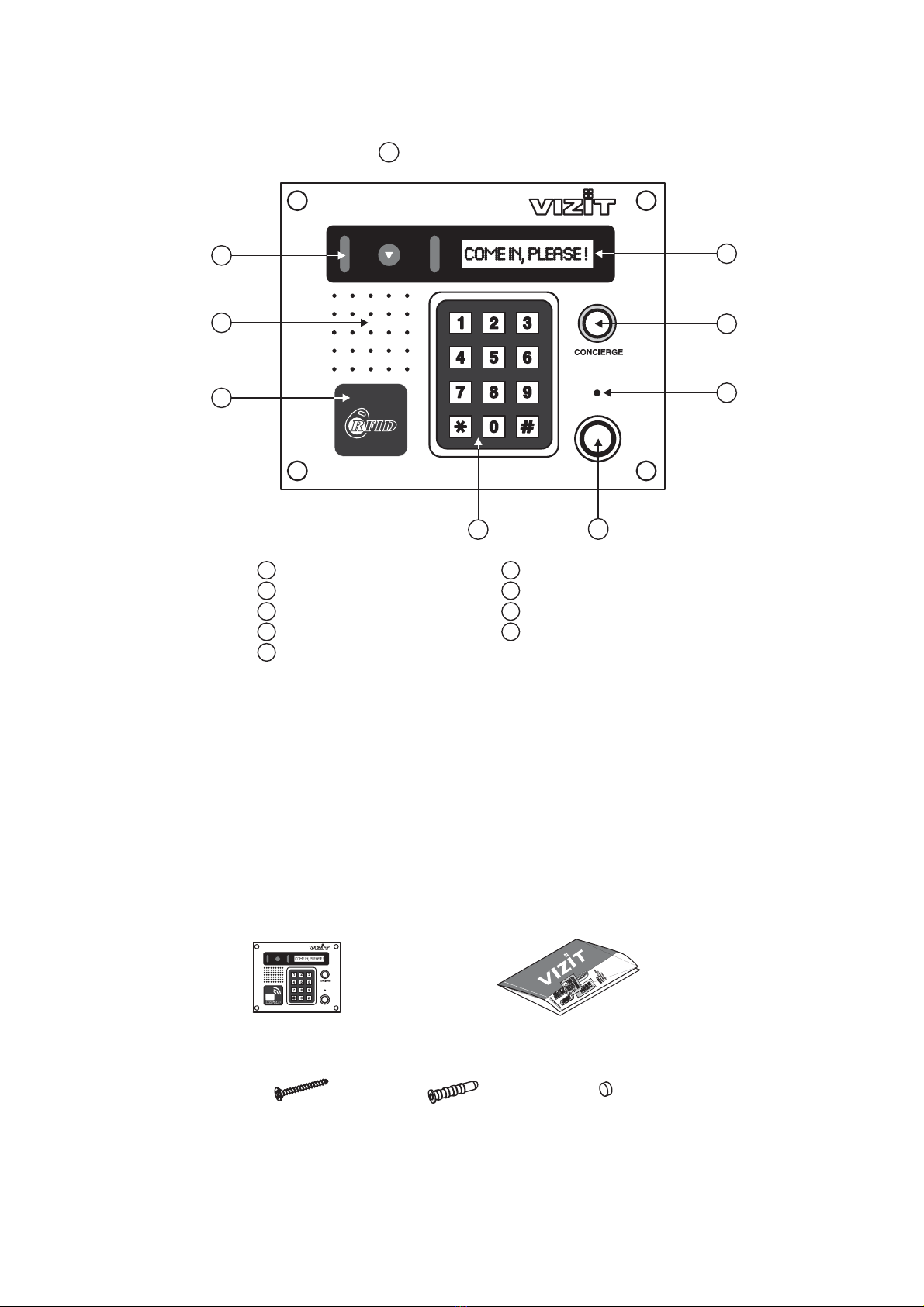

Figure 1 - Outward appearance and controls layout

4RF-keys Reader

Speaker

Illumination for the Camera

Camera TM-keys Reader

LCD

Concierge CALL Button

Microphone

5Keypad

Screw 4х30 Concrete Insert 6х30

x 4 x 4

Gag

x 8

Operating Instruction

x 1x 1

BVD-431DXKCB

PARTS LIST

SAFETY INSTRUCTIONS

INSTALLATION

The product does not contain voltage above .

Take care not to spill any liquids or chemically active substances on the product.

Unplug the Control Unit before cleaning the doorstation. Clean by wiping with dry soft cloth.

Do not use any liquid cleaners, aerosol cleaners or abrasive agents.

Do not perform any connections or repair when the power is on!

Do not modify the product design and circuits yourself.

Refer to a Qualified Service Personnel.

Before mounting, examine carefully the operating instruction for the installation order and wiring diagrams.

Acceptable cross-sections of wires are given in the Control Unit BUD-420M Operating Instruction.

18V

WARNING

Connect the grounding wire of the doorstation to the protective ground.

Figure 2 - Doorstation Wall-mounting

Wall recess for the doorstation, 155 x 125 x 35 mm

Hole ( ) 6 mm diameter, 30 mm depthх4

Concrete Insert 6х30 ( )х4

Doorstation

Screw 4х30 ( )х4

6Gag ( )х4

Mounting items (3,5,6) are supplied.

155

125

Abbreviations used on Figures :

VO - VIDEO OUT;

VG - VIDEO GROUND;

CUD - Control Unit Data;

DSD - Doorstation Data;

+Е - Doorstation Supply Voltage;

MIC - Microphone;

SP-, SP+ - Speaker;

ТМ - TM-reader;

GND - GROUND.

4-7

50 cm

76°

- direct rays of sun or other light sources

- direct hit of rain and snow

Locate the doorstation to avoid:

150 cm

50 cm

Figure 3 - Recommended doorstation position and camera field of view

To protect the doorstation from sun, rain and snow, MK-432 Mounting Kit is recommended to be installed.

Figure 4 - Terminals layout

SP+

SP-

MIC

GND

DSD

CUD

Grounding

wire

Figure Doorstation with Control Unit

electromagnetic lock and button for exit

BVD-431 BUD6 - ,-420М

VIZIT-ML400

DXKCB

Figure Doorstation with Control Unit

and electromechanical lock

BVD-431 BUD7 - -420МDXKCB

Figure 5 - Doorstation ,-420М

VIZIT-ML400 EXIT 300

BVD-431 BUDwith Control Unit

electromagnetic lock and button

DXKCB

WIRING DIAGRAMS

To commutators

LINE

GND

SEL1

USE

Evk

GND

SEL0

+DL

-DL

SP+

SP-

MIC

GND

DSD

CUD

12387

MLEL

LOCK

Red

Green

White

Black

Blue

EXIT 300

Button

Electromagnetic Lock

VIZIT-ML400

Control Unit

BUD-420М

Doorstation

BVD-431DXKCB

SP+

SP-

MIC

GND

DSD

CUD

To commutators

Electromagnetic Lock

VIZIT-ML400

Button

for exit

To commutators

LINE

GND

SEL1

USE

Evk

GND

SEL0

+DL

-DL

SP+

SP-

MIC

GND

DSD

CUD

12387

MLEL

LOCK

SP+

SP-

MIC

GND

DSD

CUD

Doorstation

BVD-431DXKCB

Control Unit

BUD-420М

To commutators

LINE

GND

SEL1

USE

Evk

GND

SEL0

+DL

-DL

SP+

SP-

MIC

GND

DSD

CUD

1 2 3 87

MLEL

LOCK

SP+

SP-

MIC

GND

DSD

CUD

Doorstation

BVD-431DXKCB

Control Unit

BUD-420М

To commutators

50 V

SPECIFICATIONS

Operating voltage,

Power consumption,

Dimensions,

Weight,

Camera parameters

Operating Conditions:

Ambient temperature range from to

Relative humidity of air up to at .

Content of doorphone (video doorphone) system, its features, order of programming and operation are described

in the Control Unit BUD-420M Operating Instruction.

VDC 16

mm 190 x 150 x 38

kg 0.85

-30°C 45°C

98% 25°C

Lens

View angle (diagonal),°

Colour system

Scanning system

Resolution, TVL

Output voltage,

at 75 OhmVpp

Minimum illumination of an

object at 50 cm distance from

the camera, Lux

Board

³120

PAL

СCIR

380

0.1

1 ± 0.15
