Vode Ulo 507 Manuale utente

Installed View

Adaptive architectural lighting systems

Technical Support: 707-996-9898 or [email protected]

uloTM | Light Bar | All Mounting

Light Bar | 507

Please read instructions in their entirety before proceeding with any part of the installation. This product must be installed in accordance with the applicable installation

code by a person familiar with the construction and operation of the product and the hazards involved. Consult a qualified electrician to ensure correct branch circuit rating.

To prevent electric shock, disconnect all power before installing or servicing product. Rated for use in dry and damp locations only. Retain instructions for future reference.

ulo | 507 | Installation Guide | August 2019 | Rev A • 1

Parts Diagram

ulo | 507

ulo | 507 | Installation Guide | August 2019 | Rev A • 2

Parts Diagram

Portable Desk (PD)

- Page 5

Table of Contents

Table Anchor (TR)

- Page 6

Wall Anchor (WR)

- Page 8

Wall Surface (WS)

- Page 9

Table Clamp (TC)

- Page 11

Mini-Mount (MM)

- Page 10

Shelf Mount (SM)

- Page 7 507-ULO-SM-YY

507 Shelf Mount

507-ULO-WS-YY

507 Wall Surface Mount

507-ULO-WR-YY

507 Wall Anchor

507-ULO-MM-YY

507 Mini Mount

507-ULO-11-Z-CCT-90-YY

507 Light Bar

WP-507-ULO-USBC-18W-5V-YY

507 USB-C Wall Plug

507-ULO-TC-YY

507 Table Clamp

USB15C5W

507 USB-C Wall Receptacle

507-ULO-TR-YY

507 Table Anchor

507-ULO-BASE-PD-YY

507 Portable Desk Mount Base

AM-507-ULO-S14-TA-YY

507 Arm

Installation Instructions - Power Supply Options

ulo | 507

ulo | 507 | Installation Guide | August 2019 | Rev A • 3

USB-C Power Adaptor (PA)

Once fixture is installed, connect the power supply with cord provided.

Plug-in power supply to local receptacle and power ON system.

NOTE: Vode's standard power type options are only compatible with 120V

systems.

9’ Power Lead with

USB-C connection

ulo | 507

ulo | 507 | Installation Guide | August 2019 | Rev A • 4

Green Hex

Screw

White Hex

Screw

Brass Hex

Screw

Installation Instructions - Power Supply Options

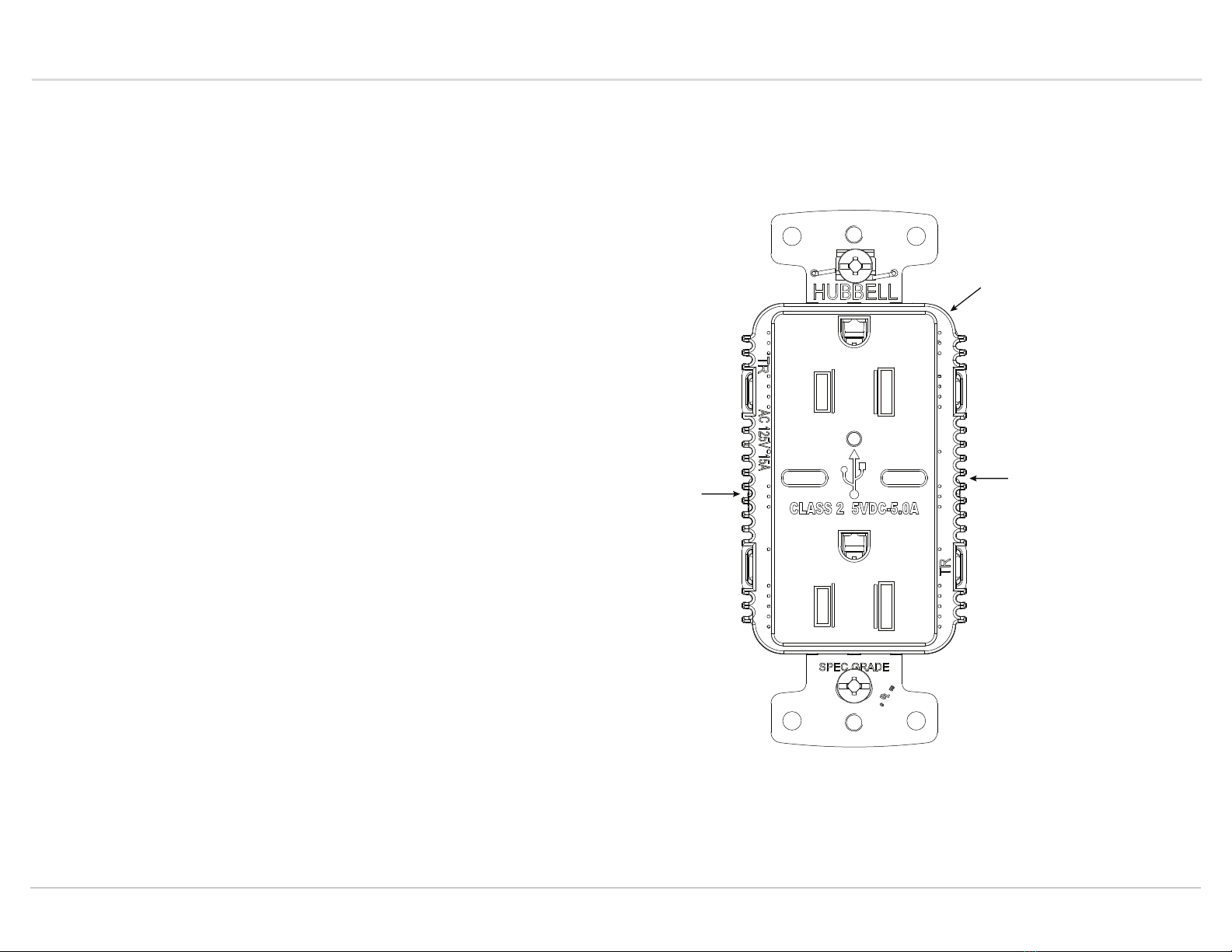

USB-C Receptacle (RC)

*From Hubbell Installation Guide*

GENERAL INFORMATION

For installation by a qualified electrician in accordance with the national

and local electrical codes and the following instructions.

CAUTION: RISK OF ELECTRIC SHOCK. Disconnect power before

installing. USE COPPER CONDUCTORS ONLY.

Check that the device’s type and rating are suitable for the application. The

green light (LED) is “ON” when the USB ports are powered. This device is

to be installed in a wall box measuring at least 3" x 2" x 2-1/2" (standard

single gang electrical wall box), raceway, power pole, furniture box, table

top box, etc. and wired in accordance with NEC Article 314 box fill

requirements. The USB ports can supply up to 5A DC to the connected

devices.

INSTALLATION

Terminal capacity #14 AWG to #10 AWG. See the back of device for the

stripping gauge. Connect conductors to the proper terminals as follows:

Green or Bare to Green Hex Screw.

White or Gray to White Screw.

Black or Red to Brass Screw.

Tighten terminal screws to 10-12 lb•in (1.1-1.4 N•m). Mount the receptacle

to the box, and attach the wall plate, provided by others. Place the provided

“USB charger” label if needed.

* This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation.

NOTE: Vode's standard power type options are only compatible with 120V

systems

Installation Instructions

ulo | 507

ulo | 507 | Installation Guide | August 2019 | Rev A • 5

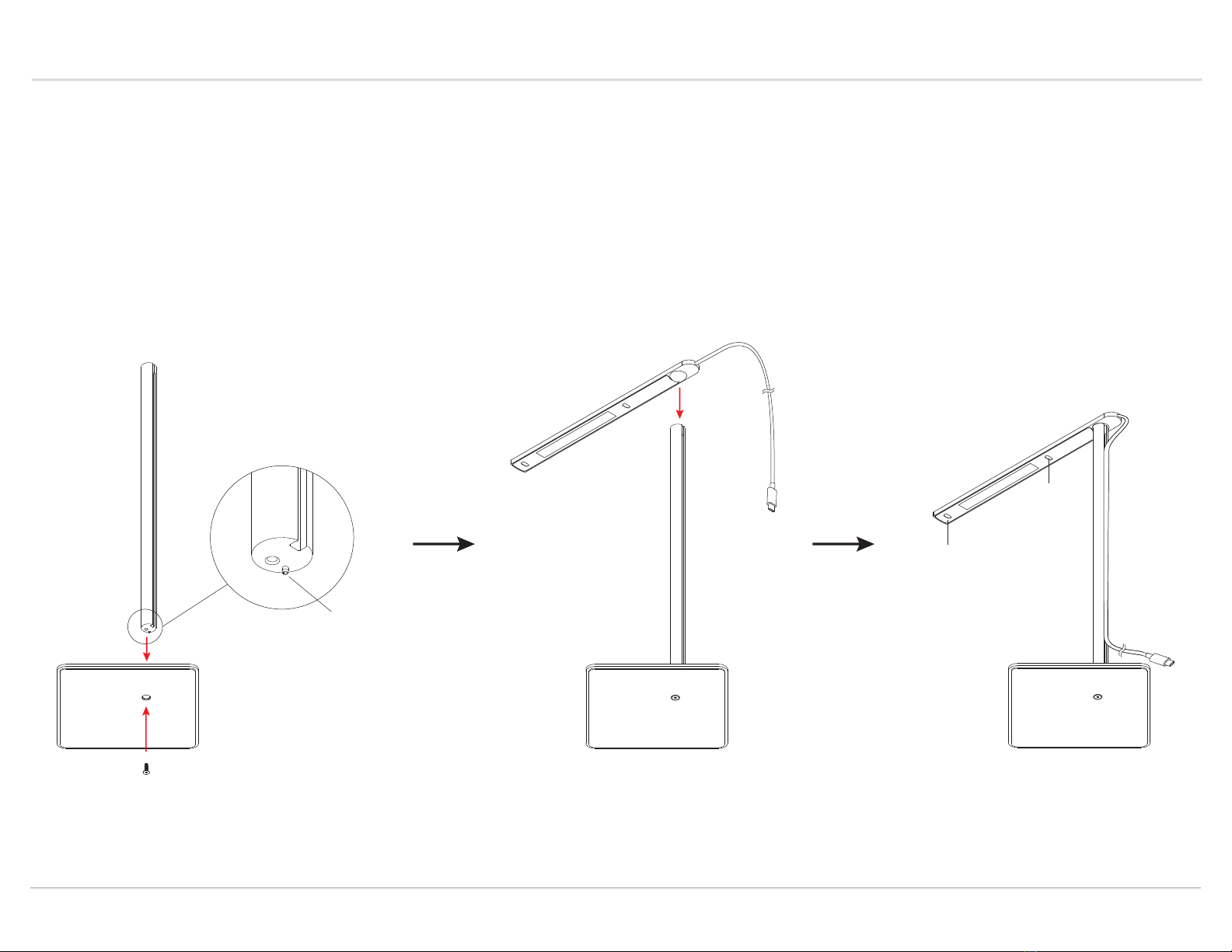

Portable Desk (PD)

Insert spring pin into small hole on top of base and secure through the base to the underside

of the arm, using provided #6-32 screw. The back of the arm is supplied with a wire

management channel.

Gently place the light bar onto the mounting arm with dome magnet face down. Caution: Risk

of pinching. Ensure fingers are clear of magnets. Plug the light bar cord into your selected

power supply. Remove protective film from lens and use the proximity sensors to

control the system. The front sensor controls the light level and the back sensor controls the

color temperature (CCT).

Spring pin for

alignment

Light

Level

CCT

Installation Instructions

ulo | 507

ulo | 507 | Installation Guide | August 2019 | Rev A • 6

Table Anchor (TR)

Determine desired location of ulo. Anchor is designed to install into stable surfaces between

1/2” and 2 1/4” (13-57 mm) with 8” (208 mm) access behind mounting surface to allow for

proper installation. Drill a 7/8” (22 mm) hole.

Route light bar cord with USB-C connector through arm anchor as shown. Gently place the

light bar onto the mounting arm with dome magnet face down. Caution: Risk of pinching.

Ensure fingers are clear of magnets. Assemble the arm anchor by inserting the indicated

spring pin into small hole on top of anchor and secure in place through the anchor to the

underside of the arm. Slide table anchor and cord into hole, secure with washer and nut. The

channel in the back of the arm is supplied for wire management.

Plug the light bar cord into your selected power supply. Remove protective film from lens

and use the proximity sensors to control the system. The front sensor controls the light

level and the back sensor controls the color temperature (CCT).

Spring pin for

alignment

Arm Anchor hole

for power cord

Light

Level

CCT

Installation Instructions

ulo | 507

ulo | 507 | Installation Guide | August 2019 | Rev A • 7

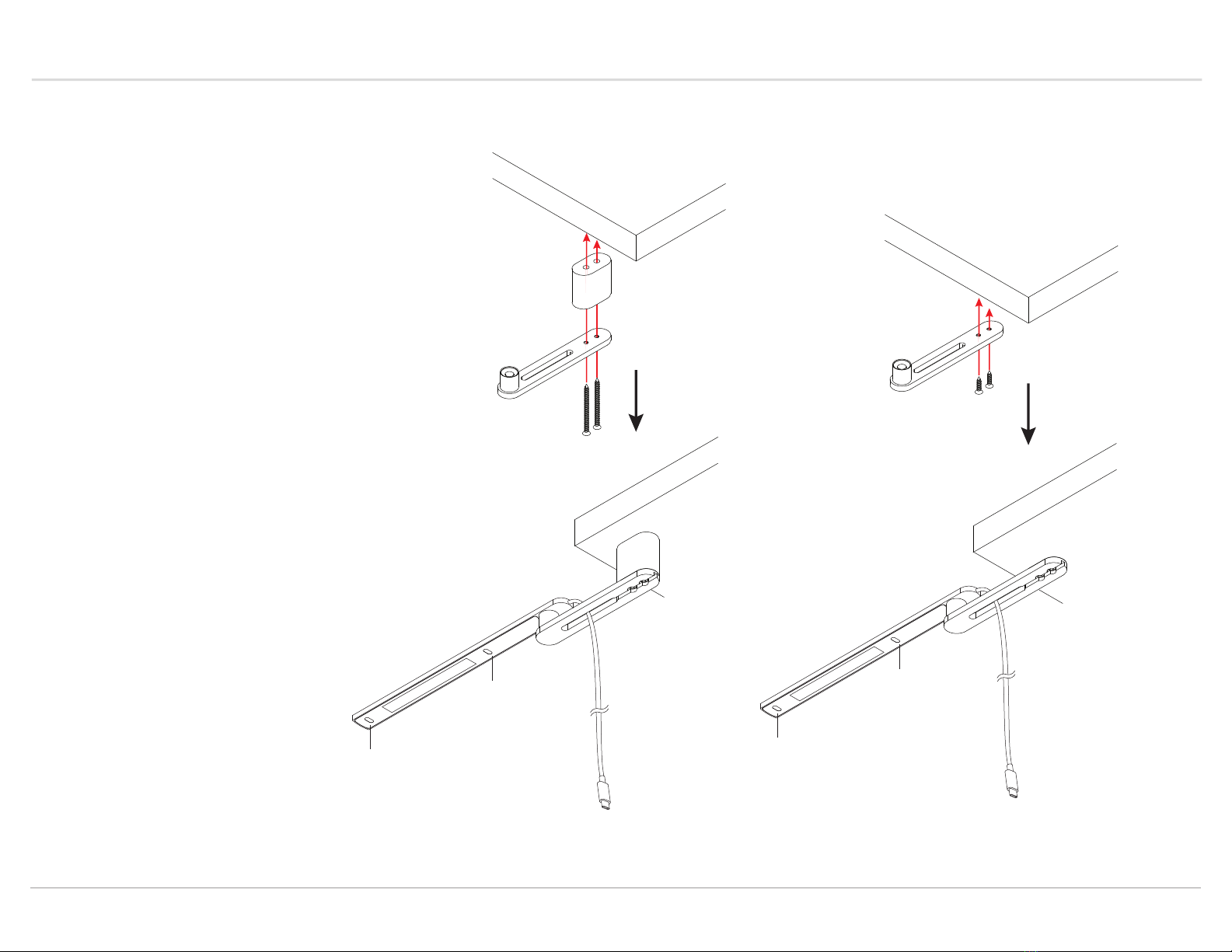

Shelf Mount (SM)

Determine desired location of ulo. Drill 3/32" pilot holes into

surface. Use the provided #6 screws to mount the bracket to

desired surface. If using the shim, place between the mounting

surface and bracket and using 2” screws, as shown. If not

using shim, mount bracket directly to surface using 5/8” screws,

as shown.

Gently place the light bar onto the mounting arm with dome

magnet face down. Caution: Risk of pinching. Ensure fingers

are clear of magnets. Plug the light bar cord into your selected

power supply. Remove protective film from lens and use the

proximity sensors to control the system. The front sensor

controls the light level and the back sensor controls the color

temperature (CCT).

- OR -

With Shim Without Shim

Light

Level

CCT

Light

Level

CCT

Installation Instructions

ulo | 507

ulo | 507 | Installation Guide | August 2019 | Rev A • 8

Wall Anchor (WR)

Determine desired location of ulo. Anchor is designed to install into stable surfaces between

1/2” and 2 1/4” (13-57 mm) with 8” (208 mm) access behind mounting surface to allow for

proper installation. Drill a 7/8” (22 mm) hole.

Route light bar cord through wall anchor as shown. Gently place the light bar onto the

mounting arm with dome magnet face down. Slide wall anchor and cord into hole, secure

with washer and nut. Caution: Risk of pinching. Ensure fingers are clear of magnets.

Plug the light bar cord into your selected power supply. Remove protective film from lens

and use the proximity sensors to control the system. The front sensor controls the light

level and the back sensor controls the color temperature (CCT).

Light

Level

CCT

Installation Instructions

ulo | 507

ulo | 507 | Installation Guide | August 2019 | Rev A • 9

Wall Surface (WS)

Determine desired location of ulo. Drill 3/32" pilot holes into surface. Slide the cover plate

down the bracket to allow access to the mounting plate. Use the provided #6 screws to

mount bracket to desired surface. Carefully move the cover plate into place against the wall,

paying attention to the finish on the arm.

Gently place the light bar onto the mounting arm with dome magnet face down. Caution: Risk

of pinching. Ensure fingers are clear of magnets.

Plug the light bar cord into your selected power supply. Remove protective film from lens

and use the proximity sensors to control the system. The front sensor controls the light

level and the back sensor controls the color temperature (CCT).

Light

Level

CCT

Installation Instructions

ulo | 507

ulo | 507 | Installation Guide | August 2019 | Rev A • 10

Mini-Mount (MM)

Surface must be clean, dry and flat.

Mini Mount base is provided with mounting tape. Remove tape backing and install to desired surface. Once

placed, press down firmly to secure in place. Vode recommends waiting 24 hrs for mini-mount to fully adhere

to the surface.

Gently place the light bar onto the mounting arm with dome magnet face down. Caution: Risk of pinching.

Ensure fingers are clear of magnets.

Plug the light bar cord into your selected power supply. Remove protective film from lens and use the

proximity sensors to control the system. The front sensor controls the light level and the back sensor

controls the color temperature (CCT).

Removal of Mini-Mount -

Apply a few drops of rubbing alcohol between the Mini-Mount and the surface it has been applied to.

Carefully use fishing line or dental floss in a sawing motion to cut foam away from the surface. Do not use

sharp edges to remove adhesive as it may result in scratches or damage to surface. Once removed,

Mini-Mount can not be re-installed. Vode is not responsible for any surface damage resulting from improper

removal of Mini-Mount from the mounting surface.

Remove tape

backing

Light

Level

CCT
