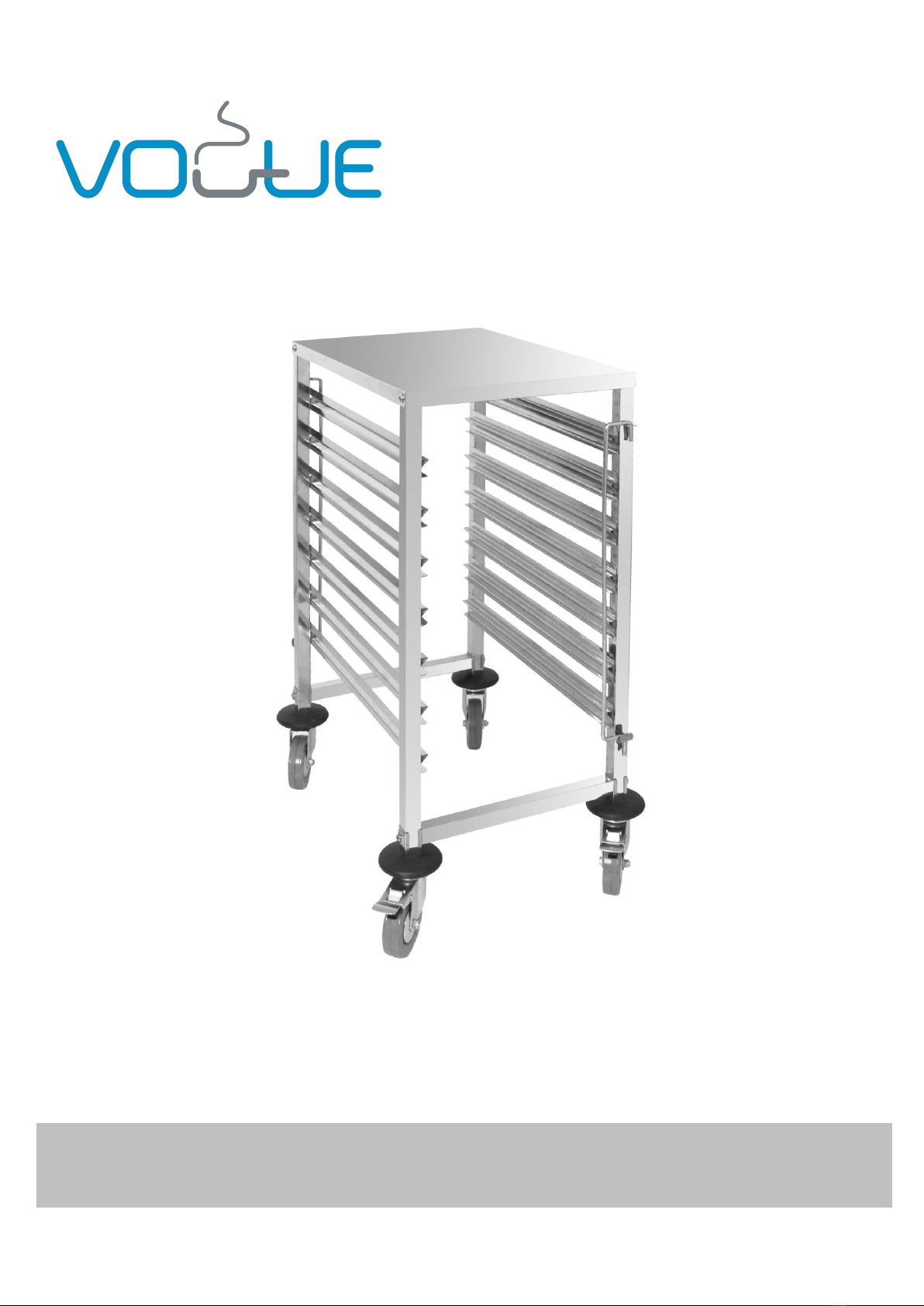

Vogue Gastronorm 1/1 Racking
Trolley (7 Level)
Assembly Instruction
Model GG498

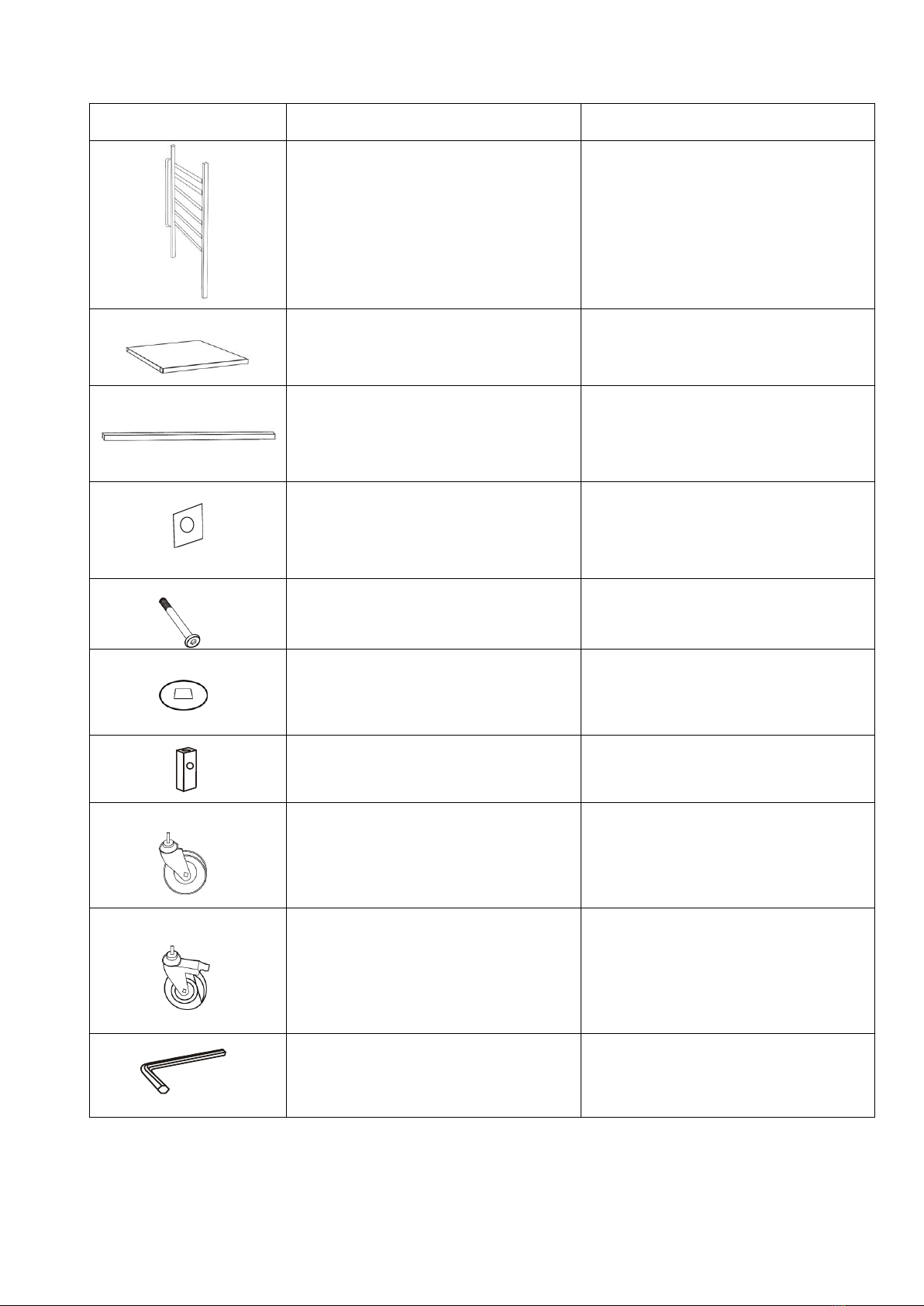

Parts
No
Qty
P1
2
P2
1
P3
2
P4
8
P5
8
P6
4
P7
4
P8
2
P9
2
P10
1
Assembling
Instructions
Safety instructions
●Do not place more heavy items on the top levels than on the lower levels
●Do not climb on the trolley

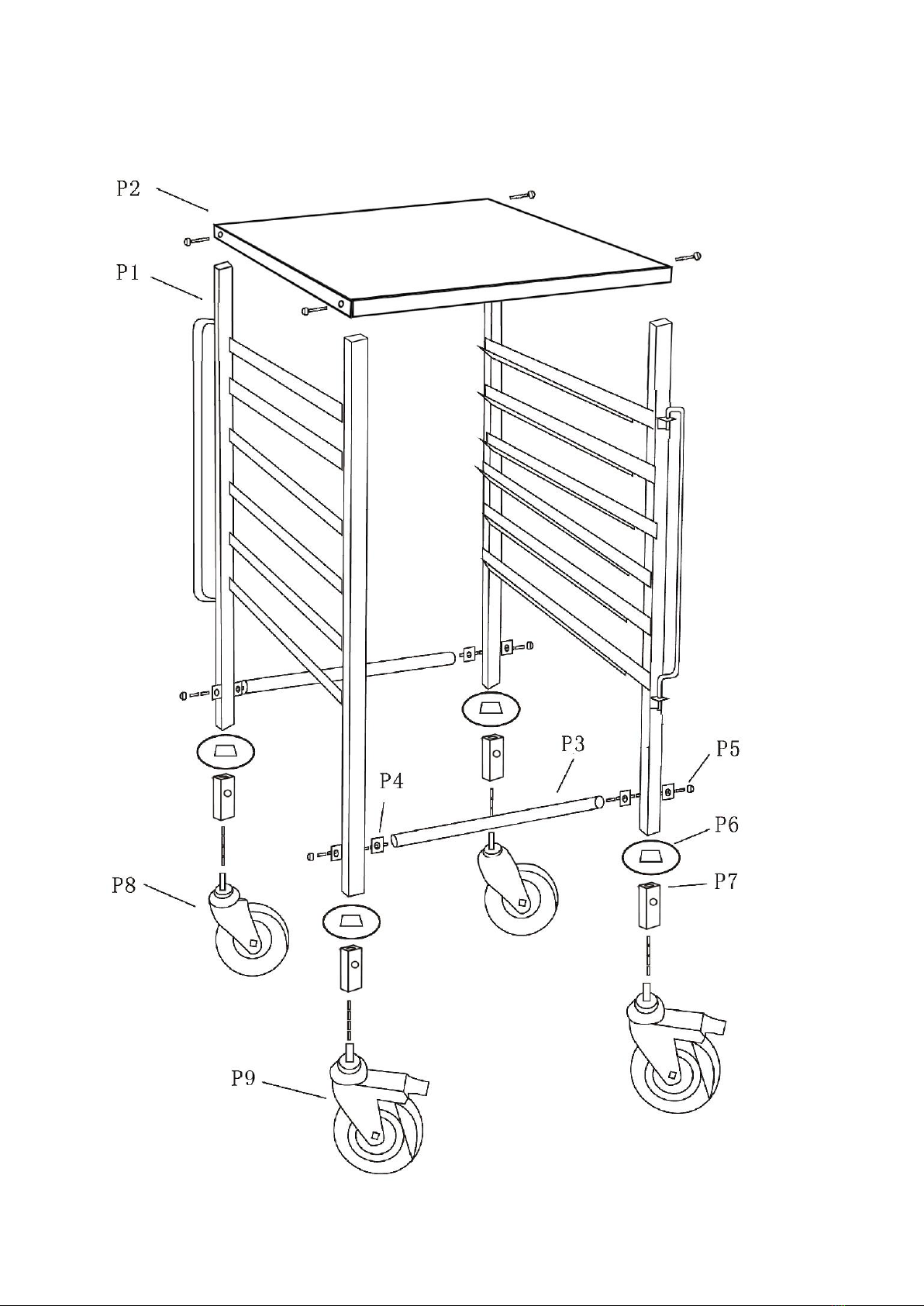

Assembly
●Install 4 x bumpers [P6] and 4 x castors [P8] & [P9] with 4 x sleeves [P7] on side frames [P1], two braked castors
will be screwed in front of side frames.
●Connect the two side frames [P1] with 2 x rectangular bars [P3], fix the rectangular bars [P3] together with 8 x
square gaskets [P4] and supplied 4 x screws [P5] to the other Side Frame.
●Using 4 x screws [P5] fix the Top part [P2] with the two side frames [P1].
Cleaning and maintenance
●Clean the trolley using warm soapy water
●Dry the trolley thoroughly after cleaning it.
