00-1

Transmission identification

The 4-speed automatic transmission 096 is

installed in the Passat beginning in the 1995

model year.

It may be installed in combination with either a 4-

cylinder or a 6-cylinder engine. Applications

page 00-3 .

The transmission is identified by type (096), code

letters and date of manufacture.

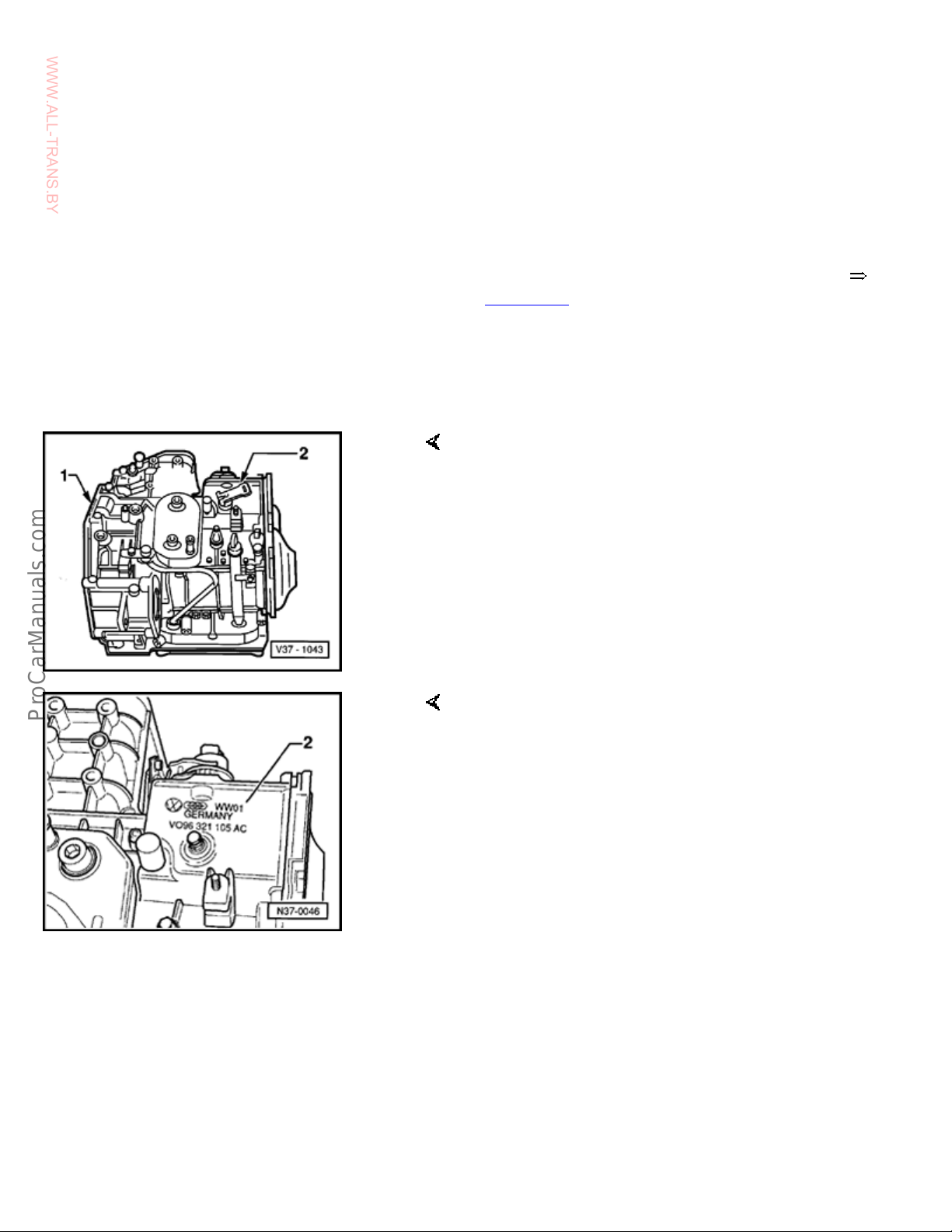

Location on transmission

Code letters (arrow -1-)

Automatic transmission 096 (-arrow 2-)

Automatic transmission 096 (-2-)

Page

Transmission identification

12/6/2004

http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.AT02.00.1

WWW.ALL-TRANS.BY

ProCarManuals.com

00-2

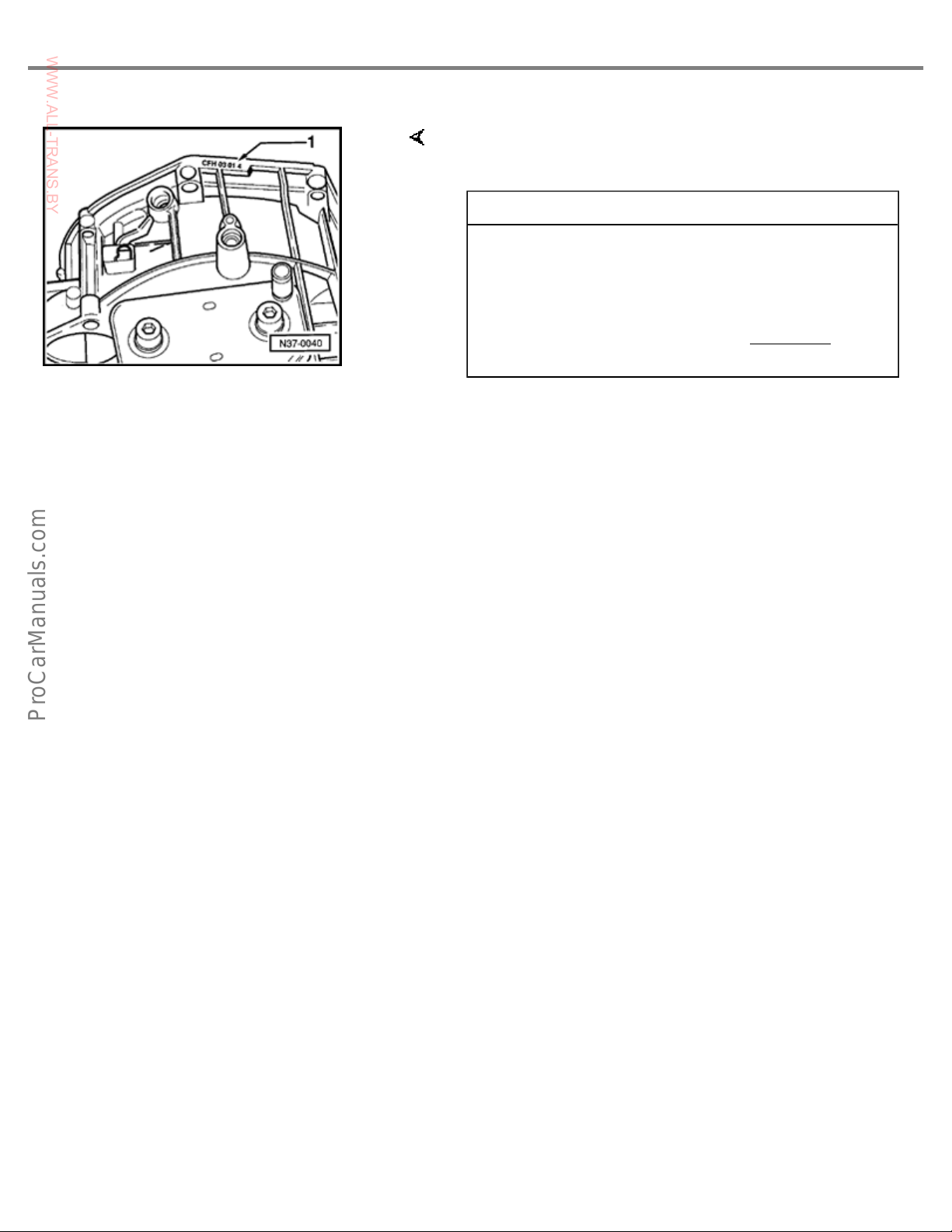

Transmission code letters anddate of

manufacture (arrow -1-)

The code letters of the transmission are also listed on

the vehicle data plates.

Example: CFF 03 01 4

II I I

Transmission

code letters Day Month Year

Date (e.g. 3 Jan.,1994)

Page

Transmission identification

12/6/2004

http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.AT02.00.1

WWW.ALL-TRANS.BY

ProCarManuals.com

00-3

Code letters, model/engine applications, ratios, equipment

Automatic transmission 096

Transmission Code letters CFF CNK

Manufactured from:

to: 01.93

08.93

Torque converter Code letters QCCR QACA

Valve body Code letters QBA QBA

Manufactured from:

to: 10.93

10.93

Number of plates Inner Outer Inner Outer Inner Outer

Clutch -K1- 5555

Clutch -K2- 5555

Clutch -K3- 6554

Brake -B1- 5555

Brake -B2- 6767

Application Model Passat 1995 Passat 1995

Engine 2.8 liter - 128 kW

(172 hp)

2.0 ltr. - 85 kW

(115 hp)

Page

Code letters, model/engine applications, ratios, equipment

12/6/2004

http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.AT02.00.2

WWW.ALL-TRANS.BY

ProCarManuals.com

00-4

Transmission Code letters CFF CNK

Ratios 1st gear 2.714 :1 2.714 :1

2nd gear 1.441 :1 1.441 :1

3rd gear 1.000 :1 1.000 :1

4th gear 0.743 :1 0.743 :1

Reverse gear 2.884 :1 2.884 :1

Intermediate drive No. of teeth Input gear 62 62

Output gear 61 61

Ratio 0.984 0.984

Final drive No. of teeth Drive pinion 20 18

Final drive gear 74 76

Ratio 3.700 :1 4.222 :1

Drive shaft Flange diameter - mm 100 star-shape

ATF cooler Equipment Pressure-side 6-row Pressure-side 6-row

Page

Code letters, model/engine applications, ratios, equipment

12/6/2004

http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.AT02.00.2

WWW.ALL-TRANS.BY

ProCarManuals.com

00-5

Capacities

Planetary gearbox

Capacities Planetary

gearbox Automatic

transmission

Initial filling 5.6 liters

(5.9 US qt.)

096

Oil change approx. 3.0

liters

(3.2 US qt.)

Lubricant ATF Dexron

Final drive

Capacities Final drive Automatic

transmission

Initial filling 0.75 liter

(0.79 US

qt.)

096

Oil change Filled for life

No change

Lubricant Gear oil

SAE75

W90

(synthetic

oil)

Note:

Gear oil SAE 75 W90 (synthetic oil) is available

as follows:

0.5 liter container - Part No. G 052 145 A1

1.0 liter container - Part No. G 052 145 A2
