VOLT®Low Voltage Landscape Lighting
Black Path & Area Lights
INSTALLATION INSTRUCTIONS
Specications and product details subject to change without notice.
© Copyright 2015, VOLT® Lighting, Lutz FL USA 33549 • All rights reserved.
[email protected] • 813.978.3700
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
VOLT®Low Voltage Landscape Lighting
Path & Area Lights
Important: Please Read Before Installation
IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION INSTRUCTIONS
This luminaire is intended for installation in accordance with local codes
and the National Electric Code (NEC). Failure to adhere to these codes and
instructions may result in serious injury, property damage and void the
warranty.
These instructions do not intend to cover all variations in installation,
operation maintenance or mounting situation.
1. Make sure that the power is turned OFF before installing or servicing this
luminaire.
2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or
more from pool, spa or fountain.
3. This luminaire is intended to be used only with a power supply
(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.
4. Wiring connections must be made with wire connectors that is suitable for
outdoor use.
5. Position the low voltage wire and wire connector so that it is located
within 6 inches (15.2 cm) from a building structure, a luminaire or tting.
6. The main low voltage cable is intended for shallow burial - less than 6
inches (152 mm)
7. If additional lengths of low voltage cable is required, please contact www.
voltlighting.com or call 1-813-978-3700.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
Lighted lamp is HOT!
WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch the hot lens, guard or enclosure.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may
damage lamp.
6. Do not operate the luminaire tting with a missing or damage shield.
SAVE THESE INSTRUCTIONS
!
!
www.voltlighting.com
customersupport@voltlighting.com • 813.978.3700
Package Contents
A. (1) Finial
B. (1) Waterproof Washer
C. (1) Shade
D. (1) Inner Shield
E. (1) Harp
F. (1) Stake
G. (1) Rod with Socket

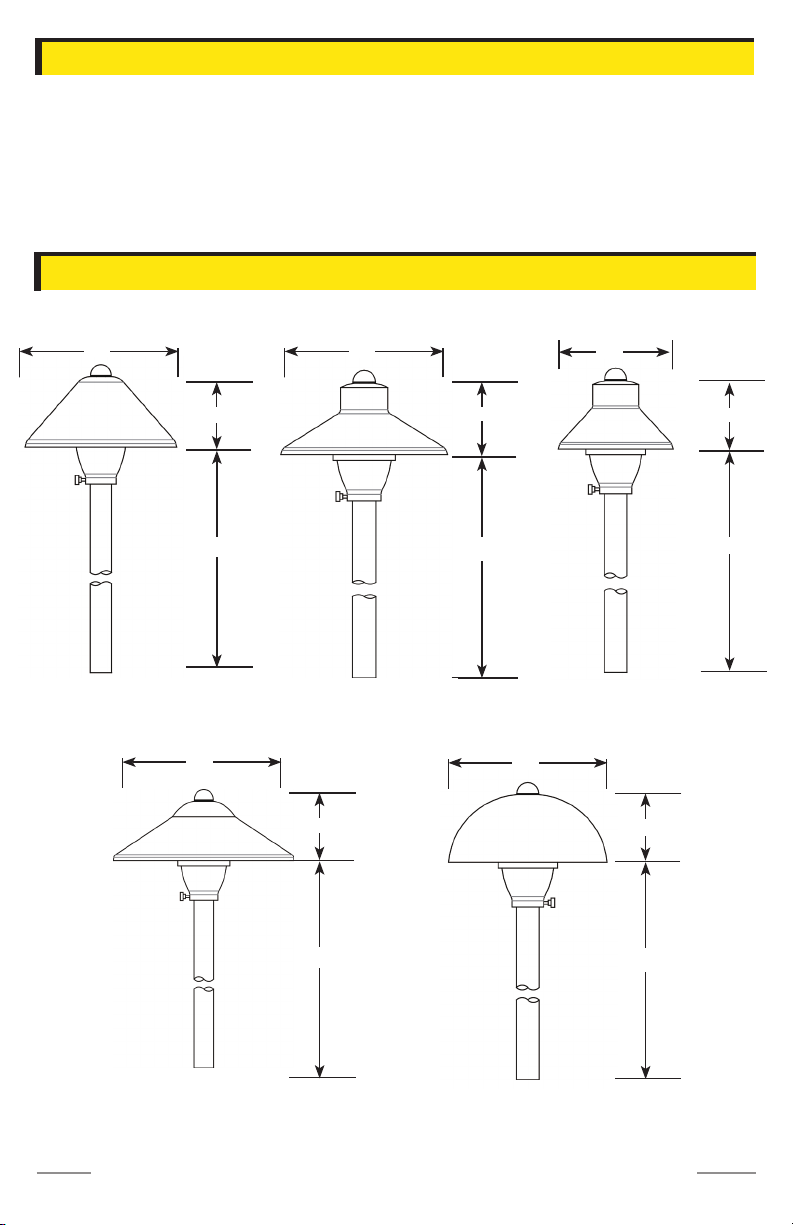

Product Dimensions
9”
23/4”
21 1/2”
7”
2 3/4”
21”
5”
2 1/2”
21 1/2”
6”
3”
21”
7”
23/4”
21”
310 Series 320 Series 322 Series
330 Series 340 Series
INSTALLATION INSTRUCTIONS
www.voltlighting.com
VOLT®Low Voltage Landscape Lighting
Path & Area Lights
Screw harp off socket assembly. Remove
harp and glass lens from socket assembly.
Remove Harp and Glass Lens
2
Harp
Glass Lens
Socket
Assembly
Install Stake
1
Determine desired location for mounting
luminaire. Hammer stake into ground until
ange of stake is ush to grade. To avoid
damage to stake, place a board on top of stake
while hammering.
NOTE: If ground is hard and stake is difcult to
install, make a crosscut in ground using a at
shovel.
Board
Stake
Soil
Ground
customersupport@voltlighting.com • 813.978.3700
Install Shade
4
Place shade and waterproof washer
on top end of harp and secure with
nial. Hand tighten until snug.
Finial
Waterproof
Washer
Shade
Harp
Insert lamp with correct wattage and type
marked on luminaire label.
CAUTION: Do not exceed maximum
wattage marked on luminaire label.
NOTE: DO NOT touch lamp with bare
hands. Use soft cloth to handle lamp.
Place glass lens back onto socket assembly
and screw harp on.
Install Lamp
3
Harp
Lamp
Glass Lens
Socket
Socket
Assembly
www.voltlighting.com
VOLT®Low Voltage Landscape Lighting
Path & Area Lights
INSTALLATION INSTRUCTIONS
Wire Connections
6
Pigtail
Main Low Voltage
Supply Cable
Strip two leads from luminaire pigtail. Using two wire connectors, sold
separately, connect leads from luminaire to main low voltage supply
cable leads.
Wire Connectors
Install Luminaire to Stake
5
Clear away area in ground at wireway
slot in top of stake. Lay luminaire
pigtail into wireway slot and screw
stem into stake. If assembly does
not look straight, adjust by pushing
or pulling on stake only. Use bubble
level against side of stem to make
sure stem is perpendicular to ground.
Pigtail
Stem
Stake
Wireway Slot
customersupport@voltlighting.com • 813.978.3700
Maintenance – Install/Replace Lamp
Please reverse Step 2 - Step 4 to expose the lamp and replace it with
correct wattage and type marked on luminaire label. Reinstall inner shield
and shade.
IMPORTANT: Halogen lamps must be protected from moisture and dust at all
times. Always re-install shade and lens when moved.
Specications and product details subject to change without notice.
© Copyright 2015 , VOLT® Lighting, Lutz, FL USA 33549 • All rights
reserved [email protected] • 813.978.3700
www.voltlighting.com
is-stem-bk-ver1.pdf
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
