Volvo Load carriers Manuale utente

Instruction No Version Part. No.

9172448 1.0

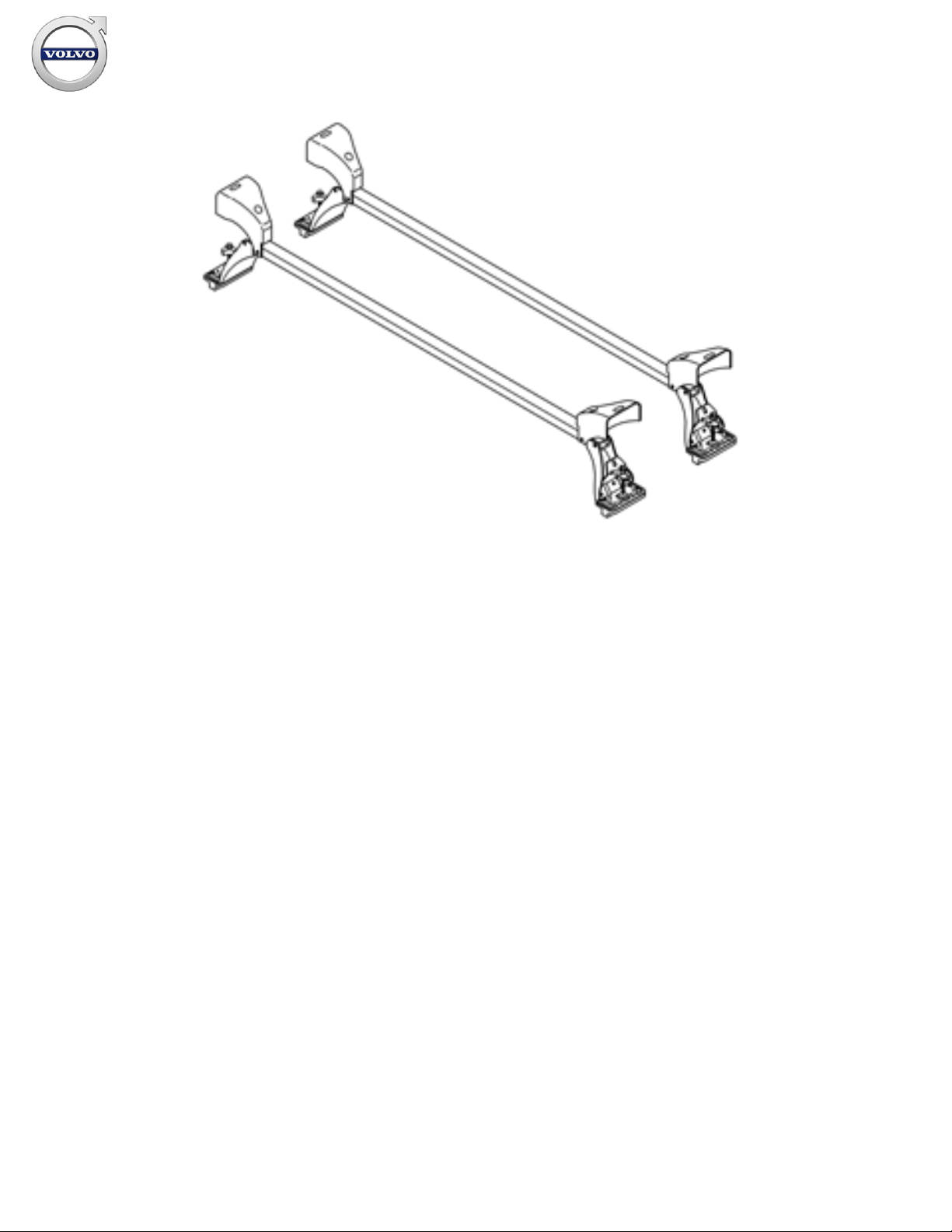

Load carriers

M8902127

Instruction No Version Part. No.

9172448 1.0

Load carriers

M8902127

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation Load carriers- 9172448 - V1.0

Page 1 / 5

M8901692

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation Load carriers- 9172448 - V1.0

Page 2 / 5

INTRODUCTION

Read through all of the instructions before starting installation.

Notifications and warning texts are for your safety and to

minimise the risk of something breaking during installation.

Ensure that all tools stated in the instructions are available

before starting installation.

Certain steps in the instructions are only presented in the form

of images. Explanatory text is also given for more complicated

steps.

In the event of any problems with the instructions or the

accessory, contact your local Volvo dealer.

Positioning and securing the load carriers

1

M8902128

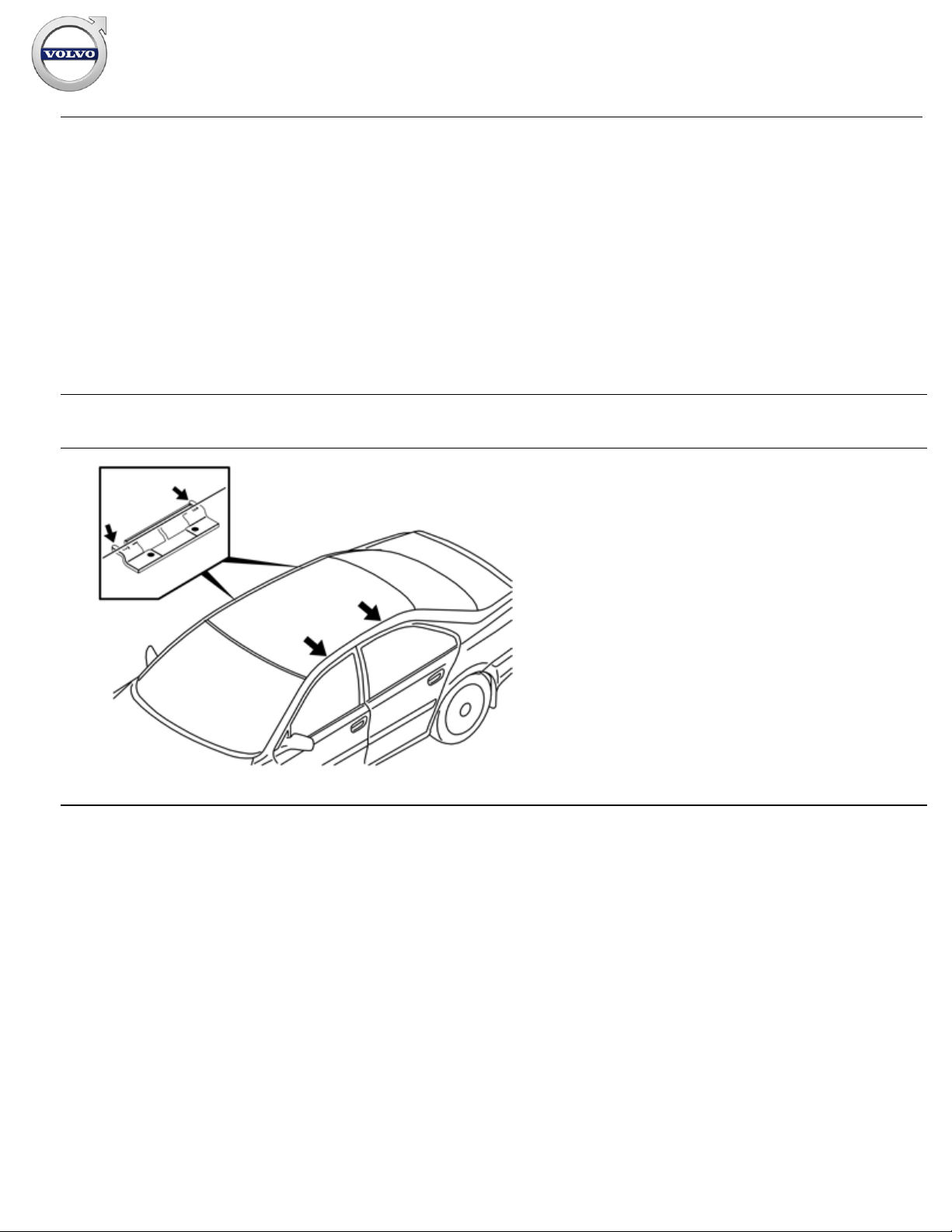

Positioning and securing the load carriers

Find the locating pins for the securing the load carrier. These

locating pins are between the roof edge and the roof trim strip.

See the illustration.

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation Load carriers- 9172448 - V1.0

Page 3 / 5

2A

M8902129

2B

M8901880

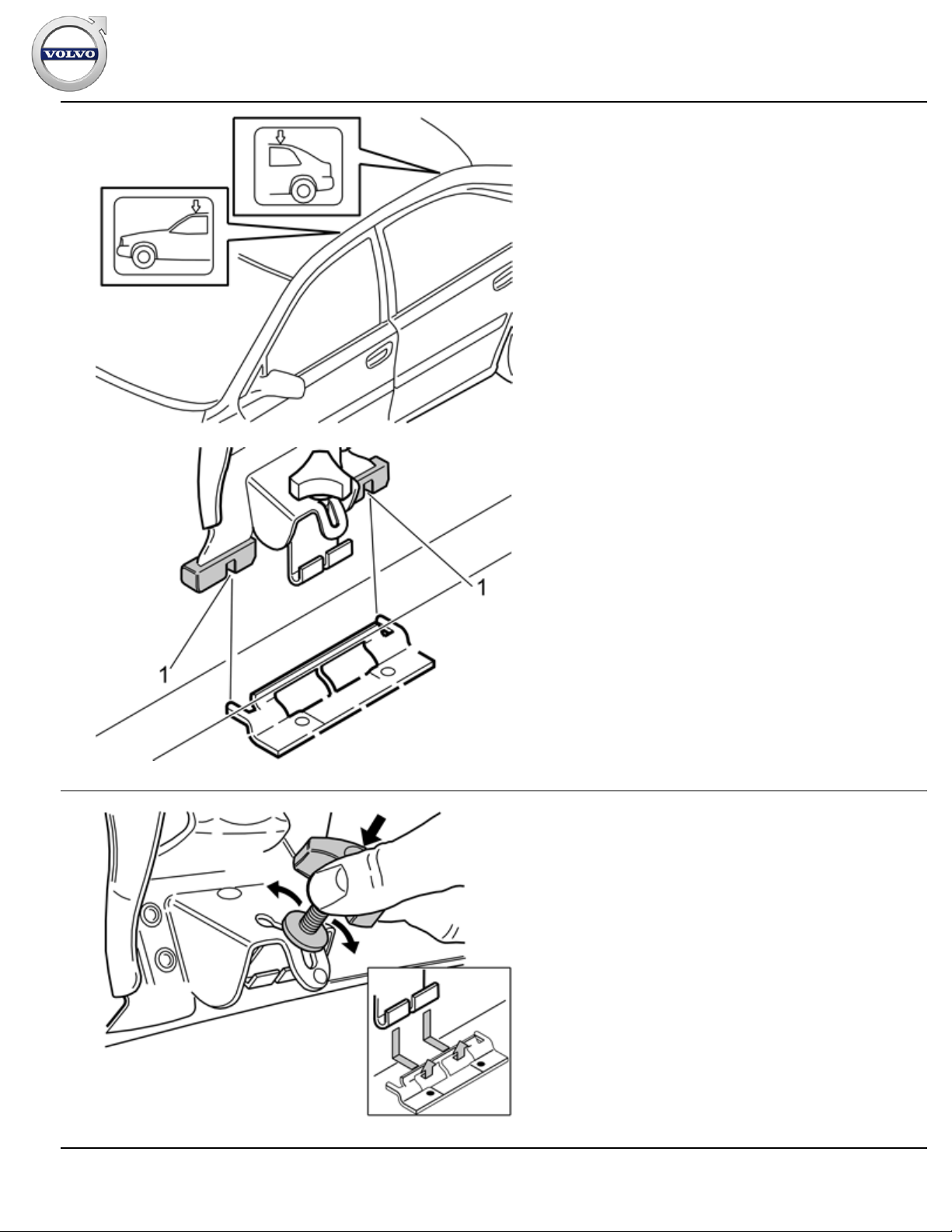

Carry out points 2-4 on both the load carriers, and on both

of their sides:

Position the load carrier according to the decal under the cover

Align the guide holes (1) with the locating pins. Start on one side

Carefully lower the mounting on the other side down towards the

roof. Align the other guide hole for the mounting on the pins in

the same way.

3

M8901838

Tighten the knob slightly

Slide the knob down to the outer position in the groove

Press the knob towards the roof mounting. Hook the hook into

the roof mounting under the roof strip. See the illustration

Check that the hook is secured in the roof mounting

Press the knob all the way back into the groove.

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation Load carriers- 9172448 - V1.0

Page 4 / 5

4

M8901839

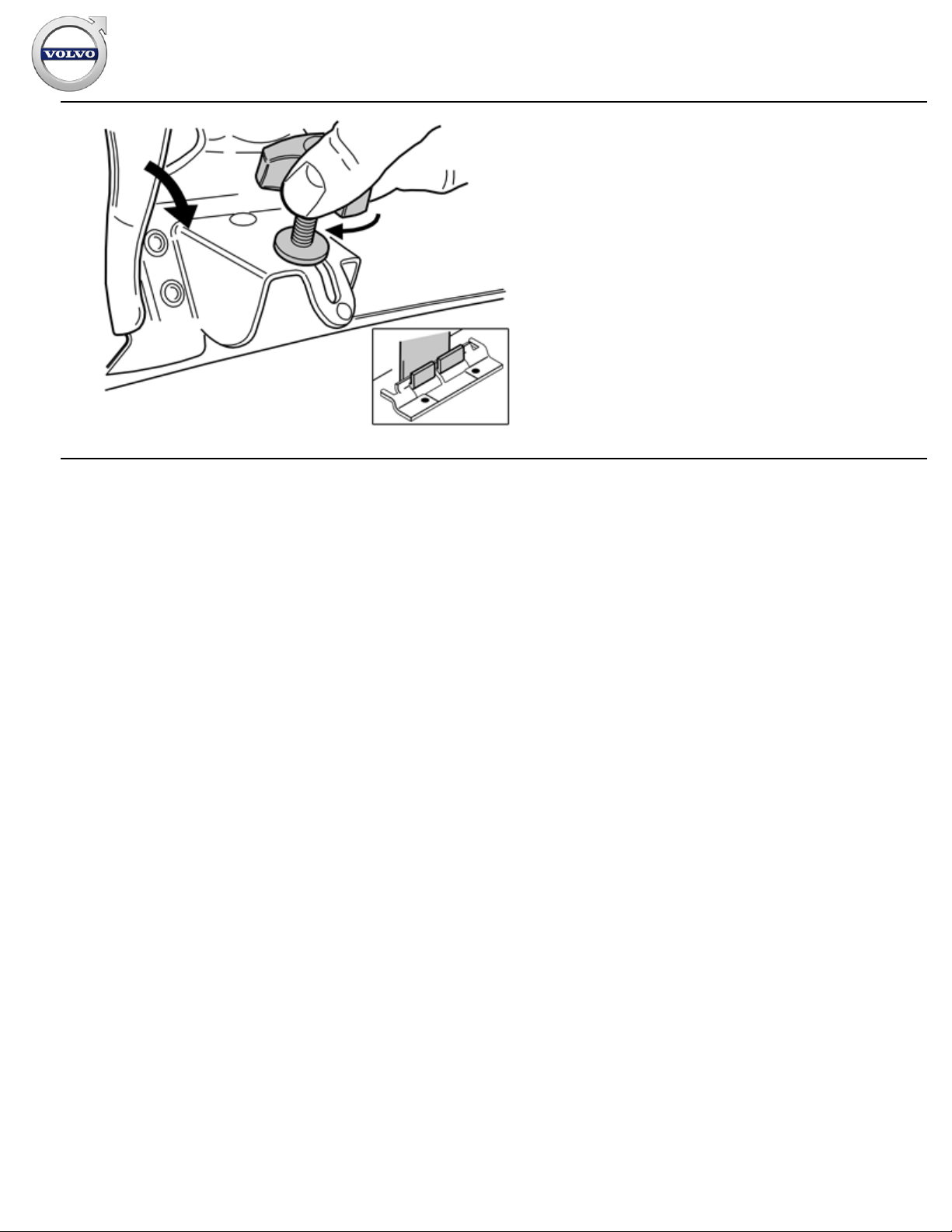

Screw the knob down to the rubber washer

Tighten the knobs alternately until they grip securely

Check that the load carrier is secured

Lower the cover.

Regularly check that the knobs are securely tightened.

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation Load carriers- 9172448 - V1.0

Page 5 / 5
