Volvo RTI S6 Manuale utente
Instruction No Version Part. No.
8685716 1.0
RTI S60
Instruction No Version Part. No.
8685716 1.0
RTI S60
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation RTI S60- 8685716 - V1.0
Page 1 / 34
Equipment

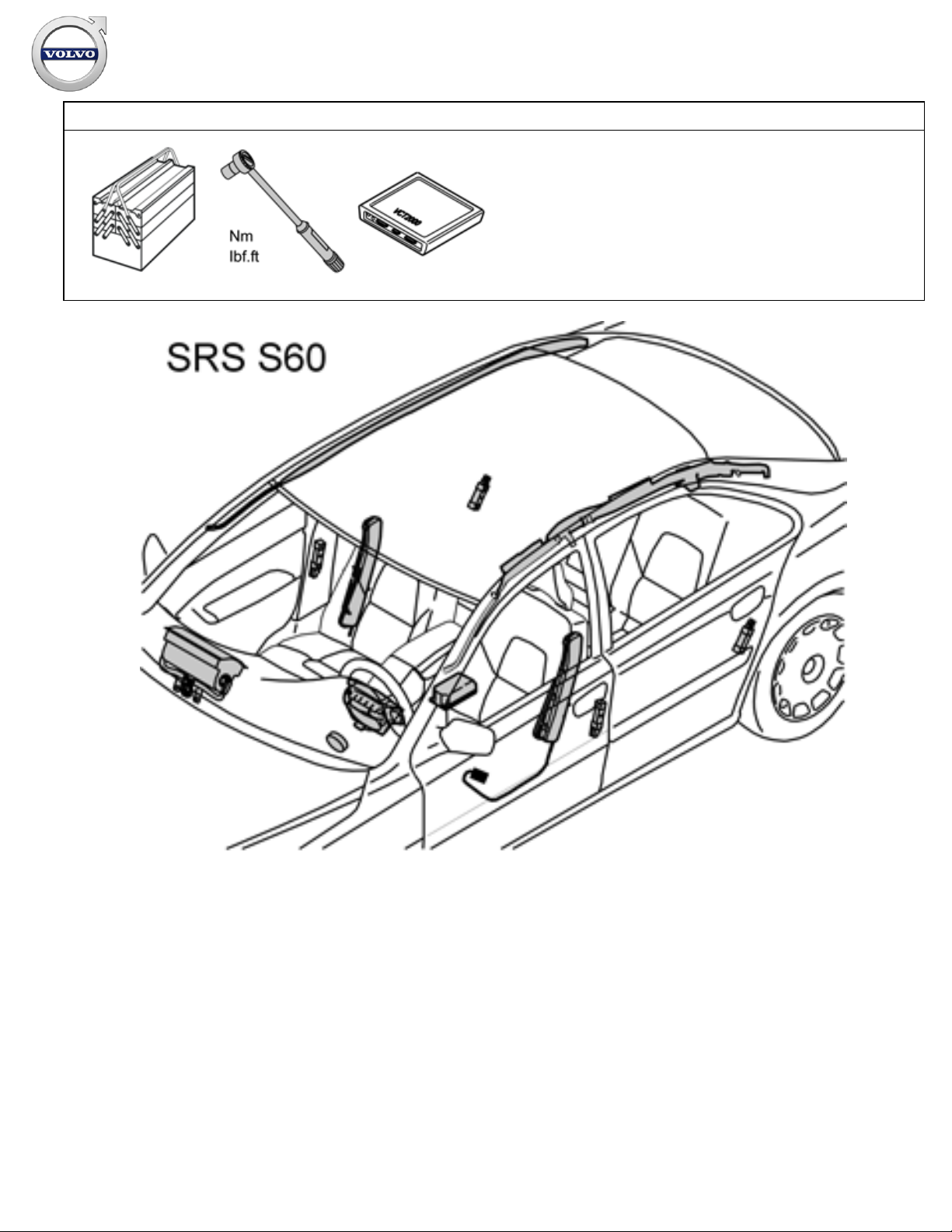

A0000162 A0000161 A0801178
M8802509
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation RTI S60- 8685716 - V1.0
Page 2 / 34

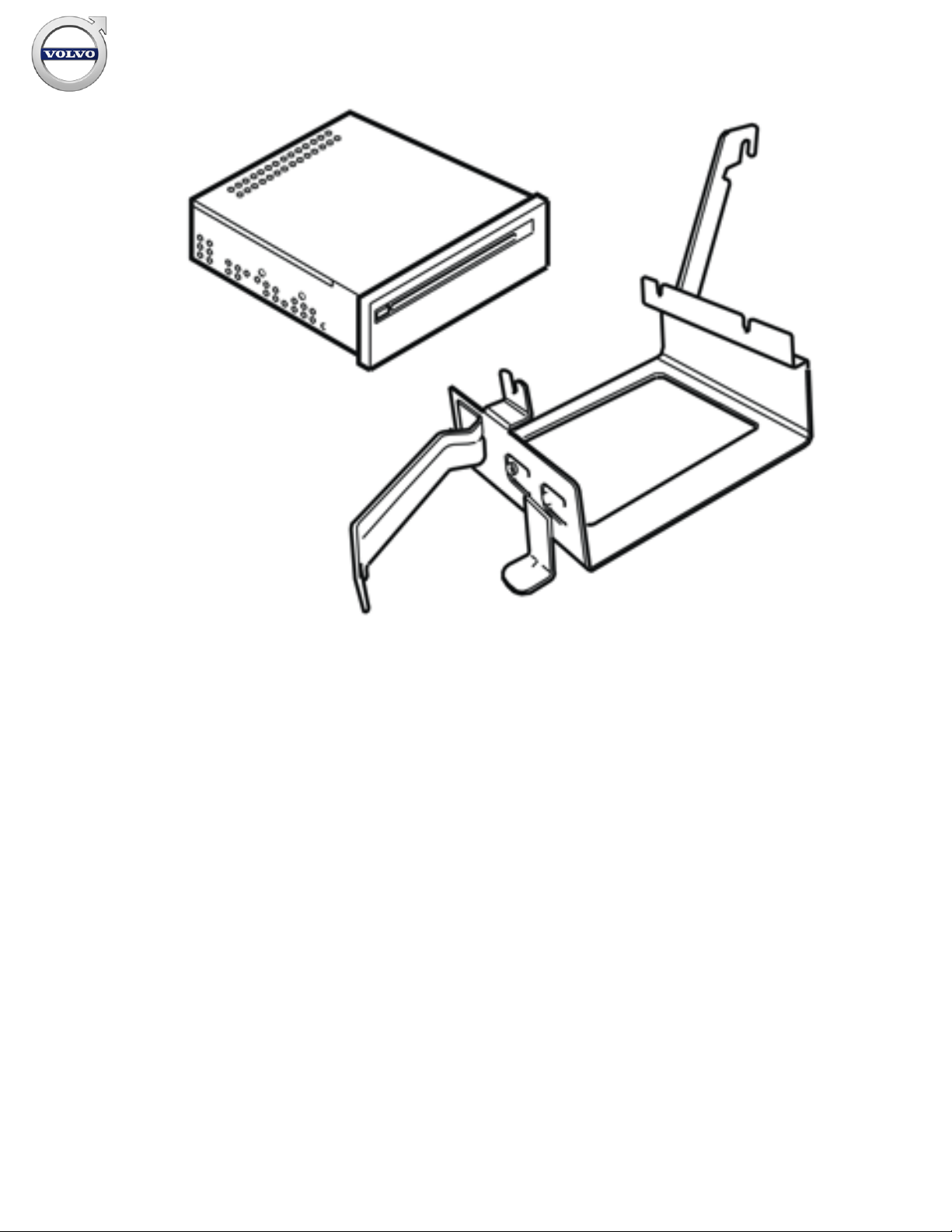

M3903563
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation RTI S60- 8685716 - V1.0
Page 3 / 34

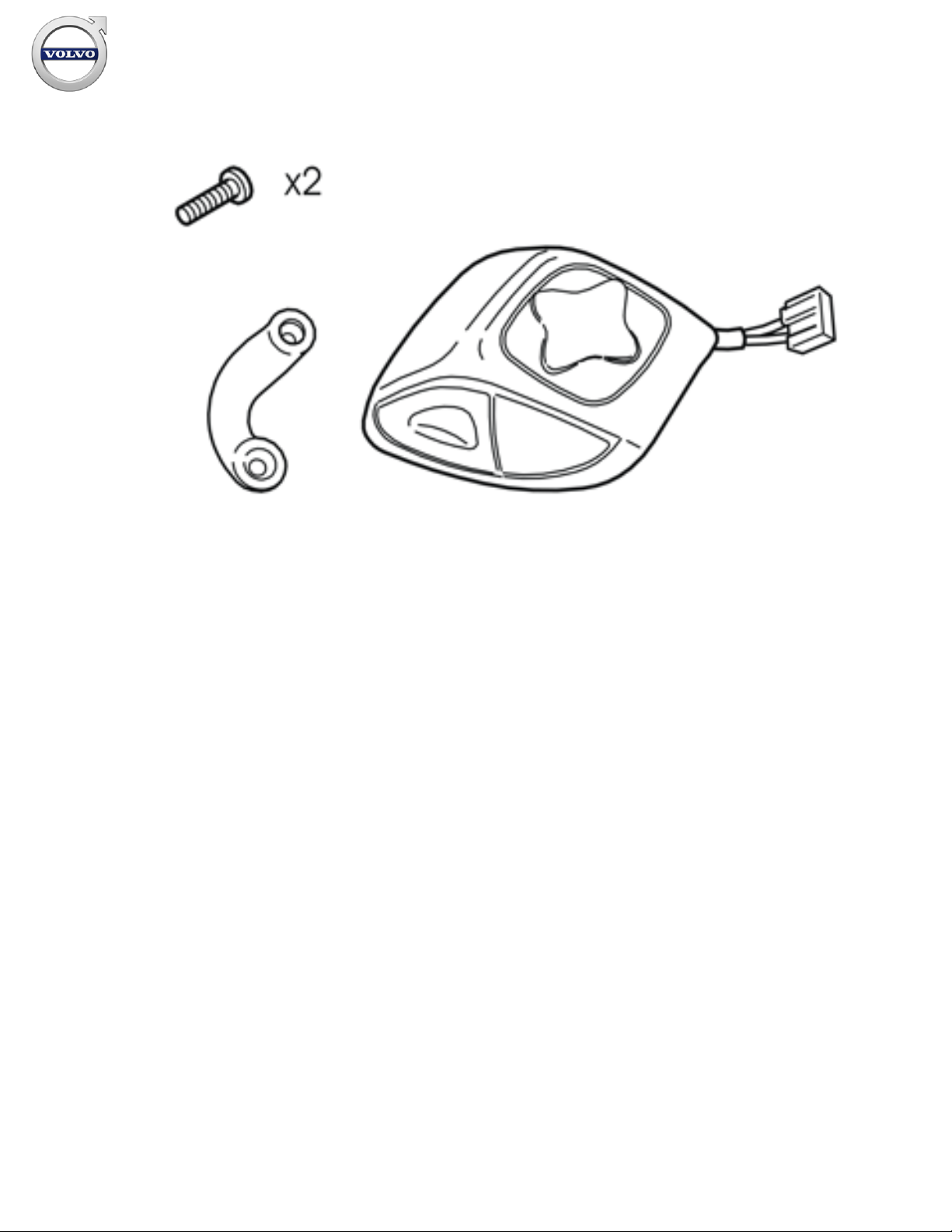

M3903789
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation RTI S60- 8685716 - V1.0
Page 4 / 34

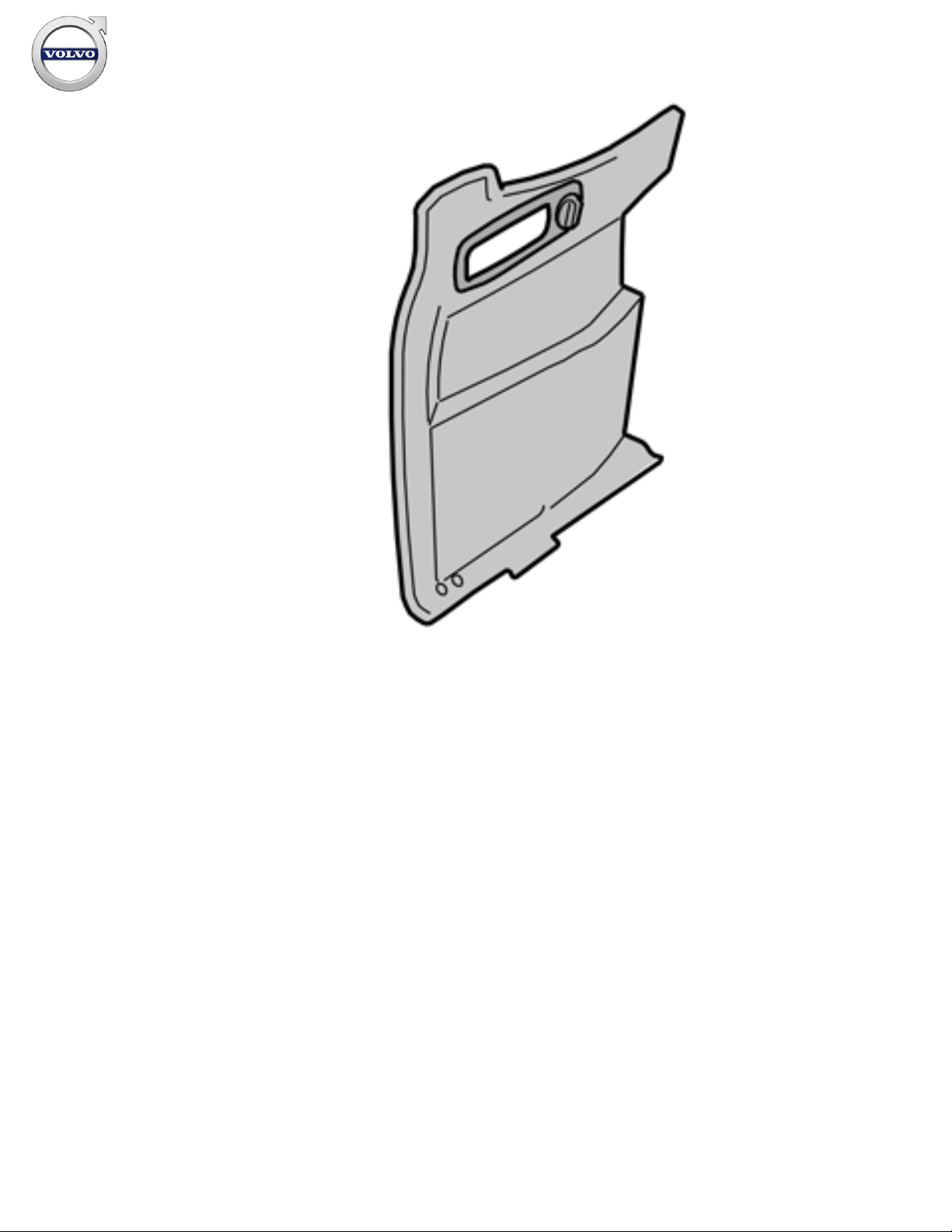

M8503983
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation RTI S60- 8685716 - V1.0
Page 5 / 34
M3903786
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation RTI S60- 8685716 - V1.0
Page 6 / 34
INTRODUCTION
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available
before starting installation.
Certain steps in the instructions are only presented in the form
of images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Note!
This accessory requires software unique to the car.
1
Preparations
Move the left front seat and the gear selector lever to the
rearmost positions.

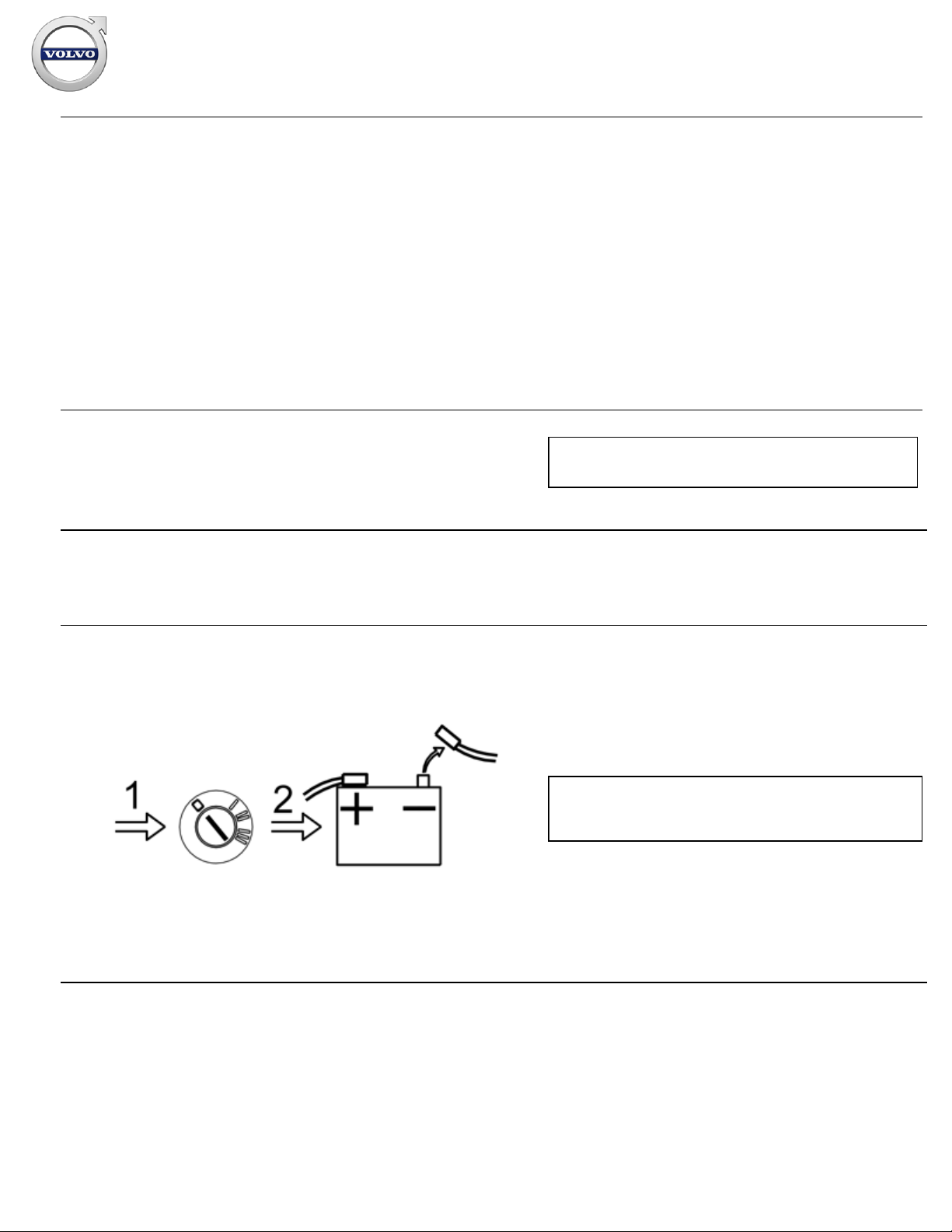

2
A8800136
Turn the ignition key to position 0
Remove the key from the ignition switch (does not apply to cars
with automatic gearboxes)
Disconnect the battery negative lead.
Note!
Wait at least five minutes before disassembling the connectors
or removing other electrical equipment.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation RTI S60- 8685716 - V1.0
Page 7 / 34
3
M3902612
Carefully remove the loudspeaker grille (1) on the dashboard.
Use a weatherstrip tool or similar.
4
M3902613
Remove the screws (1). Remove the bracket (2).
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation RTI S60- 8685716 - V1.0
Page 8 / 34
5
M3902614
Applies to cars with a centrally mounted loudspeaker
Remove the three screws in the loudspeaker (1)
Lift up the loudspeaker. Disconnect the connector (2)
Place the loudspeaker to one side.
6
M8502988
Pry off the panel in front of the gear selector lever. Use a
weatherstrip tool as illustrated. Remove the panel in front of the
gear selector lever.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation RTI S60- 8685716 - V1.0
Page 9 / 34

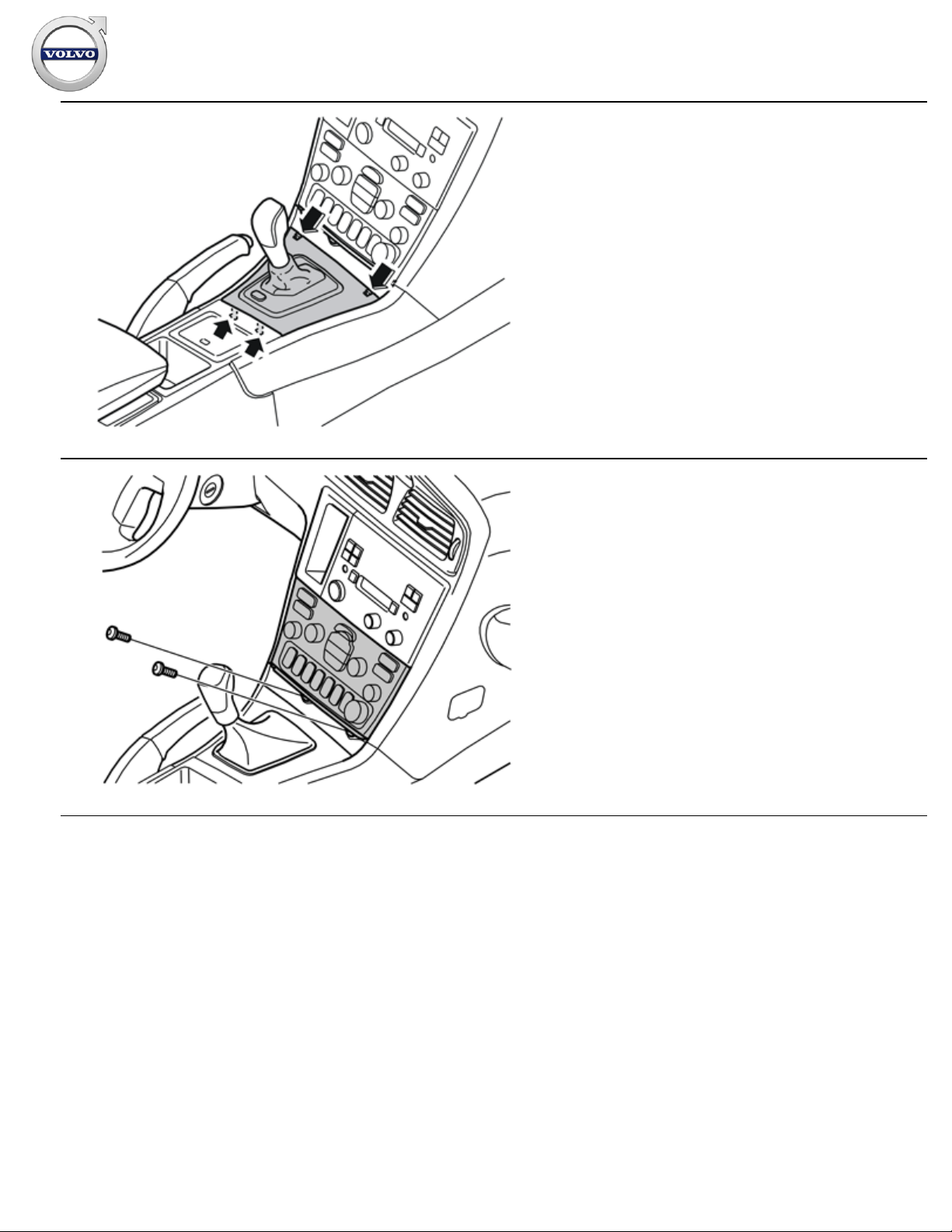

7
M4302463
Press in the catches on the front edge of the gear selector lever
panel. Lift the panel upwards, first the front edge and then the
rear edge. Remove the panel around the gear selector lever.
8
M8503027
Remove the two screws from the dashboard environment panel.
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation RTI S60- 8685716 - V1.0
Page 10 / 34
