Volvo 31339994 Manuale utente
Instruction No
Version
Part. No.
31414547
1.0
31339994

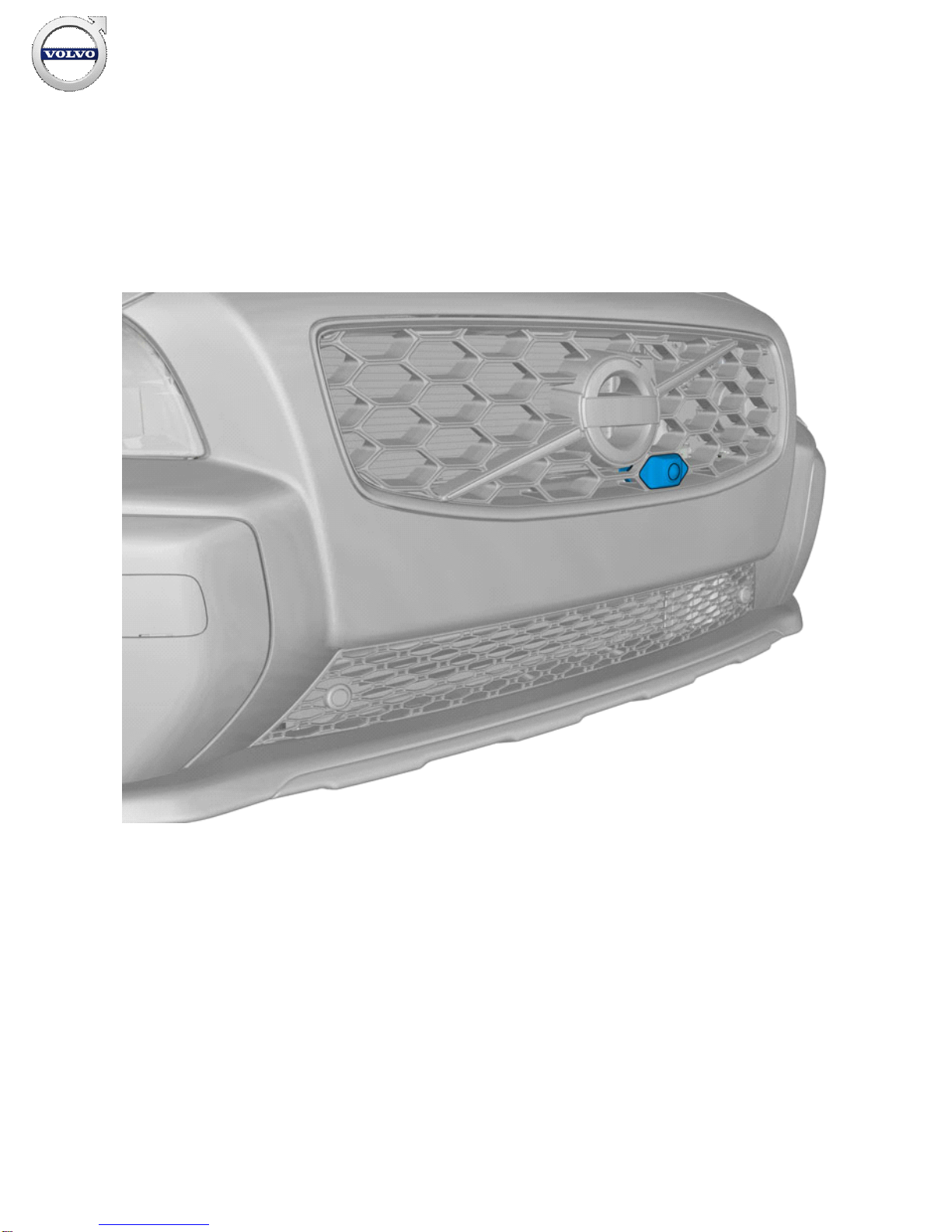

Parking assistance camera wide angle front (2013w46
-)
IMG-
376581
Instruction No
Version
Part. No.
31414547
1.0
31339994
Parking assistance camera wide angle front (2013w46
-)
IMG-
376581
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Parking assistance camera wide angle front (2013w46
-)-
31414547
-
V1.0
Page 1 / 40
Materials
Designation
Part number
Low temperature grease
1161427
Equipment
IMG-
242205
IMG-
345497
IMG-
300203
IMG-
327738
IMG-
239667
IMG-
244945
IMG-
380836
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Parking assistance camera wide angle front (2013w46
-)-
31414547
-
V1.0
Page 2 / 40
Information
1
Read through all of the instructions before starting installation.
Notifications and warning texts are for your safety and to
minimise the risk of something breaking during installation.
Ensure that all tools stated in the instructions are available before
starting installation.
Certain steps in the instructions are only presented in the form of
images. Explanatory text is also given for more complicated
steps.
In the event of any problems with the instructions or the
accessory, contact your local Volvo dealer.
Conditions
2
IMG-
332179
Set the ignition key to position 0.
Remove the battery's negative cable.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Parking assistance camera wide angle front (2013w46
-)-
31414547
-
V1.0
Page 3 / 40
3
IMG-
363036
1. Used for focused component, the component with which you
will do something.
2. Used as extra colors when you need to show or differentiate
additional parts.
3. Used for attachments that are to be removed/installed. May be
screws, clips, connectors, etc.
4. Used when the component is not fully removed from the
vehicle but only hung to the side.
5. Used for standard tools and special tools.
6. Used as background color for vehicle components.
Note!
This colour chart displays (in colour print and electronic
version) the importance of the different colours used in the
images of the method steps.
Removal
4
IMG-
354313
Remove the panel.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Parking assistance camera wide angle front (2013w46
-)-
31414547
-
V1.0
Page 4 / 40
5
IMG-
354315
Remove the weatherstrip.
6
IMG-
354318
Remove the panel.
7
IMG-
354319
Remove the panel.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Parking assistance camera wide angle front (2013w46
-)-
31414547
-
V1.0
Page 5 / 40
8
IMG-
344930
9
IMG-
354320
10
IMG-
349804
Remove the panel.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Parking assistance camera wide angle front (2013w46
-)-
31414547
-
V1.0
Page 6 / 40
11
IMG-
349806
Remove the screws.
12
IMG-
345282
Remove the screws.
Cars with manual transmissions
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Parking assistance camera wide angle front (2013w46
-)-
31414547
-
V1.0
Page 7 / 40
13
IMG-
345747
Release the catch which is located inside the gear lever boot.
14
IMG-
347222
Cars with automatic transmissions
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Parking assistance camera wide angle front (2013w46
-)-
31414547
-
V1.0
Page 8 / 40
15
IMG-
345283
16
IMG-
345284
Release the shift-lock function.
17
IMG-
341878
Remove the panel.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Parking assistance camera wide angle front (2013w46
-)-
31414547
-
V1.0
Page 9 / 40
18
IMG-
346036
Remove the panel.
19
IMG-
340599
1. Fold the carpet to the side.
2. Unhook the clip(s).
3. Disconnect the connector.
20
IMG-
353601
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
©
Volvo Car Corporation
Parking assistance camera wide angle front (2013w46
-)-
31414547
-
V1.0
Page 10 / 40
