Volvo 2016 XC 90 Twin Engine Manuale utente
QUICK GUIDE
WEB EDITION
VÄLKOMMEN!
Options in the Quick Guide are highlighted with an asterisk *.
The car's
centre display
The owner's manual is available in the car's centre display,
where it can be accessed via the top view.
Mobile app The owner's manual is available as an app (Volvo Manual) for
smartphones and tablets. The app also contains video tutorials
for selected functions.
Volvo's support
site
Volvo's support site (support.volvocars.com) contains manuals
and video tutorials, as well as additional information and assis-
tance for your Volvo and your car ownership.
Printed
information
There is a supplement to the owner's manual in the glovebox
that contains information on fuses and specifications, as well
as a summary of important and practical information. A printed
owner's manual and associated supplement can be ordered.
This Quick Guide describes a range of the functions in your Volvo. More detailed owner's information is available in the car, in the app and on the web.
01. GETTING STARTED
Here you will find information that will help you learn about some of the basic functions in your Volvo. Amongst other things, you
can read about the remote control key, the car's three displays as well as how to start the engine on and switch it off. There is
also information on how to control and adjust the seats and climate control.
02. HYBRID-RELATED INFORMATION
Amongst other things, you will find information here about how to start and finish charging the hybrid battery.
03. DRIVING AND DRIVER SUPPORT
Here you will find information about drive modes and different driver support functions in the car such as cruise control, Park
Assist Pilot (PAP)*, Blind Spot Information (BLIS)* and City Safety.
04. INSTRUMENTS AND CONTROLS
Here you will find information about how to control lights and wipers as well as how to use the trip computer and voice control.
05. CONNECTION, ENTERTAINMENT AND SUPPORT
From your Volvo you can connect to the outside world and get access to information, entertainment and support. This section
contains information on how to connect a phone to your Volvo, connect to the Internet and use apps.
06. SPECIAL TEXTS
Warning, important and note texts, which must be read.

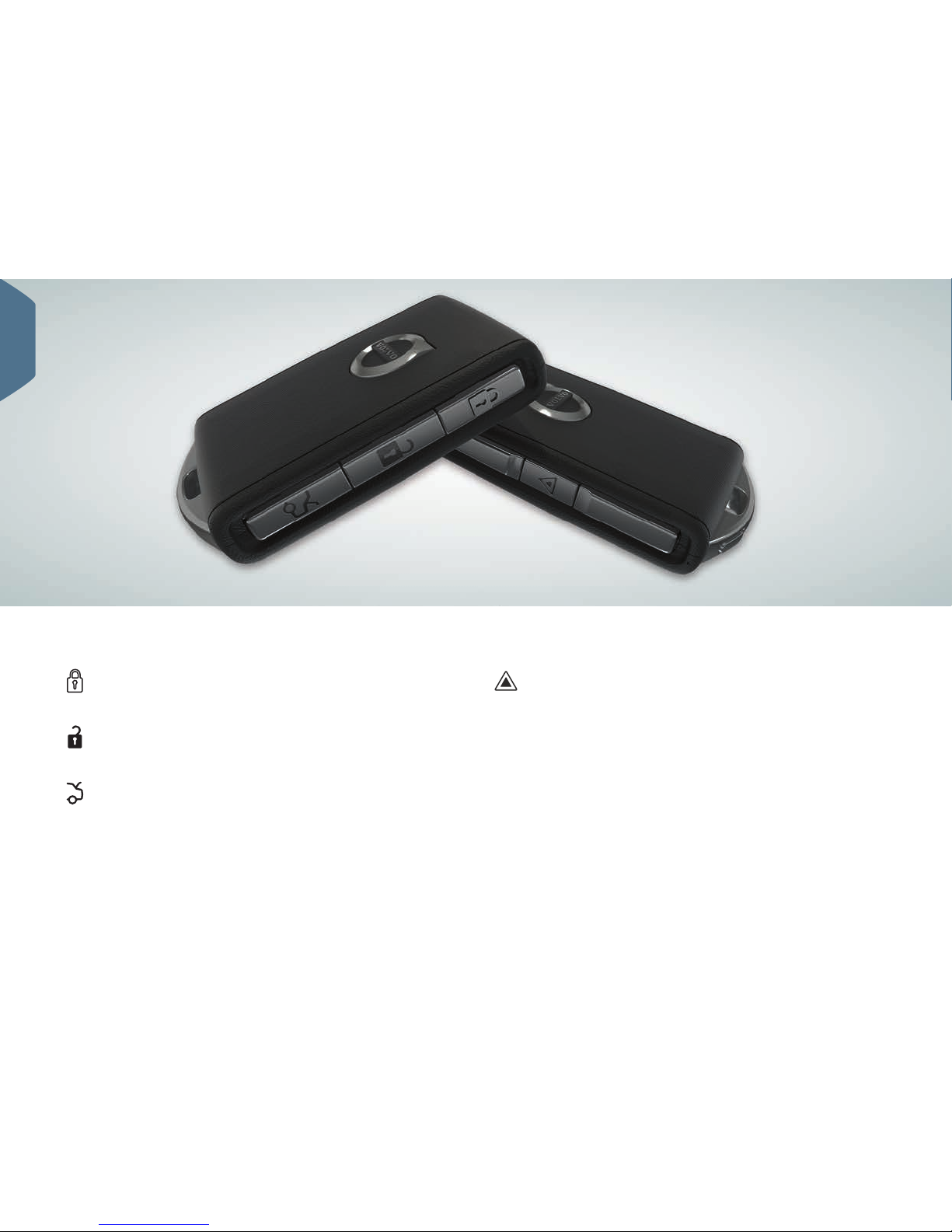

One press locks doors and tailgate and arms the alarm1. A
long press closes the panoramic roof* and all side windows
simultaneously.
One press unlocks doors and tailgate and disarms the alarm.
A long press opens all side windows simultaneously.
One press unlocks and disarms the alarm for the tailgate only.
A long press opens or closes the power operated* tailgate.
REMOTE CONTROL KEY BUTTONS
1Option in certain markets.
The panic function is used in an emergency to attract
attention. One long press of at least 3 seconds or double
press within 3 seconds activates the direction indicators
and horn. The function is deactivated automatically after
approx. 3 minutes or by pressing the same button after the
function has been activated for at least 5 seconds.
01
USING KEYLESS LOCKING/UNLOCKING*
You simply need to have the remote control key with you in a pocket,
for example, in order to lock or unlock the car. The remote control key
must be within a semicircular area of radius approx. 1.5 metres from
both long sides or approx. 1 metre from the tailgate (see illustration).
Unlock and disarm the alarm
1. Grasp a door handle or press the rubberised pressure plate beneath
the tailgate handle in order to unlock the car. Unlocking is complete
when the car's hazard warning flashers flash twice and the lock
indicator in the windscreen extinguishes.
2. Open a door or the tailgate.
Lock and arm the alarm
1. Close all doors. The tailgate can be open during locking with the
side door handles.
2. Touch the marked surface towards the rear on the outside of an
outer door handle or press the lock button on the bottom edge of
the tailgate before closing it. Locking is complete when the car's
hazard warning flashers flash once and the lock indicator in the
windscreen starts flashing.
01
SETTING THE POWER* FRONT SEAT
Adjust the backrest rake by pressing the control forward/backward.
Raise/lower the seat by means of pressing the rear section of the
control up/down. Move the seat forward/backward by pressing the
control forward/backward.
Raise/lower the front edge of the seat cushion by means of pressing
the front section of the control up/down.
Settings for massage*, side support*, lumbar support* and seat cushion
extension are linked to the multi-function control*.
1. Activate seat settings by turning the control up/down. The seat
settings view opens in the centre display.
2. Select the desired function in the centre display by turning the
multifunction control up/down.
3. Change the setting by pressing the multi-function control's button
up/down/forward/backward.
Certain settings can also be selected with a tap directly on the centre
display.
Change the lumbar support by pressing the button up/down/forward/
backward.
01

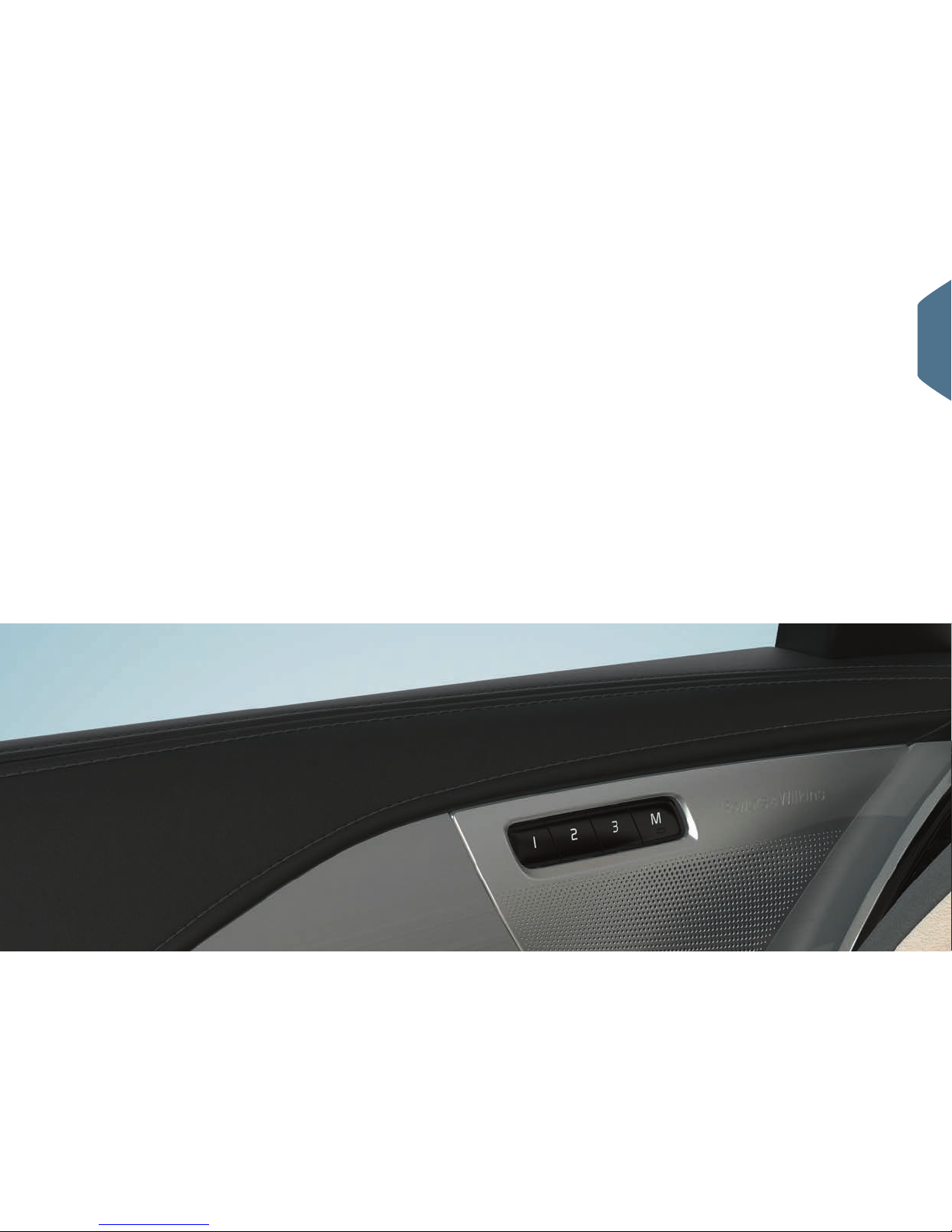

The memory function's keypad is either on one or both front doors.
Store setting
1. Set the seat, door mirrors and head-up display* to the desired
position.
2. Press the Mbutton and release to store settings. The light indicator
in the button illuminates.
3. Within three seconds, depress the memory button 1, 2or 3. When
the position is stored in the selected memory button, an acoustic
signal sounds and the light indicator in the Mbutton extinguishes.
Using stored setting
With the door open: Depress one of the memory buttons and
release.
With the door closed: Hold one of the memory buttons depressed
until the stored position is reached.
USING THE MEMORY FUNCTION* IN THE FRONT SEAT
01
FOLDING THE BACKRESTS IN THE REAR SEATS
Ensure that backrests with head restraints do not come into contact
with the rear of the seat in front when lowering. Front and rear seat
may need adjusting in order for the backrests to be lowered.
Second row of seats' centre seat
1. Fold down the head restraint manually by depressing the button
between the backrest and the head restraint. At the same time,
push the head restraint down.
2. Pull the belt in the centre seat up/forward whilst folding.
Second row of seats' outer seats
– Pull the handle on the side of the outer seats upward while folding.
The head restraint is lowered automatically.
Third row of seats
– Pull the handle on the top of the backrest upward/forward. Fold the
backrest forward. The head restraint is lowered automatically.
The belt/handle must be pulled upwards while raising the second seat
row. Raise the backrests until the catch engages. Head restraints are
extended manually.
01
ADJUSTING THE STEERING WHEEL
The steering wheel can be adjusted for both height and depth.
1. Push the lever under the steering wheel downwards to release the
steering wheel.
2. Adjust the steering wheel to the desired position.
3. Pull the lever back to secure the steering wheel in position.
ENTRY/EXIT TO/FROM THE THIRD ROW OF
SEATS
1. On the second seat row's outer seats, pull the handle on the top of
the seat backs upward/forward.
2. Fold the backrest forward and slide the whole seat forward.
Raise the seat to the upright position by first sliding back the seat and
then raising the backrest until it locks.
01

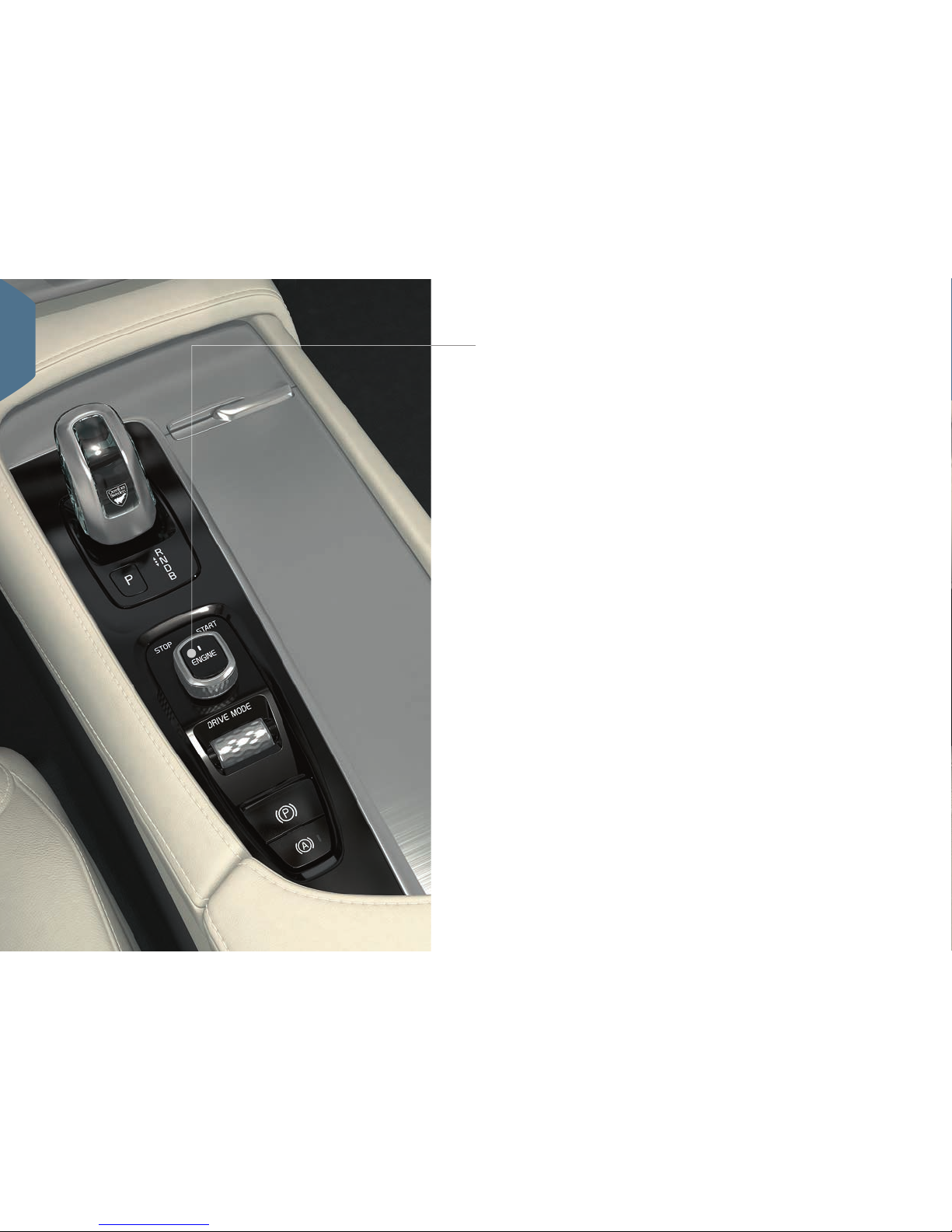

STARTING AND SWITCHING OFF THE ENGINE
The remote control key is not physically used during starting since
the standard version of the car is equipped with support for keyless
start (Passive Start). Store the key in the front part of the passen-
ger compartment during a keyless start. With the option for keyless
locking/unlocking (Passive Entry*) it is sufficient to have the key
somewhere in the car in order for the engine to be started.
Starting
1. Make sure that gear position Por Nis selected.
2. Depress the brake pedal.
3. Turn the ignition dial to START and release. The ignition dial
automatically returns to its starting position.
Selecting gear position
– Change gear position by pressing the spring-loaded gear selector
forwards or backwards to the desired gear. The selected position
will be shown in the driver display.
The park position is activated via the Pbutton located next to the gear
selector. Change from P-position to Ror D-position by means of two
presses with the gear selector forward or backward.
Brake position B(which can be selected at any time while driving)
engine-brakes the car and charges the hybrid battery when the accel-
erator pedal is released.
Switching off
– Turn the ignition dial to STOP and release. The ignition dial
automatically returns to its starting position.
01
