Volvo S80 - Guida rapida

●Cars with SRS

●Content

●Electrical distribution early design 1:2, 2:2

●Electrical distribution late design 1:2, 2:2

●Main fuses in trunk

●Fuses by rear seat

●Ground connections 1:2, 2:2

●Location of components

●Group 35

❍Instrument and control lighting

●Group 36

❍Cigarette lighter

●Group 39

❍Rear seat TV

❍Fax

●Group 85

❍Electrically heated seats

●Group 87

❍Rear seat cooling box

●Group 88

❍Electrically operated sun curtain

Frame contained PDF file, click here to view

1

Electrical distribution

Early design ................................................................................ 2

Late design ................................................................................. 4

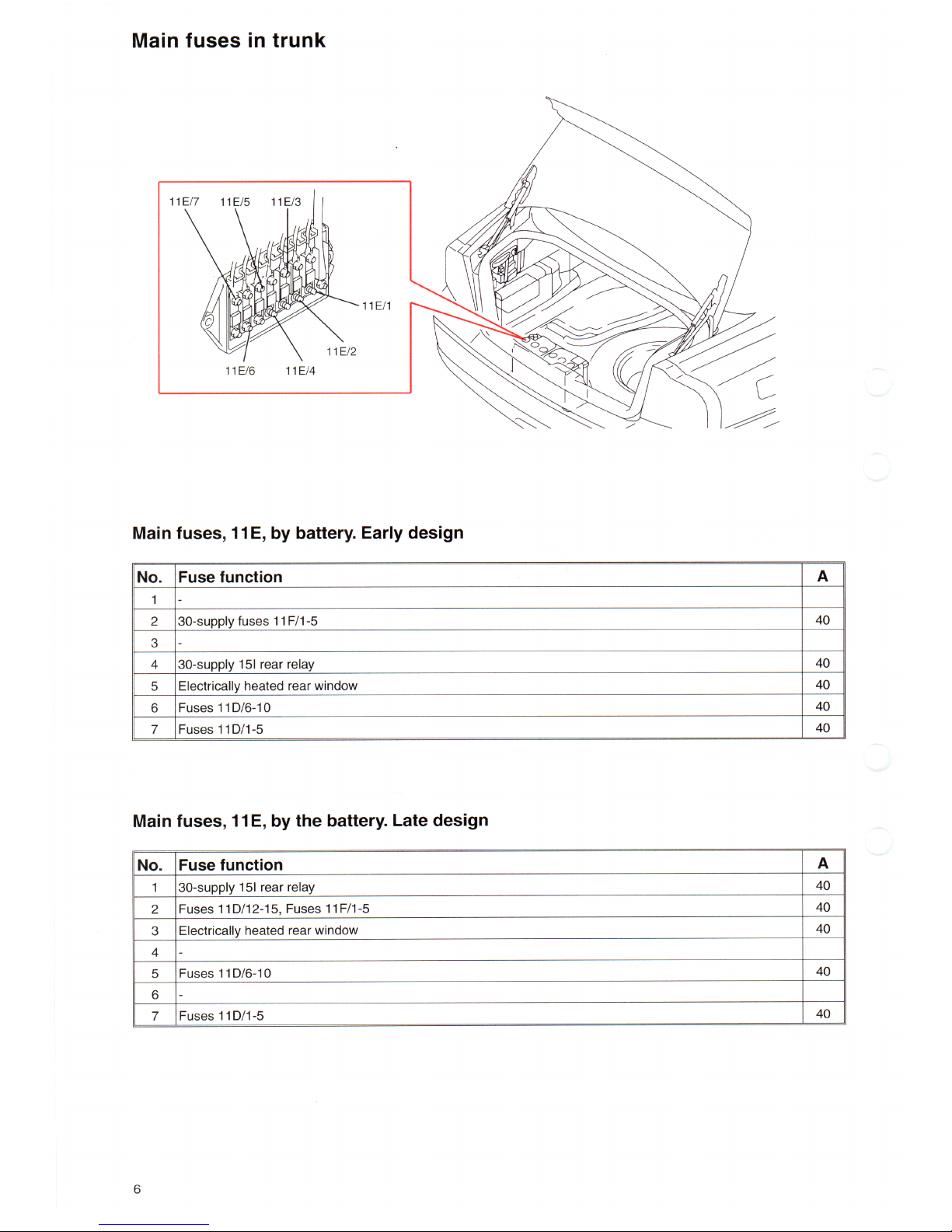

Main fuses in trunk .......................................................................... 6

Fuses by rear seat ........................................................................... 7

Ground connections ........................................................................ 8

Location of components .................................................................. 10

Group 35

Instrument and control lighting ........................................................ 11

Group 36

Cigarette lighter ............................................................................... 12

Group 39

Rear seat TV ................................................................................... 13

Fax ................................................................................................... 14

Group 85

Electrically heated seats .................................................................. 15

Group 87

Rear seat cooling box ...................................................................... 16

Group 88

Electrically operated sun curtain ..................................................... 17

List of components (fold-out sheet) ....................... at back of manual

Contents

Order number: TP 3948201

Volvo reserves the right to make any amendments to the information contained herein.

This manual deals with the electrical functions specific to the S80 Executive 2000-. The service

manual wiring diagram S80 2000 can also be used for the rest of the electrical system.
