SMART CENTRE
VIDEO INTERCOM SYSTEM
USERS’ MANUAL
VOOK INTELLIGENT TECHNOLOGY
MANUAL CODE: VHD-M1743MX
1
Contents
INSTALLATION MANUAL
Cover
Contents 1
Installation Guide 2
Features & Specifications 3
DescriptionsforMonitor 4
Descriptions for Doorbell/Camera 5
Wiring Diagrams and Schematics 6-11
Installation 12-13
OPERATION GUIDE
Operation Guide 14
SystemSettings 15-19
CareInstructions 19
2
Installation Guide
3
FEATURES & SPECIFICATIONS
Features
Dual communication & Call Transfer
Door Release
Image capture (option without memory, 8 or 64 Pictures memory )
Picture memories with date and time
By no answer, automaticly picture memory
TV/MUSIC Playing
CCTV Surveillance
Supports 2 cameras and 8 Monitors
Monitor/Intercom/Broadcast
System settable (Time/volume/Brightness/Contrast/Color)
Hands free surface/flush mounted, 7 inch TFT Screen
Technical Specifications:
Monitor
Display screen 7 inch TFT
Resolution > 400 TV lines
Scan frequency 15,625Hz(H)×50Hz(V)
Power voltage DC 18V 800mA
Video input 75ς1Vp-p（CCIR standard）
Power consumption 1.5w ～12 w
Wiring mode 4 wires，polar
Dimension 260（W）× 195（H）×44（D）
Doorbell/Camera
Camera 1/3 inch color
Resolution 380 TV lines
Video output 75ohm 1Vp-p（PAL standard）
View angle 78-degree wide-angle camera
Min illumination 0 Lux
Night vision light 6 infrared LED
Power voltage DC 12v
Power consumption 2w
4

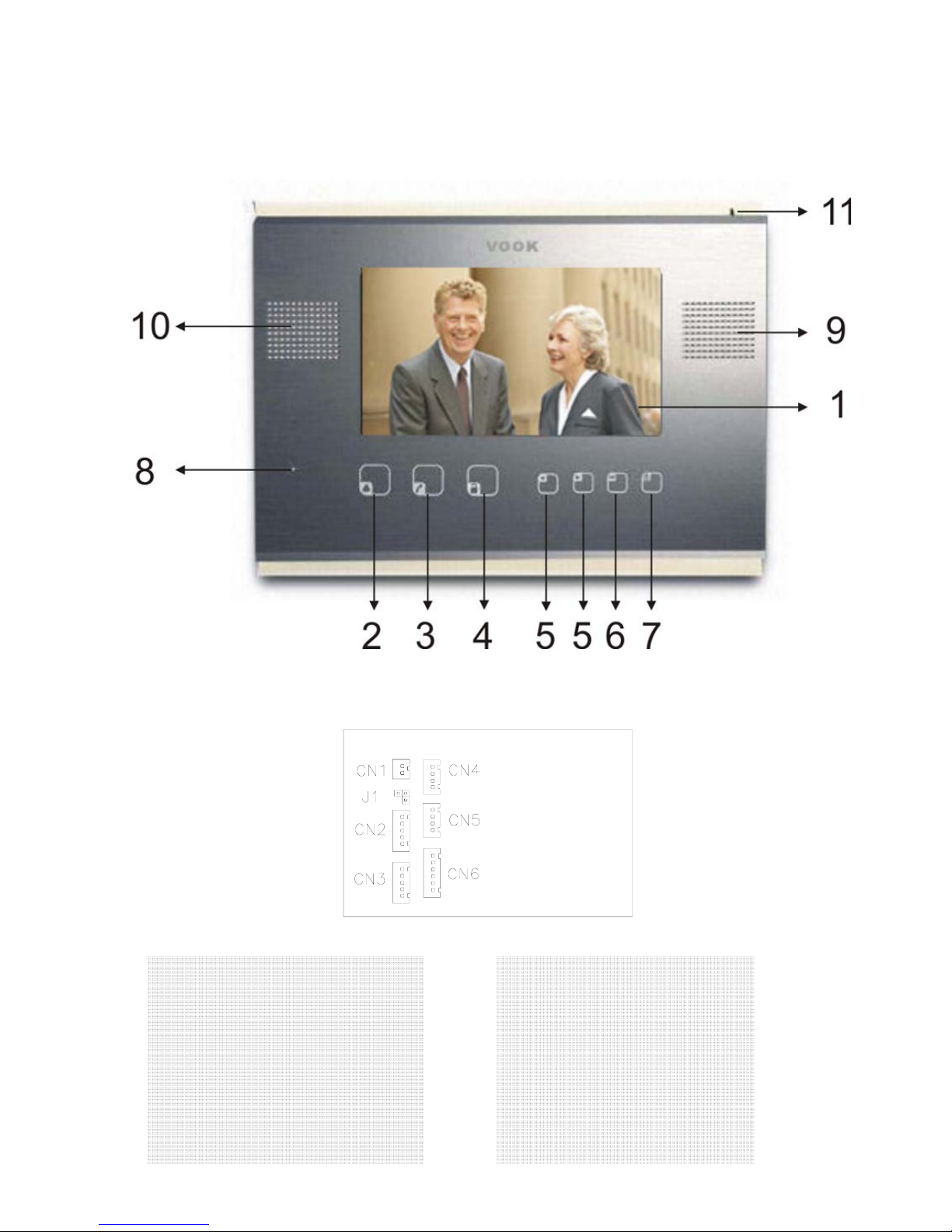

DESCRIPTIONS OF MONITOR
7. Image Capture
8. Microphone
9. Speaker
10. Siren
11. Indicator
1. LCD Screen
2. Monitor/Answer Button
3. Intercom Button
4. Door Release
5. Adjustment: Left/Right
6. On/Off Button
5
DESCRIPTIONS OF DOORBELL CAMERA
1. Camera
2. Infrared LED
3. Call button
4. Loud speaker
5. Microphone
6
WIRING DIAGRAMS AND SCHEMATICS
Cable and Connections for Doorbell/Camera
z1R：+12V power supply positive for Doorbell/camera
z2B：GND power supply ground for Doorbell/camera
z3Y：VIDEO image signal transmitting line
z4W：AUDIO talk and control lines
Cable and Connections for Monitor
Connection block CN1：
18V,GND：Terminals for Power Supply Input
Connection block CN2：
12V,GND,AU1,VD1,UNLOCK1+(SDOOR1):
T
erminals
for
P
ower
supply/Ground/A
udio/Video/Unloc
k for
the
Doorbell/camer
a1.
Connection block CN3：
12V,GND,AU2,VD2,UNLOCK2+(SDOOR2)：
Terminals for Power supply/Ground/Audio/Video/Unlock for the
Doorbell/camera2.
7
Connection block CN4：
Standby Block
AU3,GND,VD3,GND：
Terminals for Expanded Audio/Ground/Expanded Video/Ground
Connection block CN5：
VD4,VD5,VD6,GND：
Terminals for Expanded Video/GND
Connection block CN6：
+18V,GND,DATA,AU,VD,GND：
terminals for Power+/Power Ground/Data/Audio/Video/Video Ground
System Schematics
2 Cameras, 2 Latches
Multiple Monitors
8
Wiring Diagrams
1 Camera, 1 Latch
1 Monitor
9
Wiring Diagrams
2 Cameras, 2 Latches
1 Monitor
