VOON DOT
QUICK START GUIDE
INTRODUCTION
WARNING
Please refer to the guide "Important product and safety information" for important product
information and warnings.
Product Overview.
Latest generation device based on reaction lights used by athletes for sports training.

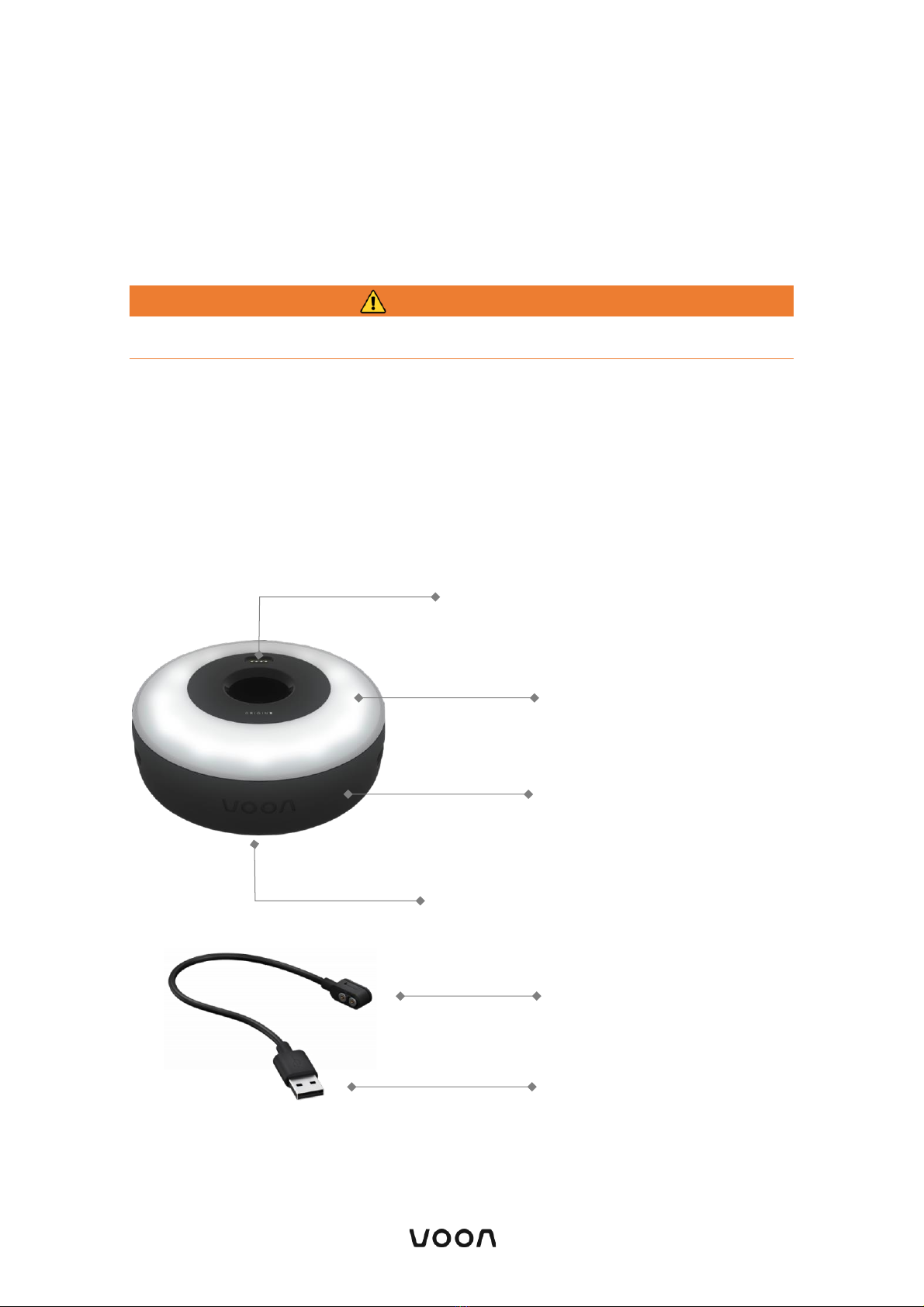

A. LED lighting area
B. Top-loading connector
C. Bottom-loading connector.
D. Grip zone.
Top-loading connector
LED lighting area
Grip zone
Bottom-loading connector
Magnetic charging connector
USB charging connector
03 l
LINK TO THE SMARTPHONE
To congure the Voon Dot device, it must be connected directly to the Voon Sports application and
not from the Bluetooth settings of your smartphone.
1 From your smartphone's app shop, download and open the Voon Sports app.
2 Create a user if you have not already created one.
3 Make sure your Bluetooth is on and the app has the Bluetooth permission enabled.
4 Touch the Dot icon (visible at the top right of the screen)

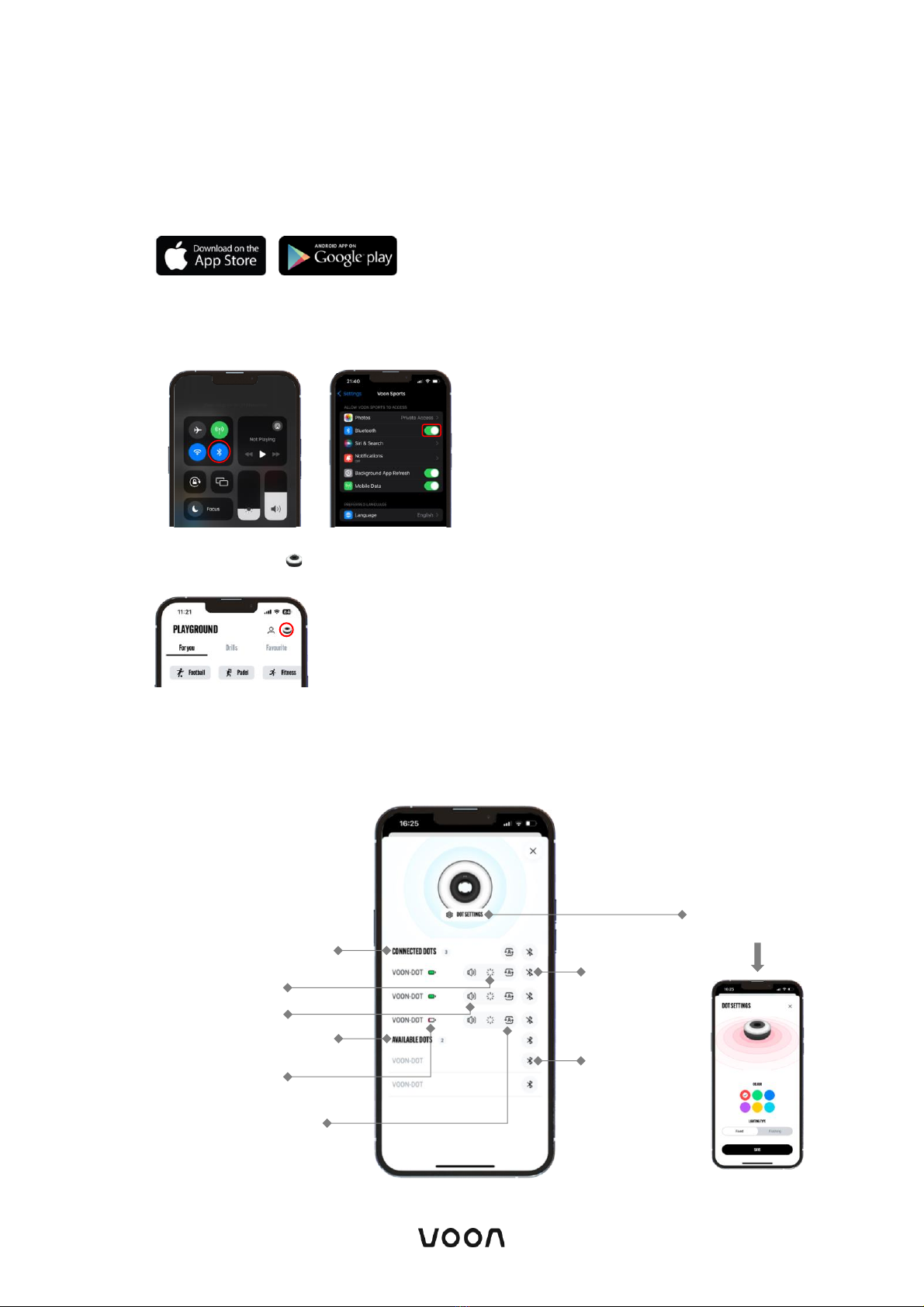

5 On the "Dot Conguration" screen, you will see two lists, one with the available Dots (all Dots in
range that are not connected to any device) and another with the Dots that are already connected
to the smartphone.
List of available Dots to link
Connect the
available Dot
List of connected Dots
Disconnect the
connected Dot
Setting of the Dot
lighting type and
favourite colour.
Light up the Dot
Dot sounds
Automatically switch on the Dot
Dot battery status
04 l
Use the actions next to the title to apply the settings to all the Dots in the list at once or click on
an individual Dot to apply the settings to that specic Dot.
If a Dot has been inactive for more than 10 minutes and is not linked to a smartphone, it goes into
a "sleeping" state (battery saving mode). In order to "wake it up" and make it possible to connect to
it, it is enough to tap it or connect the charging cable to it. If the Dot is linked to a smartphone, it
will never go into "sleep" mode.

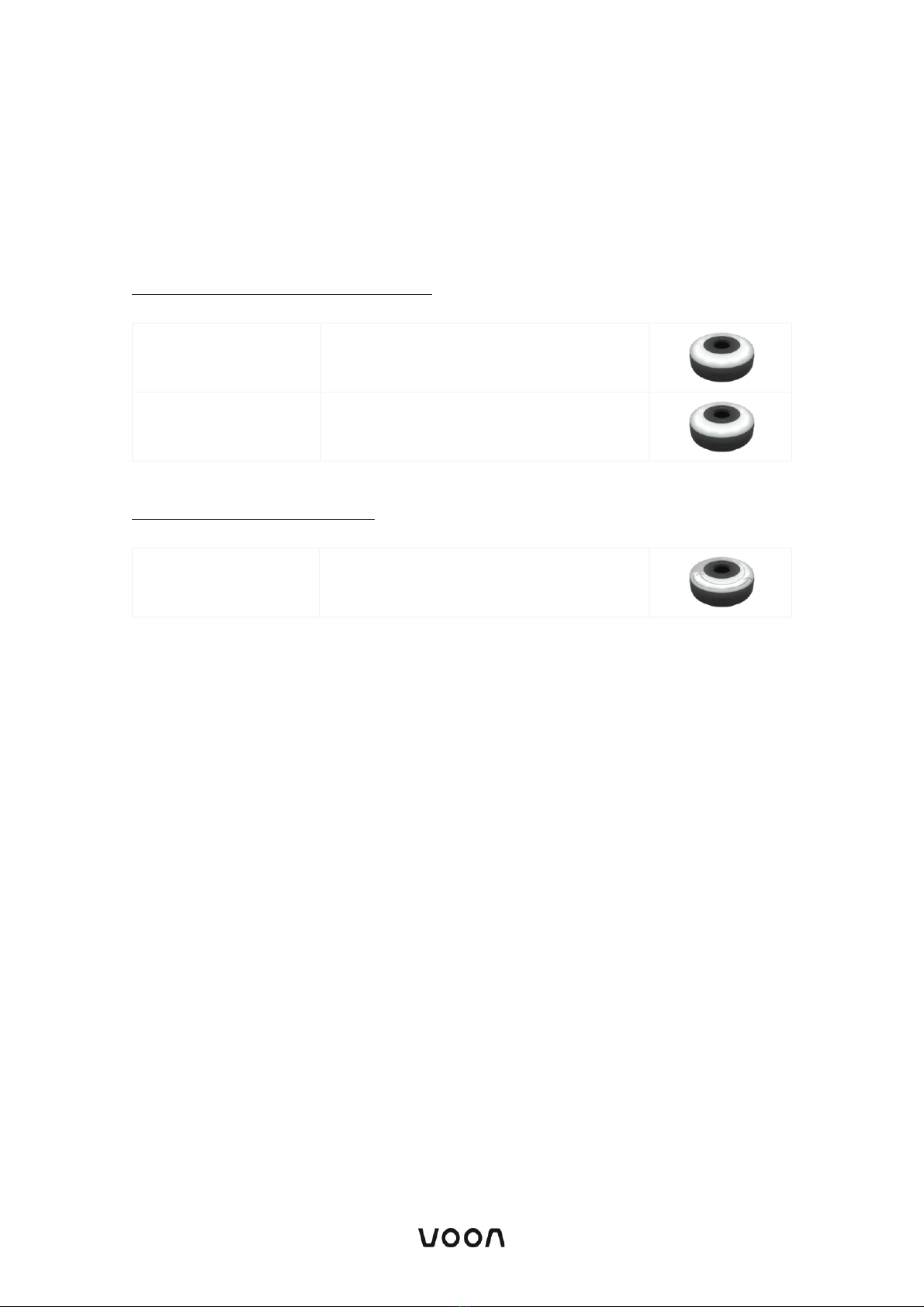

Dot connections/disconnection light signals:
The Dot ashes white once.
The Dot (unlinked) has been connected to the
smartphone.
The Dot ashes white
twice.
The Dot (linked) has been disconnected to the
smartphone.
Light signals of "waking up" the Dot:
The Dot is progressively
switched on and off in
white.
The Dot goes from "sleeping" to active and can be
linked to the smartphone.
05 l
PLAYGROUND
This is the central screen of the app and where you will spend most of your time. In the top right
corner, you can connect all the dots you have purchased.
Choose your favourite exercises from a variety of options designed to improve in different sports.
You have at your disposal combinations of exercises for one or more players and one or more Dots.
You will nd under each title the number of players and the number of Dots each exercise allows,
so you can quickly connect to the Dots you have on.

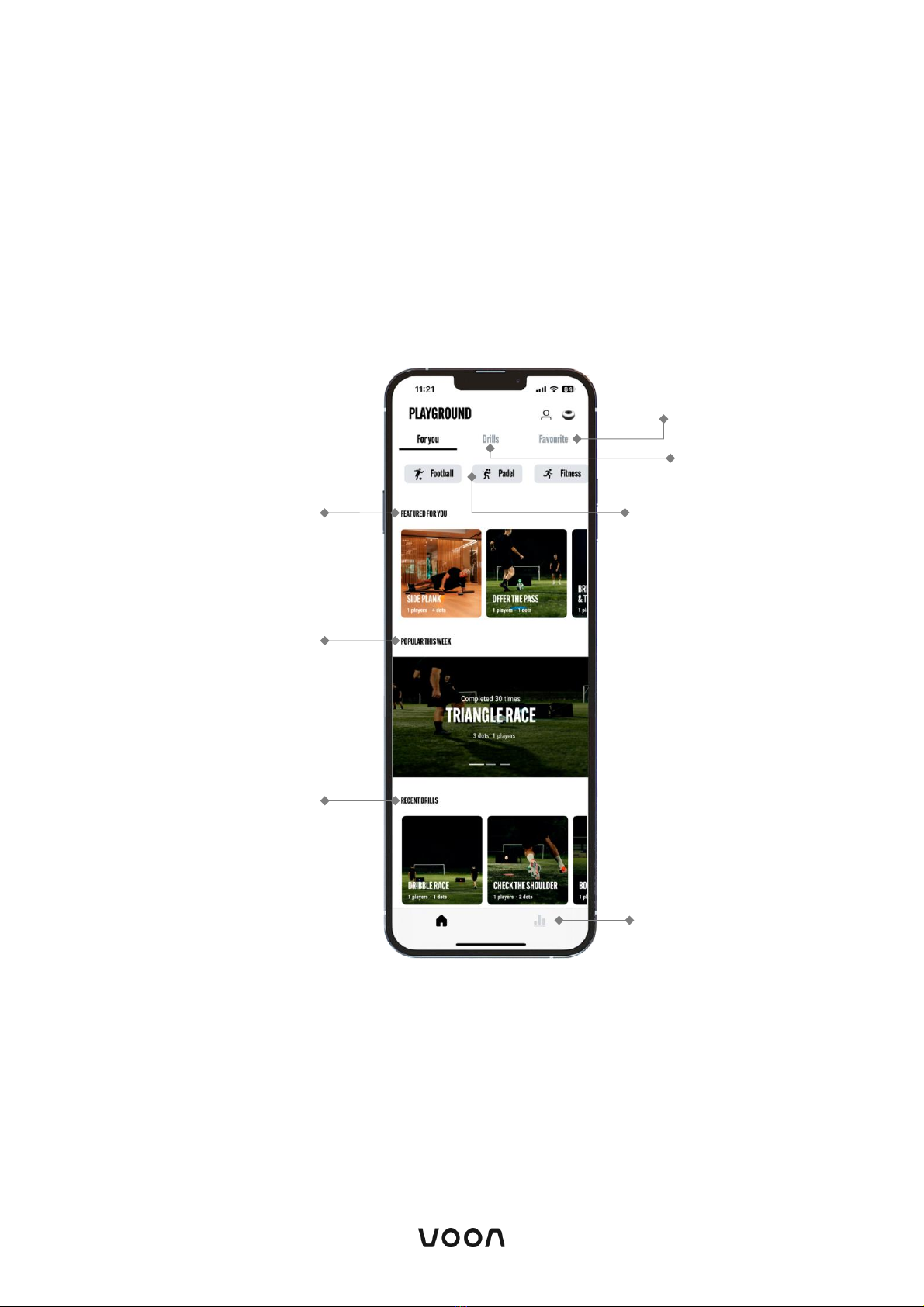

Filter the exercises by
sport.
Access your exercises marked as
favourites.
Exercises suggested to the
user according to their
favourite sports, and the
characteristics of the
exercises previously
performed.
Popular exercises
suggested each week.
Recently completed
exercises.
Access Activity screen.
Exercise list.
06 l
ACTIVITY LOG
Your Voon Sports account allows you to monitor your activity and performance. It offers you the
possibility to analyse and track data recorded in the exercises performed.
Save your activities: once you have completed an activity, you can view it in your prole under
Activity. Only activities with real players are saved and not with "guests".
Analyse your data: you can view more detailed information about your activities, including time,
speed, points, reaction time, total strikes...
Control your progress and goals: you can track your daily exercises and keep track of the activity
carried out according to your set goals.

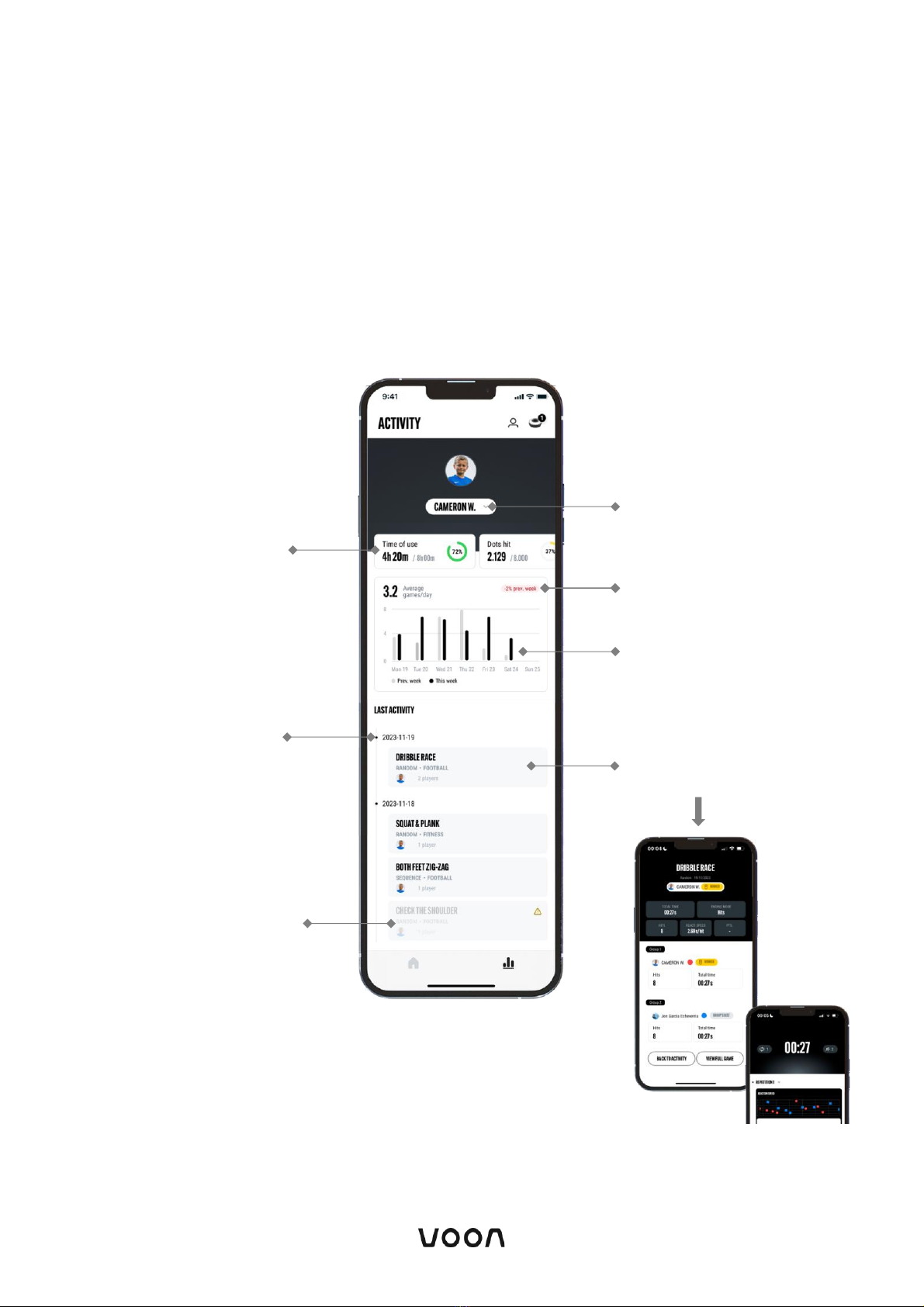

Selected player.
Representation of activity
carried out in the current and
previous week.
Weekly progress data
against set targets.
Exercise correctly saved. Click on
the exercise to access the exercise
details.
Exercise incorrectly saved
(not completed).
Date of recorded
executions.
Variation of the registered
activity with respect to the
previous week (%).
07 l

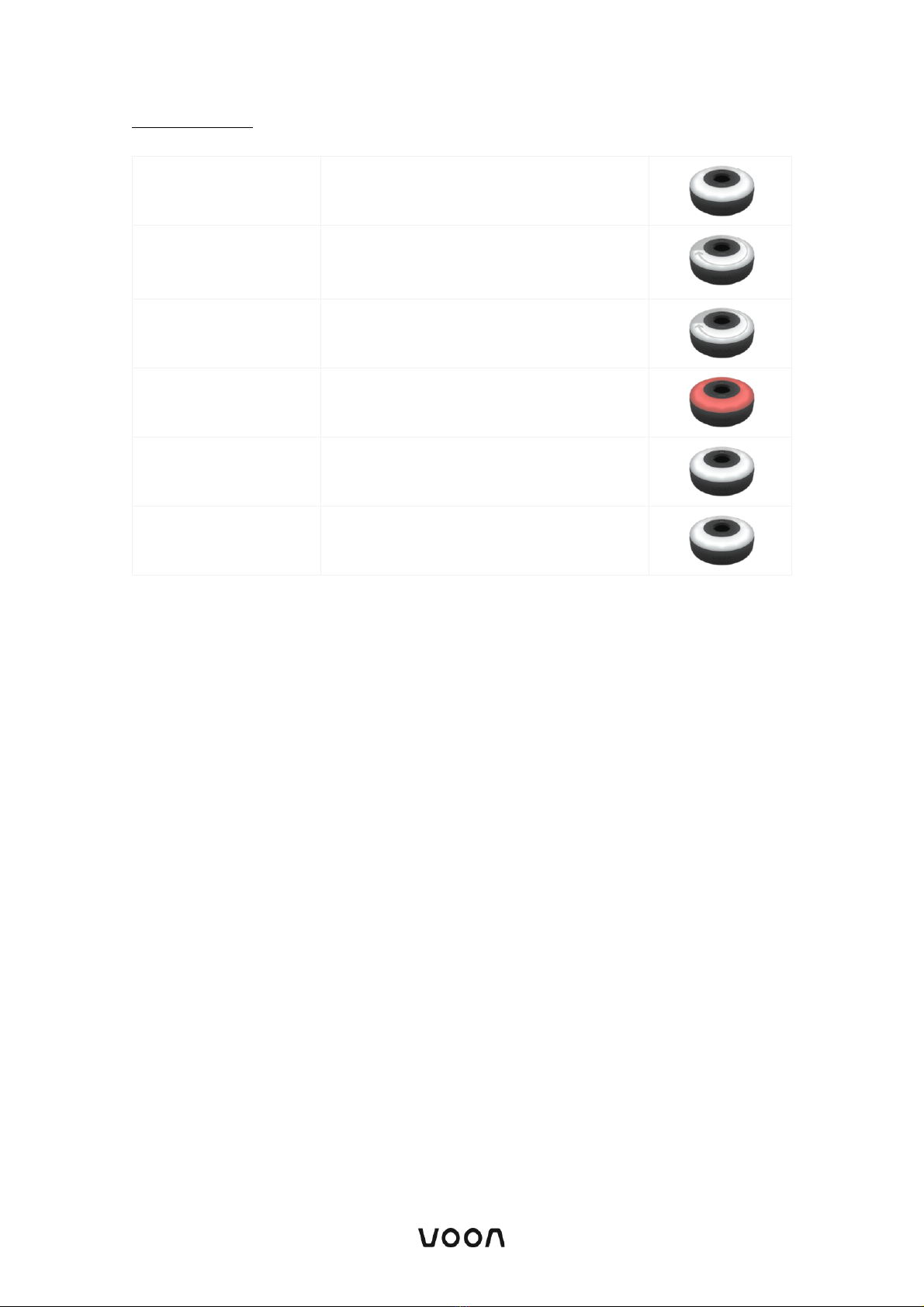

Light play signals:
The Dot remains on in
white.
Start of the game - START ON HIT
The Dots involved in the game remain lighted until
any one of them is hit to start the exercise.
The Dot lights up three
times in white decreasing
mode.
Start of game - 3 SECOND COUNTDOWN
Before the game starts, it lights up 3 times in
decreasing mode simulating a 3-second
countdown.
The Dot lights up once in
white decreasing mode.
Before the start of each repetition, it lights up once
in decreasing mode simulating a 1-second
countdown.
The Dot ashes red twice.
During the exercise, a Dot in the game has lost
connection. All Dots will ash red twice..
Dot ashes white 3 times.
The current exercise has been nalised.
Dot ashes white once.
If the exercise being executed has several
repetitions, the end of each repetition is marked by
ashing white once.
08 l
CHARGE THE DOT
WARNING
This device contains a polymer-ion battery. Please refer to the "Important Product and Safety
Information" guide included in the product box for important product information and warnings.
NOTICES
To prevent corrosion, thoroughly clean and dry the contacts and the area around them before
charging the device.

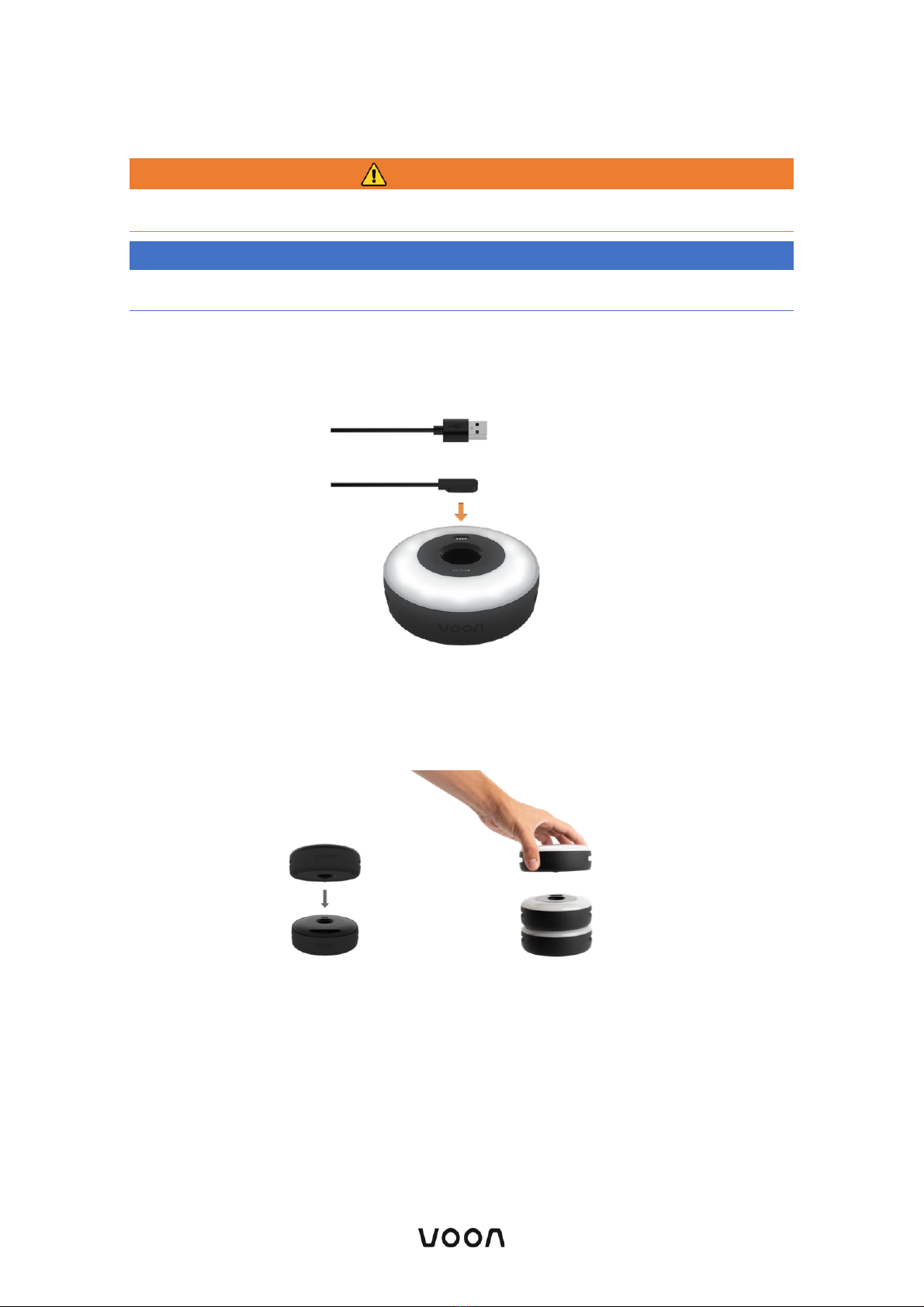

1 Connect the small end (magnetized connector) of the USB cable to the charging port on the top
of the Dot. It is only possible to connect in one arrangement as the Dot's connector and cable
are magnetically polarized.
If you want to charge more than one Dot at the same time with a single charging cable, stack
the Dots in such a way that the magnets on the top and bottom of the Dots are connected to
each other, and the charge is transferred from one Dot to another.
As more Dots are stacked, the loading process will slow down.
2 Connect the large end of the USB cable to a USB charging port.
3 Fully charge the Dot.
09 l

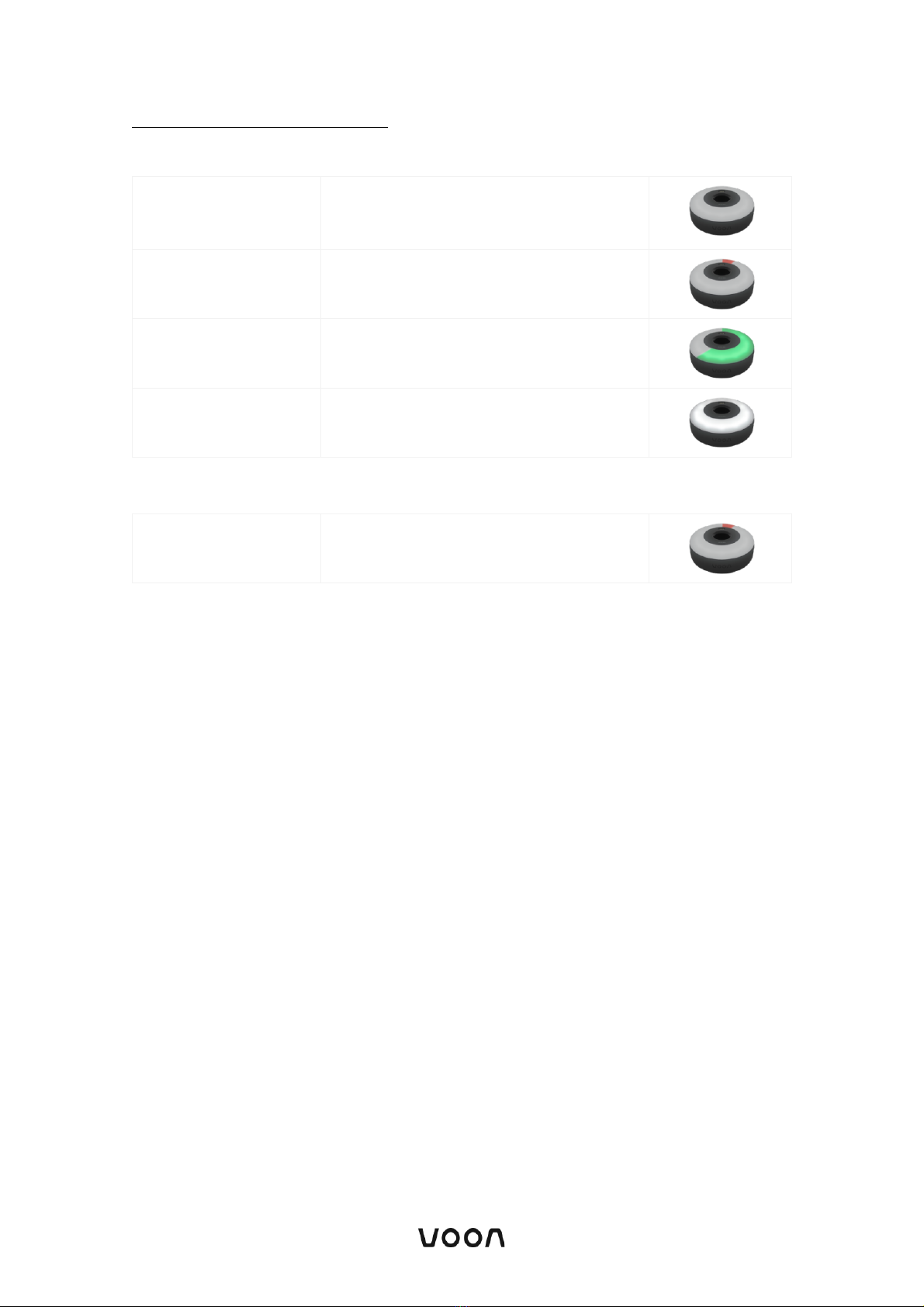

Light signals for charging/uncharging:
Charging cable connected
The Dot does not switch on.
1 Cable not connected correctly.
2 The Dot is fully discharged, and it is necessary
to wait 2-3 minutes for it to reach the next
phase.
The Dot lights up by
ashing a red LED.
The Dot is in charging mode. It does not yet have
enough battery power to link up to a smartphone.
Until it turns green, it cannot be used.
The Dot lights up ashing
green in increasing mode..
The Dot is in charging mode. As the Dot increases
its charge, the green light ring becomes full.
The Dot ashes white.
The Dot has completed its charging process.
Charging cable disconnected
The Dot keeps a red LED
on.
The Dot is less than 1% charged and cannot be
linked to the smartphone.
10 l
PRODUCT UPDATE
The Voon Sports app automatically checks the settings screen for the latest update available for
download on the smartphone and the rmware version installed on the Dots that are currently
connected to the app.
The Dot must be more than 30% charged in order to perform the update.
It is possible to update several Dots at the same time.
During the update process the application can be in the background, but within the Voon Sports
app, it is not possible to exit the screen. If you leave the updating screen, the Dots updating process
will stop and you will need to update them again.
Updating light signals:
The Dot ashes yellow.
The Dot is in the process of updating. Until the
charging process is nished, the Dot will ash
continuously.
The Dot is progressively
switched on and off in
yellow colour..
The Dot has completed its update.

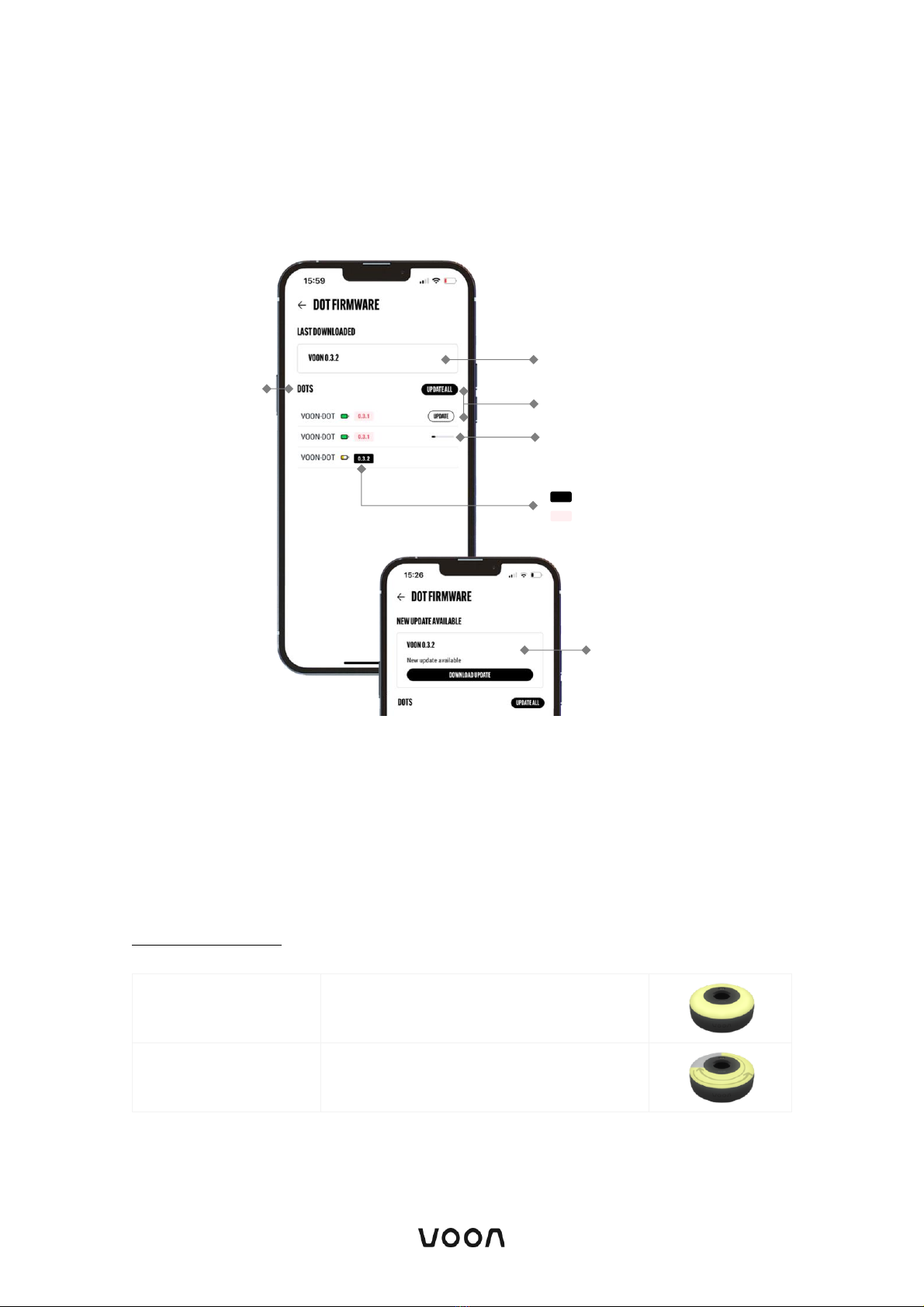

Update available for
download to smartphone.
Update downloaded on the smartphone.
Firmware version installed on the Dot..
Dot Updated
Dot to be updated
List of connected Dots.
Dot in the process of updang.
Update 1 or all connected Dots
