Vootto Classic Manuale utente
Compact Air Purifier
© Vootto® 2021. All rights reserved.
1. Safety, Use, and
Operating Instructions
Dear Customers,
Thank you for purchasing Vootto Air Purifier Ltd’s
air purifier. For a satisfying experience and
complete enjoyment of the product, please
read the instructions before installing and save
them for future use.
© Vootto® 2021. All rights reserved.
2

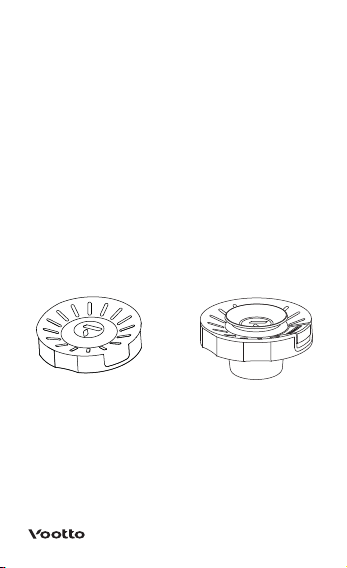

Differences in models:
Vootto is available in 2 different models fit to
your needs: Vootto Classic, and Vootto Heat. This
manual addresses both models with the
exception of the Opening Tab at the top of the
device.
Vootto Classic Vootto Heat
Safety Instructions
Before connecting the device to the power source, make sure that
the power supply cable is securely connected to the socket in the
vehicle and to the appliance itself and that it is not twisted, torn, or
damaged.
Keep the cable and device away from heat, hot or humid surfaces,
and liquids. Avoid touching the plug or switch with wet or damp
hands.
If the device gets wet from the outside or inside, unplug it from the
power source immediately.
Always make sure the connection plug is accessible when the device
is connected.
Never pull on the cable to disconnect the device from the power
supply. Always unplug the device using the plug itself.
Do not carry, pull or rotate the device with its power cord.
If the power cord is damaged, it must be replaced by the
manufacturer’s service center or by a service representative or a
qualified technician on its behalf.
Always make sure that the power cord does not get entangled in
essential vehicle parts. Do not bend, twist or wrap the cable.
Cleaning, filter replacement, and maintenance of the device will not
be performed by children. Keep unattended children away from the
device.
No component of Vootto or its accessories is to be eaten or
consumed internally. In any case of the development of an allergic
reaction, stop using the product immediately and consult a doctor.
© Vootto® 2021. All rights reserved.
3
Table of Contents
© Vootto® 2021. All rights reserved.
1. Safety, Use, and Operation
1.1.
1.2.
1.3.
2. Operation and Use
2.1.
2.2.
2.3.
3. Maintenance and Cleaning
3.1.
3.2.
3.3.
3.4.
3.5.
2
5
6
8
10
10
11
12
13
13
14
15
16
12
13
Device parts
What Vootto filters
Installation
Purpose of using the device
Activating the device
Use while smoking
When to replace a capsule
Replacing the Filter capsule
Replacing the Scent Capsule
Cleaning and maintenance
Troubleshooting
4. Technical Specifications
4
1.1. Device parts
© Vootto® 2021. All rights reserved.
Filter cover
Power switch Power socket
LED
indicator
Air Flow
Control ring
Air outlet
Silicone Wings
Grip
Active Shield
Filter Scent
Capsule
Top Tray
Opening Tab
Air
Vents
5
© Vootto® 2021. All rights reserved.
IN-EX Antiviral
coating
HEPA H13 Filter -
Active body
Activated
Carbon Filter
Odor Eliminating
Granulites
1.2. What Vootto filters
About the Vootto’s Active Shield capsule
1 2
3 4
Vootto's Active Shield filter system consists of four
filtration layers including IN-EX powered antiviral
coating, and eliminates 99% of all pollutants in the air.
6
© Vootto® 2021. All rights reserved.
The array of filters
Pre Filter: Mesh 60 metal filter.
HEPA H13: 99.7% efficiency in capturing and
filtering particles up to 0.3 microns in size.
Antiviral Coating: Powered by IN-EX
technology, this filter breaks down the protein
membrane of germs with an efficiency of
99.15%.
Activated carbon filter: effective in absorbing
chemicals, smoke, and pollutants.
Anti-odor granulites: made from a mixture of
over 200 plants that emit an un-detectable
smell and neutralizes unwanted odors.
1.2.1. Active Shield filter parts
1.
2.
3.
4.
5.
Vootto purifies only the air that passes through the device and
holds no responsibility over user’s health in relations to air
intake.
7
© Vootto® 2021. All rights reserved.
Carefully inspect the device, the power cord
and plugs for visible damage.
Do not use the device if it or any of its
accessories are damaged.
Avoid placing, using or storing the device
above or near containers of liquids.
1.3. Installation - before starting
Under no circumstances should the air passage of the
appliance be covered during use, including the air vents on the
top and the air outlets at the bottom of the appliance.
8
Connect the small plug provided to the power outlet
socket under the power switch of the device, and the
lighter plug on the other side to the lighter socket in the
vehicle. Only use original Vootto accesories, any use of
other plugs, cables or power sources will void and null
warranty.
1.3.2. Connecting to power
© Vootto® 2021. All rights reserved.
Place the Vootto device in the vehicle's cup holder. The
silicone stabilization wings at the bottom of the product
will help it position itself in the niche of stabily.
1.3.1. Placement of Vootto
9
© Vootto® 2021. All rights reserved.
2. Operation and Use
2.1. Purpose of using the device
Air purification and germ elimination
Filtration, purification and collection of smoking waste
Perfuming the car interior
Do not use the device for any purpose not specified by the
manufacturer. Use that does not comply with the
manufacturer's instructions will void the product warranty.
10
