User’s Guide

UT-6301

RS232/RS485/422 To TCP/IP Converter Module

2003

- 1 -

- 2 -

【Table of Content】

1. Getting to Know your UT-6301……………………………………….………..….…...1

1.1 Introduction

1.2 Main features

1.3 Applications for UT-6301……………………….…………………………………......2

2. Hardware Installation & Initial Setup………………………………………..…….3

2.1 Hardware Installation

2.2 LED status……………………………………………………………………….………4

2.3 Initial Setup

2.3.1 Installing the TCP/IP Protocol……………………….………..……............5

2.3.2 Fixed IP Addresses Configuration……………………………………..........7

2.3.3 Configure your UT-6301………………………….…..……………………........9

3. UT-6301 Configuration Setup………………………………………………………....10

3.1 Operation mode

3.2 IP Configuration…………………………………………...………………………......12

3.3 Serial Type……………………………………………………………………………...14

3.4 Dynamic DNS…………………………………………………………………..……...15

4. UT-6301 Management Setup………………………...………………………………...16

4.1 Device Admin

4.2 Device Status…………………………………………………………………………...18

4.3 E-Mail Alert………………………………………………………………..….………....18

4.4 Backup and Restore……………………………………………………………….....19

4.5 Upgrade Firmware

4.6 Ping…………………………………………………………………………………….….20

5. Troubleshooting…………………………………………………………………….…….21

Appendix B: DDNS

Appendix C: Glossary…………………………………….………………………….…….28

Appendix D: Finding the MAC Address and IP Address

for Your Ethernet

Adapter…………………………………………………………………….……………............31

- 3 -

reserved.

The information in this document has been carefully checked and is believed to be correct

as of the date of publication. UTEK Technology Co., Ltd. reserves the right to make changes

in the product or specification, or both, presented in this publication at any time without

notice.

UTEK assumes no responsibility or liability arising from the specification listed herein.

UTEK makes no representations that the use of its products in the manner described in this

publication will not infringe on existing or future patents, trademark, copyright, or rights of

third parties. Implication or other under any patent or patent rights of UTEK Technology Co.,

Ltd grants no license.

All other trademarks and registered trademarks are the property of their respective holders.

1. Getting to Know your UT-6301

1.1 Introduction

The UT-6301 is a RS232/RS485/RS422 to TCP/IP converter integrated with a robust system and network

management features designed for industrial equipment to be accessed and controlled via Intranet or Internet.

By integrating RTOS (Real Time Operating System) and complete TCP/IP protocol stack capability, UTEK’s

UT-6301 provides not only a robust and high performance system to make your device connecting to Network,

but also ease installation and Internet access.

The UT-6301 Web Configurator is a breeze to operate and totally independent of the operating system platform

you use.

1.2 Main features

The following are the main features of UT-6301

TCP/UDP server/client support

The UT-6301 support four types of connection: TCP server, UDP server, TCP client and UDP client, user can

select one of types to meet application requirement.

DHCP Client

DHCP (Dynamic Host Configuration Protocol) client obtains the TCP/IP configuration at start-up from a

centralized DHCP server, which means it can get IP address, an IP default gateway and DNS server.

PPP Over Ethernet

PPPoE is a protocol for connecting remote hosts to the Internet over DSL connection by simulating dial-up

connection.

Dynamic DNS

With dynamic DNS support, you can have a static hostname alias for a dynamic IP address, allowing the host to

be more easily accessible from various locations on the Internet.

Auto-negotiating 10/100Mbps Ethernet

The Ethernet interface automatically detects if it is on a 10 or a 100 Mbps Ethernet.

Full Network Management via Web

This feature allows you to access or manage device through IE or Netscape on any platform. The firmware also

can be upgraded via Web browser.

Backup and Restore configuration

This feature allows you to backup system configuration to a file and restores it, for the security issue, the file

which backup from system is an encryption format.

Alarm Generation

With SMTP client support, you can set system to trigger alarm message via e-mail or SMS (Short Message

System) to your mobile phone.

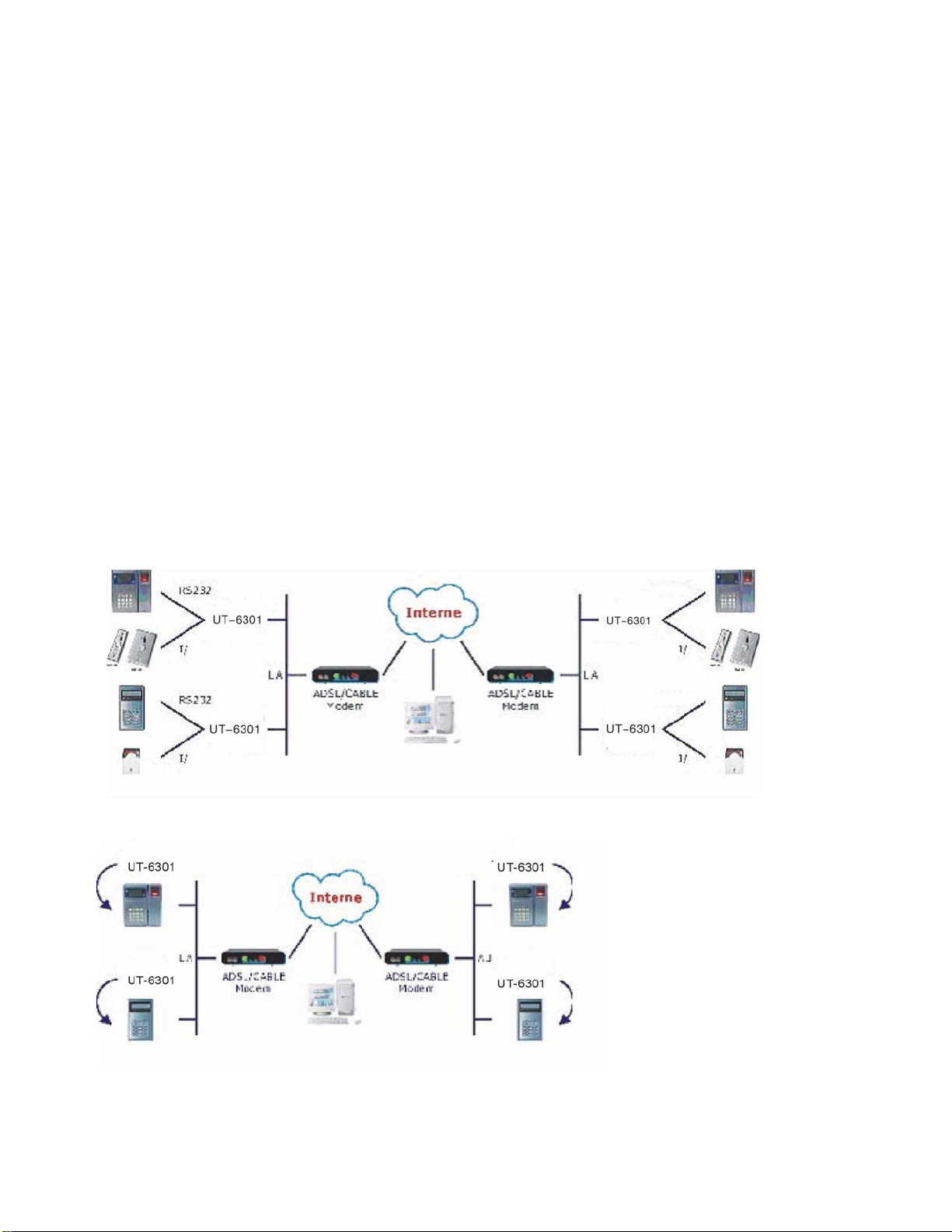

1.3 Applications for UT-6301

- 4 -

Figure 1 Standalone UT-6301’s application through Internet

Figure 2 Socket-Type UT-6301’s application through Internet

2. Hardware Installation & Initial Setup

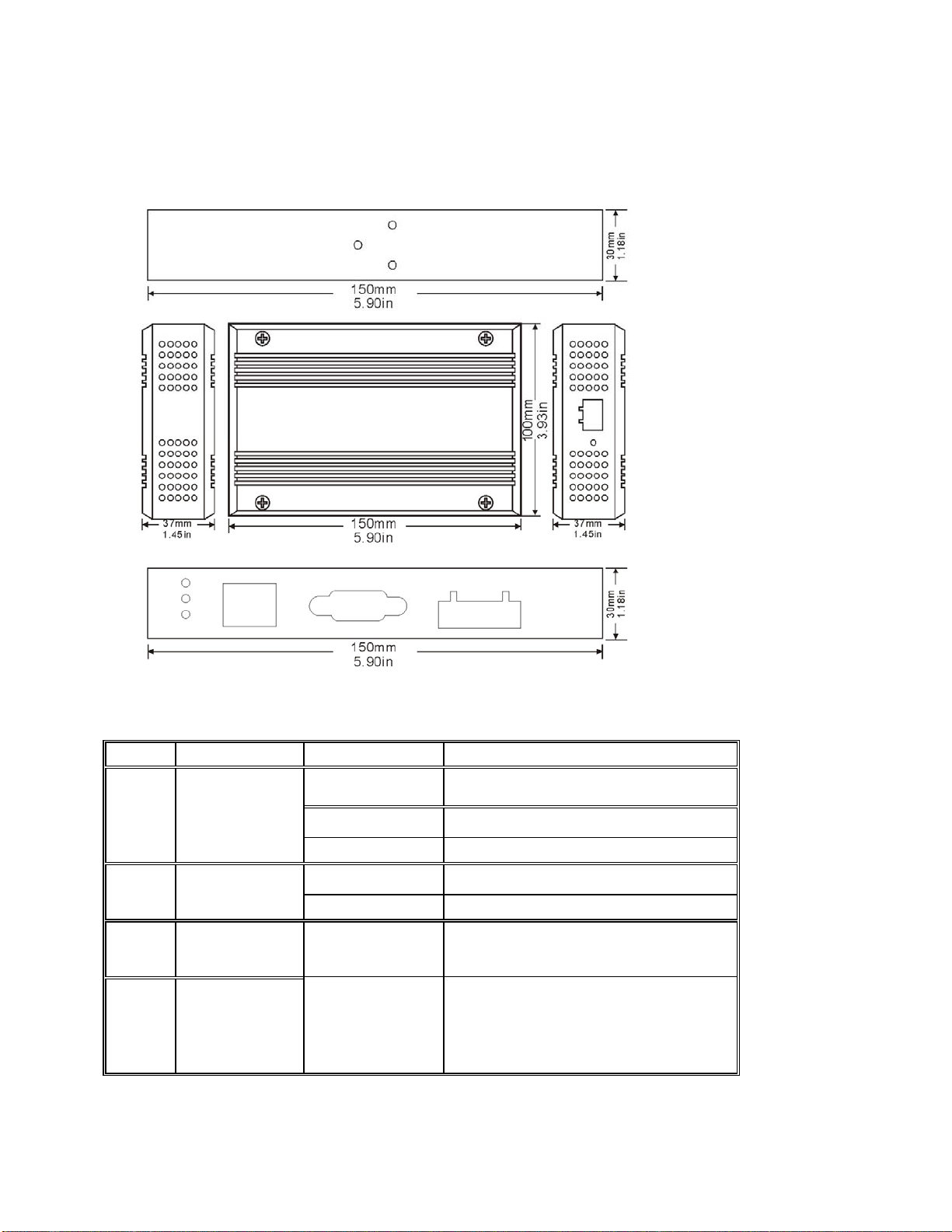

2.1 Hardware Installation

- 5 -

2.2 LED status

LED Color(s) Activity Desc.

Off Power OFF

Red Blinking Booting/System Self-Test

PWR Red

Red On Device Ready

Off No Ethernet Link

LAN

Link Yellow Green On Ethernet Link established

RXD

Yellow ON Signal indication data receive

TXD

Green ON Signal indication data send

2.3 Initial Setup

Use this section to set up your computer to assign it a static IP address in the 192.168.168.1 to

192.168.168.254 range with a subnet mask of 255.255.255.0. This is necessary to ensure that your computer

can communicate with your UT-6301.

Your computer must have an Ethernet card and TCP/IP installed. TCP/IP should already be installed on

computer using Windows 98/2000/XP and later operating systems.

Note: Connect a computer to UT-6301 Ethernet port directly should be with crossover Ethernet cable, if

both connect to hub/switch should be with straight-through Ethernet cable.

2.3.1 Installing the TCP/IP Protocol

If you are not sure whether the TCP/IP Protocol has been installed, follow these steps to check, and if

necessary, install TCP/IP onto your PCs.

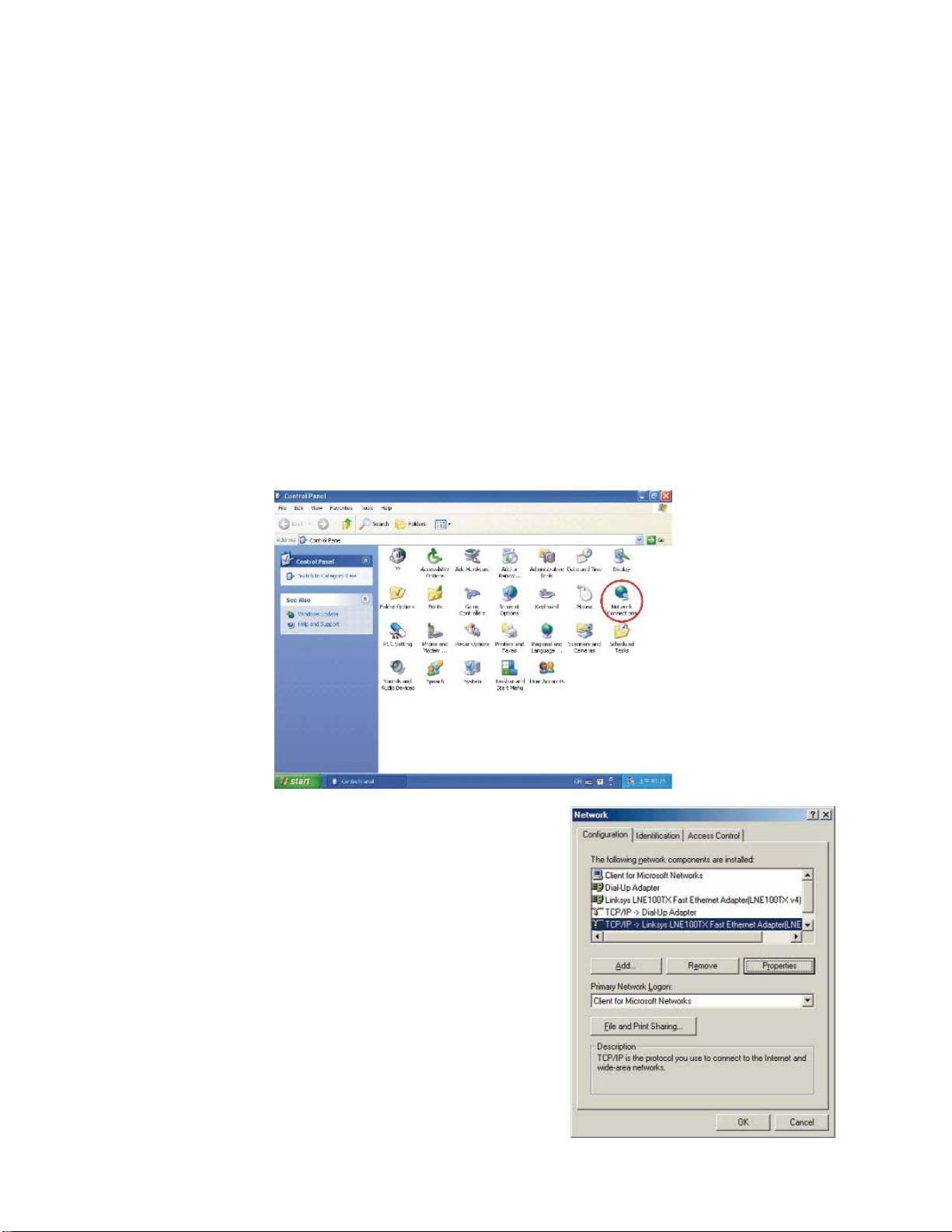

Step 1：Click the “Start” button. Choose “Settings”, then “Control Panel”. Double-click the “Network

Connections” icon. Your Network window should appear as follows:

Step 2：

For Windows 98 and Millennium

On the “Configuration” tab (if using Windows 98

and Millennium PCs), select the TCP/IP line for the

applicable Ethernet adapter. Do not choose a

TCP/IP entry whose name mentions

PPPoE, VPN. If the word TCP/IP appears by itself,

select that line. Click the Properties button.

- 6 -

Important:

For Windows 2000 & Windows XP Setting, you will find that they differ with Windows 98/ME/NT slightly. See the

following for reference.

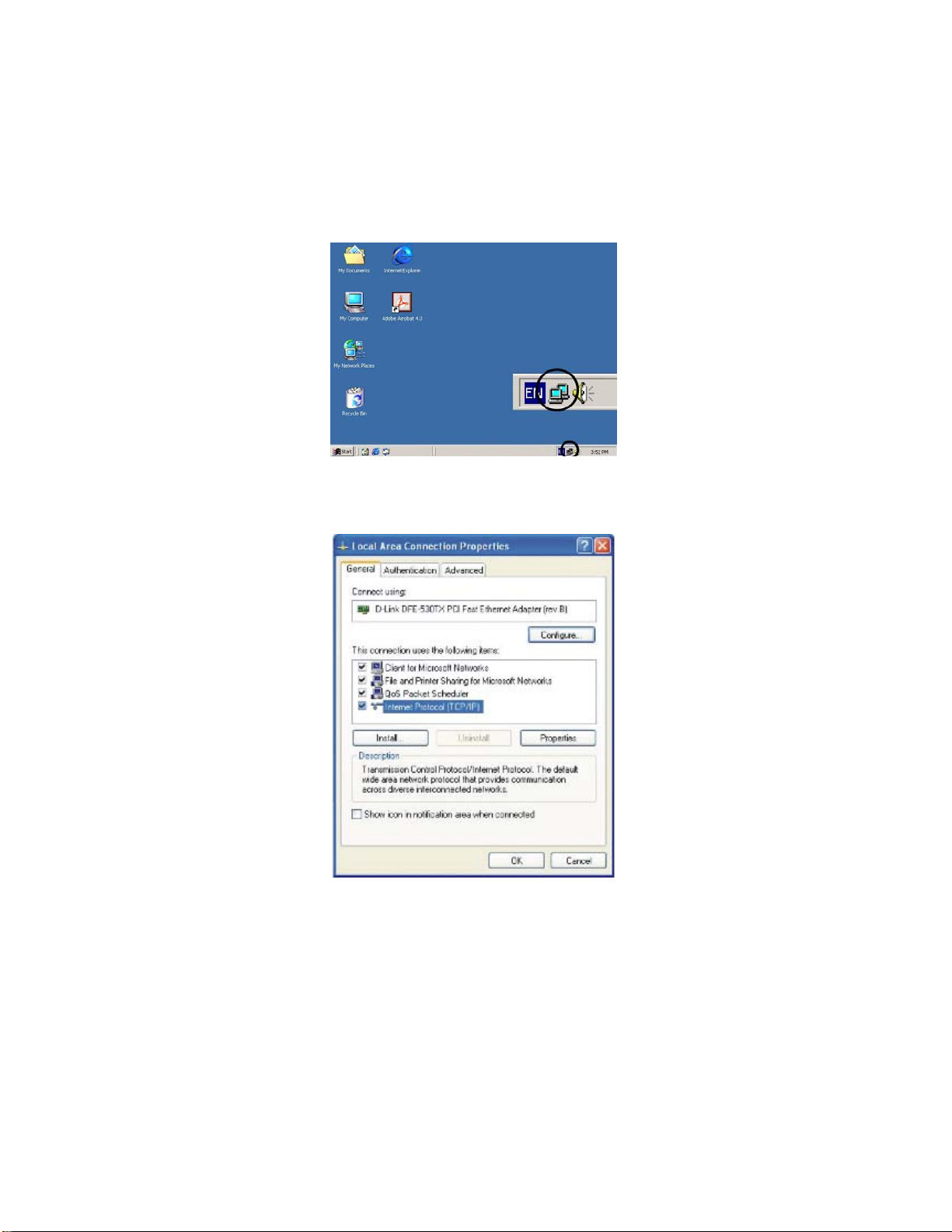

For Windows XP and Windows 2000

Click the “Local Area Connection” icon on the lower right hand side of your desktop screen.

In the “Local Area Connection Status” window, click the “Properties” button then your Network window will

appear.

There are two tabs, “General” ”Support”,in the Network window.

Step 3：Check whether the TCP/IP Protocol has already been installed onto your computer’s Ethernet card.

Note that TCP/IP Protocol can be installed for a computer’s Dial-Up Adapter as well as for the Ethernet card.

＊If yes, go to section 2.3.2.

＊If no, click the “Install” button.

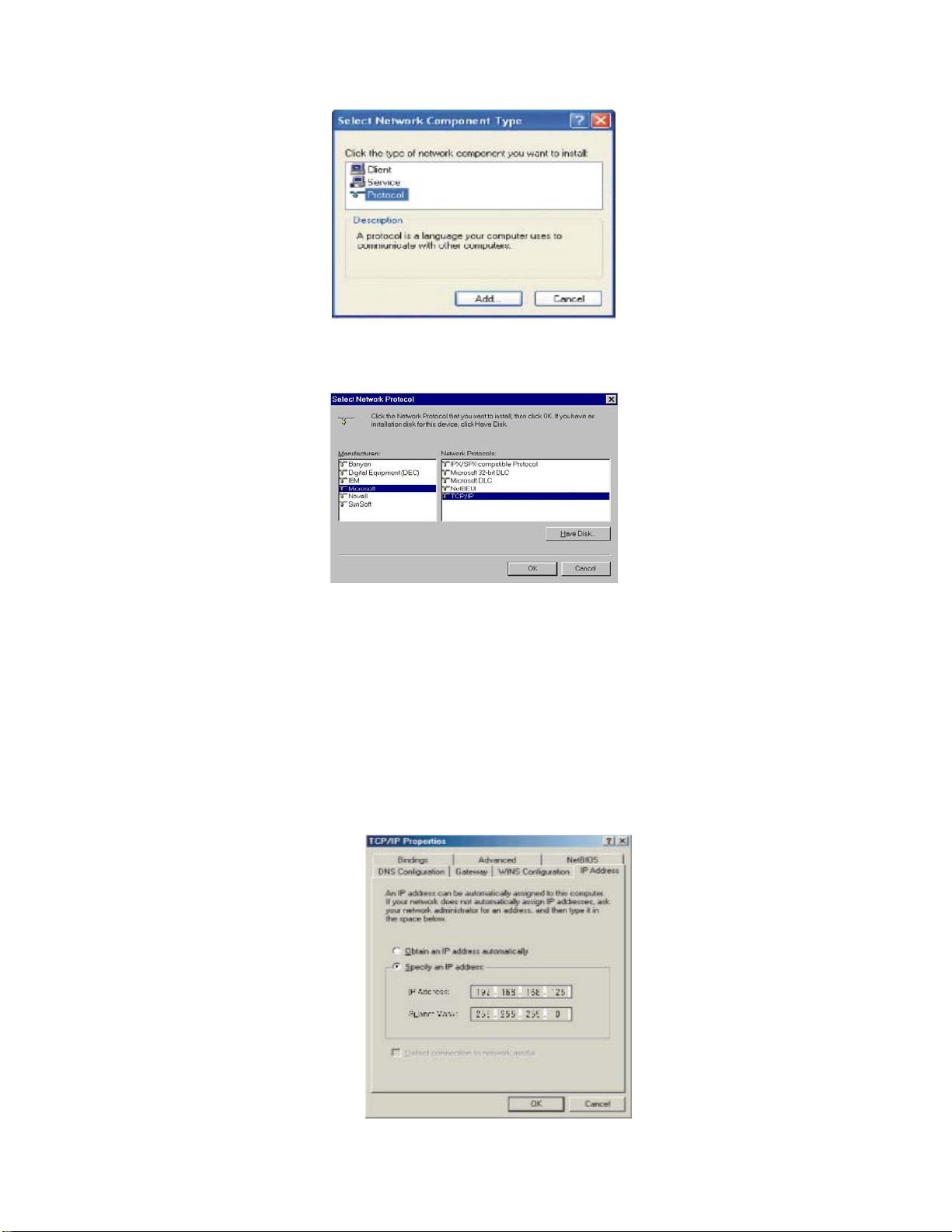

Step 4：Double-click “Protocol” in the Select Network Component Type or highlight “Protocol” then click

“Add”.

- 7 -

Step 5：Highlight “Microsoft” under the list of manufacturers. Double-click “TCP/IP” from the list on the right

or highlight “TCP/IP” then click “OK” to install TCP/IP.

Step 6：After a few seconds, you will be returned to the Network window. The TCP/IP Protocol should now be

on the list of installed network components (see 3 above).

2.3.2 Fixed IP Addresses Configuration

For Windows 98 and Millennium

Step 1：To set up computers with fixed IP Addresses, click the “Properties”button. The TCP/IP Properties

window consists of several tabs. Choose the “IP Address” tab as shown below.

Step 2：Select “Specify an IP address” and enter “192.168.168.xxx” (the default value of UT-6301 is

192.168.168.125) in the “IP Address” location (where xxx is a number between 1 and 254 used by the

High-Performance UT-6301 to identify each computer), and the default “Subnet Mask” “255.255.255.0”. Note

that no two computers on the same LAN can have the same IP address.

- 8 -

For Windows XP and Windows 2000

Step 1：Make sure the box next to Internet Protocol (TCP/IP) is checked. Highlight

Internet Protocol (TCP/IP), and click the Properties button

Step 2：Select “Specify an IP address” and enter “192.168.168.xxx” (the default value of 450M is

192.168.168.125) in the “IP Address” location (where xxx is a number between 1 and 254 used by the

High-Performance UT-6301 to identify each computer), and the default “Subnet Mask” “255.255.255.0”. Note

that no two computers on the same LAN can have the same IP address.

Click “OK”. to complete the TCP/IP installation.

- 9 -

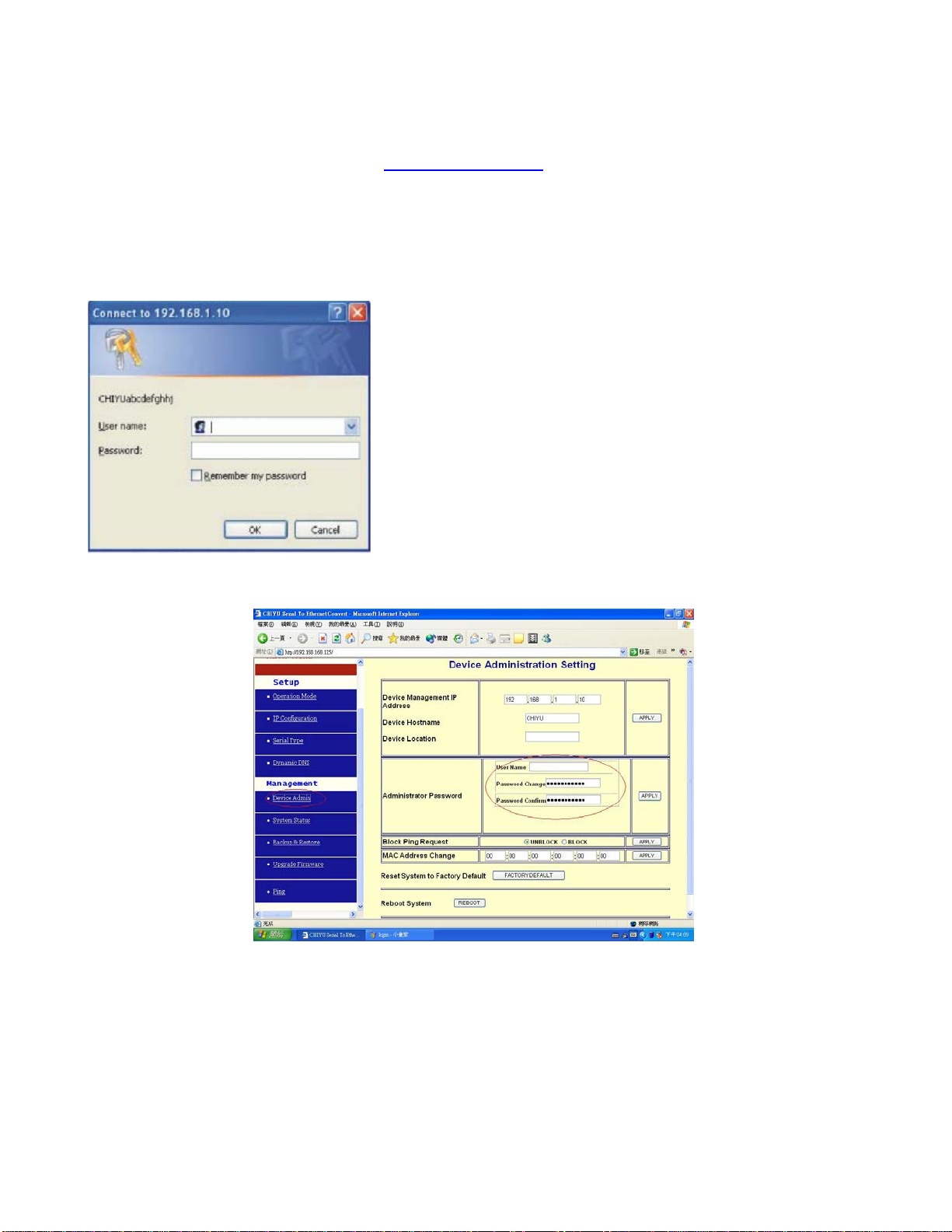

2.3.3 Configure your UT-6301

Step 1：Open your web browser and type http://192.168.168.125 in the browser’s address box. This address is

the factory set IP Address of your UT-6301. Press “Enter”.

Step 2：The “Username and Password required” prompt box will appear. Typing “admin”(default username)

in the Username field and typing “admin” (default password) in the Password field. Click “OK”. The setup

screen will then appear.

Step 3：It is highly recommended you change the default username and password when you login successfully

first time.

Step 4：Setup the Operation Mode for TCP/IP connection and Serial Type for connecting with your device.

Note: Don’t forget click Apply button to save your changing when you complete your configuration

setting each time, the UT-6301 will restart automatically in 10 seconds with your new setting.
