VPC G2 Manuale utente
INDEX (CLICK TO NAVIGATE TO PAGE)
PAGE
REMOVING ITA BACKSHELL
MICROSWITCH INSTALLATION
ENGAGING ITA WITH RECEIVER
KEYING PIN KIT USAGE
CABLE BUNDLE WIRE INFORMATION
VERTICAL HINGED MOUNTING FRAMES
G RECEIVER MOUNTING SPECIFICATIONS
G RECEIVER MOUNTING SPECIFICATIONS
G RECEIVER MOUNTING SPECIFICATIONS

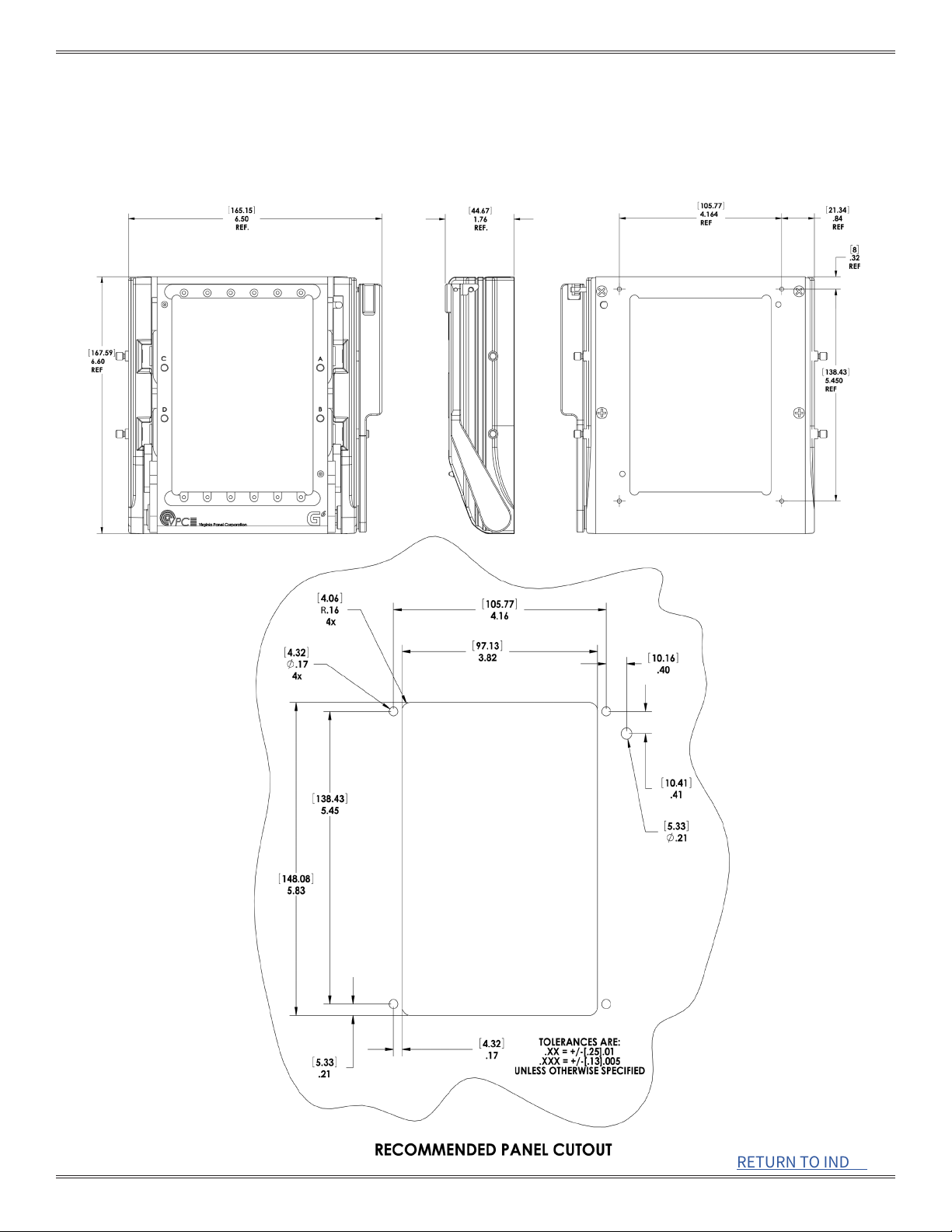

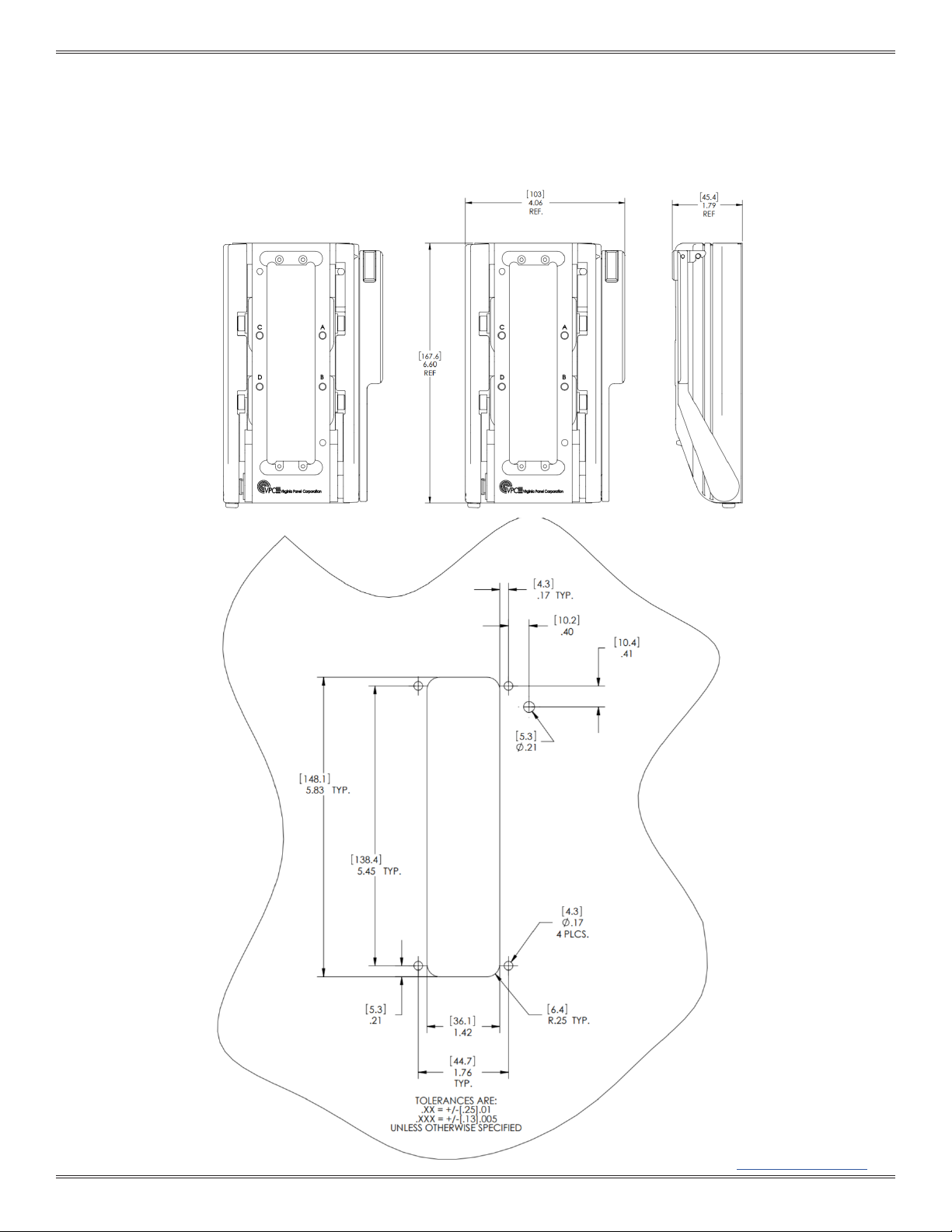

G RECEIVER PANEL CUT OUT SPECIFICATIONS
SLIDE MOUNT NOTATION REGARDING U HEIGHT
PRECAUTIONARY NOTES/ TROUBLESHOOTING
G2, G6 & G10 USER MANUAL
03/23/2022
Please note that any printed or downloaded User Manual may not reflect the most current revisions.
The information contained herein is subject to change.
For the most current information available, visit vpc.com.
G, G & G USER MANUAL VPC
03/23/2022
RETURN TO INDEX
1
REMOVING ITA BACKSHELL
PART # , , , ,
The G2, G6, and G10 ITAs are equipped with removable EMI-shielded backshells. The backshells slide up to provide access to wires and connectors. To slide
the backshell up, be sure to first remove the screw(s) located at the base of the ITA. The G2 and G10 have two screws at the base, and the G6 has one. Once the
backshell is put back into place, be sure to secure the screw(s) back in place, as the EMI shielding provided by the backshell will not take eect otherwise.
For drawings, specs and more information on the G2, G6 and G10 - please visit vpc.com.
G, G & G USER MANUAL VPC
03/23/2022
RETURN TO INDEX
2
MICROSWITCH INSTALLATION
PART # 310 113 180
This microswitch is compatible with the G2, G6 and G10 receivers. A microswitch will alert users as to the presence of an engaged ITA in the system.
DISCONNECT ALL ELECTRICAL SUPPLIES
TO THE SYSTEM PRIOR TO INSTALLATION OF
MICROSWITCH.
Figure B. Microswitch detail view
1. There are four slots machined into the receiver beside the two engagement slides that
accept the ITA rollers. Locate the large slot along the top of the right engagement slide
(Figure A).
2. Place the microswitch in the slot, feeding the wires through the hole provided (Figure B).
3. Attach the microswitch using the two screws provided. The mounting holes are located in
the side of the receiver. One can be accessed with the handle in the open position, and the
other with the handle in the closed position.
4. Wire the microswitch, as desired.
Figure A. Front of receiver.
Exit hole
Wires
Microswitch
G, G & G USER MANUAL VPC
03/23/2022
RETURN TO INDEX
3
1. Prior to engaging an ITA with the receiver for the first time, it is good practice to check that all
modules (ITA and receiver) have been installed properly. This involves inspection of module ends
- ensuring even height relative to one-another. While checking this, the user should also verify the
positioning of the modules. Pin 1 should always be at the top of both ITA and receiver modules. It is
crucial for all modules to be installed properly. Improper installation will cause damage to modules,
and possibly to the ITA and/or receiver. All ITA modules must match receiver modules. Upon
engagement, ITA modules will mate with their respective receiver modules.
2. With the ITA in the upright position and the receiver handle open, align guide pins with bushings on
the ITA and mate.
3. The handle may now be moved to the upright/ closed position to engage contacts.
4. If there is any resistance when engaging, double-check module alignment and check for debris.
If still experiencing diiculty engaging, contact VPC and speak to a VPC Engineer for assistance.
Proceeding or using force may cause damage to the system that voids any warranty.
WHEN ENGAGING ITA WITH RECEIVER, ENSURE THAT ITA IS PARALLEL WITH
RECEIVER AND THAT ITA ROLLERS ARE ENGAGED AT THE SAME TIME.
ALL POWER SUPPLIES FOR THE SYSTEM SHOULD BE DISCONNECTED PRIOR
TO HANDLING. WHEN ENGAGING, BE SURE THAT ALL FOREIGN OBJECTS AND
DEBRIS ARE CLEARED FROM THE SYSTEM.
PART # , . , ,
, , , , ,
ENGAGING ITA WITH RECEIVER
G6 ITA and Receiver
G10 ITA and Receiver
Guide pins
G, G & G USER MANUAL VPC
03/23/2022
RETURN TO INDEX
4
KEYING PIN KIT USAGE
PART #
PINS USED IN RECEIVER SIDE
SCREWS USED
IN ITA SIDE
PATTERN 1 PATTERN 4
RECEIVER ITA RECEIVER ITA
PIN A
INSTALLED
PIN C
INSTALLED
SCREW A
OPEN
SCREW C
OPEN
PIN A
OPEN
PIN C
OPEN
SCREW A
INSTALLED
SCREW C
INSTALLED
PIN B
OPEN
PIN D
OPEN
SCREW B
INSTALLED
SCREW D
INSTALLED
PIN B
INSTALLED
PIN D
INSTALLED
SCREW B
OPEN
SCREW D
OPEN
PATTERN 2 PATTERN 5
RECEIVER ITA RECEIVER ITA
PIN A
INSTALLED
PIN C
OPEN
SCREW A
OPEN
SCREW C
INSTALLED PIN A OPEN PIN C
INSTALLED
SCREW A
INSTALLED
SCREW C
OPEN
PIN B
INSTALLED
PIN D
OPEN
SCREW B
OPEN
SCREW D
INSTALLED
PIN B
INSTALLED PIN D OPEN SCREW B
OPEN
SCREW D
INSTALLED
PATTERN 3 PATTERN 6
RECEIVER ITA RECEIVER ITA
PIN A
OPEN
PIN C
INSTALLED
SCREW A
INSTALLED
SCREW C
OPEN
PIN A
INSTALLED
PIN C
OPEN
SCREW A
OPEN
SCREW C
INSTALLED
PIN B OPEN PIN D
INSTALLED
SCREW B
INSTALLED
SCREW D
OPEN
PIN B
OPEN
PIN D
INSTALLED
SCREW B
INSTALLED
SCREW D
OPEN
Use this table as a guide for keying pin locations.
Additional details can be found by accessing the drawing for this part number online at vpc.com.
The Keying Pin Kit uses pins and screws to provide a way to isolate connectors to prevent operational mismatch. By design, pins are to be used in
the receiver, and the screws are to be used in the ITA. If the pins are used in the ITA, other accessories such as protective covers will not function
properly.
G, G & G USER MANUAL VPC
03/23/2022
RETURN TO INDEX
5

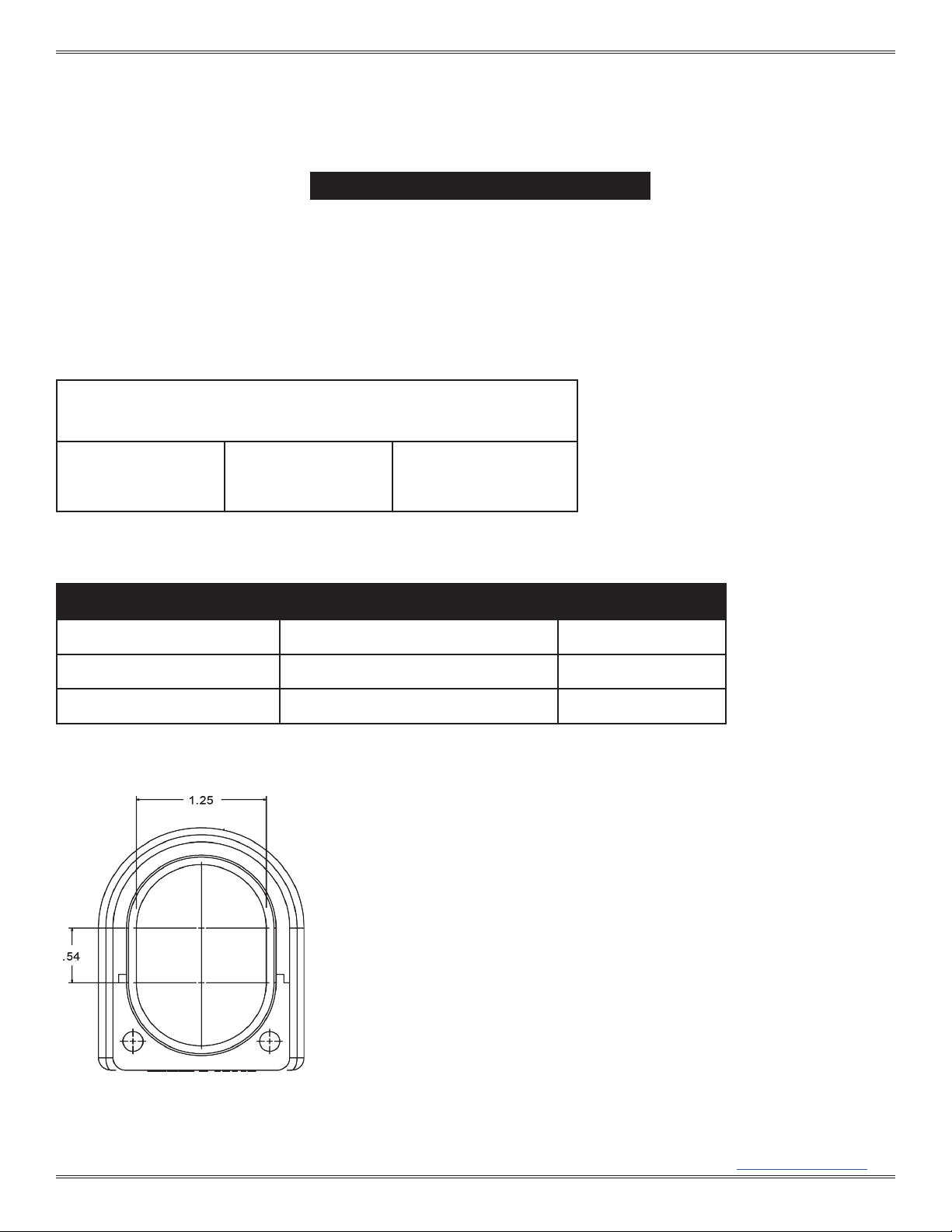

CABLE BUNDLE WIRE INFORMATION
PART# , ,
N={D/d - 1)2(.907)
N=Number of Wires D=Diameter of Converted
Oblong Bushing
d=Outside Diameter of Wire
Calculations
Wire Type Outside Diameter of Wire (d) Number of Wires (N)
20 AWG Signal - Teflon .056 683
10 AWG Power - PVF .160 72
RG316 Coax - 50 OHM .100 202
NOTE: Addition of shrink tubing or braid will reduce maximum number of wires through cable exit.
Max Oblong Cable Opening Diameter= 1.59”
Formula
1. The formula below can be used to calculate the maximum number of wires
recommended for a cable bundle used with a max cable exit of 1.59”.
2. The table below shows a sampling of the maximum number of wires that will fit in: the
single cable exit on the G2; each of the two oblong cable exits on the G6; or three oblong
cable exits on the G10. For example, each exit will hold a maximum of 683 signal (20
AWG) wires OR 202 coax (RG316) wires.
