Vulcan-Hart VSB34R Manuale utente

Item # __________________________

C.S.I. Section 11420

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

A2780

ISO9001

Vulcan-Hart Co.

F-32550 (04-07)

SPECIFICATIONS:

Heavy duty gas salamander broiler, Vulcan-Hart Model No.

VSB-34R. Stainless steel reinforced back riser for mounting over

GH Series heavy duty ranges. Stainless steel front, top and sides.

Six 11,000 BTU/hr bar-type burners with stainless steel radiants;

66,000 BTU/hr total input. Inﬁnite heat control valve. Pilot ignition

system. Chrome plated trigger grip control handle provides posi-

tive positioning of the broiling carriage. Heavy duty chrome plated

broiling grid measures 271/2"w x 13"d. Removable full width spillage

pan. 3/4" top gas connection and gas pressure regulator.

Exterior dimensions: 34"w x 19"d x 175/8"h.

CSA design certiﬁed. NSF listed.

SPECIFY TYPE OF GAS WHEN ORDERING.

SPECIFY ALTITUDE WHEN ABOVE 2,000 FT.

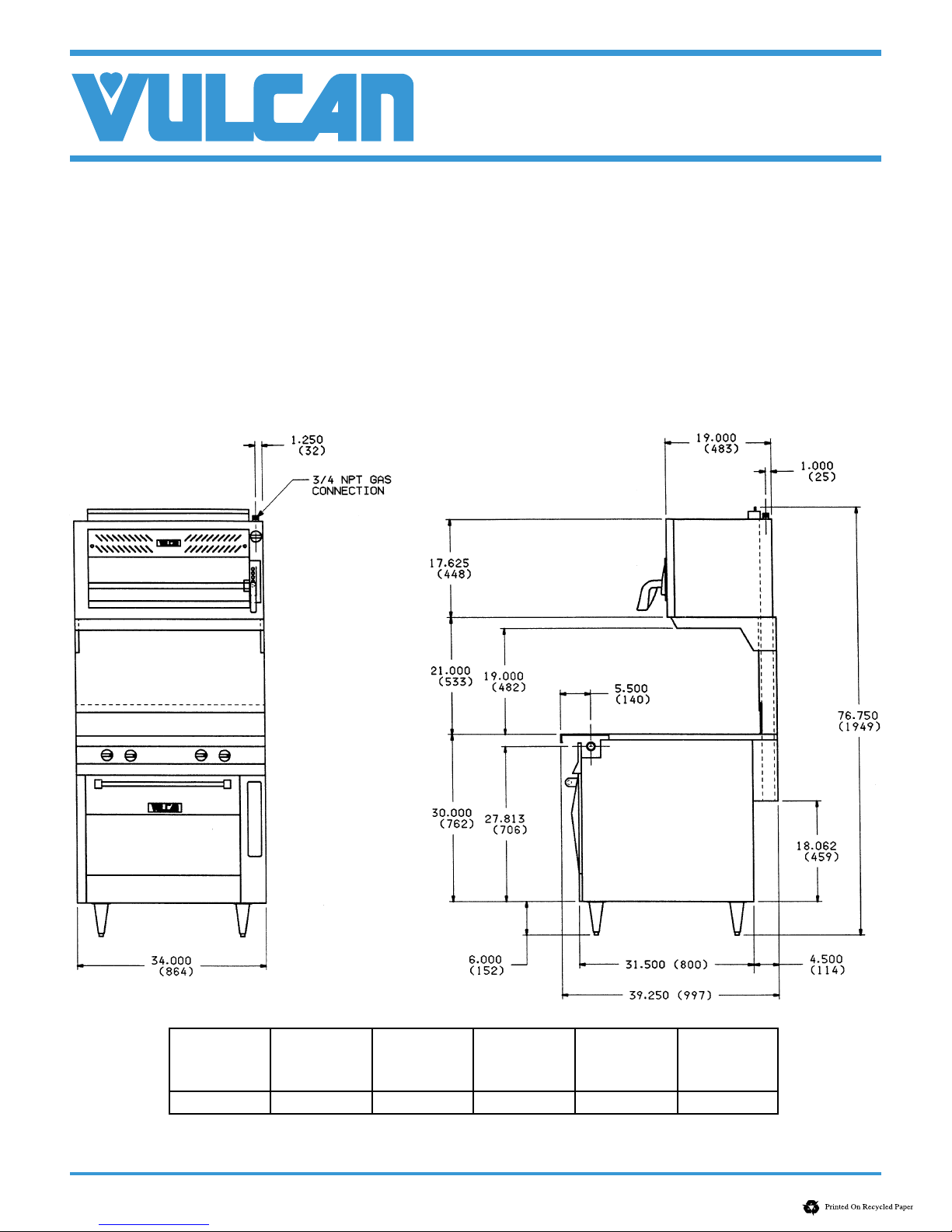

MODEL VSB34R

34" HEAVY DUTY GAS SALAMANDER BROILER

MODEL: VSB34R Heavy Duty Gas Salamander Broiler

■VSB34R 34" wide, 66,000 BTU/hr.

STANDARD FEATURES

■ Stainless steel reinforced back riser for mounting over GH

Series heavy duty ranges.

■Stainless steel front, top and sides.

■Six11,000 BTU/hr bar-typeburners withstainlesssteel radiants;

66,000 BTU/hr total input.

■Inﬁnite heat control valves.

■Standing pilot ignition system.

■Chrome plated trigger grip control handle provides positive

positioning of the broiling carriage. Heavy duty chrome plated

broiling grid measures 271/2"w x 13"d.

■Removable full width spillage pan.

■3/4" top gas connection and gas pressure regulator.

■One year limited parts and labor warranty.

OPTIONS

■Set of stainless steel wall mount brackets.

■Set of 4" legs with adjustable feet.

MODEL VSB34R

VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028

502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602

NOTE: In line with its policy to continually improve its products, Vulcan-Hart Company reserves the right to change materials and

speciﬁcations without notice.

F-32550 (04-07)

IMPORTANT

1. A gas pressure regulator sized for this unit is included.

Natural gas 6" W.C., Propane gas 10" W.C.

2. An adequate ventilation system is required for commercial

cooking equipment. Information may be obtained by writing to

the National Fire ProtectionAssociation, 1 Batterymarch Park,

Quincy, MA 02169. When writing refer to NFPA No. 96.

3. These units are manufactured for installation in accordance

with National Fuel Gas Code, ANSI-Z223.1/NFPA #54 (latest

edition). Copies may be obtained from The American Gas

Association, Accredited Standards Committee Z223 @ 400N.

Capital St. NW, Washington, DC 20001, or the Secretary

Standards Council, NFPA, 1 Batterymarch Park, Quincy, MA

02169-7471.

MODEL VSB34R

34" HEAVY DUTY GAS SALAMANDER BROILER

APPROX.

MODEL SHP. WT.

NO. BTU/HR. WIDTH DEPTH HEIGHT (lbs./kg)

VSB-34 66,000 34" 19" 191/16" 250/113

NOTE: In the Commonwealth of Massachusetts

All gas appliances vented through a ventilation hood or exhaust

system equipped with a damper or with a power means of

exhaust shall comply with 248 CMR.

4. Clearances: Combustible Non-Combustible

Rear 0" 0"

Sides 6" 0"

Bottom 10" 4"

5. This appliance is manufactured for commercial installation

only and is not intended for home use.
